Rod End Bearings
XF series is a common rod end bearing, mainly used to support and rotate small diameter shafts, with high load carrying capacity and rotation accuracy.

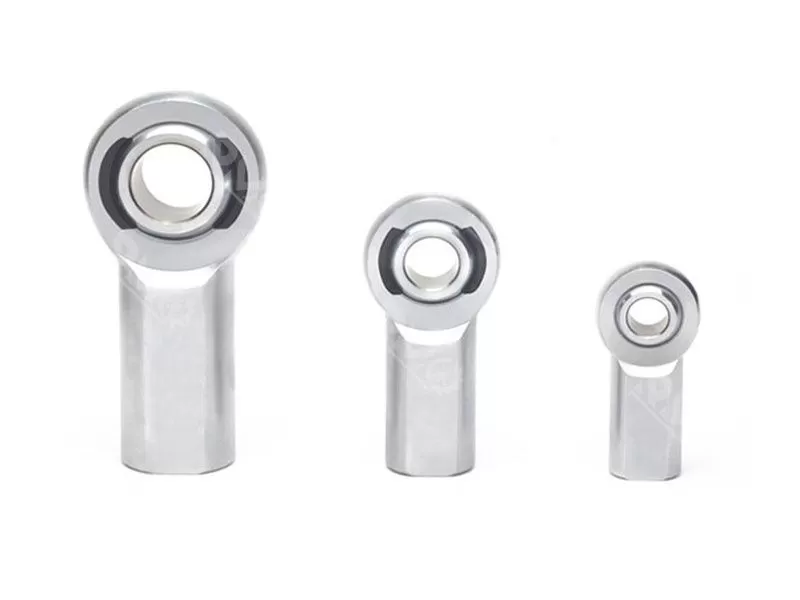

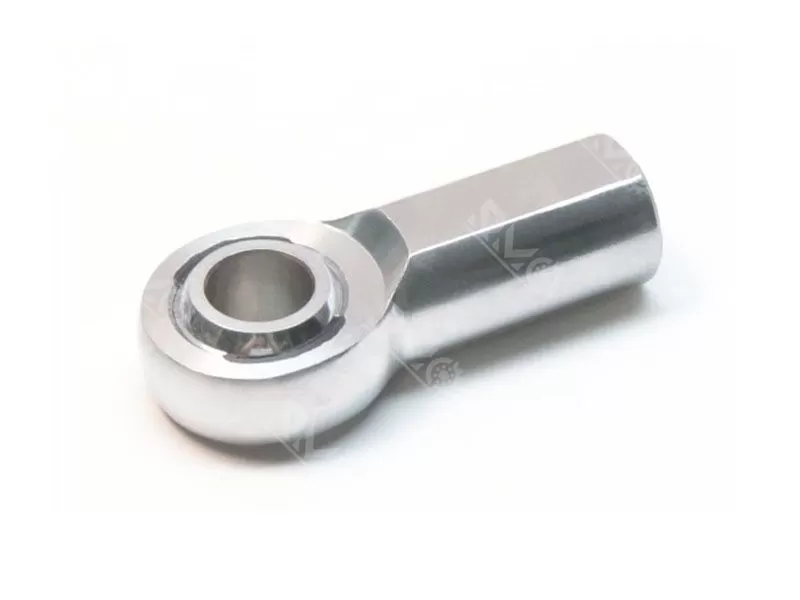

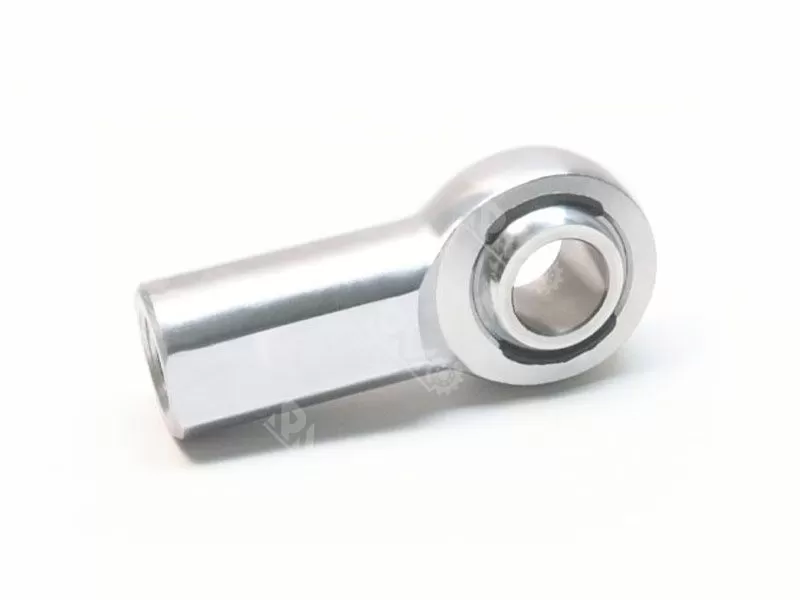

Product name: XF10 XFL10 rod end bearing

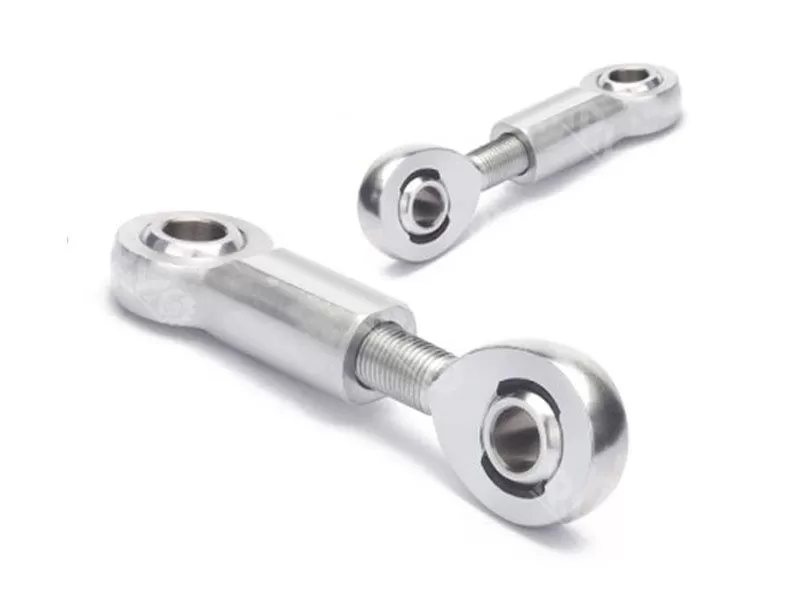

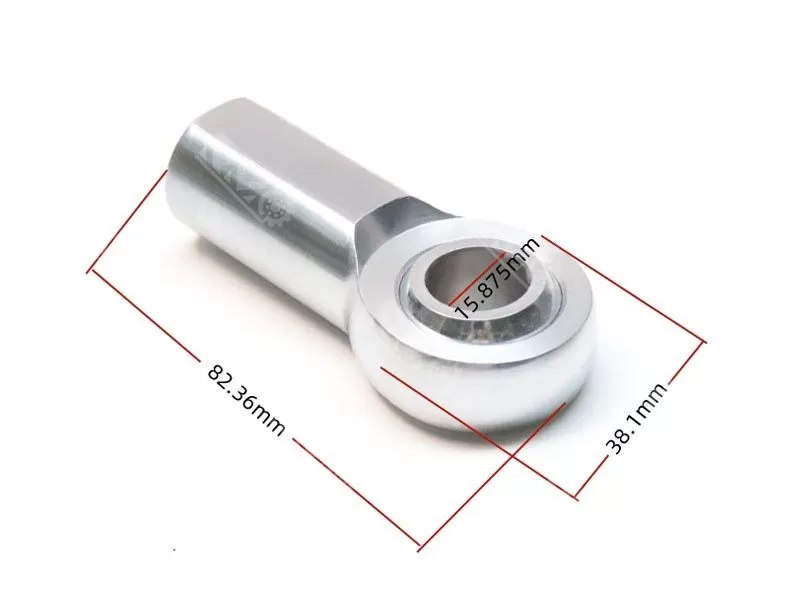

Size: 15.875x38.1x82.36mm
Material: steel with zinc plated
weight: 0.207KG
Lead time: normally 3-5 days
Specification
XF10 and XFL10 inch-sized female thread rod-end bearings feature housings made of heat-treated chromium-molybdenum steel, offering excellent strength and corrosion resistance. Their ball heads are crafted from heat-treated, hard chrome-plated, and precision-ground 52100 bearing steel, paired with PTFE injection-molded self-lubricating, self-sealing seat rings. The XF10 features a right-hand thread, while the XFL10 has a left-hand thread. These bearings are suitable for high-performance mechanical connections in applications such as racing vehicles and marine vessels.
Technical parameter:
| Model Number | XF10 XFL10 rod end bearing |
| Size | 15.875x38.1x82.36mm |
| Weight | 0.207KG |
| Material | steel with zinc plated |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Package | single box+Carton+Pallet |
| MOQ | 100 PCS |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
The XF10 and XFL10 inch-sized female threaded rod-end bearing structures feature: a heat-treated chrome-molybdenum steel housing for high strength and corrosion resistance; an internal ball head made of heat-treated, hard chrome-plated, and precision-ground 52100 bearing steel; paired with a PTFE or PTFE/ Kevlar injection-molded self-lubricating, self-sealing seat rings that effectively prevent dust and debris ingress. The metal-to-metal support structure withstands heavy impact loads. An annular groove machined within the main body allows injection of cushioning material after ball insertion, enhancing bearing strength and service life.
Related Products

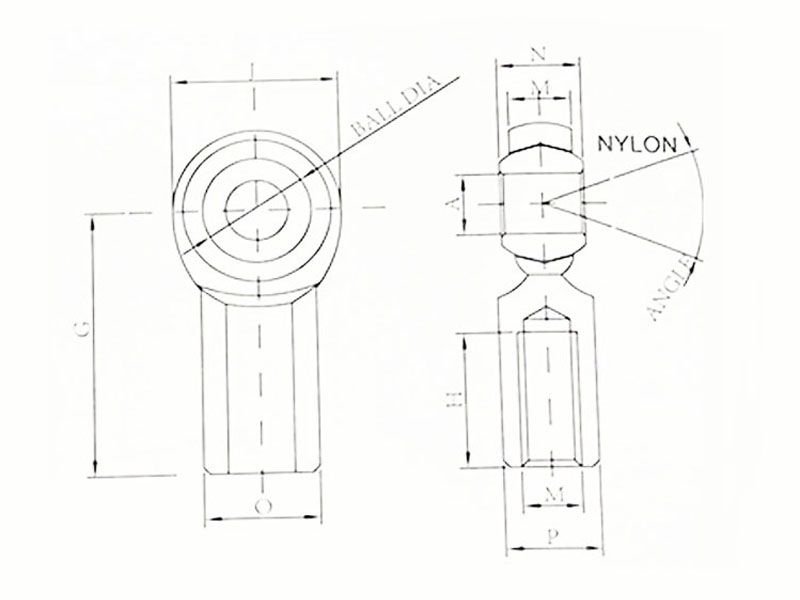

| Desc. | Threed class 2B | A +0025 -.0005 | B Ref | G ±.030 | H ±.060 | J ±.015 | M Ref | N ±.050 | 0 ±.079 | P Ref | Max Radia Static load (ibs) |
| XF-3 | 10-32 | .1900 | .430 | 1.062 | .580 | .625 | .250 | .312 | .406 | .312 | 900 |
| XF-4 | 1/4-28 | .2500 | .510 | 1.312 | .750 | .750 | .281 | .375 | .468 | .375 | 1800 |
| XF-5 | 5/16-24 | .3125 | .618 | 1.375 | .750 | 0.875 | .344 | .437 | .500 | .437 | 2900 |
| XF-6 | 3/8-24 | .3750 | .713 | 1.625 | .937 | 1.000 | .406 | .500 | .687 | .562 | 4100 |
| XF-7 | 7/16-20 | .4375 | .806 | 1.812 | .1062 | 1.125 | .437 | .562 | .750 | .625 | 5300 |
| XF-8 | 1/2-20 | .5000 | .931 | 2.125 | 1.187 | 1.335 | .500 | .625 | .875 | .750 | 7100 |
| XF-10 | 5/8-18 | .6250 | 1098 | 2.500 | 1.515 | 1.500 | .562 | .750 | 1.000 | .875 | 8300 |
| XF-12 | 3/4-16 | .7500 | 1336 | 2.875 | 1.750 | 1.750 | .687 | .875 | 1.125 | 1.000 | 12000 |
Application
XF rod end bearings are widely used in a variety of industrial equipment and machinery, especially in machinery requiring high load carrying capacity and stability. Because of its simple structure, strong load bearing capacity and wear resistance, XF rod end bearings have important applications in engineering hydraulic cylinders, forging machine tools, engineering machinery, automation equipment, automotive shock absorbers and other fields.
