Joint bearing is widely used in engineering hydraulic cylinder, forging machine tool, engineering machinery, automation equipment, automobile shock absorber, hydraulic machinery and other industries.
Rod End Bearings
Rod body with left or right-hand male thread, sliding contact surfaces: steel/PTFE. surface of rod body zinc plated.

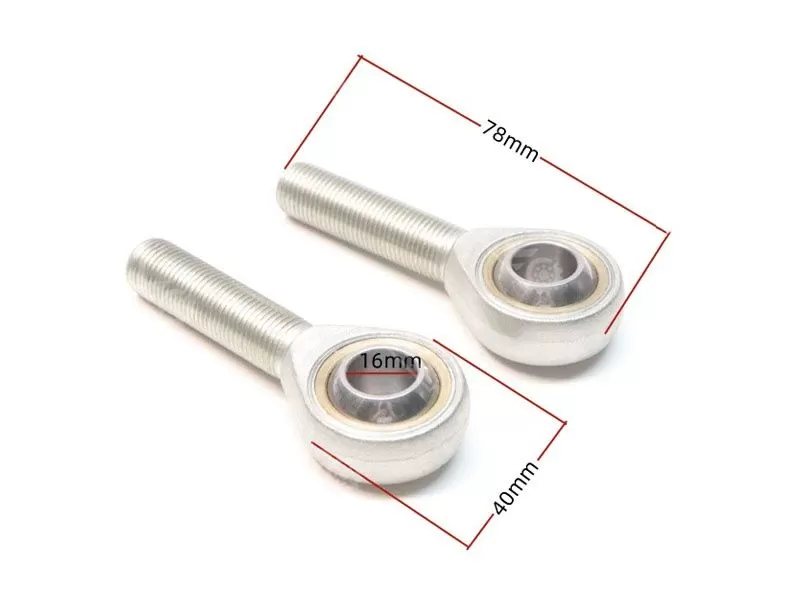

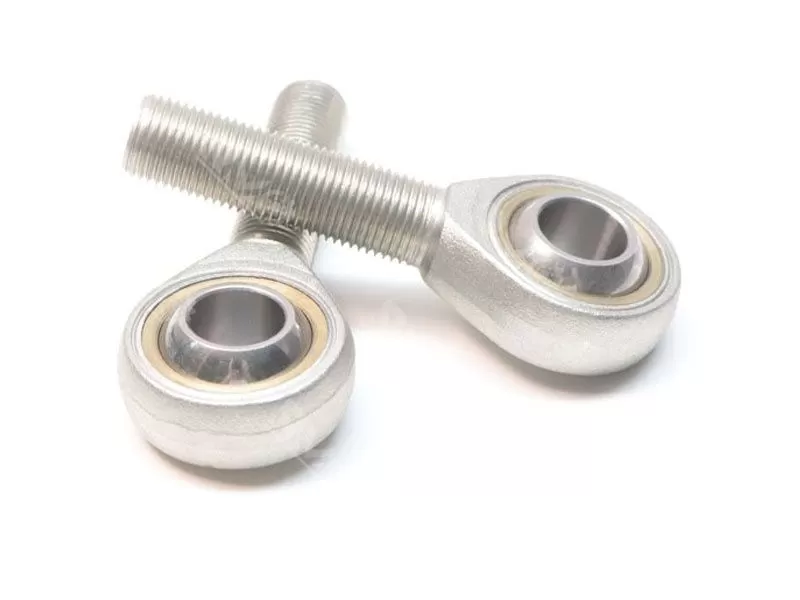

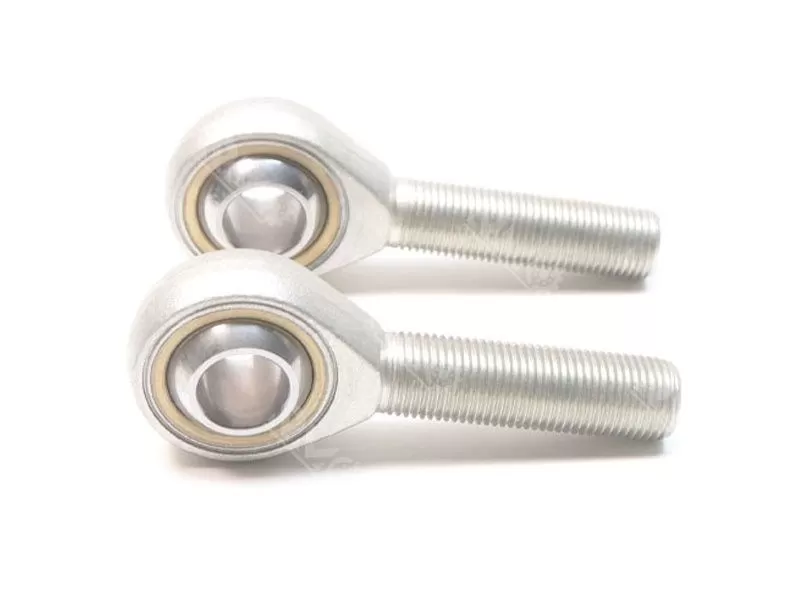

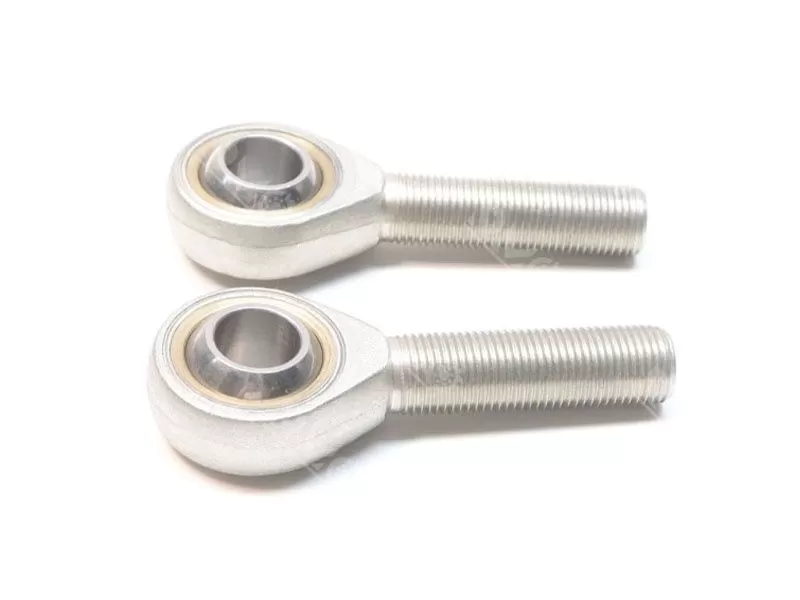

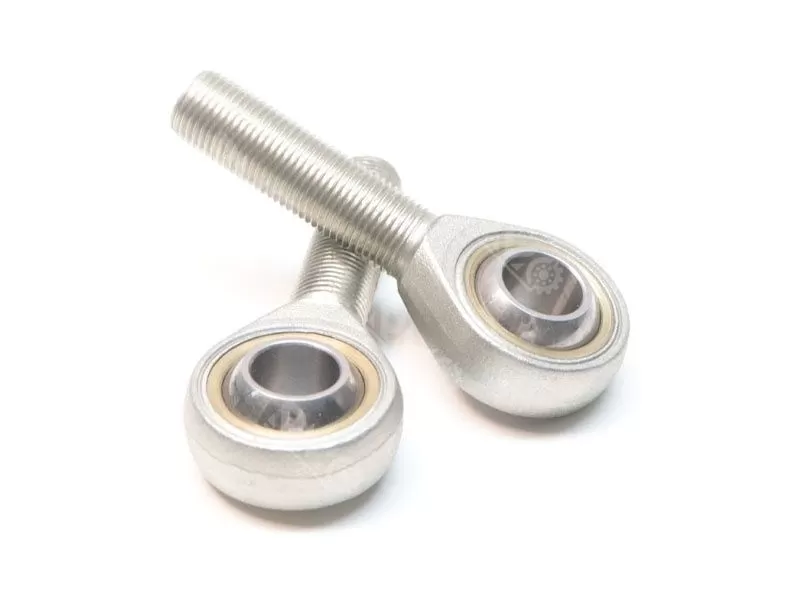

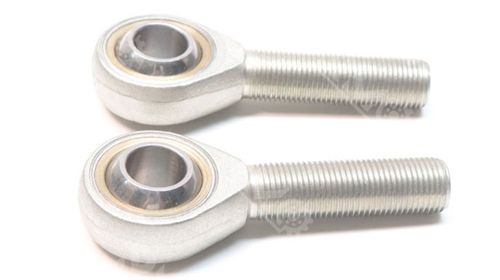

Product name: SA16T/K SAL16T/K rod end bearing
Size: 16x40x86x21mm
Material: steel/PTFE with zinc plated
weight: 0.2KG
Lead time: normally 3-5 days
Specification
SA16T/K and SAL16T/K external threaded rod-end spherical plain bearings feature right-hand and left-hand thread designs respectively. Their sliding contact surfaces utilize a steel/PTFE composite material, offering high load capacity and excellent wear resistance. Capable of compensating for installation misalignment, they are suitable for mechanical connection points requiring multi-angle transmission in equipment such as textile machinery and printing equipment.
Technical parameter:
| Model Number | SA16T/K SAL16T/K rod end bearing |
| Size | 16x40x86x21mm |
| Weight | 0.2KG |
| Material | steel/PTFE with zinc plated |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Package | plastic bag, plastic tube or single box+Carton+Pallet |
| MOQ | 100 PCS |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Rod end joint bearing is a joint bearing with a rod end or mounted on the rod end, which belongs to a class of joint bearings.
Surface phosphating, galvanized, chromium-plated or outer sliding surface lining, inserts, spraying, etc. Therefore, it has a large load capacity and impact resistance, and has the characteristics of corrosion resistance, wear resistance, self-aligning, good lubrication or self-lubrication without lubricating dirt pollution, and can work normally even if the installation is misplaced. Therefore, joint bearings are widely used in low speed swing motion, tilt motion and rotary motion.
Related Products

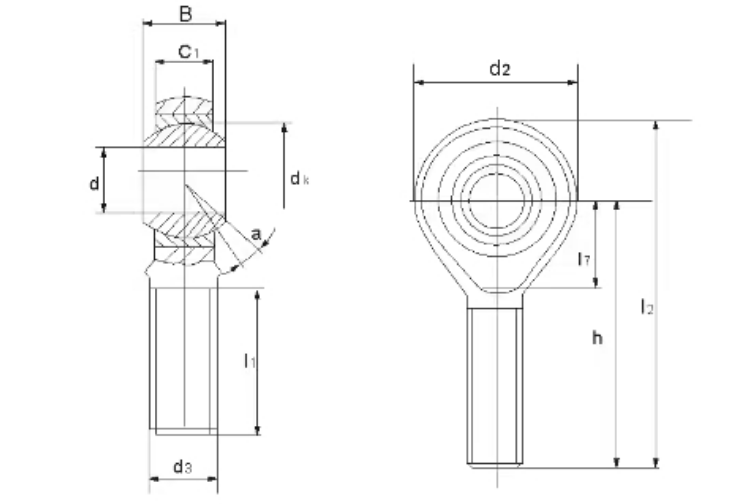

| 型号 MODEL NO | 主要尺寸MAIN DIMENSIONS (mm) | 基本精定载荷 BASIC LOADRATING | 重量 WEIGHT (kg) | |||||||||||
| d | d3 | B | C1 max | I1 min | d2 max | I7 mn | h | I2 max | dk | a' ≈ | 动 Dynamic C(kgf) | 静 Static Co(kgf) | ||
| SA3T/K | 3 | M3x0.5 | 6 | 4.5 | 15 | 12 | - | 27 | 33 | - | - | 1.8 | 3.528 | 0.006 |
| SA4T/K | 4 | M4x0.7 | 7 | 5.3 | 17 | 14 | - | 30 | 37 | - | - | 3.24 | 4.9 | 0.009 |
| SA5T/K | 5 | M5x0.8 | 8 | 6 | 19 | 18 | - | 33 | 42 | 11.11 | 13 | 3.25 | 3.10 | 0.013 |
| SA6T/K | 6 | M6x1 | 9 | 6.75 | 21 | 20 | - | 36 | 46 | 12.7 | 13 | 4.30 | 4.40 | 0.020 |
| SA8T/K | 8 | M8x1.25 | 12 | 9 | 25 | 24 | - | 42 | 54 | 15.875 | 14 | 7.20 | 8.00 | 0.034 |
| SA10T/K | 10 | M10x1.5 | 14 | 10.5 | 28 | 28 | - | 48 | 62 | 19.05 | 13 | 10.0 | 12.9 | 0.058 |
| SA12T/K | 12 | M12x1.75 | 16 | 12 | 32 | 32 | - | 54 | 70 | 22.225 | 13 | 13.4 | 17.0 | 0.092 |
| SA14T/K | 14 | M14x2 | 19 | 13.5 | 36 | 36 | 18 | 60 | 78 | 25.4 | 16 | 17.0 | 24.0 | 0.153 |
| SA16T/K | 16 | M16x2 | 21 | 15 | 37 | 40 | 23 | 66 | 86 | 28.575 | 15 | 21.6 | 28.5 | 0.205 |
| SA18T/K | 18 | M18x1.5 | 23 | 16.5 | 41 | 44 | 25 | 72 | 95 | 31.75 | 15 | 26.0 | 42.5 | 0.28 |
| SA20T/K | 20 | M20x1.5 | 25 | 18 | 45 | 48 | 26 | 78 | 102 | 34.925 | 14 | 31.5 | 42.5 | 0.370 |
| SA22T/K | 22 | M22x1.5 | 28 | 20 | 48 | 54 | 29 | 84 | 111 | 38.10 | 15 | 38.0 | 57.0 | 0.475 |
| SA25T/K | 25 | M24x2 | 31 | 22 | 55 | 60 | 32 | 94 | 124 | 42.85 | 15 | 47.5 | 68.0 | 0.65 |
| SA28T/K | 28 | M27x2 | 35 | 24 | 62 | 66 | 34 | 103 | 136 | 47.6 | 15 | 55.0 | 75.5 | 0.80 |
| SA30T/K | 80 | M30x2 | 37 | 25 | 66 | 70 | 37 | 110 | 145 | 50.8 | 17 | 64.0 | 88.0 | 1.07 |
Application
Joint bearing is widely used in engineering hydraulic cylinder, forging machine tool, engineering machinery, automation equipment, automobile shock absorber, hydraulic machinery and other industries.
