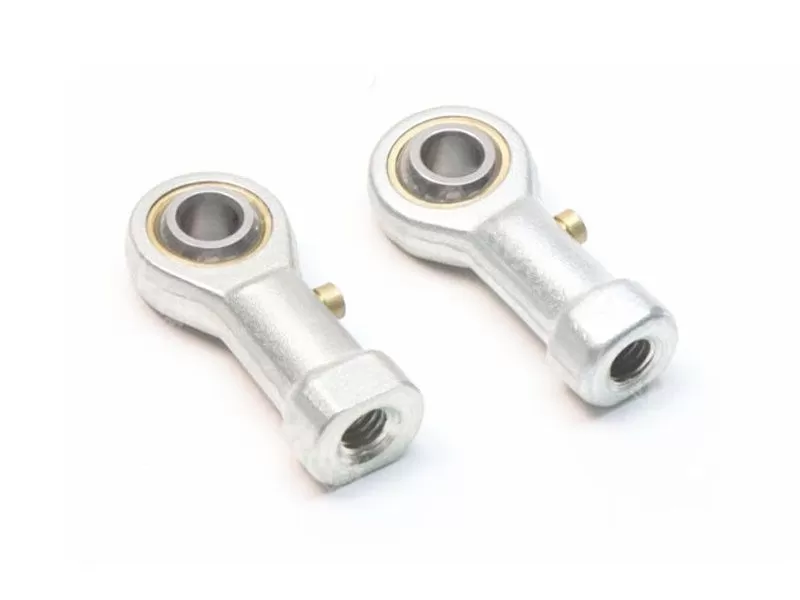

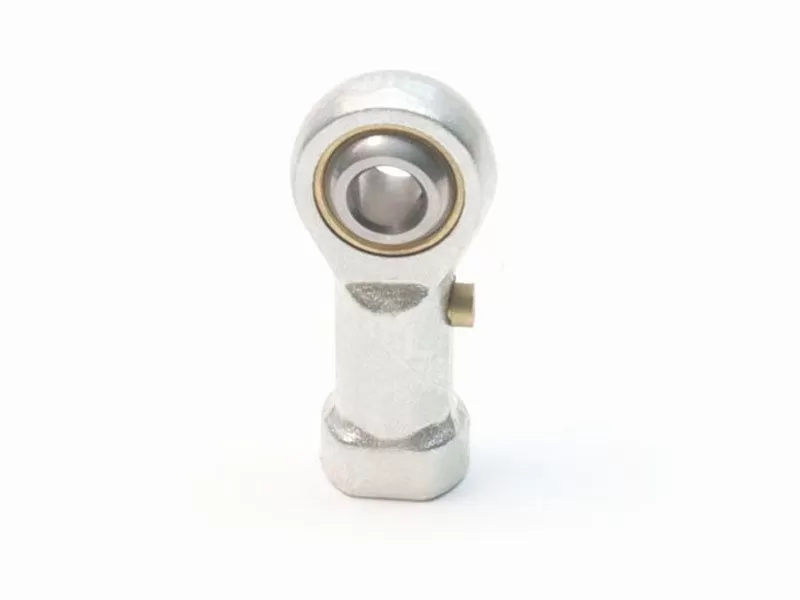

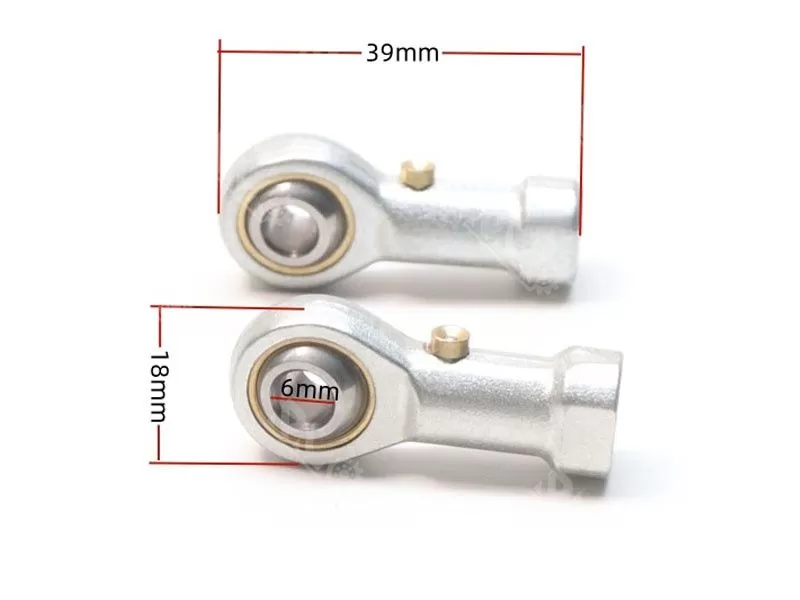

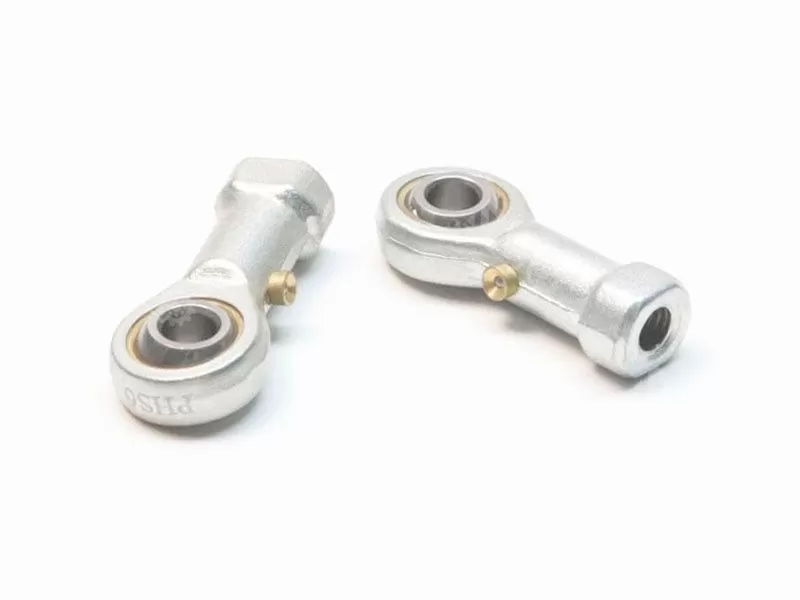

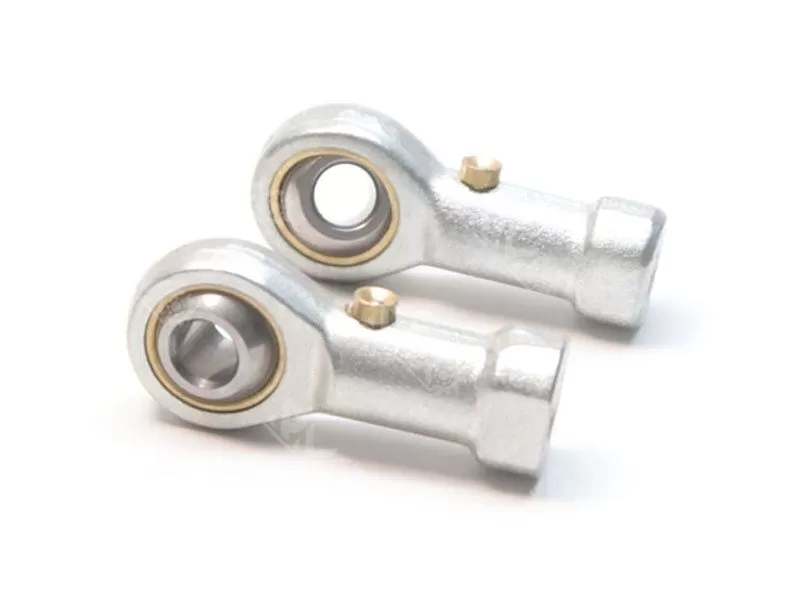

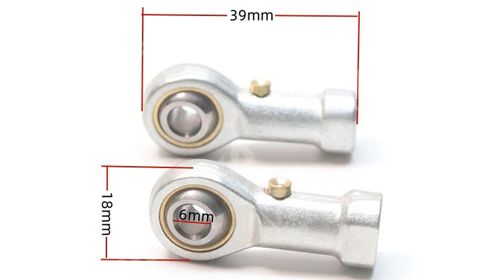

PHS6 PHSL6 Female Thread Rod End Bearing

Both the PHS6 and PHSL6 female threaded rod-end bearings feature a zinc-plated carbon steel housing and a spherical bearing made of GCr15 bearing steel, providing self-aligning capability to accommodate angular misalignment. The PHS6 has a right-hand thread, while the PHSL6 has a left-hand thread. These bearings are suitable for mechanical connection points requiring oscillation, rotation, and angular compensation in automotive, industrial automation, and other fields.

Technical parameter:

PHS joint bearing is a special structure of the plain bearing, which is mainly composed of an inner ring with an outer sphere and an outer ring with an inner sphere. It can withstand large loads, and according to its different types and structures, it can withstand radial loads, axial loads or combined loads of both. PHS knuckle-bearing is usually used for low speed swing movement (that is, angular movement), and because its sliding surface is spherical, it can make inclined movement (that is, aligning movement) in a certain Angle range, and can still work normally when the supporting shaft and the shaft shell hole are not concentric.
