Rod End Bearings
GE-C joint bearing is a special structure of the plain bearing, mainly by an outer sphere of an inner ring and an inner sphere of the outer ring.

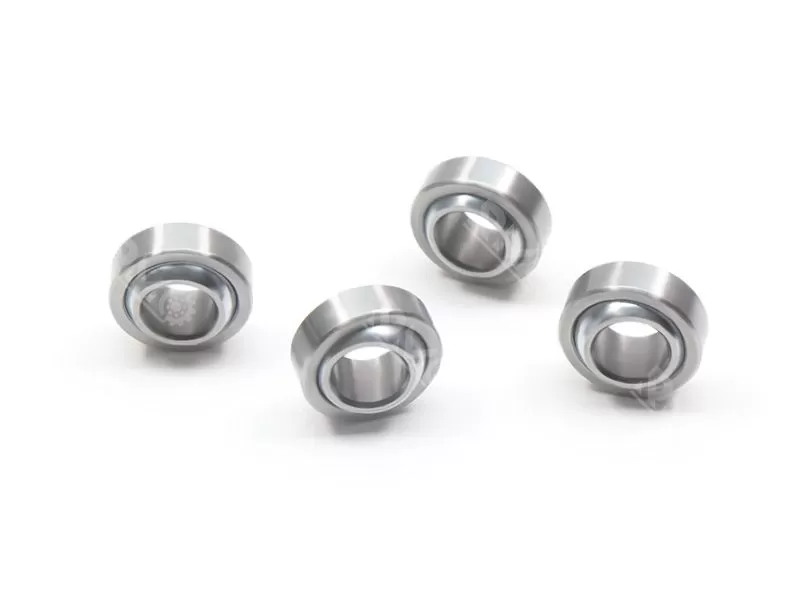

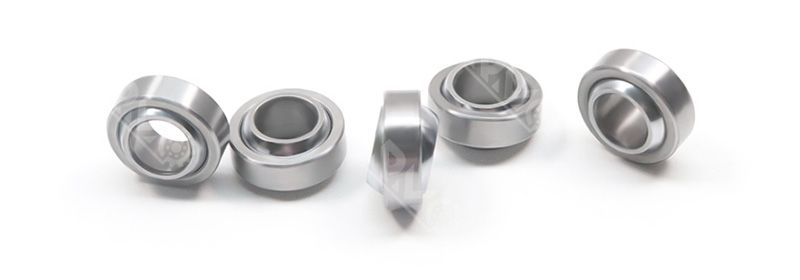

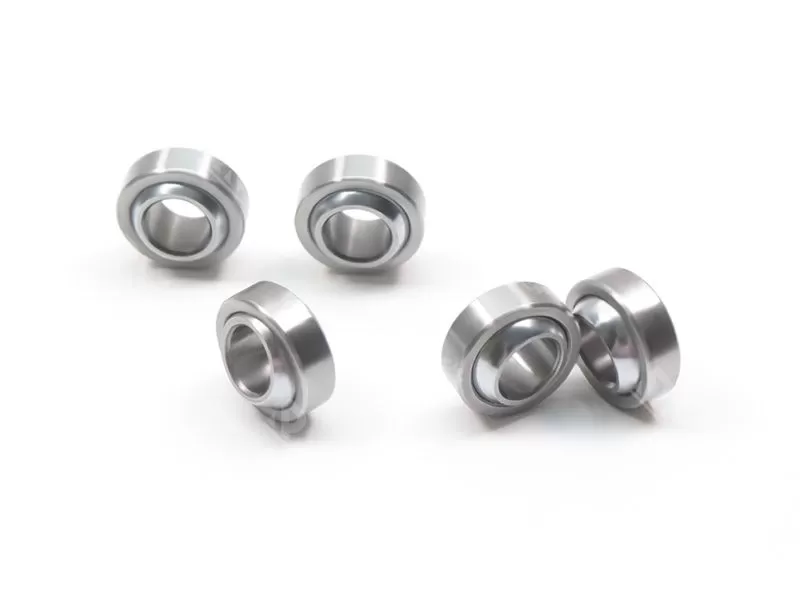

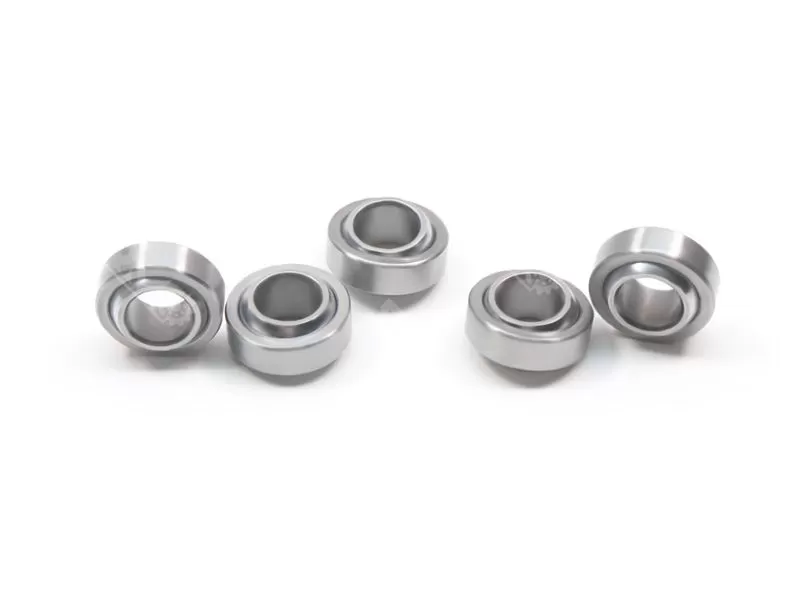

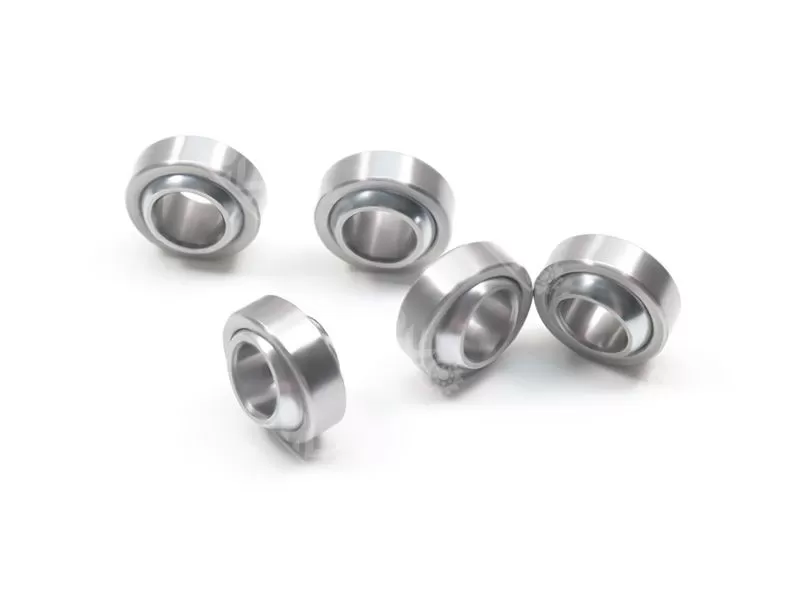

Product name: GE8C
Size: 8x16x8mm
Material: chrome steel Gcr15
weight: 0.008KG
Dynamic Load: 5.85 lbf
Static Load: 14.6 lbf
grade level：P0
Lead time: 3-5 days
Specification
Package: plastic bag or single box+Carton+Pallet
MOQ: 50 PCS
Shipping Port: Guangzhou, Ningbo, Shanghai
Payment: 100% T/T or 30% T/T before production, 70% before delivery
GE-C joint bearing is a special structure of the plain bearing, mainly by an outer sphere of an inner ring and an inner sphere of the outer ring. It can withstand large loads, and according to its different types and structures, it can withstand radial loads, axial loads or radial and axial combined loads. GE-C joint bearings are generally used for low speed swing movement (that is, angular movement), because the sliding surface is spherical, it can also be tilted within a certain Angle range (that is, aligning movement), when the supporting shaft and the shaft shell hole are not concentric, it can still work normally.
GE-C joint bearing has the following characteristics:
1.Self-lubricating: the outer sphere of the inner ring is inlaid with composite materials, which can produce self-lubricating effects in the work and reduce friction and wear.
2.Impact and wear resistance: due to the large spherical sliding contact area, large inclination Angle, and the use of special process treatment methods such as surface phosphating, galvanized, chrome plating, etc., so that the bearing has a high load capacity and impact resistance.
3.Good aligning performance: Due to the design of its spherical sliding contact surface, GEC knuckle bearings can be tilted in a certain Angle range to adapt to different working conditions.
Related Products

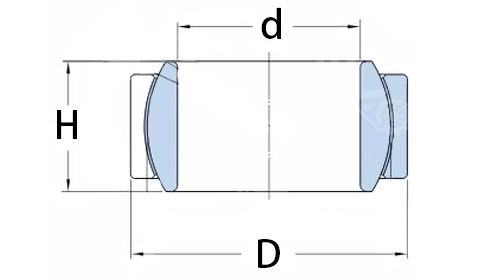

| Model No. | d(mm) | D(mm) | H(mm) | KG |
| GE 4 C | 4 | 12 | 5 | 0.003 |
| GE 6 C | 6 | 14 | 6 | 0.004 |
| GE 8 C | 8 | 16 | 8 | 0.01 |
| GE 10 C | 10 | 19 | 9 | 0.01 |
| GE 12 C | 12 | 22 | 10 | 0.02 |
| GE 15 C | 15 | 26 | 12 | 0.03 |
| GE 17 C | 17 | 30 | 14 | 0.05 |
| GE 20 C | 20 | 35 | 16 | 0.07 |
| GE 25 C | 25 | 42 | 20 | 0.12 |
| GE 30 C | 30 | 47 | 22 | 0.16 |
| GE 35 CJ2 | 35 | 55 | 25 | 0.23 |
| GE 40 CJ2 | 40 | 62 | 28 | 0.32 |
| GE 45 CJ2 | 45 | 68 | 32 | 0.46 |
| GE 50 CJ2 | 50 | 75 | 35 | 0.56 |
| GE 60 CJ2 | 60 | 90 | 44 | 1.1 |
Application field
GE-C joint bearings are widely used in the following fields:
1.Water conservancy: In water conservancy facilities, GE-C joint bearings can withstand large loads and shocks to ensure the stable operation of equipment.
2.Professional machinery: In a variety of professional machinery and equipment, GE-C joint bearings can provide good self-lubrication and aligning performance, suitable for low-speed swing and tilt motion.
