Rod End Bearings
Rod body with left or right-hand female thread, suffix"L" is added to bearing's number For left-hand thread. outer race lined with a bronze liner, surface of rod body zinc plated, rod body with a lubricating hole or a grease nipple.

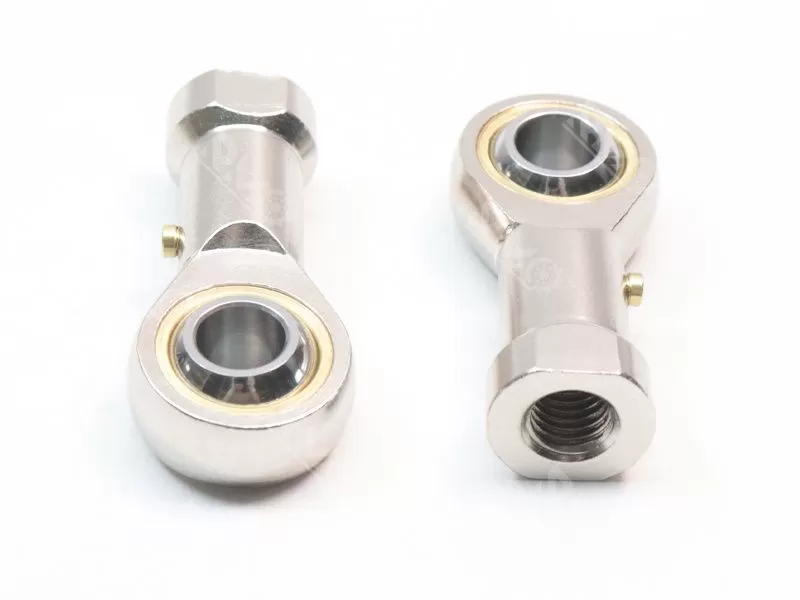

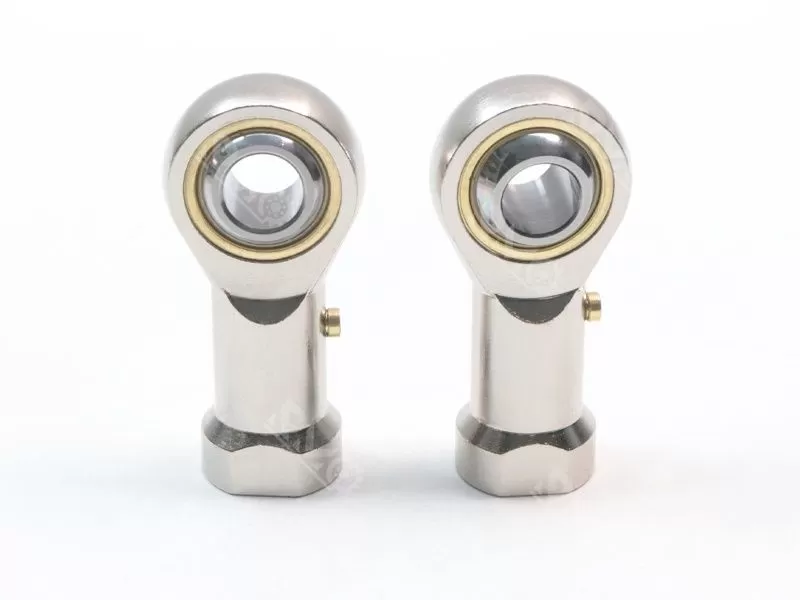

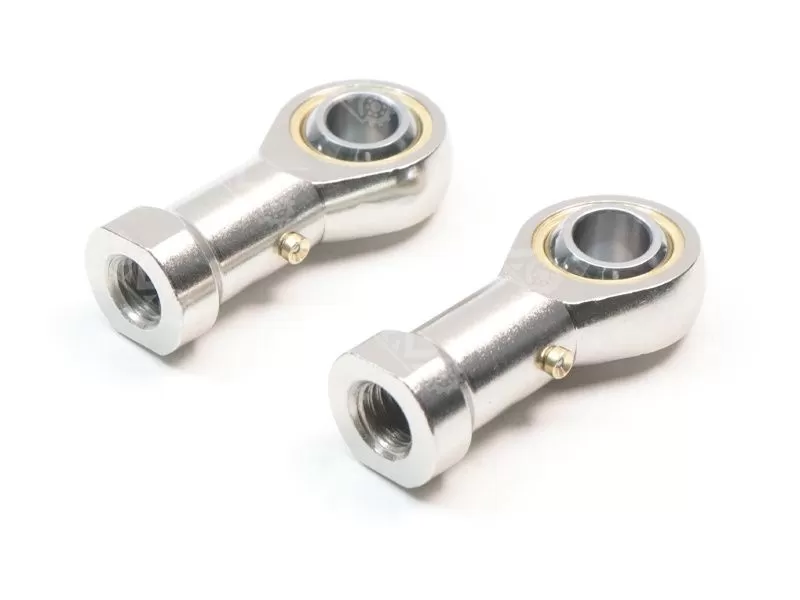

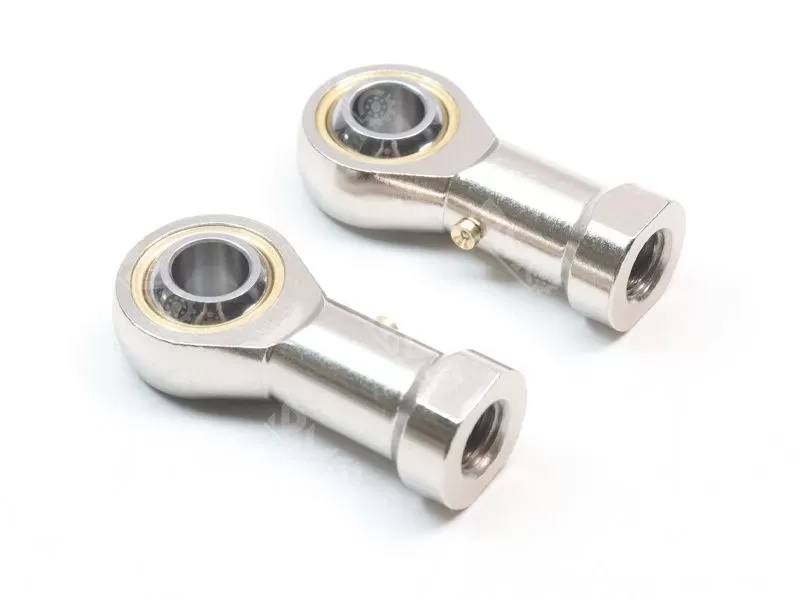

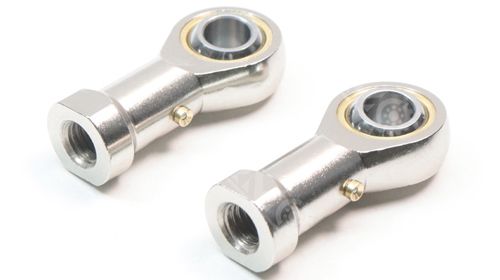

Product name: PHS10 rod end bearing
Size: 10x26x56x17mm
Material: steel with zinc plated
weight: 0.0738KG
Lead time: 5-7 days
Specification
PHS10 Female Threaded Rod End Bearing, with an inner diameter of 10mm and thread size M10×1.5. Featuring a zinc-plated carbon steel housing and a spherical bearing made of GCr15 bearing steel, it possesses self-aligning capability and can withstand both radial and axial loads. Suitable for mechanical connection points requiring oscillation, rotation, and angular compensation in automotive, industrial automation, and other fields.
Technical parameter:
| Model Number | PHS10 rod end bearing |
| Size | 10x26x56x17mm |
| Weight | 0.0738KG |
| Material | steel with zinc plated |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Package | single box+Carton+Pallet |
| MOQ | 100 PCS |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 5-7 Days |
PHS joint bearing is a special structure of the plain bearing, which is mainly composed of an inner ring with an outer sphere and an outer ring with an inner sphere. It can withstand large loads, and according to its different types and structures, it can withstand radial loads, axial loads or combined loads of both. PHS knuckle-bearing is usually used for low speed swing movement (that is, angular movement), and because its sliding surface is spherical, it can make inclined movement (that is, aligning movement) in a certain Angle range, and can still work normally when the supporting shaft and the shaft shell hole are not concentric.
Related Products
| 型号 | 外型尺寸（mm) | 负荷（KN) | 重量weight（g） | |||||||||||||||

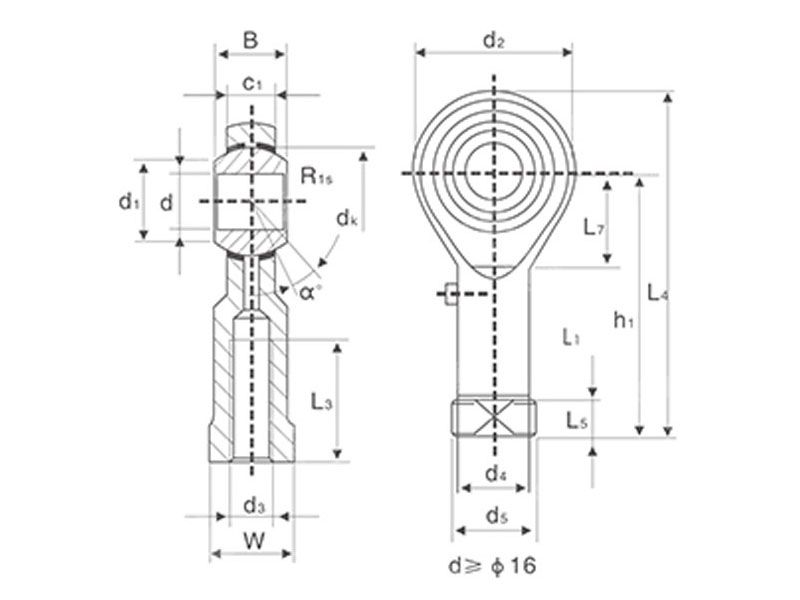

| D | D3 | B | C1 | W | L3min | D2 | L4 | h1 | L5 | D4 | D5 | DK | D1 | α | Dyn.c | stat.C0 | ||
| PHS 5 | 5 | M5*0.8 | 8 | 6 | 9 | 10 | 16 | 35 | 27 | 4 | 8.5 | 11 | 11.11 | 7.70 | 13 | 3.25 | 5.70 | 15.2 |
| PHS 6 | 6 | M6*1.0 | 9 | 6.75 | 11 | 12 | 18 | 39 | 30 | 5 | 10.0 | 13 | 12.7 | 8.96 | 13 | 4.30 | 7.20 | 22.3 |
| PHS 8 | 8 | M8*1.25 | 12 | 9 | 14 | 16 | 22 | 47 | 36 | 5 | 12.5 | 16 | 15.875 | 10.4 | 14 | 7.20 | 11.6 | 42.2 |
| PHS 10 | 10 | M10*1.5 | 14 | 10.5 | 17 | 20 | 26 | 56 | 43 | 6.5 | 15.0 | 19 | 19.05 | 12.9 | 13 | 10.0 | 14.5 | 68.6 |
| PHS 10-1 | 10 | M10'1.25 | 14 | 10.5 | 17 | 20 | 26 | 56 | 43 | 6.5 | 15.0 | 19 | 19.05 | 12.9 | 13 | 10.0 | 14.5 | 68.6 |
| PHS 12 | 12 | M12*1.75 | 16 | 12 | 19 | 22 | 30 | 65 | 50 | 6.5 | 17.5 | 22 | 22.225 | 15.4 | 13 | 13.4 | 17.0 | 104 |
| PHS 12-1 | 12 | M12-1.25 | 16 | 12 | 19 | 22 | 30 | 65 | 50 | 6.5 | 17.5 | 22 | 22.225 | 15.4 | 13 | 13.4 | 17.0 | 104 |
| PHS 14 | 14 | M14*2.0 | 19 | 13.5 | 22 | 25 | 34 | 74 | 57 | 8 | 20.0 | 25 | 25.4 | 16.9 | 16 | 17.0 | 24.0 | 143.5 |
| PHS 14-1 | 14 | M14*1.5 | 19 | 13.5 | 22 | 25 | 34 | 74 | 57 | 8 | 20.0 | 25 | 25.4 | 16.9 | 16 | 17.0 | 24.0 | 143.5 |
| PHS 16 | 16 | M16*2.0 | 21 | 15 | 24 | 28 | 38 | 83 | 64 | 8 | 22.0 | 27 | 28.575 | 19.4 | 15 | 21.6 | 28.5 | 197.5 |
| PHS 16-1 | 16 | M16*1.5 | 21 | 15 | 24 | 28 | 38 | 83 | 64 | 8 | 22.0 | 27 | 28.575 | 19.4 | 15 | 21.6 | 28.5 | 197.5 |
Application scenario
PHS knuckle bearings are widely used in various occasions that need to bear large loads and low speed swing motion. For example:
1.Grinding machine, sand mill, crusher and other industrial equipment.
2.Drum scraper dryer, hollow blade dryer, microwave drying equipment and other drying equipment.
