Rod End Bearings
Rod body with left or right-hand male thread, sliding contact surfaces: steel/PTFE. surface of rod body zinc plated.

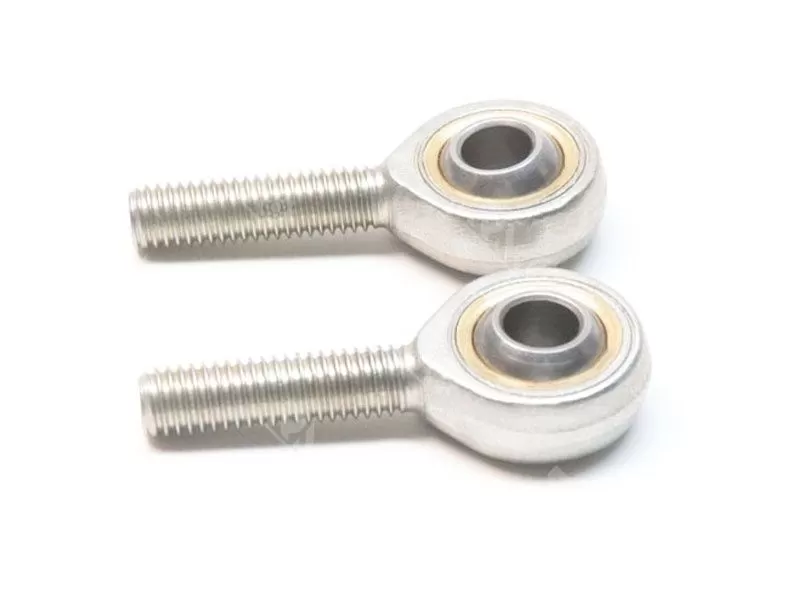

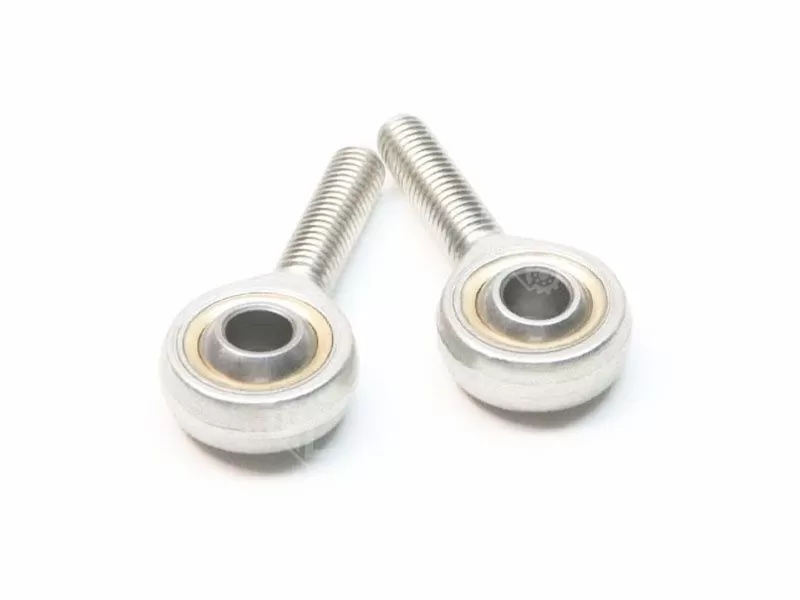

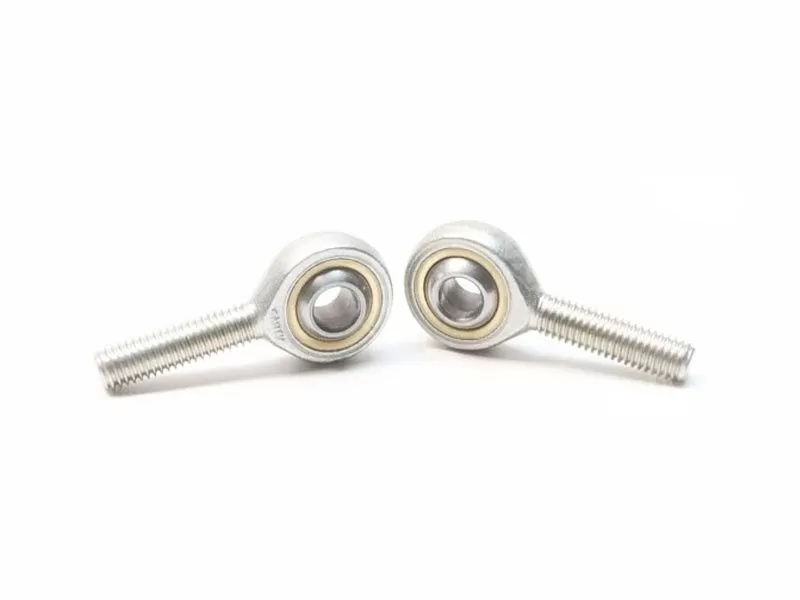

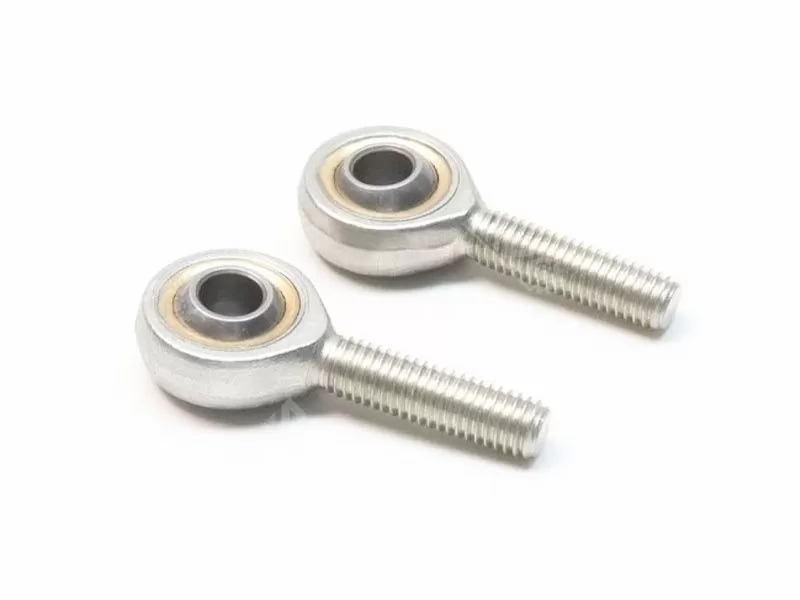

Product name: SA8T/K SAL8T/K rod end bearing
Size: 8x24x54x12mm
Material: steel/PTFE with zinc plated
weight: 0.0365KG
Lead time: normally 3-5 days
Specification
SA8T/K and SAL8T/K external threaded rod-end bearings feature a zinc-plated carbon steel housing and GCr15 bearing steel spherical surface, providing self-aligning capability. SA8T/K features a right-hand thread while SAL8T/K has a left-hand thread, both with M8×1.25 thread dimensions. These bearings are suitable for mechanical connection points requiring oscillation, rotation, and angular compensation in automotive, industrial automation, and other applications.
Technical parameter:
| Model Number | SA8T/K SAL8T/K rod end bearing |
| Size | 8x24x54x12mm |
| Weight | 0.0365KG |
| Material | steel/PTFE with zinc plated |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Package | single box+Carton+Pallet |
| MOQ | 100 PCS |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Rod end joint bearing is a joint bearing with a rod end or mounted on the rod end, which belongs to a class of joint bearings.
Surface phosphating, galvanized, chromium-plated or outer sliding surface lining, inserts, spraying, etc. Therefore, it has a large load capacity and impact resistance, and has the characteristics of corrosion resistance, wear resistance, self-aligning, good lubrication or self-lubrication without lubricating dirt pollution, and can work normally even if the installation is misplaced. Therefore, joint bearings are widely used in low speed swing motion, tilt motion and rotary motion.
Related Products

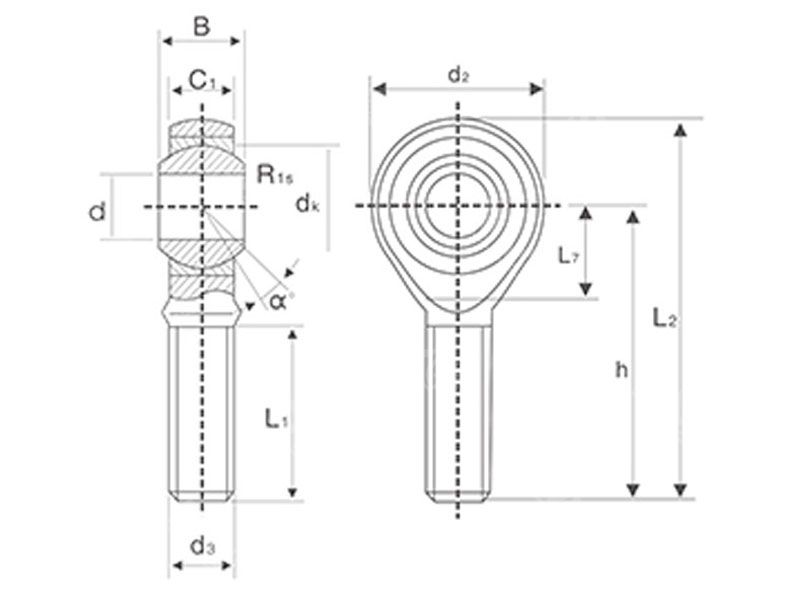

| 型号 MODEL NO | 主要尺寸MAIN DIMENSIONS (mm) | 基本精定载荷 BASIC LOADRATING | 重量 WEIGHT (kg) | |||||||||||
| d | d3 | B | C1 max | I1 min | d2 max | I7 mn | h | I2 max | dk | a' ≈ | 动 Dynamic C(kgf) | 静 Static Co(kgf) | ||
| SA3T/K | 3 | M3x0.5 | 6 | 4.5 | 15 | 12 | - | 27 | 33 | - | - | 1.8 | 3.528 | 0.006 |
| SA4T/K | 4 | M4x0.7 | 7 | 5.3 | 17 | 14 | - | 30 | 37 | - | - | 3.24 | 4.9 | 0.009 |
| SA5T/K | 5 | M5x0.8 | 8 | 6 | 19 | 18 | - | 33 | 42 | 11.11 | 13 | 3.25 | 3.10 | 0.013 |
| SA6T/K | 6 | M6x1 | 9 | 6.75 | 21 | 20 | - | 36 | 46 | 12.7 | 13 | 4.30 | 4.40 | 0.020 |
| SA8T/K | 8 | M8x1.25 | 12 | 9 | 25 | 24 | - | 42 | 54 | 15.875 | 14 | 7.20 | 8.00 | 0.034 |
| SA10T/K | 10 | M10x1.5 | 14 | 10.5 | 28 | 28 | - | 48 | 62 | 19.05 | 13 | 10.0 | 12.9 | 0.058 |
| SA12T/K | 12 | M12x1.75 | 16 | 12 | 32 | 32 | - | 54 | 70 | 22.225 | 13 | 13.4 | 17.0 | 0.092 |
| SA14T/K | 14 | M14x2 | 19 | 13.5 | 36 | 36 | 18 | 60 | 78 | 25.4 | 16 | 17.0 | 24.0 | 0.153 |
| SA16T/K | 16 | M16x2 | 21 | 15 | 37 | 40 | 23 | 66 | 86 | 28.575 | 15 | 21.6 | 28.5 | 0.205 |
| SA18T/K | 18 | M18x1.5 | 23 | 16.5 | 41 | 44 | 25 | 72 | 95 | 31.75 | 15 | 26.0 | 42.5 | 0.28 |
| SA20T/K | 20 | M20x1.5 | 25 | 18 | 45 | 48 | 26 | 78 | 102 | 34.925 | 14 | 31.5 | 42.5 | 0.370 |
| SA22T/K | 22 | M22x1.5 | 28 | 20 | 48 | 54 | 29 | 84 | 111 | 38.10 | 15 | 38.0 | 57.0 | 0.475 |
| SA25T/K | 25 | M24x2 | 31 | 22 | 55 | 60 | 32 | 94 | 124 | 42.85 | 15 | 47.5 | 68.0 | 0.65 |
| SA28T/K | 28 | M27x2 | 35 | 24 | 62 | 66 | 34 | 103 | 136 | 47.6 | 15 | 55.0 | 75.5 | 0.80 |
| SA30T/K | 80 | M30x2 | 37 | 25 | 66 | 70 | 37 | 110 | 145 | 50.8 | 17 | 64.0 | 88.0 | 1.07 |
Application
Joint bearing is widely used in engineering hydraulic cylinder, forging machine tool, engineering machinery, automation equipment, automobile shock absorber, hydraulic machinery and other industries.
