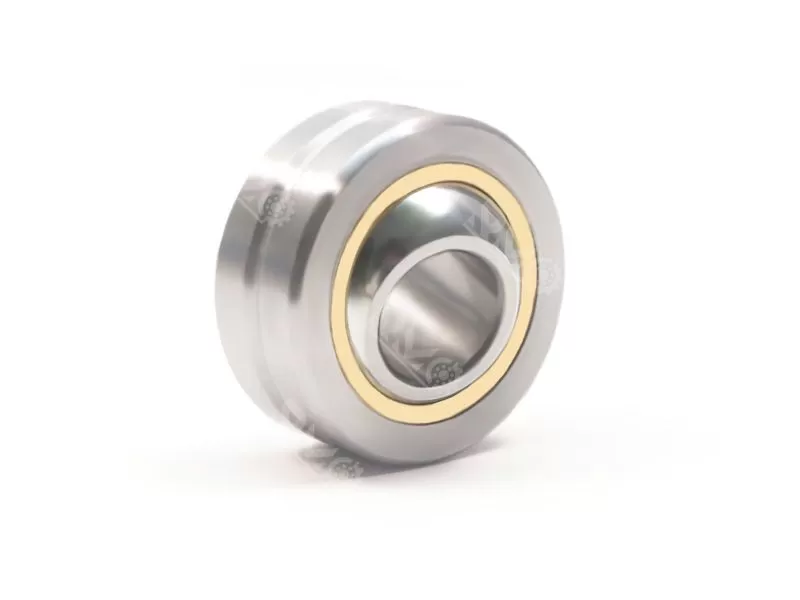

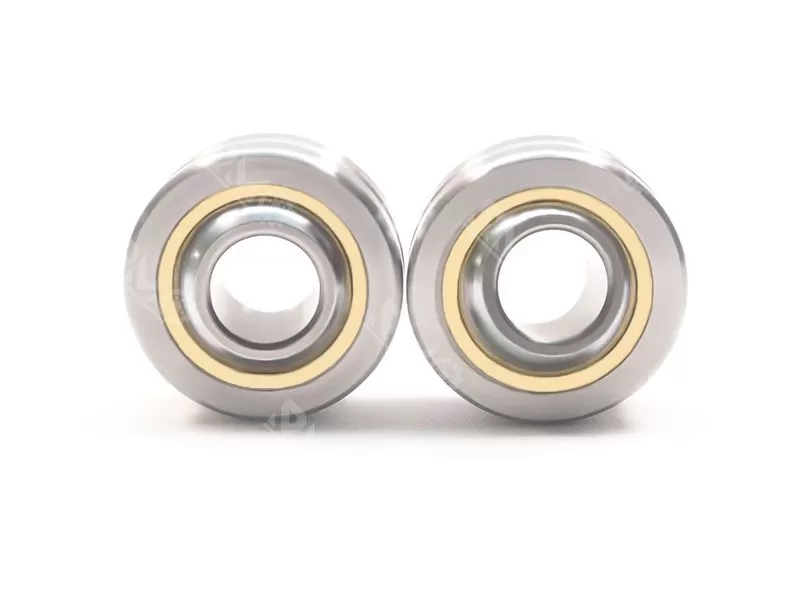

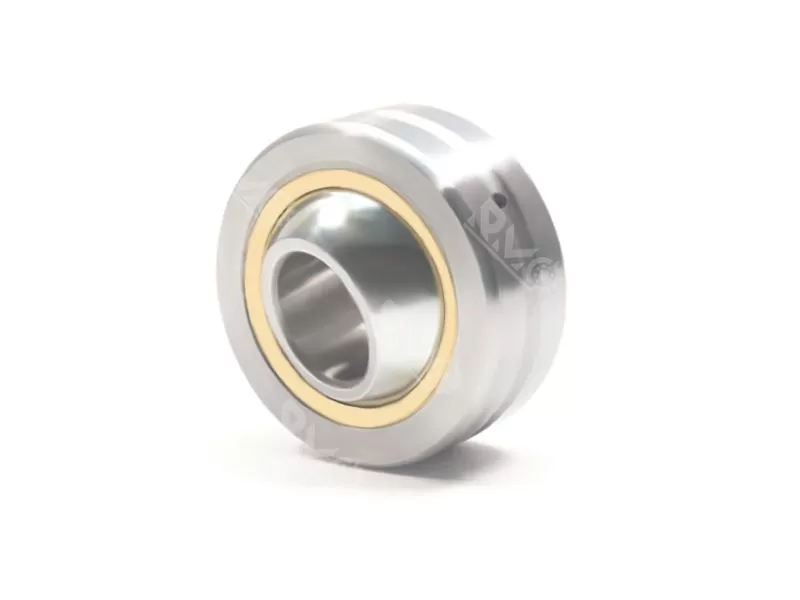

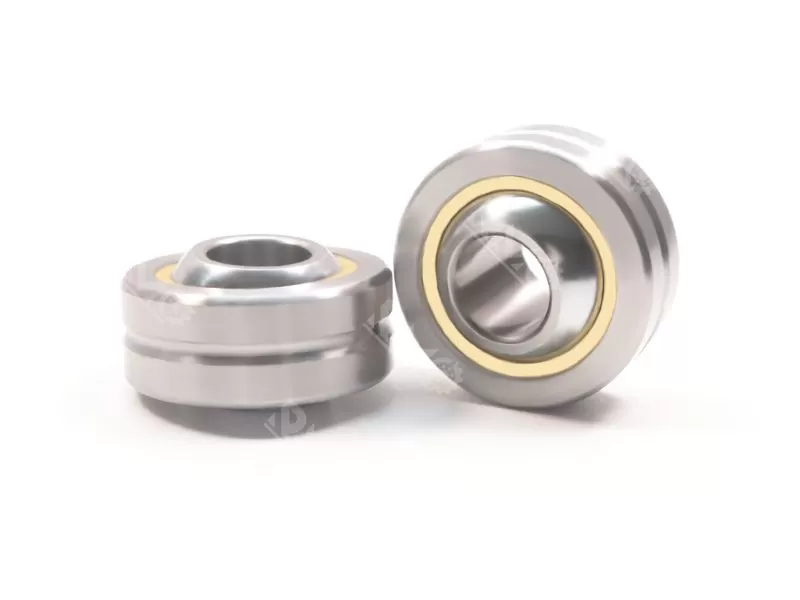

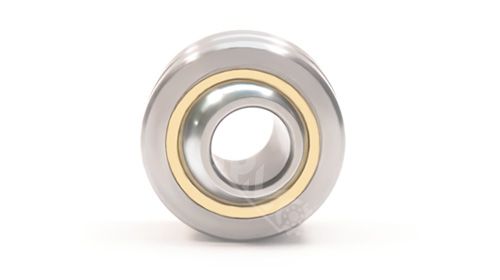

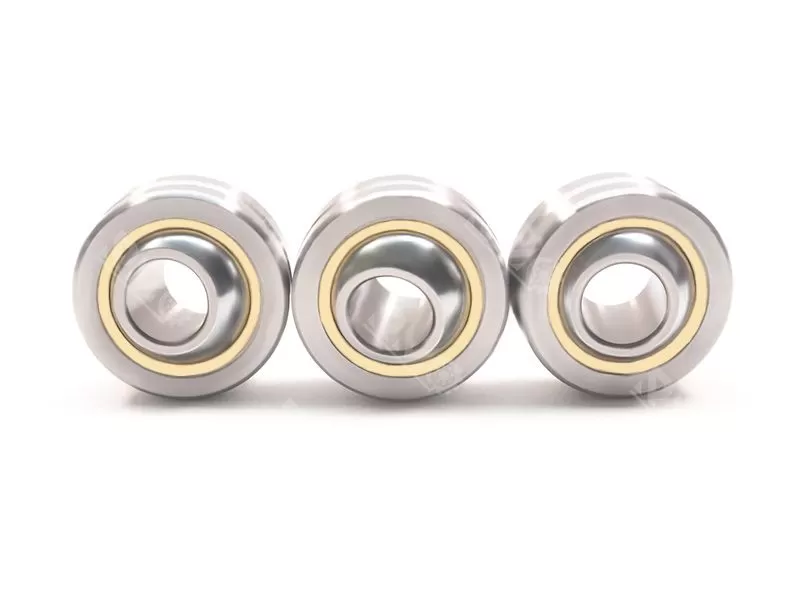

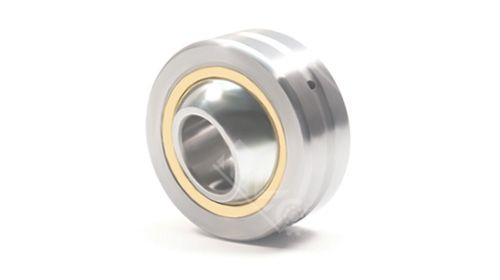

PB10 Radial Spherical Plain Bearings

Package: plastic bag or single box+Carton+Pallet

MOQ: 50 PCS

Shipping Port: Guangzhou, Ningbo, Shanghai

Payment: 100% T/T or 30% T/T before production, 70% before delivery

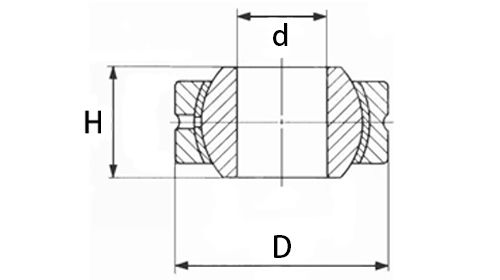

PB10 Radial Spherical Plain Bearing is a special structure of the plain bearing, mainly by an outer sphere of an inner ring and an inner sphere of the outer ring. It can withstand large loads, and according to its different types and structures, it can withstand radial loads, axial loads or radial and axial combined loads. PB10 Radial Spherical Plain Bearing are generally used for low speed swing movement (that is, angular movement), because the sliding surface is spherical, it can also be tilted within a certain Angle range (that is, aligning movement), when the supporting shaft and the shaft shell hole are not concentric, it can still work normally.

PB10 Radial Spherical Plain Bearing has the following characteristics:

1.Self-lubricating: the outer sphere of the inner ring is inlaid with composite materials, which can produce self-lubricating effects in the work and reduce friction and wear.

2.Impact and wear resistance: due to the large spherical sliding contact area, large inclination Angle, and the use of special process treatment methods such as surface phosphating, galvanized, chrome plating, etc., so that the bearing has a high load capacity and impact resistance.

3.Good aligning performance: Due to the design of its spherical sliding contact surface, PB10 Radial Spherical Plain Bearing can be tilted in a certain Angle range to adapt to different working conditions.
