Linear Bearings

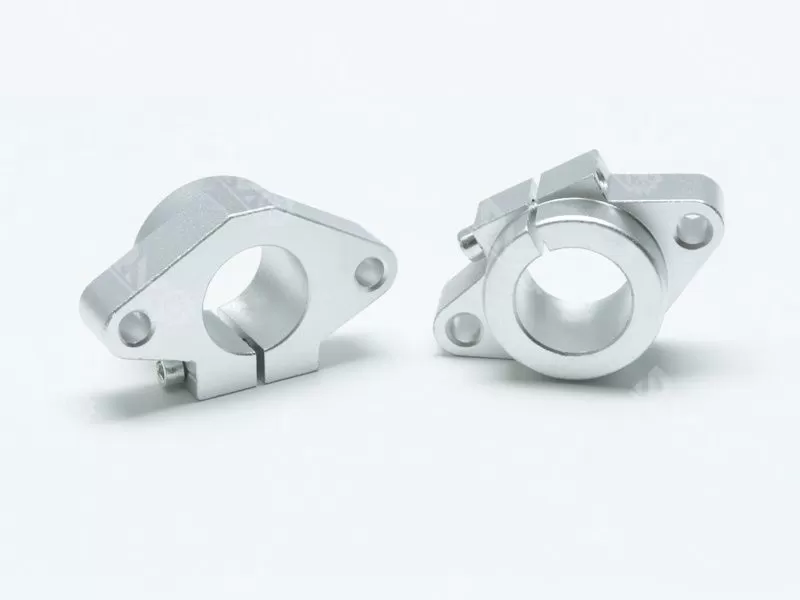

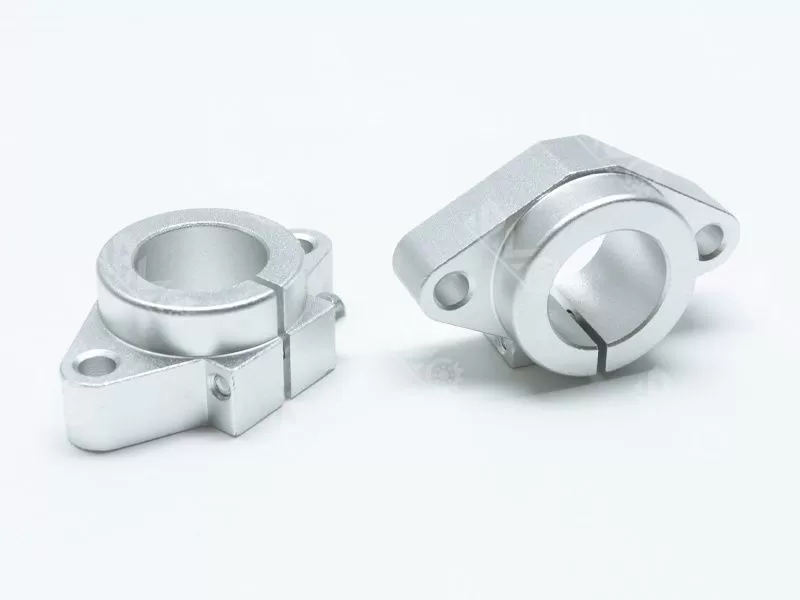

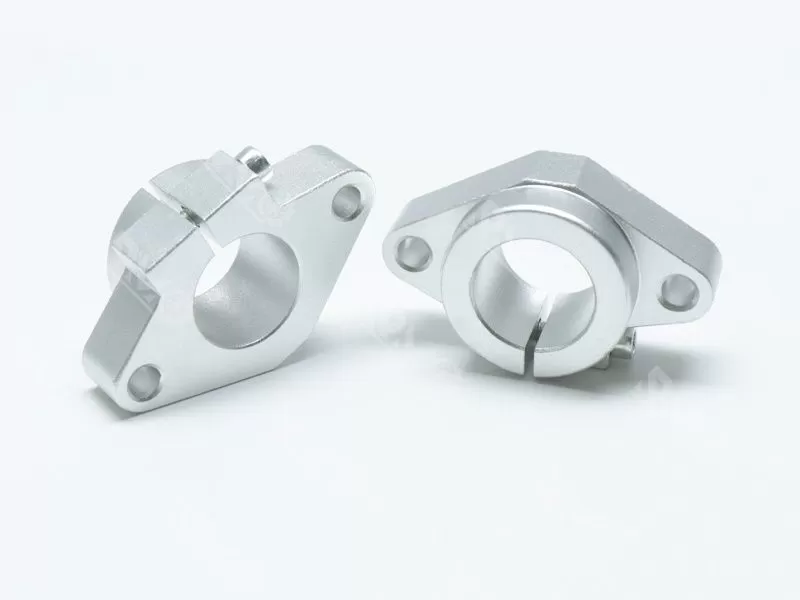

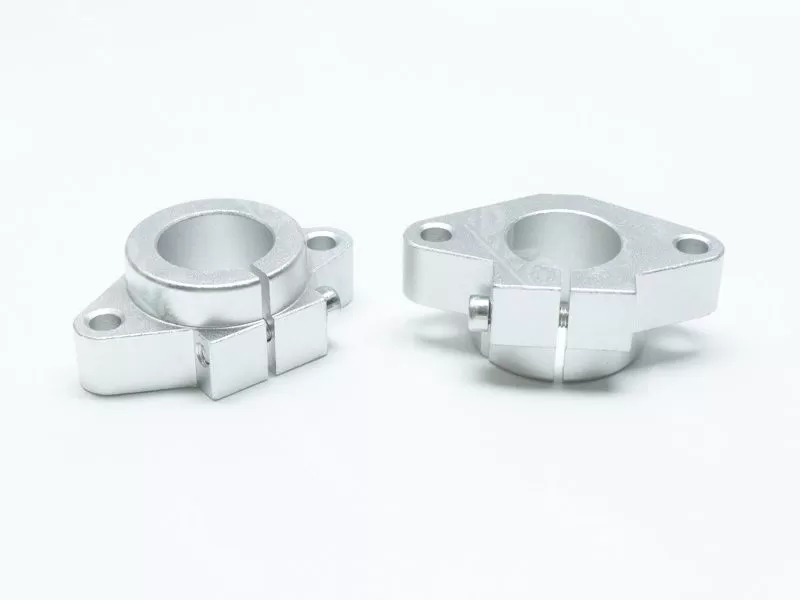

SHF horizontal linear shaft support is a device for fixing and supporting linear shafts, featuring light weight, high strength and corrosion resistance .

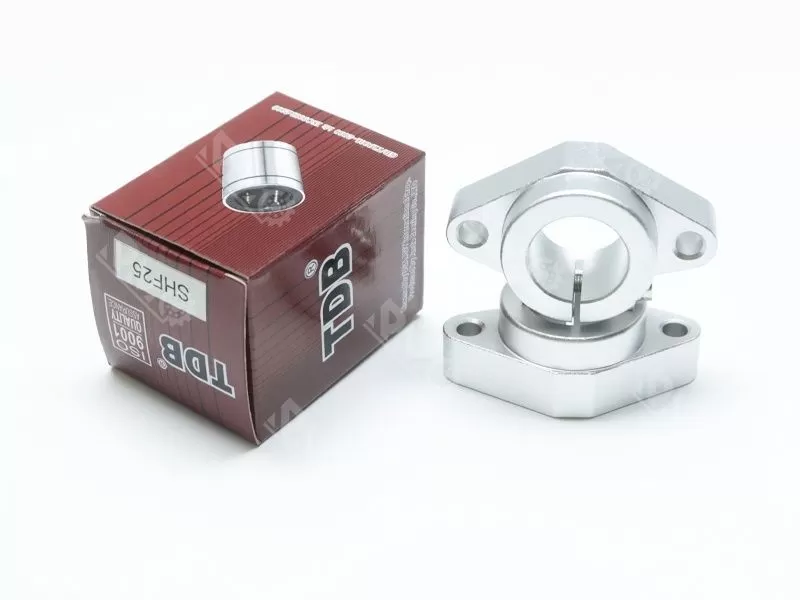

Model No: SHF25
Size: 25x56x70mm
Material: aluminum alloy
Weight: 0.06KG
Specification
SHF25 Aluminum Alloy Horizontal Linear Shaft Support Constructed from aluminum castings such as aluminum casting alloy 514.0, with anodized surface treatment. Features robust construction, installation without pre-machining of shaft ends, and secure fastening and adjustment via hex socket screws. Suitable for precision shaft assembly with cost-effective pricing.
Technical parameter:
| Model Number | SHF25 |
| Size | 25x56x70mm |
| Weight | 0.06KG |
| Material | aluminum alloy |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Package | industrial packaging |
| MOQ | 100pcs |
| Brand name | famous brand/RMO/Neutral/OEM |
| Payment terms | 100% T/T or 30% T/T in advance, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
The main features of the SHF horizontal linear shaft bracket include:
1. Lightweight aluminum alloy material : Reduces the weight of equipment while providing sufficient strength and corrosion resistance .
2. Easy to install : There is a gap at the shaft mounting position, which makes it easy to fasten the shaft with bolts, easy to install quickly .
3. High precision and stability : Ensure the stability and precision of the equipment during operation .
4. Wide applicability : Applicable to various industrial fields such as automobile manufacturing, CNC machine tools, textile machinery, etc.
Related Products

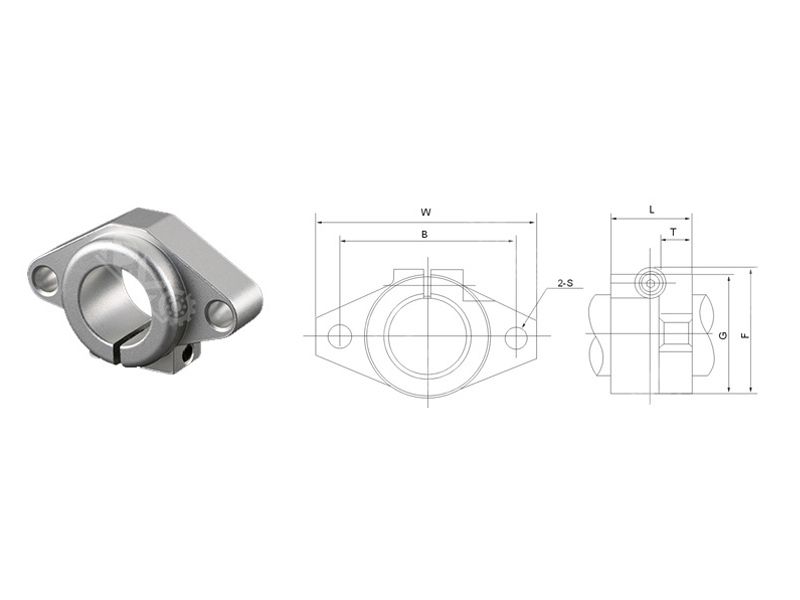

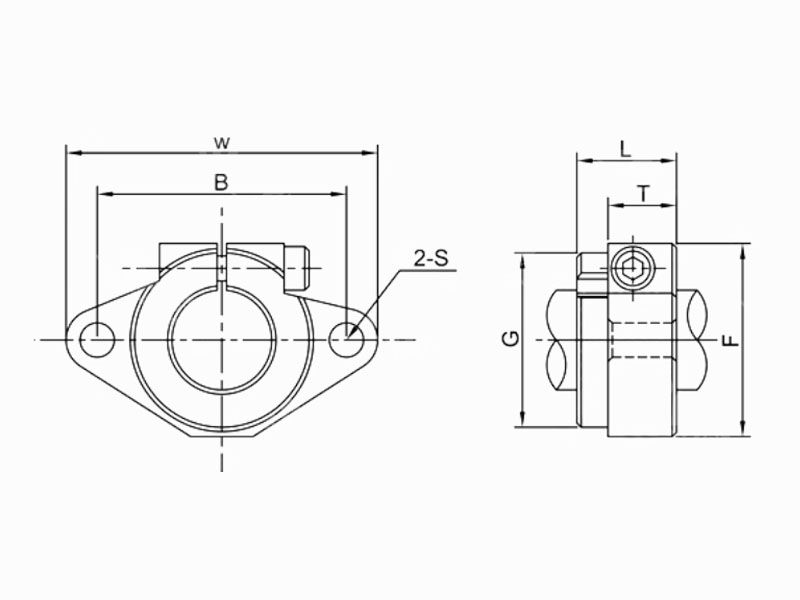

| Model No. | D(mm) | Main Dimensions | clamping bolt | mounting bolt | ||||||
| W | L | T | F | G | B | S | ||||
| SHF3 | 3 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 |
| SHF4 | 4 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 |
| SHF5 | 5 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 |
| SHF6 | 6 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 |
| SHF8 | 8 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 |
| SHF10 | 10 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 |
| SHF12 | 12 | 47 | 13 | 7 | 28 | 25 | 36 | 5.5 | M4 | M5 |
| SHF13 | 13 | 47 | 13 | 7 | 28 | 25 | 36 | 5.5 | M4 | M5 |
| SHF16 | 16 | 50 | 16 | 8 | 31 | 28 | 40 | 5.5 | M4 | M5 |
| SHF20 | 20 | 60 | 20 | 8 | 37 | 31 | 48 | 7 | M5 | M6 |
| SHF25 | 25 | 70 | 25 | 10 | 42 | 40 | 56 | 7 | M6 | M6 |
| SHF30 | 30 | 80 | 30 | 12 | 50 | 46 | 64 | 9 | M6 | M8 |
| SHF35 | 35 | 92 | 35 | 14 | 58 | 50 | 72 | 12 | M8 | M10 |
| SHF40 | 40 | 102 | 40 | 16 | 67 | 56 | 80 | 12 | M10 | M10 |
| SHF50 | 50 | 122 | 50 | 19 | 83 | 70 | 96 | 14 | M12 | M12 |
Installation method and maintenance:
The SHF horizontal linear shaft bracket is usually installed by bolts, and the installation process is simple and flexible. Its design makes assembly more convenient, reduces space occupation, and is particularly suitable for compact equipment. Maintenance and adjustment are also relatively simple, facilitating daily maintenance and troubleshooting.
