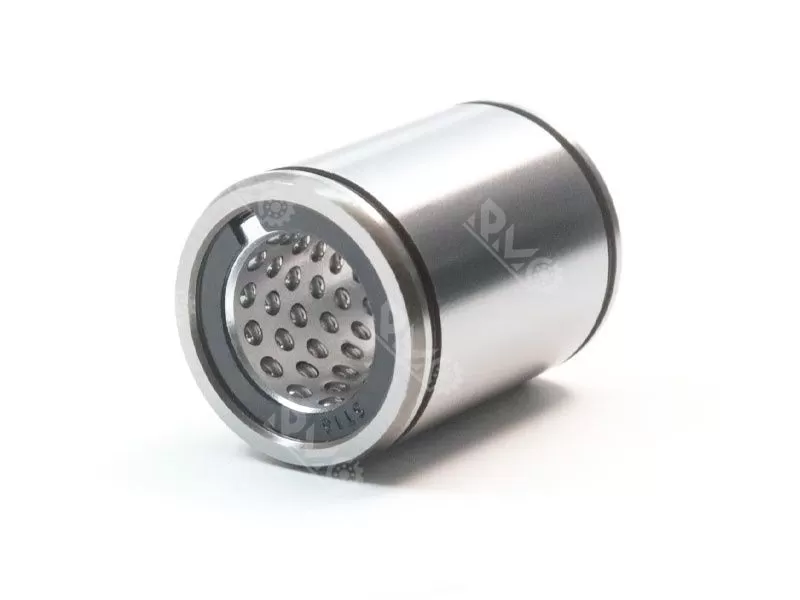

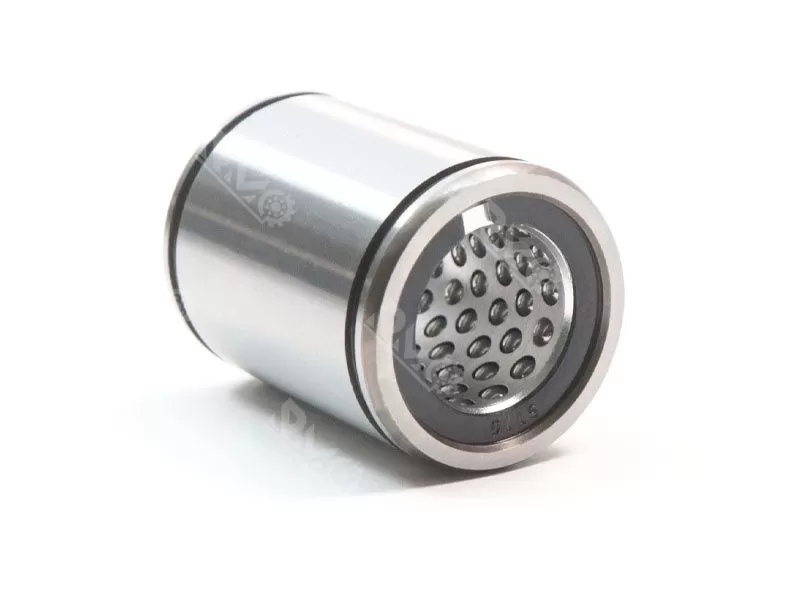

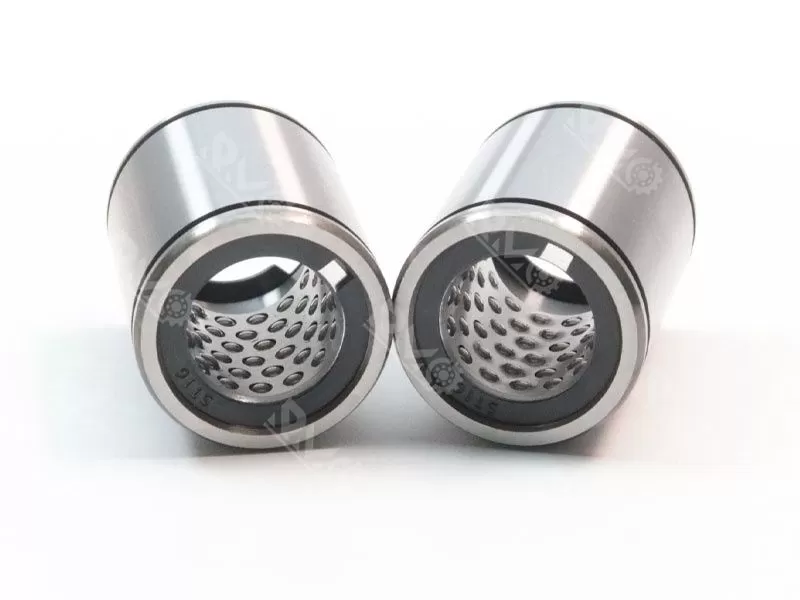

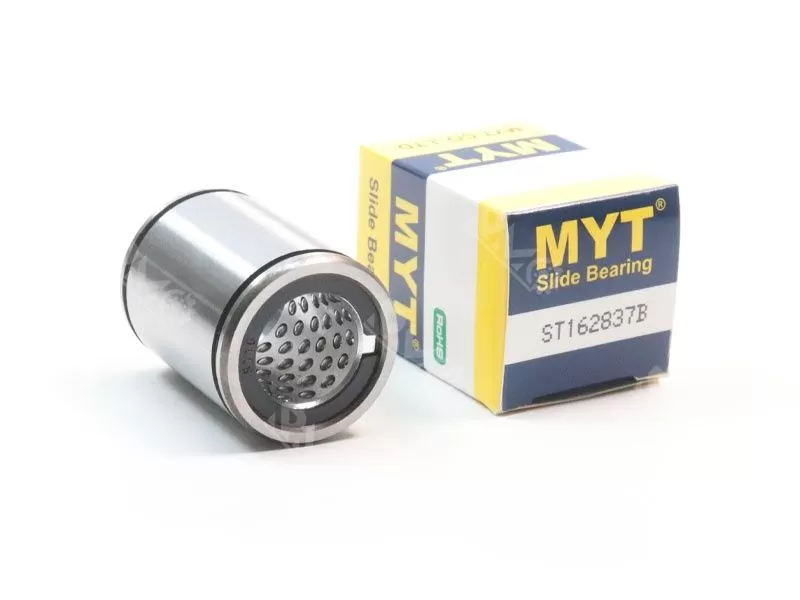

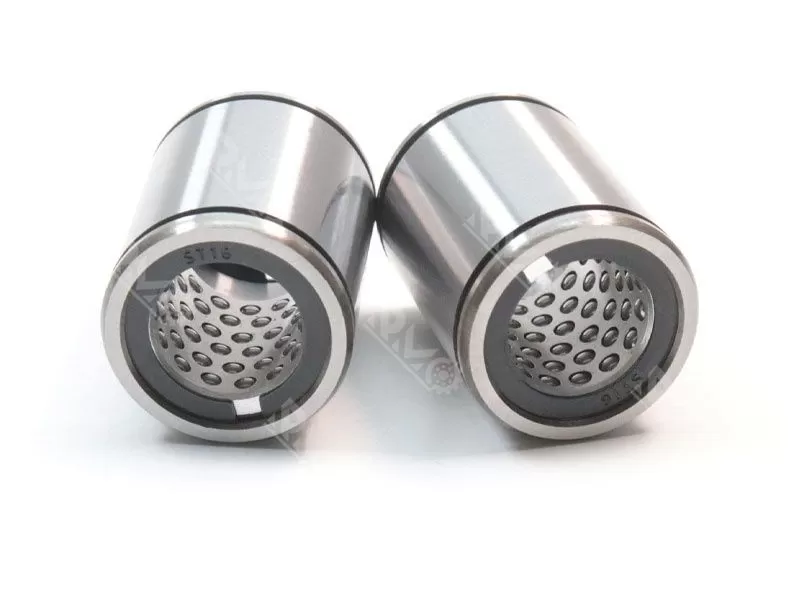

ST16 ST Series linear rotary ball bearing

ST type travel bushing is a travel bushing suitable for light load, with long travel, low friction and high precision.

Model No: ST16

Size: 16x28x37mm

Material: chromel steel Gcr15.

Weight: 0.085KG

Lead time: 5-7 days

Shipping Port: GuangZhou, NingBo, ShangHai

Inquire Now Next Product

Specification

Brand name: famous brand/RMO/Neutral/OEM

MOQ: 50pcs

Package: industrial packaging

Payment terms: 100% T/T or 30% T/T in advance, 70% before delivery

The ST-type travel bushing assembles the ball retainer and the steel balls in a precision-ground cylindrical bearing sleeve, which are arranged in a staggered form to evenly bear the load. The ball retainer is made of light alloy, light weight and strong rigidity, and can follow high speed movement. The inner surface of the bearing sleeve is equipped with a thrust ring and a stop ring on both sides to prevent the ball retainer from going out of range, thus ensuring a low coefficient of friction for rotating, reciprocating and compound motion.

structural features:

1. Precision grinding cylindrical bearing sleeve: the ball retainer and steel ball are installed inside, and the steel ball is arranged in a staggered form to evenly bear the load.

2. Light alloy ball retainer: light weight and strong rigidity, can follow high-speed movement.

3. Thrust ring and stop ring: installed on both sides of the inner surface of the bearing sleeve to prevent the ball retainer from going out of range.

application scenarios:

ST travel bushings are widely used in a variety of mechanical equipment requiring high precision and low friction, such as:

The workpiece chuck unit of the punch, the punch feeder, the head of the discharge processing machine, the reel corrector, the textile machine, the distortion measuring equipment, the optical measuring equipment spindle, various copiers, etc. These applications require long travel, low friction and high precision, and the ST travel bushings meet these requirements.

Related Products

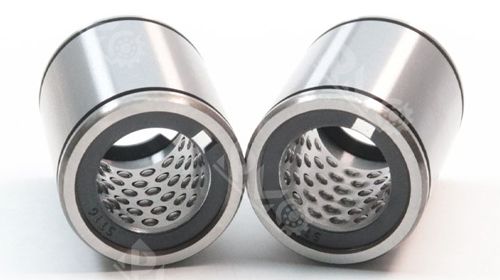

ST16 ST Series linear rotary ball bearing

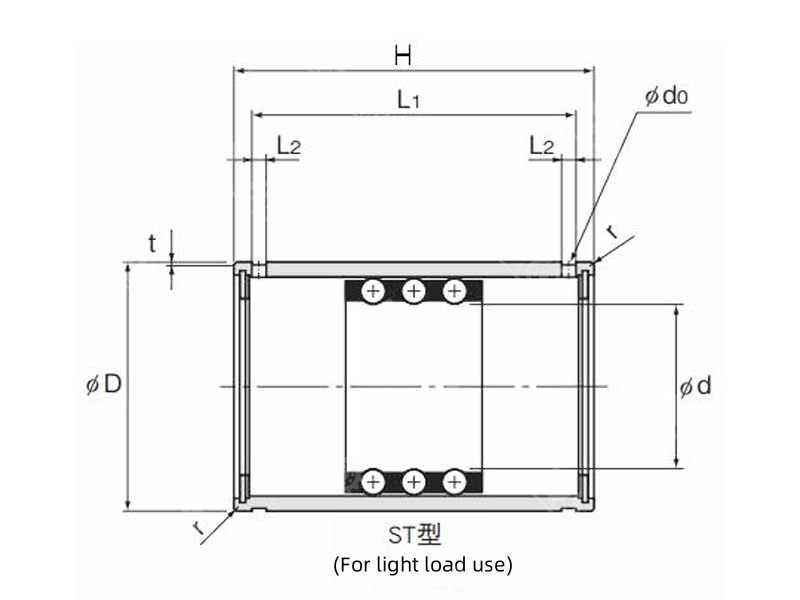

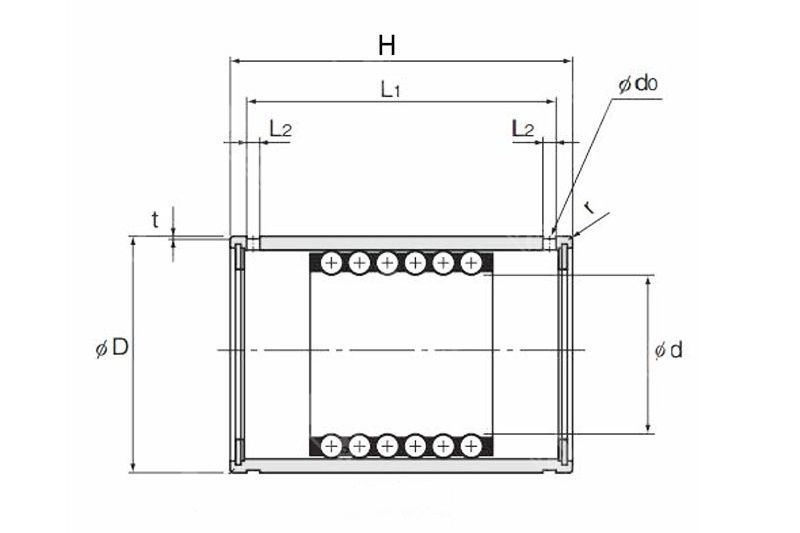

Model No.	d	D	H	m	Model No.	d	D	H	m
ST6	6 mm	12 mm	19 mm	8 g	ST40B	40 mm	60 mm	80 mm	635 g
ST8	8 mm	15 mm	24 mm	16.4 g	ST45	45 mm	65 mm	80 mm	625 g
ST8B	8 mm	15 mm	4m	17.6 g	ST45B	45 mm	65 mm	80 mm	695 g
ST10	10 mm	19 mm	30 mm	31.5 g	ST50	50 mm	72 mm	100 mm	910 g
ST10B	10 mm	19 mm	30 mm	34.5 g	ST50B	50 mm	72 mm	100 mm	1020 g
ST12	12 mm	23 mm	32 mm	47 g	ST55	55 mm	80 mm	100 mm	1270 g
ST12B	12 mm	23 mm	32 mm	53.5 g	ST55B	55 mm	80 mm	100 mm	1380 g
ST16	16 mm	28 mm	37 mm	77 g	ST60	60 mm	85 mm	100 mm	1360 g
ST16B	16 mm	28 mm	37 mm	85 g	ST60B	60 mm	85 mm	100 mm	1480 g
ST20	20 mm	32 mm	45 mm	109 g	ST70	70 mm	95mm	100 mm	1530 g
ST20B	20 mm	32 mm	45 mm	120 g	ST70B	70 mm	95 mm	100 mm	1670 g
ST25	25 mm	37 mm	45 mm	128 g	ST80	80 mm	110 mm	100 mm	2220 g
ST25B	25 mm	37 mm	45 mm	142 g	ST80B	80 mm	110 mm	100 mm	2430 g
ST30	30 mm	45 mm	65 mm	240 g	ST90	90 mm	120 mm	100 mm	2440 g
ST30B	30 mm	45 mm	65 mm	275 g	ST90B	90 mm	120 mm	100 mm	2670 g
ST35	35 mm	52 mm	70 mm	370 g	ST100	100 mm	130 mm	100 mm	2670 g
ST35B	35 mm	52 mm	70 mm	410 g	ST100B	100 mm	130 mm	100 mm	2910 g
ST40	40 mm	60 mm	80 mm	570 g	ST100B	100 mm	130 mm	100 mm	2910 g
