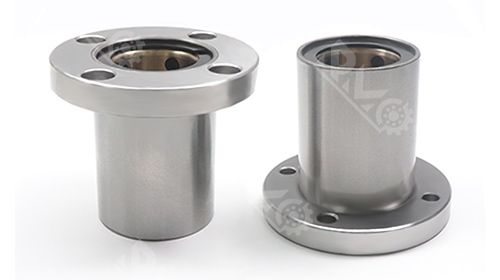

LMF30UU Circular Flange Linear Bearings

It is an integrated design of linear bearing and support, which has the characteristics of compact structure, easy installation and maintenance.

Model No: LMF30UU

Size: 30x45x64mm

Material: chrome steel Gcr15.

Weight: 0.515KG

Lead time: 3-5 days

Shipping Port: GuangZhou, NingBo, ShangHai

Inquire Now Next Product

Specification

Brand name: famous brand/RMO/Neutral/OEM

MOQ: 50pcs

Package: industrial packaging

Payment terms: A:100% T/T or 30% T/T in advance, 70% before delivery

LMF30UU Circular Flange Linear Bearings

Features:

1. Compact structure: The design of linear bearing with flange makes it achieve efficient linear movement in a limited space, which is convenient for accurate and simple assembly.

2. Easy maintenance: Due to its simple structure, easy disassembly and maintenance, reducing maintenance costs.

3. Good interchangeability: Because linear bearings can be used in random combination with shafts, they have good interchangeability.

4. Diversified application environment: the outer cylinder material of linear bearing is made of steel and stainless steel, and the reholder is also made of stainless steel and low noise resin, which can be selected according to the use environment.

Related Products

LMF30UU Circular Flange Linear Bearings

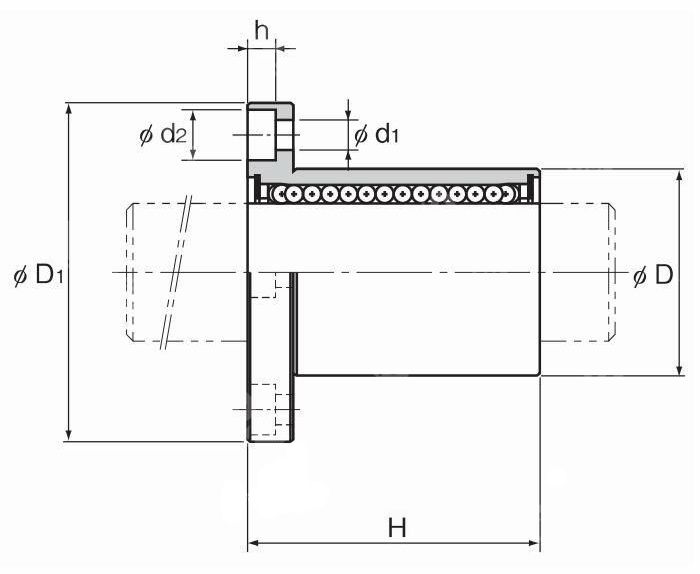

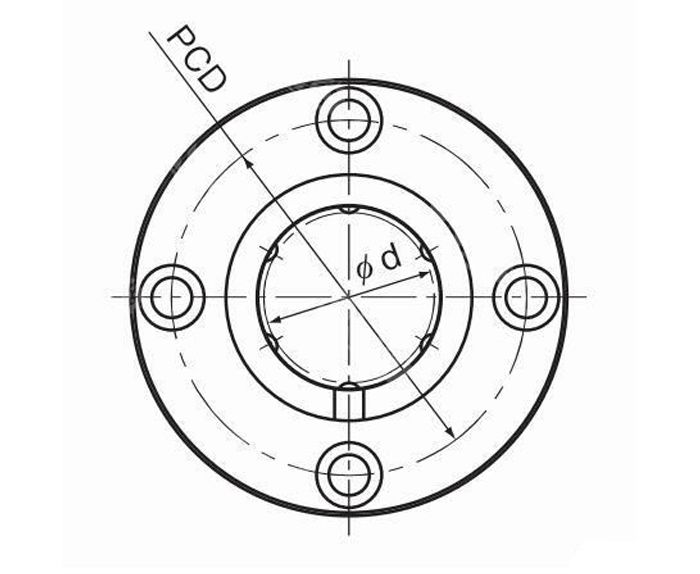

Model No.	d	D	H	m
LMF6	6 mm	12 mm	19 mm	26.5 g
SDMF6	6 mm	12 mm	19 mm	23 g
3DMF8	8 mm	15 mm	24 mm	35 g
LMF8S	8 mm	15 mm	17 mm	34 g
LMF8	8 mm	15 mm	24 mm	40 g
LMF10	10 mm	19 mm	29 mm	78 g
SEMF10	10 mm	19 mm	29 mm	51 g
LMF12	12 mm	21 mm	30 mm	76 g
LMF13	13 mm	23 mm	32 mm	94 g
LMF16	16 mm	28 mm	37 mm	134 g
SDMF16	16 mm	28 mm	37 mm	110 g
SDMF16A	16 mm	26 mm	37 mm	110 9
LMF20	20 mm	32 mm	42 mm	180 g
LMF25	25 mm	40 mm	59 mm	340 g
SDMF25	25 mm	40 mm	59 mm	270 g
LMF30	30 mm	45 mm	64 mm	514.5 g
SDMF30A	30 mm	45 mm	64 mm	460 g
LMF35	35 mm	52 mm	70 mm	795 g
LMF40	40 mm	60 mm	80 mm	1054 9
LMF50	50 mm	80 mm	100 mm	2200 g

Application scenario

1. Automation equipment: widely used in CNC machine tools, automatic production lines and other equipment, the accuracy and stability of linear motion have higher requirements.

2. Precision machinery: In the field of precision machinery such as measuring instruments and optical equipment, it is used to support and guide moving parts to ensure the accurate operation of equipment.

3. Industrial robots: widely used in the joints and end-effectors of robots to improve the motion accuracy and stability of robots.

4. Transmission mechanism: used to support and guide the moving parts of the conveyor belt, drum and other transmission mechanisms to ensure the stable operation of the transmission mechanism and high-precision material transfer.
