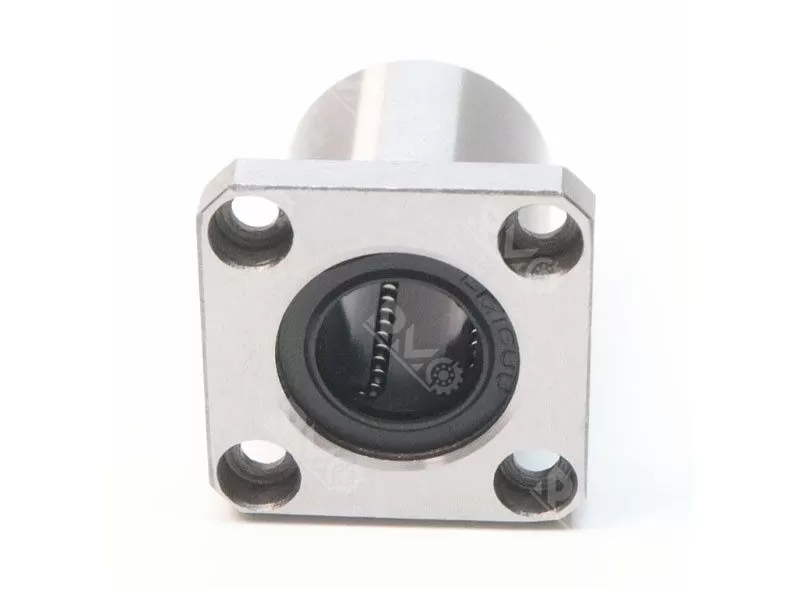

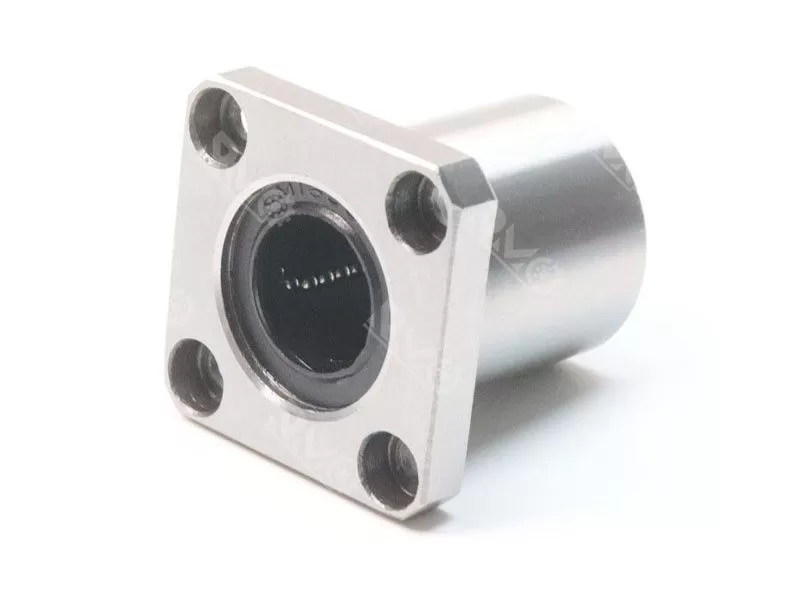

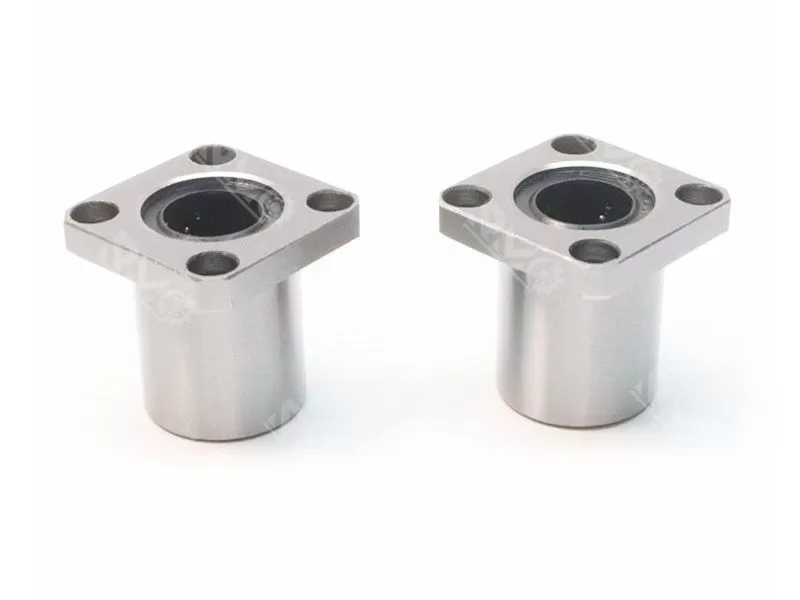

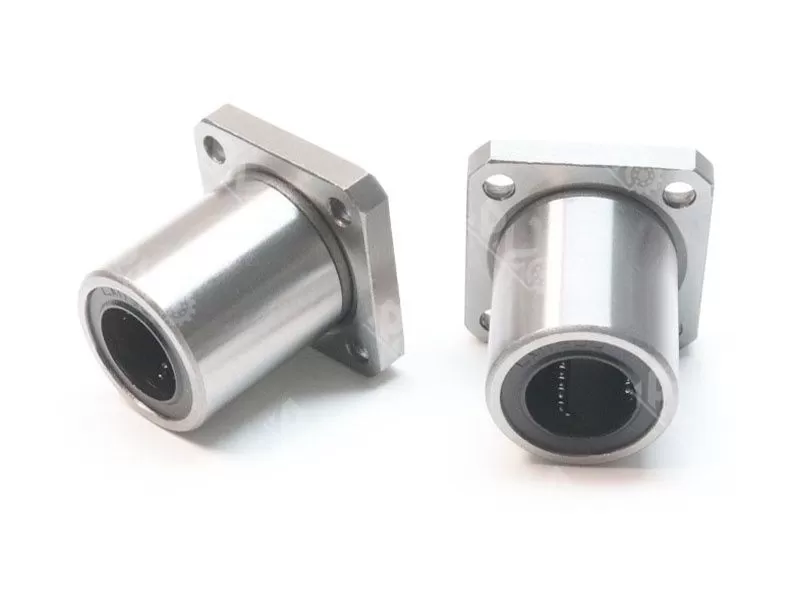

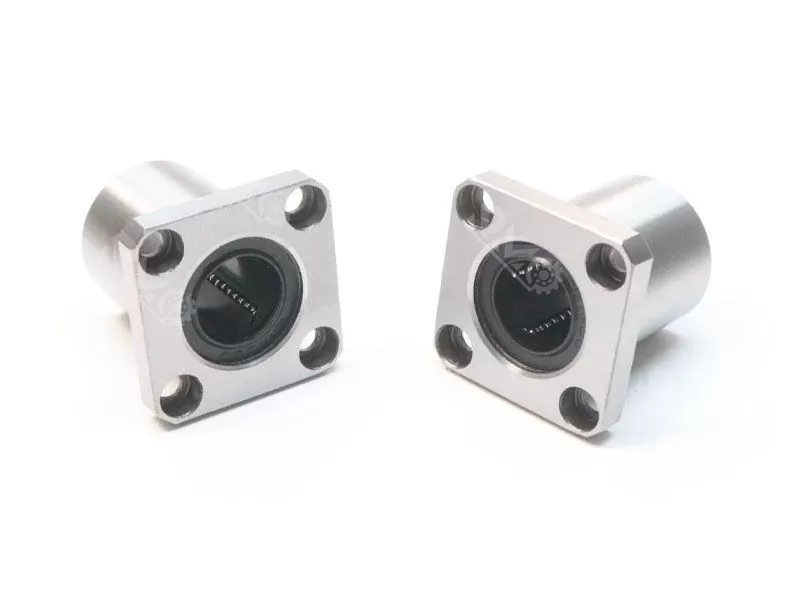

LMK16UU Square Flanged Linear Bearing

It is an integrated design of linear bearing and support, which has the characteristics of compact structure, easy installation and maintenance.

Model No: LMK16UU

Size: 16x28x37x37mm

Material: chrome steel Gcr15

Weight: 0.104KG

MOQ: 50pcs

Inquire Now Next Product

Specification

LMK16UU Square Flange Linear Bearing is constructed from GCr15 bearing steel. Its square flange design facilitates easy installation and secure mounting. Equipped with multiple steel balls inside, it achieves low-friction, high-precision linear motion through circulating rolling. Both ends feature rubber seals for dust and moisture protection. Suitable for various precision equipment such as CNC machine tools and automated production lines.

LMK16UU Square Flanged Linear Bearing

Technical parameter:

Model Number	LMK16UU
Size	16x28x37x37mm
Weight	0.104KG
Material	chrome steel Gcr15
Clearance	C2 C0 C3 C4
Precision Grade	p0
Dynamic Load Rating	0.775 lbf
Static Load Rating	1.18 lbf
Brand name	famous brand/RMO/Neutral/OEM
Payment terms	100% T/T or 30% T/T in advance, 70% before delivery
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

Features:

1. Compact structure: The design of linear bearing with flange makes it achieve efficient linear movement in a limited space, which is convenient for accurate and simple assembly.

2. Easy maintenance: Due to its simple structure, easy disassembly and maintenance, reducing maintenance costs.

3. Good interchangeability: Because linear bearings can be used in random combination with shafts, they have good interchangeability.

4. Diversified application environment: the outer cylinder material of linear bearing is made of steel and stainless steel, and the reholder is also made of stainless steel and low noise resin, which can be selected according to the use environment.

Related Products

LMK16UU Square Flanged Linear Bearing

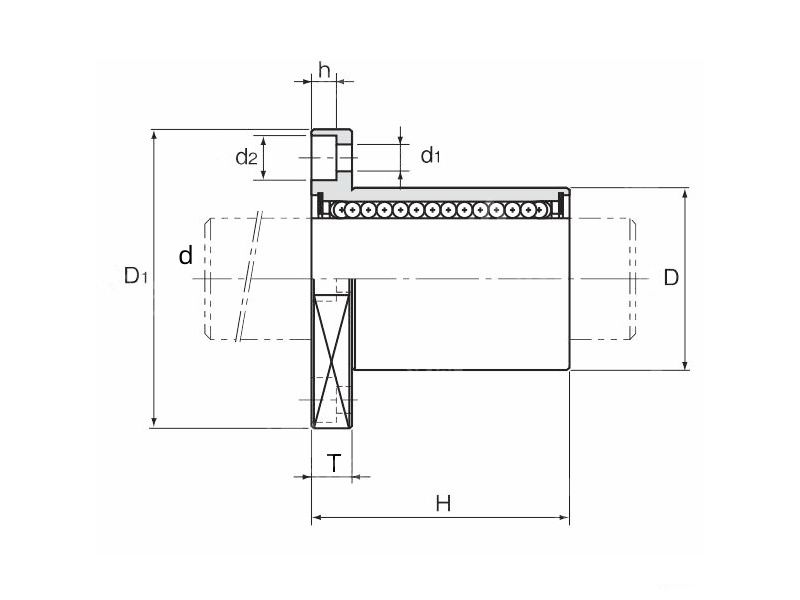

Model No.	d	D	H	m
LMK6	6 mm	12 mm	19 mm	18.5 g
SDMK6	6 mm	12 mm	19 mm	23 g
LMK8S	8 mm	15 mm	17 mm	23 g
LM8	8 mm	15 mm	24 mm	29 g
SDMK8	8 mm	5mm	24 mm	35 g
LMK10	10 mm	19 mm	29 mm	61 g
SDMK10	10 mm	19 mm	29 mm	65 g
LMK12	12 mm	21 mm	30 mm	56 g
LMK13	13 mm	23 mm	32 mm	75 g
LMK16	16 mm	28mm	37 mm	104 g
SDMK16	16 mm	28 mm	37 mm	110 g
SDMK16A	16 mm	28 mm	37 mm	110 g
LMK20	20 mm	32 mm	42 mm	145 g
LMK25	25 mm	40 mm	59 mm	300 g
SDMK25	25 mm	40mm	59 mm	290 g
LMK30	30 mm	45 mm	64 mm	375 g
SDMK30A	30 mm	45 mm	64 mm	460 g
LMK35	35 mm	52 mm	70 mm	692 g
LMK40	40 mm	60 mm	80 mm	864 g
LMK50	50 mm	80 mm	100 mm	2020 g
LMK60	60 mm	90 mm	110 mm	2520 g
SDMK80	80 mm	120 mm	140 mm	5400 g

Application scenario:

1. Automation equipment: widely used in CNC machine tools, automatic production lines and other equipment, the accuracy and stability of linear motion have higher requirements.

2. Precision machinery: In the field of precision machinery such as measuring instruments and optical equipment, it is used to support and guide moving parts to ensure the accurate operation of equipment.

3. Industrial robots: widely used in the joints and end-effectors of robots to improve the motion accuracy and stability of robots.

4. Transmission mechanism: used to support and guide the moving parts of the conveyor belt, drum and other transmission mechanisms to ensure the stable operation of the transmission mechanism and high-precision material transfer.

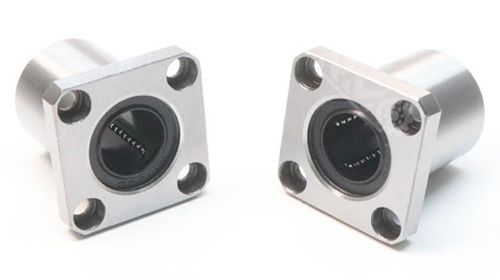

LMK16UU Square Flanged Linear Bearing
