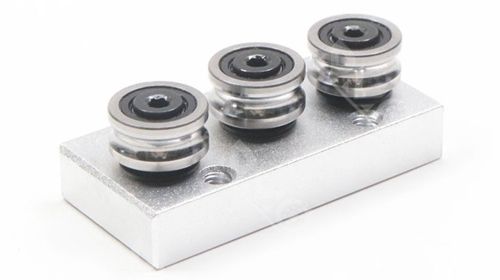

SGB10-3 SGB10 Aluminium Linear Guide Slider Bearings

SGB slider bearing is a type of bearing for linear slide rails, available in a variety of models and specifications for different application scenarios.

Model No: SGB10-3

Size: 60x32x29mm

Weight: 0.088KG

Inquire Now Next Product

Specification

SGB10-3 Aluminum Linear Guide Slider Bearings are constructed from aluminum alloy and feature three high-precision rollers. Designed for use with SGR10 dual-axis guide rails, they offer high speed, low friction, high precision, dust resistance, and maintenance-free operation. These bearings are suitable for various precision equipment such as laser cutting machines and medical devices.

Technical parameter:

Model Number	SGB10-3
Size	60x32x29mm
Weight	0.088KG
Material	chromel steel+aluminium
Clearance	C2 C0 C3 C4
Precision Grade	p0
Package	industrial packaging
MOQ	50pcs
Brand name	famous brand/RMO/Neutral/OEM
Payment terms	100% T/T or 30% T/T in advance, 70% before delivery
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

Basic information:

SGB slider bearings are available in a variety of models, including SGB slider 10-4 wheels, SGR guide 15N, 20N-5 wheels, 20-4 wheels, etc. These slide bearings are commonly used in linear slide systems and have a locking function to ensure stability and accuracy during movement.

Performance characteristics:

The main performance characteristics of SGB slider bearings include:

1. High precision: suitable for high precision linear motion system.

2. Stability: Built-in locking function to ensure stability during movement.

3. Wear resistance: made of high-quality materials, with good wear resistance and service life.

4. Wide range of application: suitable for linear moving parts in various mechanical equipment, such as automation equipment, industrial robots, etc.
