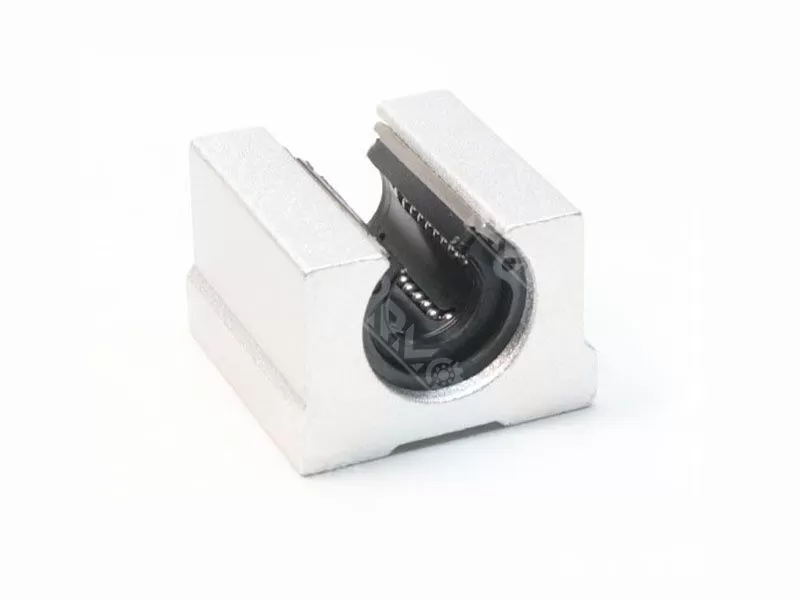

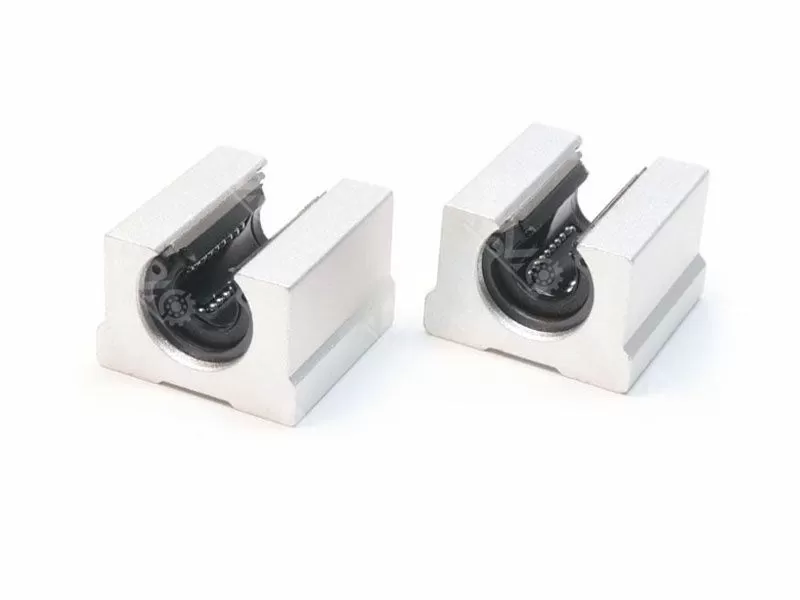

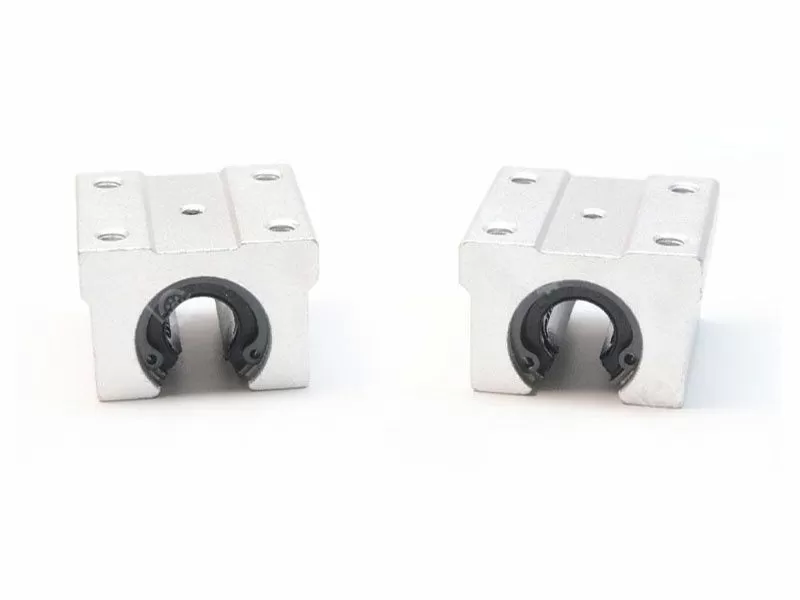

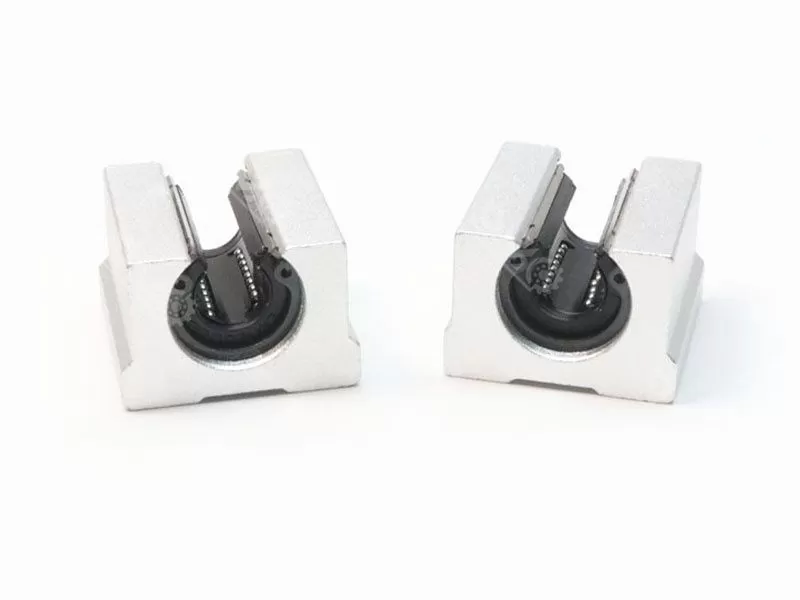

SBR12UU linear guide slider bearings

A linear slider bearing is a bearing used for linear motion.

Model No: SBR12UU

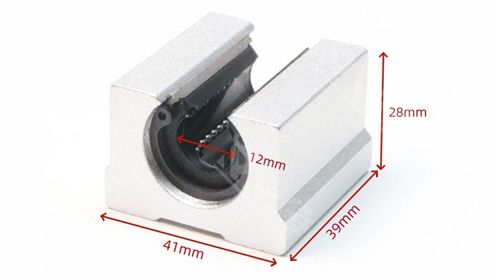

Size: 12x41x39x28mm

Material: chromel steel+aluminium

Weight: 0.1KG

Lead time: 3-5 days

Shipping Port: GuangZhou, NingBo, ShangHai

Inquire Now Next Product

Specification

Brand name: famous brand/RMO/Neutral/OEM

MOQ: 50pcs

Package: industrial packaging

Payment terms: 100% T/T or 30% T/T in advance, 70% before delivery

Features:

1.Simple structure: simple design, easy to install and maintain.

2. Low friction: Due to its design principle, the friction and wear generated by the linear slider bearing during the movement is small, thus reducing energy loss and improving mechanical efficiency.

3. Strong bearing capacity: it can withstand large loads, has a long service life, and reduces the maintenance cost and replacement frequency of the equipment.

4. High precision: With the characteristics of high precision and high rigidity, it can achieve accurate positioning and stable movement to meet the needs of high-precision machining and measurement.

5. Good stability: It has good thermal stability and impact resistance, and can maintain stable performance in harsh working environments.

Related Products

SBR12UU linear guide slider bearings

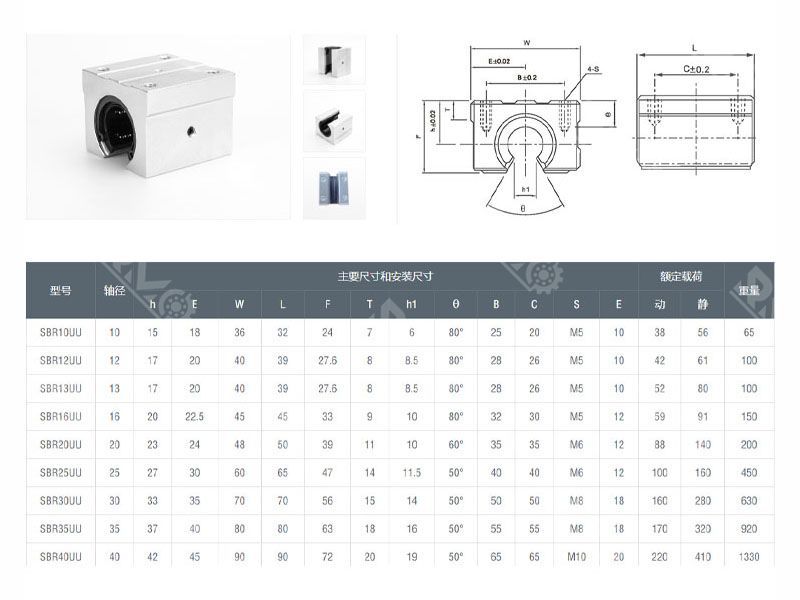

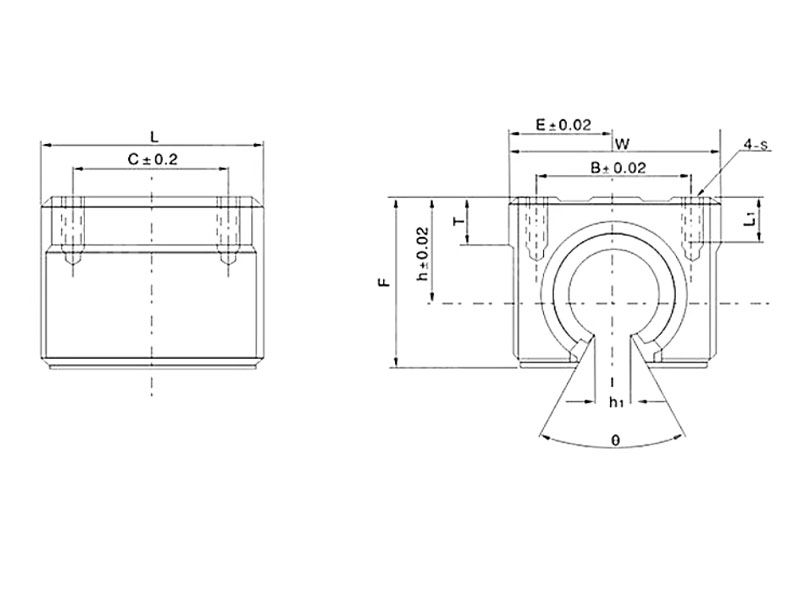

Model No.	h	E	W	L	F	h1	0	B	C	S	L1	T	m	Load / dynamic	Load / Static
SBR10UU	15	18	36	32	24	6	80°	25	20	M5	10	7	65	372	549
SBR12UU	17.5	20.5	41	39	28	7.5	80°	28	26	M5	10	8	100	420	610
SBR16UU	20	22.5	45	45	33	10	80°	32	30	M5	12	9	150	774	1180
SBR20UU	23	24	48	50	39	10	60°	35	35	M6	12	11	200	882	1370
SBR25UU	7	30	60	65	47	11.5	50°	40	40	M6	12	14	450	980	1570
SBR30UU	33	35	70	70	56	14	50°	50	50	M8	18	15	630	1570	2740
SBR35UU	37	40	80	80	63	16	50°	55	55	M8	18	18	925	1670	3140
SBR40UU	42	45	90	90	72	19	50°	65	65	M10	20	20	1330	2160	4020
SBR50UU	53	60	120	110	92	23	50°	94	80	M10	20	25	3000	3820	7940

Linear slider bearings are widely used in the following fields:

1. Electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, CNC machine tools, automobiles and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry, its accuracy and stability for the efficient operation of the equipment provides a guarantee.

2. In the semiconductor industry, it is used to support and guide the movement of various equipment and mechanical parts to meet the requirements of high precision, low friction, high stiffness and long life.

3. In the high-precision and heavy-load linear motion guiding mechanism of lithium battery, medical, chemical and other industries, its durability and stability meet the high requirements for bearings in these fields.
