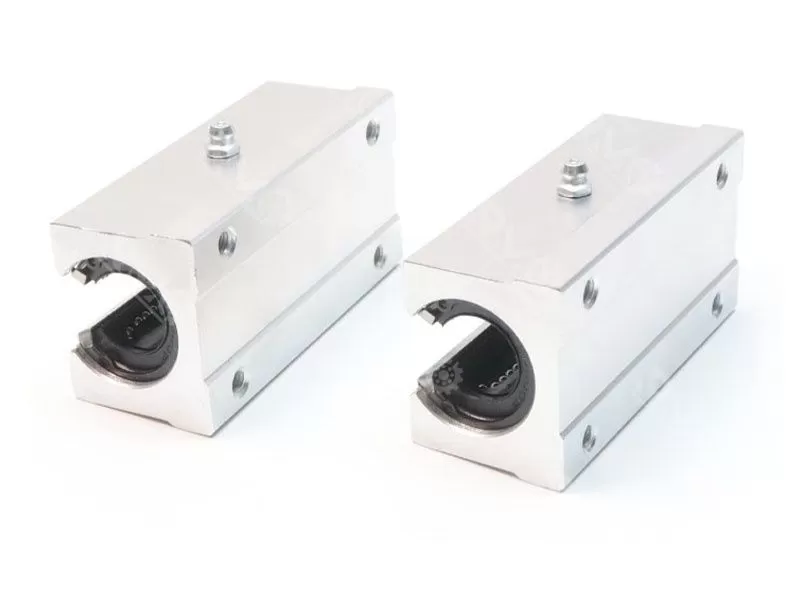

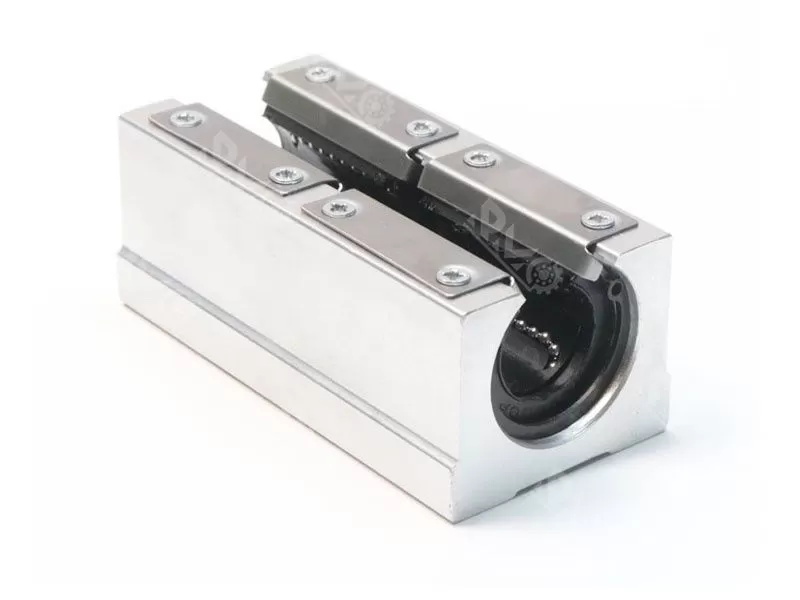

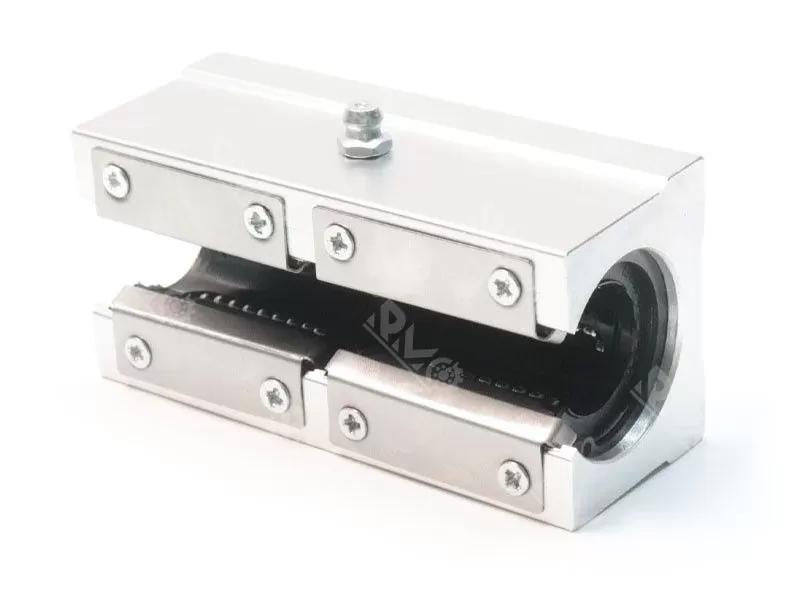

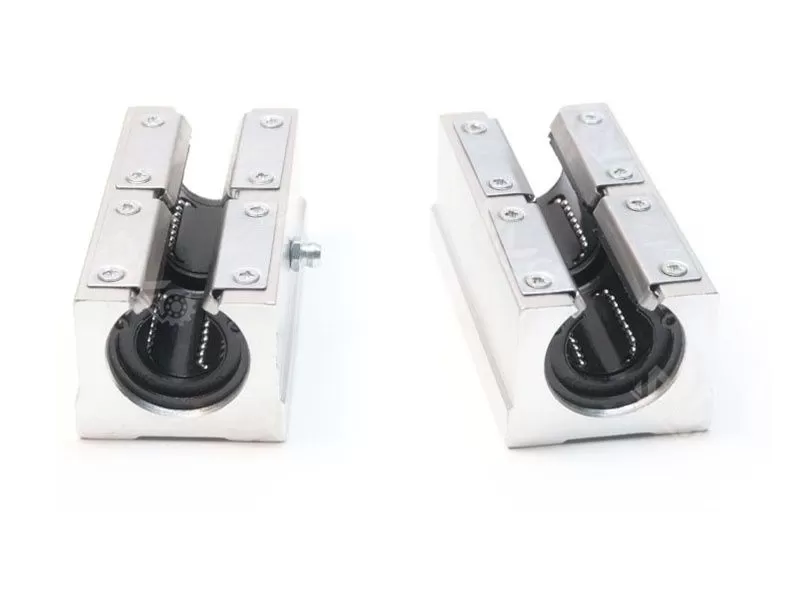

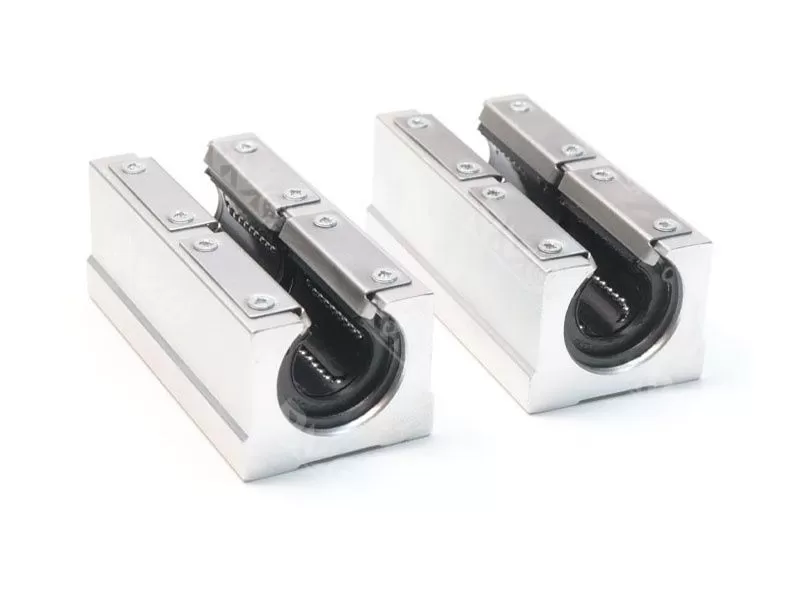

SBR20LUU linear guide slider bearing

A linear slider bearing is a bearing used for linear motion.

Model No: SBR20LUU

Size: 20x48x50x39mm

Material: chrome steel Gcr15+aluminum

Weight: 0.4KG

Lead time: 3-5 days

Shipping Port: GuangZhou, NingBo, ShangHai

Inquire Now Next Product

Specification

Brand name: famous brand/RMO/Neutral/OEM

MOQ: 50pcs

Package: industrial packaging

Payment terms:

A:100% T/T or 30% T/T in advance, 70% before delivery

Features:

1.Simple structure: simple design, easy to install and maintain.

2. Low friction: Due to its design principle, the friction and wear generated by the linear slider bearing during the movement is small, thus reducing energy loss and improving mechanical efficiency.

3. Strong bearing capacity: it can withstand large loads, has a long service life, and reduces the maintenance cost and replacement frequency of the equipment.

4. High precision: With the characteristics of high precision and high rigidity, it can achieve accurate positioning and stable movement to meet the needs of high-precision machining and measurement.

5. Good stability: It has good thermal stability and impact resistance, and can maintain stable performance in harsh working environments.

Related Products

SBR20LUU linear guide slider bearing

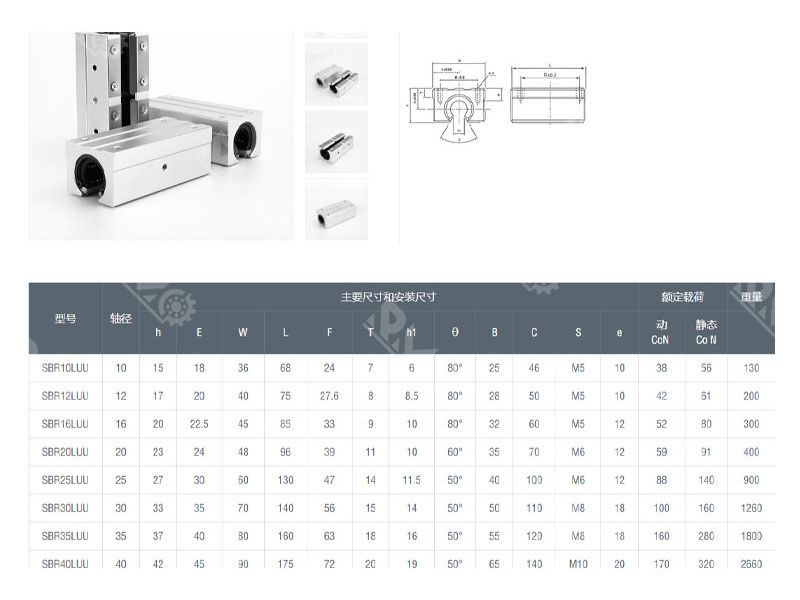

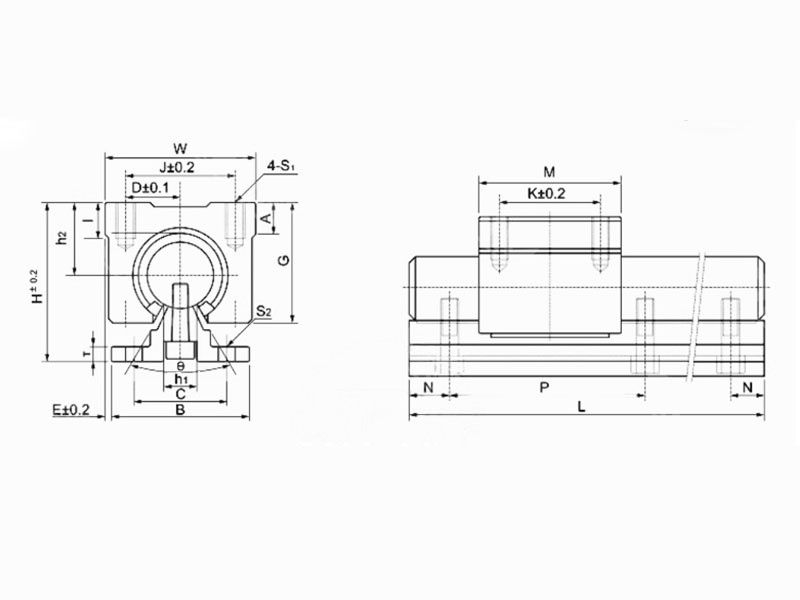

Model No.	Main Dimensions										Slide bush			Weight (G)
	H2	W	M	G	h1	0	K	S1	I	A	Model No.	Base load rate
	H2	W	M	G	h1	0	K	S1	I	A	Model No.	Dynamic	Static
SBR16LUU	20	45	85	33	11	80°	60	M5	12	9	2xLM16LUU	1548	2360	300
SBR20LUU	23	48	96	39	11	60°	70	M6	12	11	2xLM20LUU	1764	2740	400
SBR25LUU	27	60	130	47	12	50°	100	M6	12	14	2xLM25LUU	1960	3140	900
SBR30LUU	33	70	140	56	15	50°	110	M8	18	15	2xLM30LUU	3140	5480	1260
SBR35LUU	37	80	155	63	17	50°	130	M8	18	18	2xLM35LUU	3340	3260	1840
SBR40LUU	42	90	175	72	20	50°	140	M10	20	20	2xLM40LUU	4320	8040	2660

Linear slider bearings are widely used in the following fields:

1. Electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, CNC machine tools, automobiles and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry, its accuracy and stability for the efficient operation of the equipment provides a guarantee.

2. In the semiconductor industry, it is used to support and guide the movement of various equipment and mechanical parts to meet the requirements of high precision, low friction, high stiffness and long life.

3. In the high-precision and heavy-load linear motion guiding mechanism of lithium battery, medical, chemical and other industries, its durability and stability meet the high requirements for bearings in these fields.
