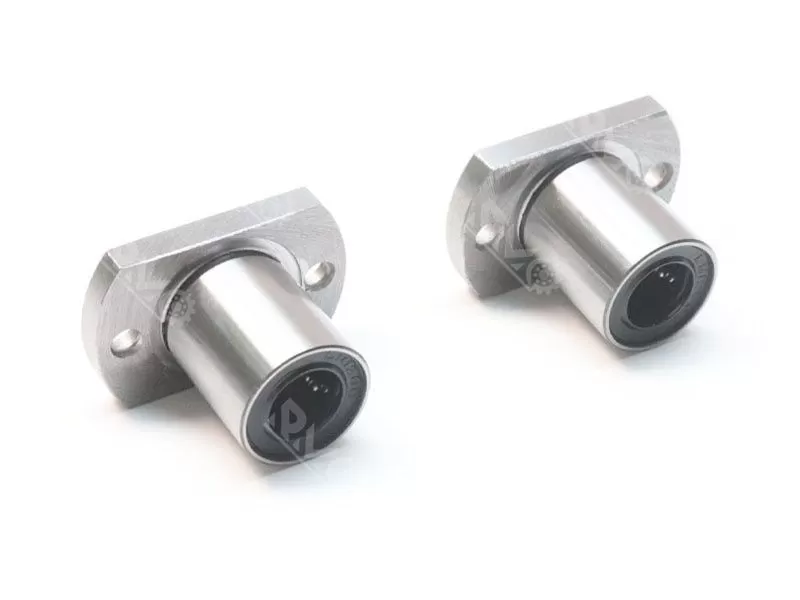

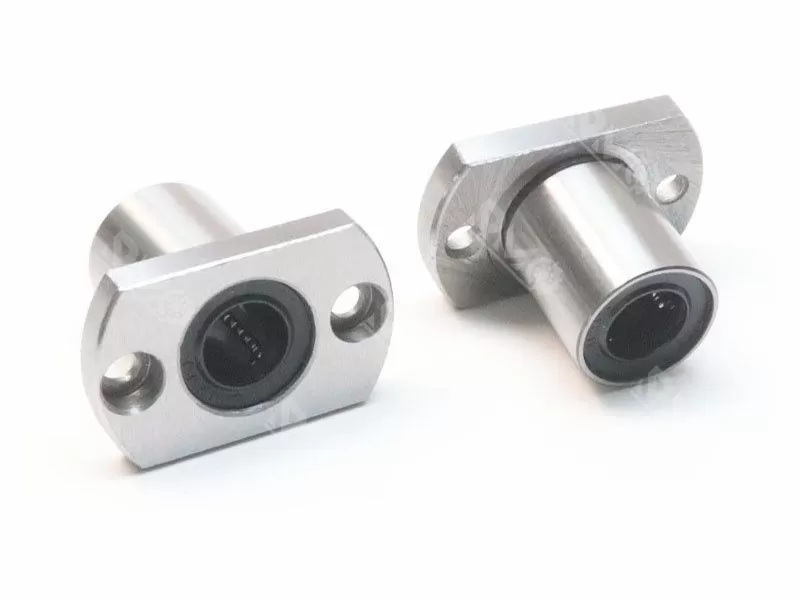

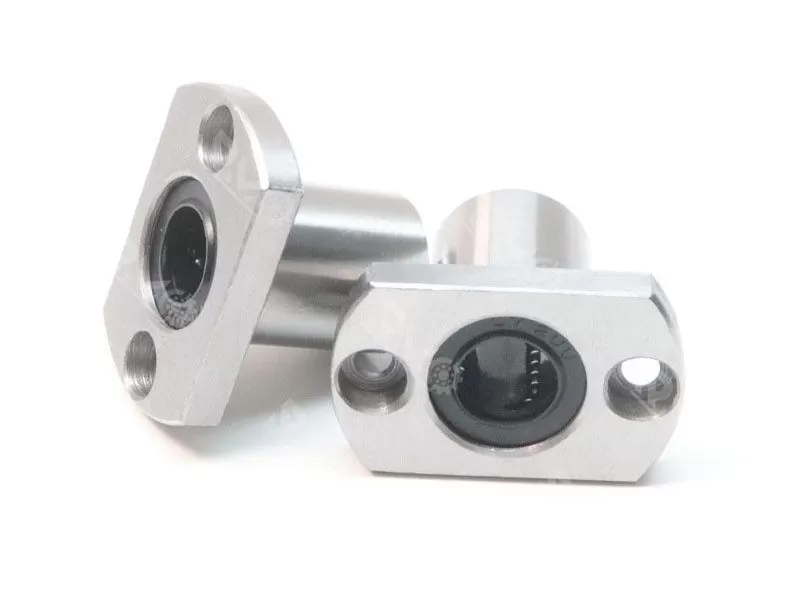

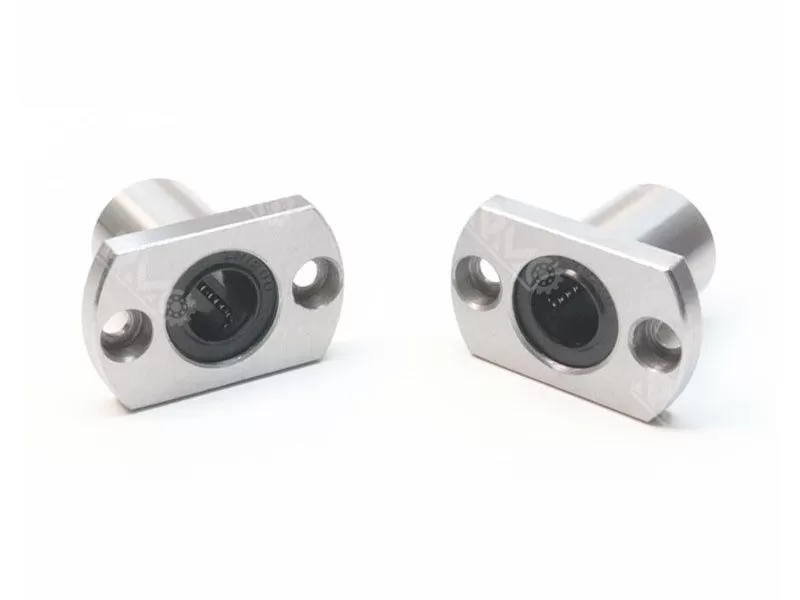

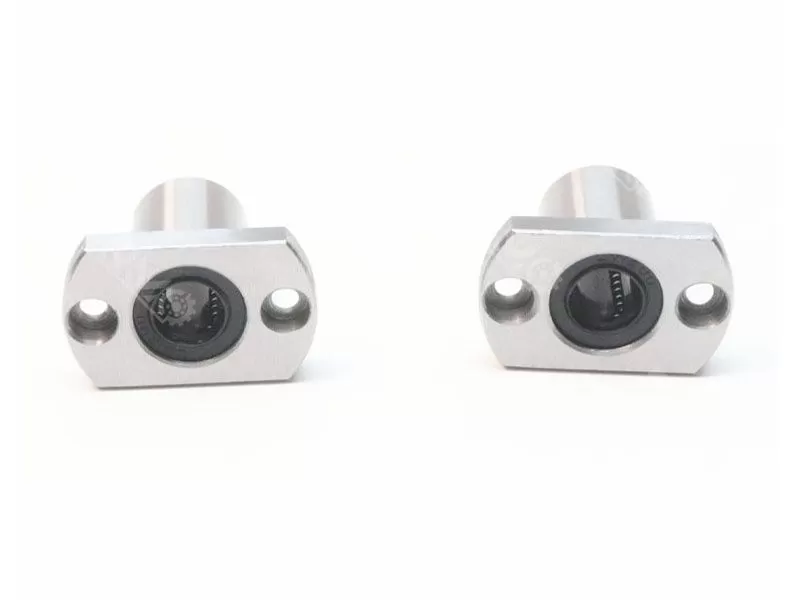

LMH12UU H Type Oval Flange Linear Bearing

It is an integrated design of linear bearing and support, which has the characteristics of compact structure, easy installation and maintenance.

Model No: LMH12UU

Size: 12x21x30x42x27mm

Material: chrome steel Gcr15

Weight: 0.058KG

MOQ: 50pcs

Inquire Now Next Product

Specification

LMH12UU H-Type Elliptical Flange Linear Bearing features an elliptical flange and outer sleeve integrated into a single-piece design. It boasts a low core height, sealed lips at both ends, and incorporates a resin cage with steel ball assemblies. This bearing delivers high precision, low friction, high rigidity, and extended service life. It is suitable for precision equipment demanding compact installation space and motion accuracy, such as CNC machine tools and 3D printers.

LMH12UU H Type Oval Flange Linear Bearing

Technical parameter:

Model Number	LMH12UU
Size	12x21x30x42x27mm
Weight	0.058 KG
Material	chrome steel Gcr15
Clearance	C2 C0 C3 C4
Precision Grade	p0
Dynamic Load Rating	0.412 lbf
Static Load Rating	0.598 lbf
Brand name	famous brand/RMO/Neutral/OEM
Payment terms	100% T/T or 30% T/T in advance, 70% before delivery
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

Features:

1. Compact structure: The design of linear bearing with flange makes it achieve efficient linear movement in a limited space, which is convenient for accurate and simple assembly.

2. Easy maintenance: Due to its simple structure, easy disassembly and maintenance, reducing maintenance costs.

3. Good interchangeability: Because linear bearings can be used in random combination with shafts, they have good interchangeability.

4. Diversified application environment: the outer cylinder material of linear bearing is made of steel and stainless steel, and the reholder is also made of stainless steel and low noise resin, which can be selected according to the use environment.

Related Products

LMH12UU H Type Oval Flange Linear Bearing

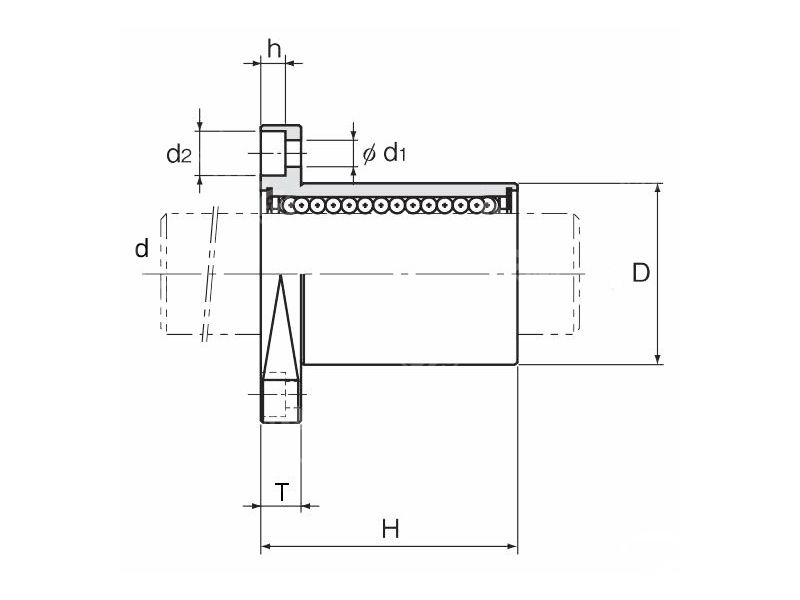

Model No.	d	D	H	m
LMH6	6 mm	12 mm	19 mm	18 g
LMH8	8 mm	15 mm	24 mm	28 g
LMH10	10 mm	19 mm	29mm	50 g
LMH12	12 mm	21 mm	30 mm	55 g
LMH13	13 mm	23 mm	32 mm	70 g
LMH16	16 mm	28 mm	37 mm	95 g
LMH20	20 mm	32 mm	42 mm	150 g
LMH25	25 mm	40 mm	59 mm	275 g
LMH30	30 mm	45 mm	64 mm	350 g

Application scenario:

1. Automation equipment: widely used in CNC machine tools, automatic production lines and other equipment, the accuracy and stability of linear motion have higher requirements.

2. Precision machinery: In the field of precision machinery such as measuring instruments and optical equipment, it is used to support and guide moving parts to ensure the accurate operation of equipment.

3. Industrial robots: widely used in the joints and end-effectors of robots to improve the motion accuracy and stability of robots.

4. Transmission mechanism: used to support and guide the moving parts of the conveyor belt, drum and other transmission mechanisms to ensure the stable operation of the transmission mechanism and high-precision material transfer.
