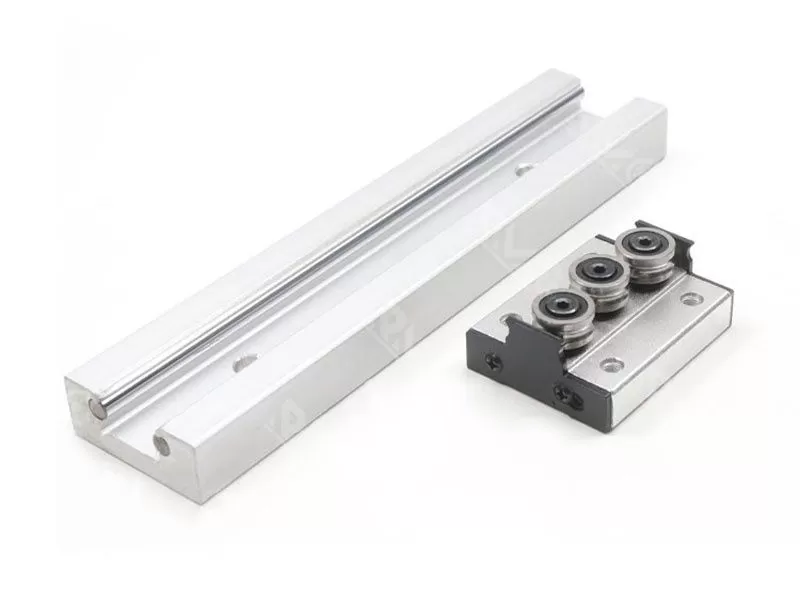

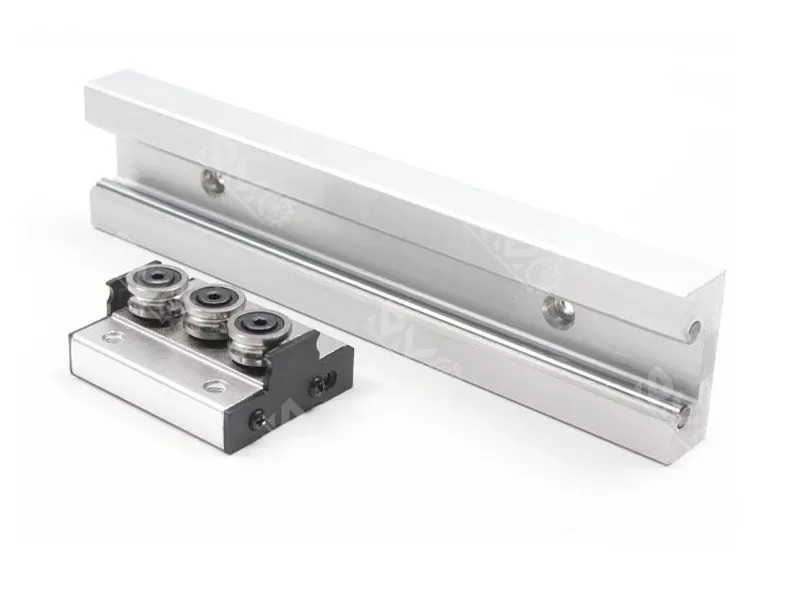

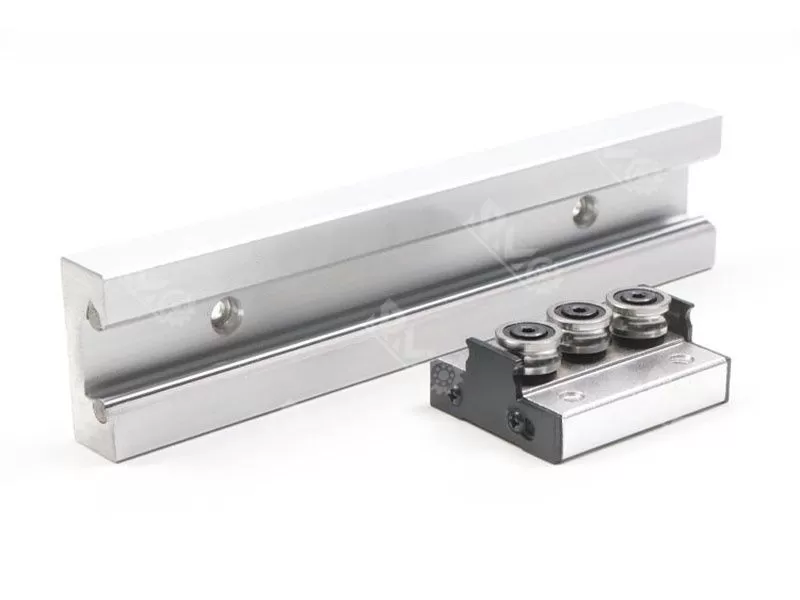

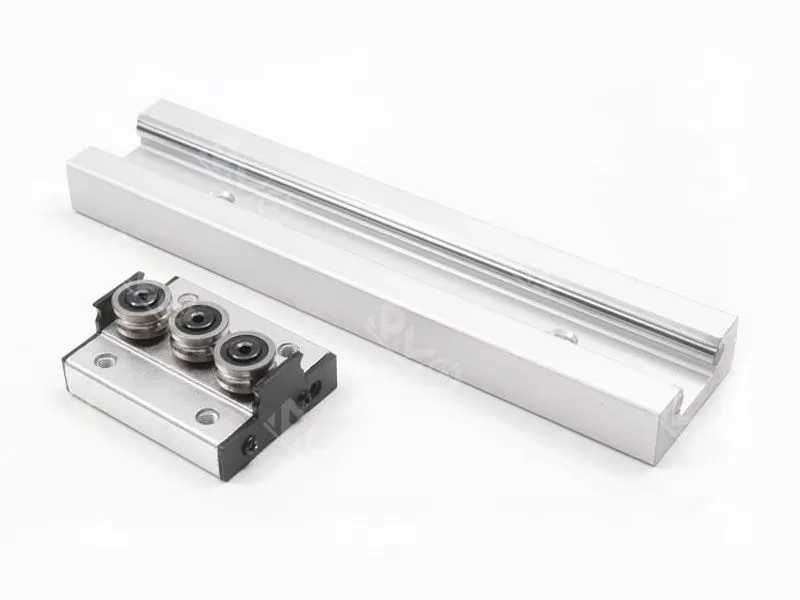

SGR15-L200 Linear Gudie Rails

The SGR guide rail is a built-in double axis linear guide rail with high precision, fast roller and locking positioning functions.


Model No: SGR15-L200 linear gudie rail

Size: 15x200mm

Material: chromel steel+aluminium

Weight: 0.53KG

MOQ:50pcs

Lead Time:3-5 Days

Specification

SGR15-L200 Linear Guide Length: 200mm Constructed from aluminum alloy and bearing steel with a dual-axis design Surface treated with anodizing and chrome plating Features easy installation, high precision, dust and rust resistance, and low cost Suitable for automation equipment, welding equipment, and various other applications

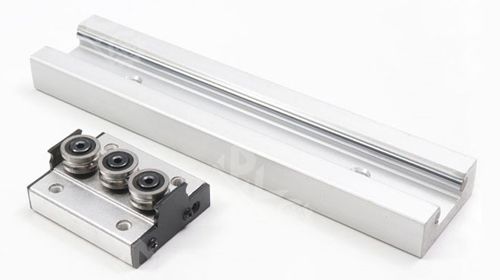

SGR15-L200 Linear Gudie Rails

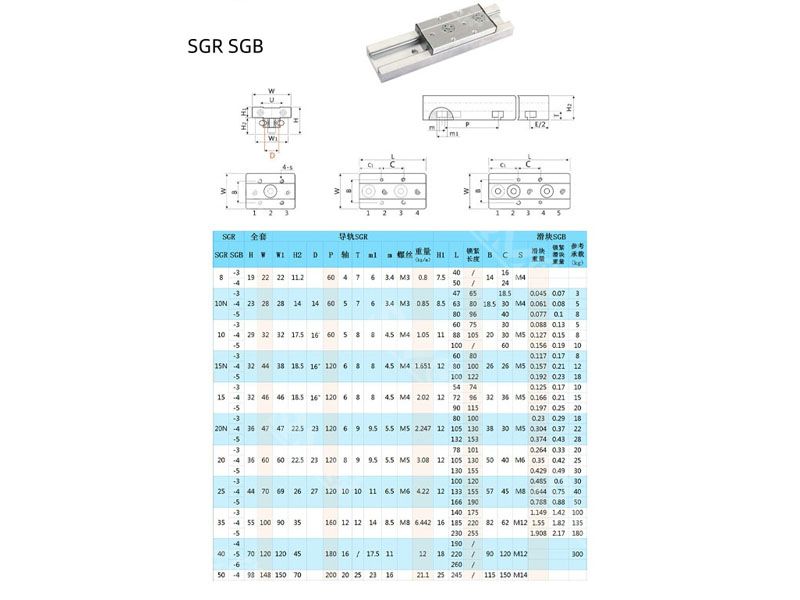

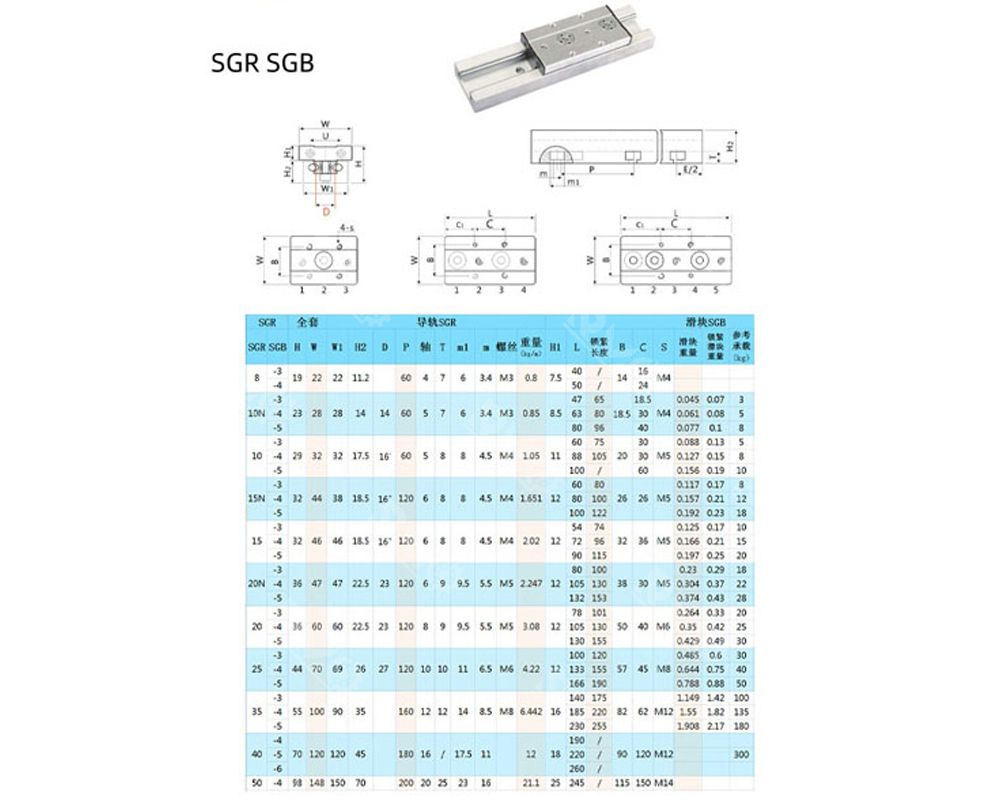

Technical parameter:


 Model Number                                                                               SGR15-L200 linear gudie rail
 Size                                    15x200mm
 Weight                                    0.53KG
 Material                                    chromel steel+aluminium
 Clearance                                    C2  C0  C3  C4
 Precision Grade                                    p0
 Package                                    industrial packaging
 MOQ                                    50pcs
 Brand name                                    famous brand/RMO/Neutral/OEM
 Payment terms                                    100% T/T or 30% T/T in advance, 70% before delivery
 Lubrication                                    Pre-lubricated with High-Performance Grease
 Temperature Range                                    -20°C to +120°C
 Lead Time                                    3-5 Days



Material and design features:

SGR linear guide rails are usually made of aluminum alloy, stainless steel or engineering plastics. Aluminum alloy material is lightweight and corrosion resistant, suitable for equipment that needs to move frequently; Stainless steel is known for its excellent corrosion resistance and high strength, suitable for harsh environments; Engineering plastics perform well in reducing maintenance costs due to their self-lubricating properties. Its design is built-in, compact and easy to install.

Related Products

SGR15-L200 Linear Gudie Rails

Performance and application scenarios

SGR linear guide rails provide excellent stability and accuracy to ensure long and efficient operation. Its unique design makes installation and commissioning easy and fast, greatly saving time and labor costs. In practical applications, this slide can significantly improve the overall performance of the equipment, whether it is high-speed operation or precision operation can be easily handled. In addition, the SGR rail is excellent at high speed and quiet, which is suitable for scenarios with high environmental requirements.
