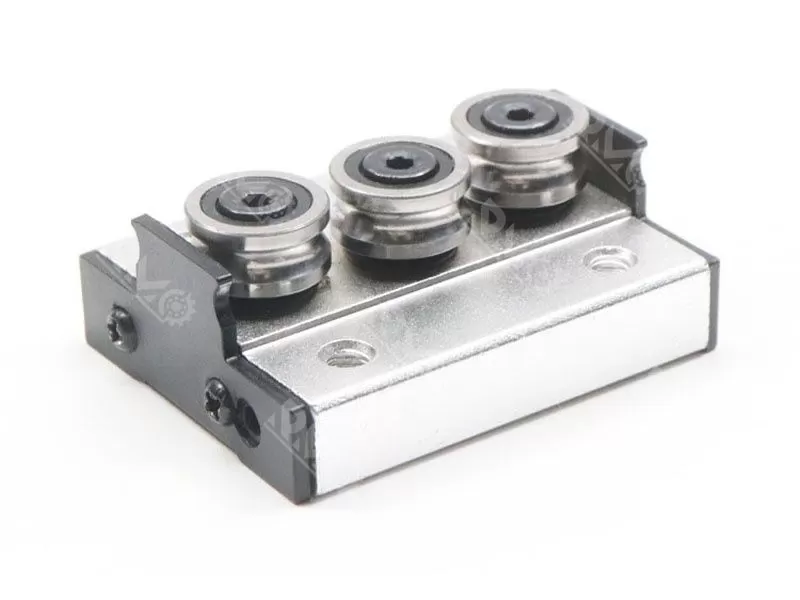

SGB15-3 SGB15 Aluminium Linear Guide Slider Bearings

SGB slider bearing is a type of bearing for linear slide rails, available in a variety of models and specifications for different application scenarios.

Model No: SGB15-3

Size: 120x46x32mm

Weight: 0.125KG

Inquire Now Next Product

Specification

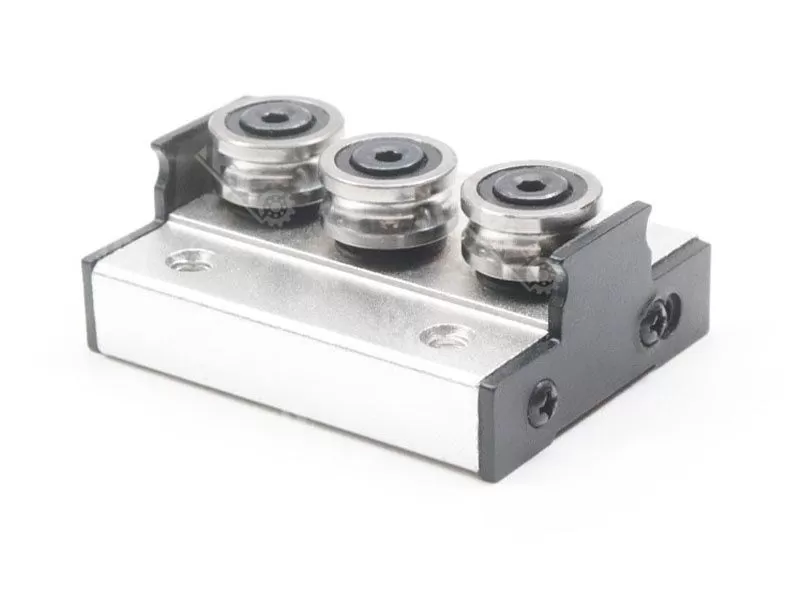

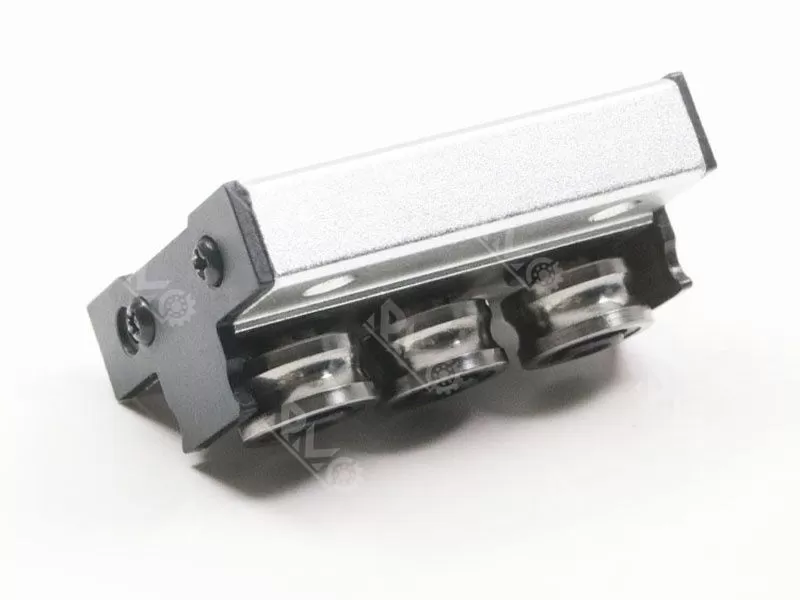

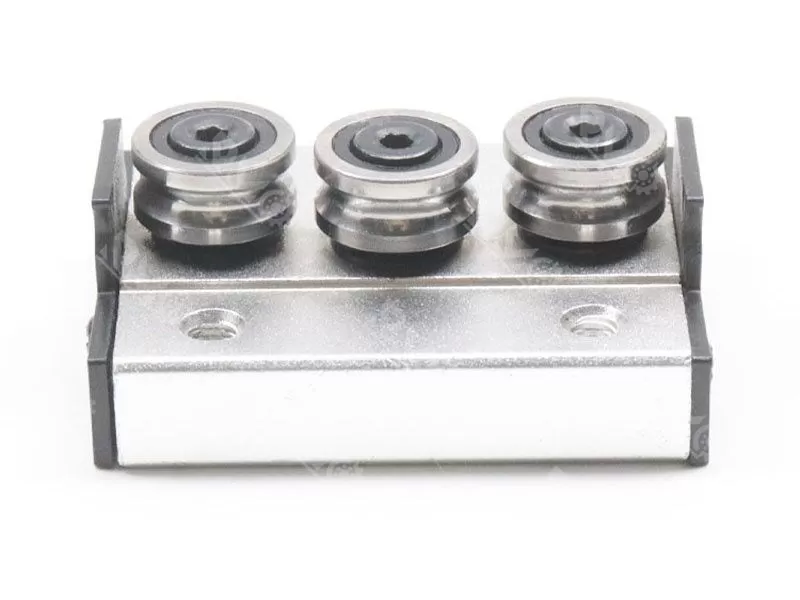

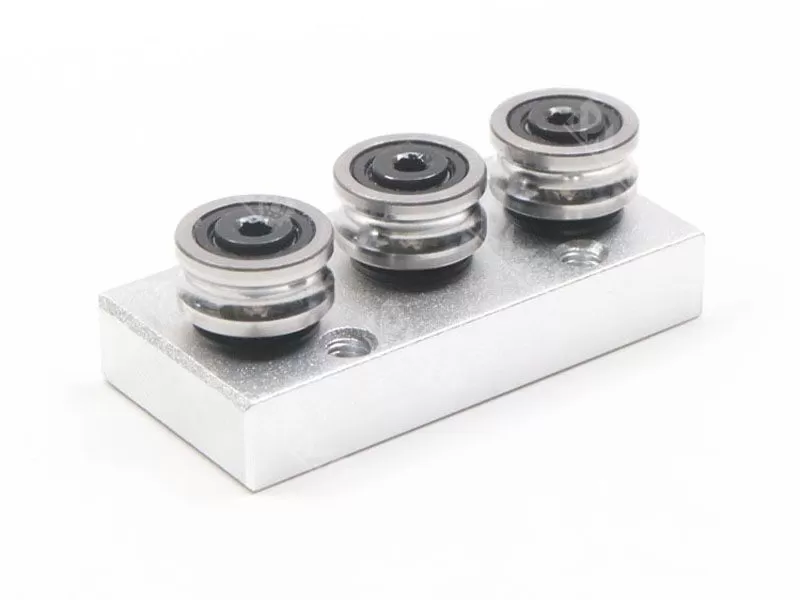

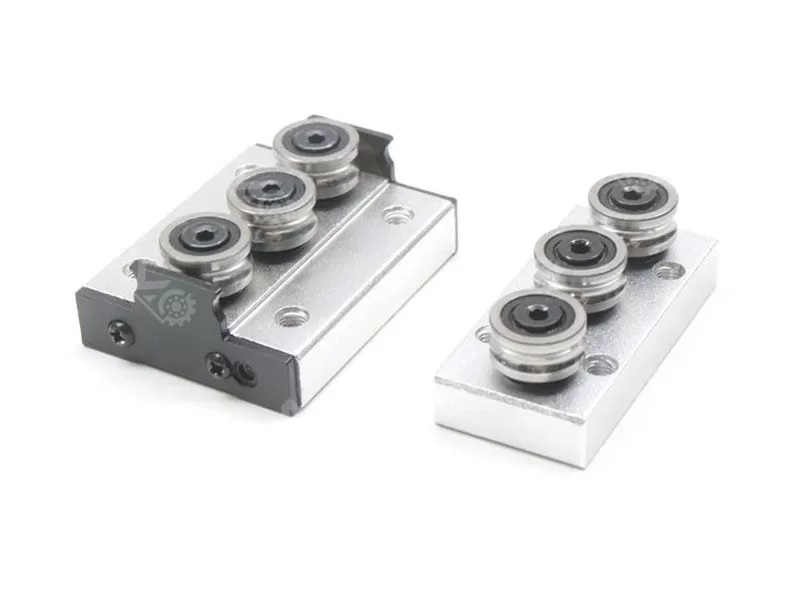

SGB15-3 Aluminum Linear Guide Rail Slider Bearings consist of a slider body and three rollers, designed for use with SGR15 dual-axis guide rails. Both the guide rails and sliders are crafted from aluminum alloy with specially treated surfaces. They feature high speed, low friction, high precision, wear resistance, corrosion resistance, and low noise characteristics, making them suitable for industrial automation equipment, precision instruments, and other applications.

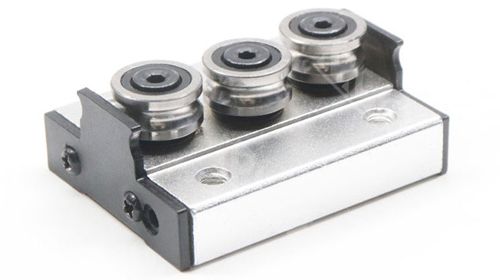

SGB15-3 SGB15 Aluminium Linear Guide Slider Bearings

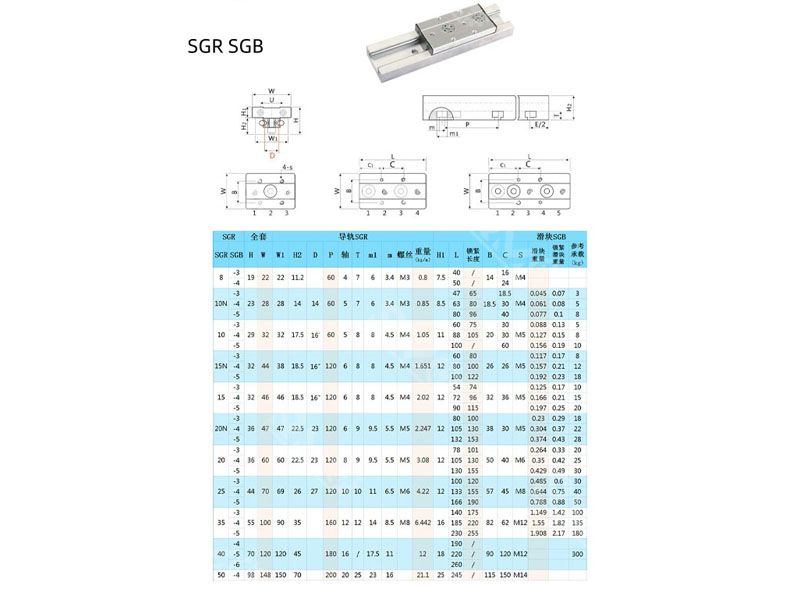

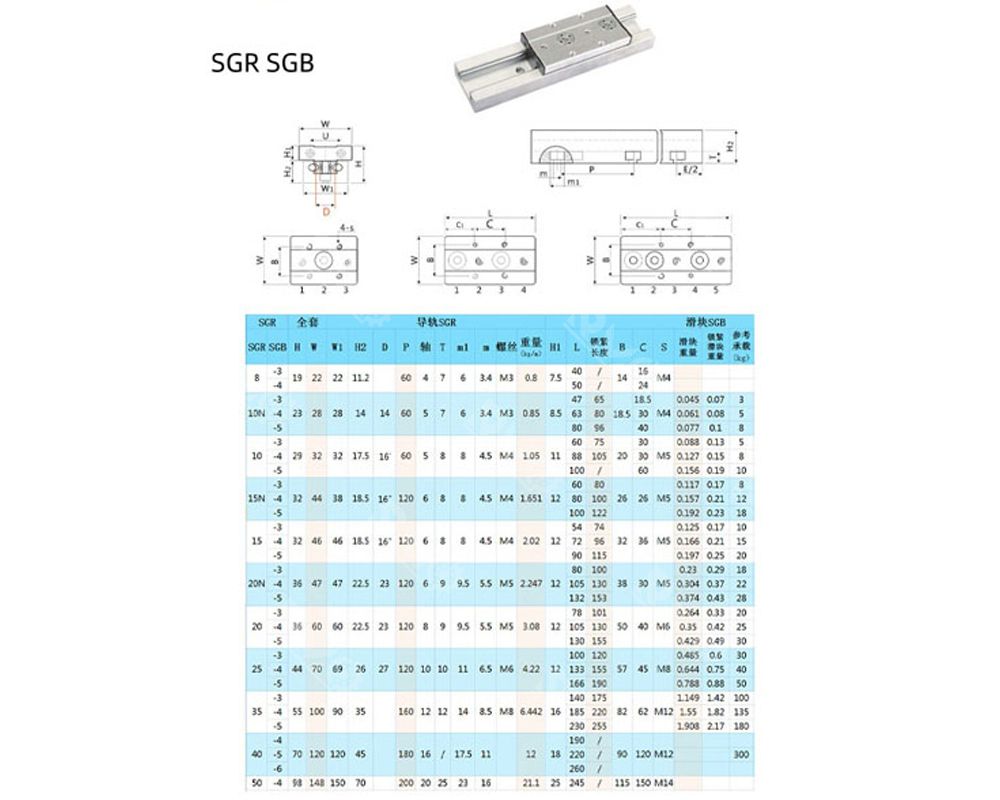

Technical parameter:

Model Number	SGB15-3
Size	120x46x32mm
Weight	0.125KG
Material	chromel steel+aluminium
Clearance	C2 C0 C3 C4
Precision Grade	p0
Package	industrial packaging
MOQ	50pcs
Brand name	famous brand/RMO/Neutral/OEM
Payment terms	100% T/T or 30% T/T in advance, 70% before delivery
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

Basic information:

SGB slider bearings are available in a variety of models, including SGB slider 10-4 wheels, SGR guide 15N, 20N-5 wheels, 20-4 wheels, etc. These slide bearings are commonly used in linear slide systems and have a locking function to ensure stability and accuracy during movement.

Performance characteristics:

The main performance characteristics of SGB slider bearings include:

1. High precision: suitable for high precision linear motion system.

2. Stability: Built-in locking function to ensure stability during movement.

3. Wear resistance: made of high-quality materials, with good wear resistance and service life.

4. Wide range of application: suitable for linear moving parts in various mechanical equipment, such as automation equipment, industrial robots, etc.
