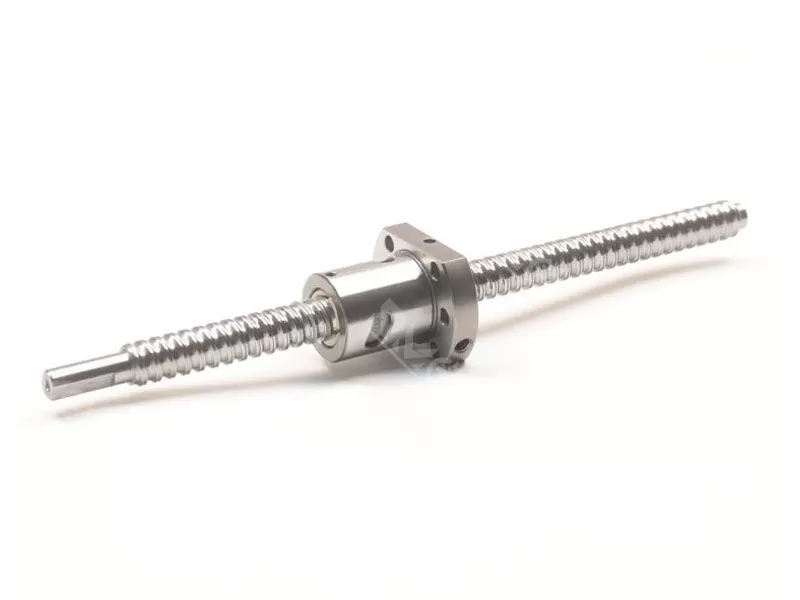

single DIN type nut SFU1204 flange type SFU series miniature rolled ball screw SFU1204-L215.5mm

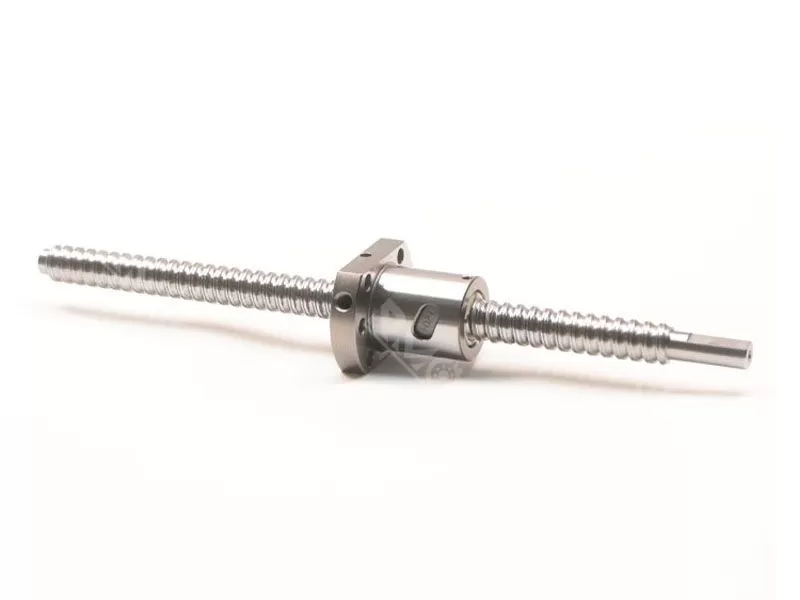

SFU1204 SFU1204-L215.5mm rolled ball screw

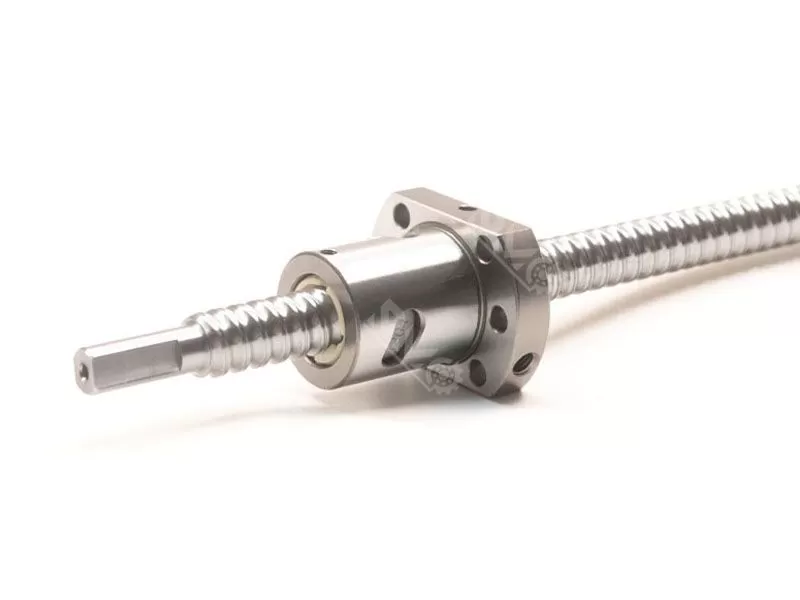

The ball screw is composed of a screw, a nut, steel balls, pre-pressing plates, a reverse device, and a dust cover. Its main function is to convert rotational motion into linear motion, or to convert torque into axial repetitive forces. It also has the characteristics of high precision, reversibility, and high efficiency. Due to its very low friction resistance, the ball screw is widely used in various industrial equipment and precision instruments.

Applications:

1. Ultra-high DN value ball screws: High-speed machine tools, high-speed comprehensive processing centers

2. End cover type ball screws: Rapid handling systems, general industrial machinery, automated machinery

3. High-speed ball screws: CNC machinery, precision machine tools, industrial machinery, electronic machinery, high-speed machinery

4. Precision grinding grade ball screws: CNC machinery, precision machine tools, industrial machinery, electronic machinery, conveying machinery, aerospace industry, actuators for other antennas, valve switch devices, etc.

5. Nut rotating type (R1) series ball screws: Semiconductor machinery, industrial robots, woodworking machines, laser processing machines, conveying devices, etc.

6. Rolling grade ball screws: With the advantages of low friction and smooth operation, they are also supplied quickly and at a low price.

7. Heavy-duty ball screws: Fully electric injection molding machines, stamping machines, semiconductor manufacturing equipment, heavy-duty brakes, industrial machinery, forging machinery

Products Name	rolled ball screw
Model	SFU1204 SFU1204-L215.5mm
Size	diameter: 12mm, lead: 4mm, length: 215.5mm
material	Screw S55C, nut 20CrMo
Feature	High precision and rigidity, low friction loss, high transmission efficiency.
Application	Widely used in various machine tools.
Packing	Ours or according to customers' requirements
Payment Terms	1: 100% T/T 2: 30% T/T in advance ,70% before delivery
Delivery Lead Time	Normally 3-15days

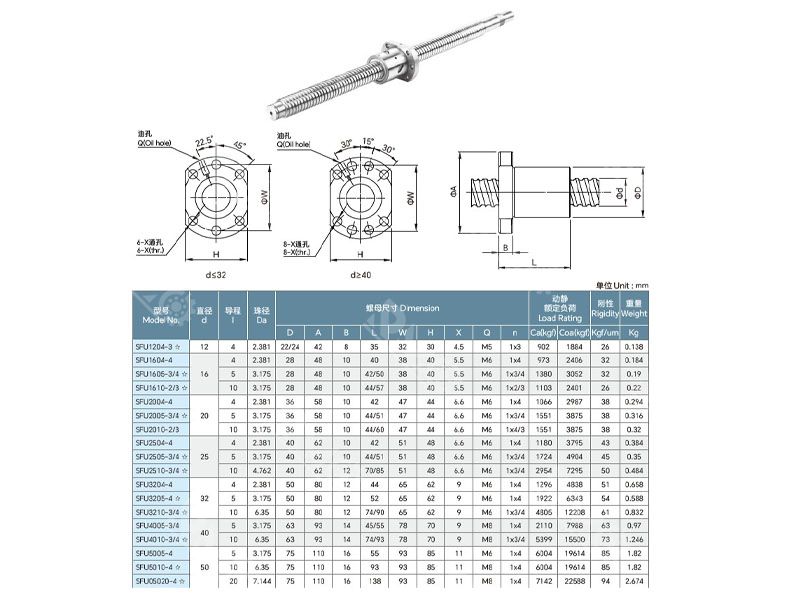

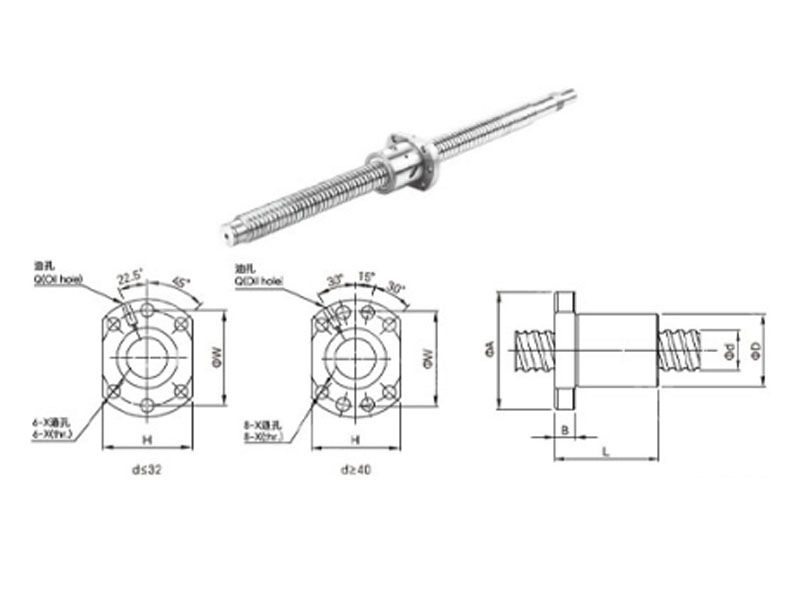

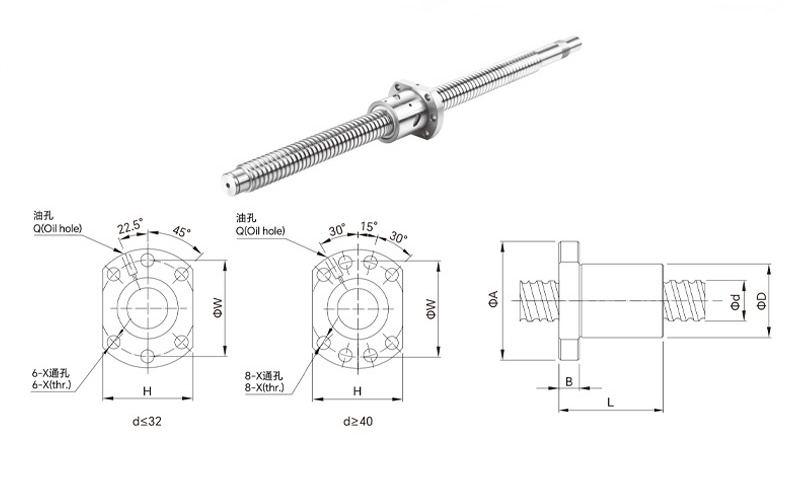

Model No.	ID	Screw Lead I	(ball) Da	Nut Dmension									Load Rating		Rigidity	Weight
