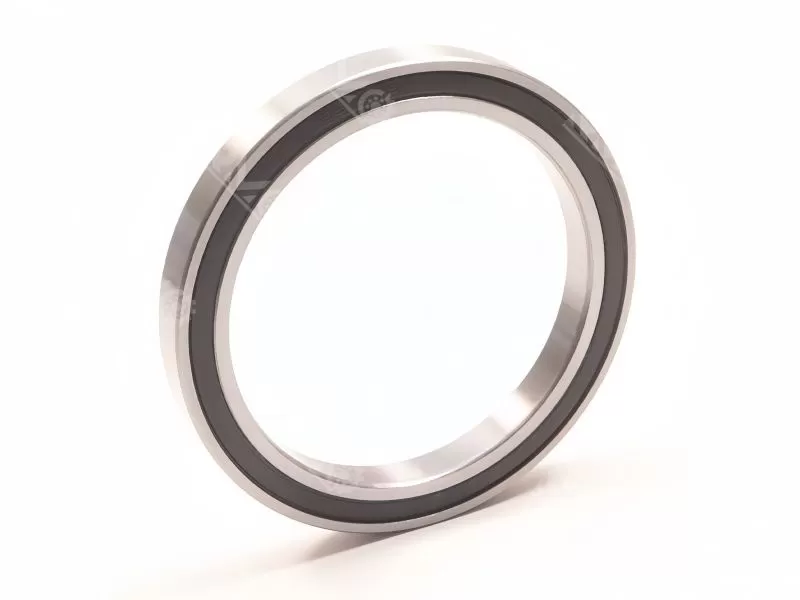

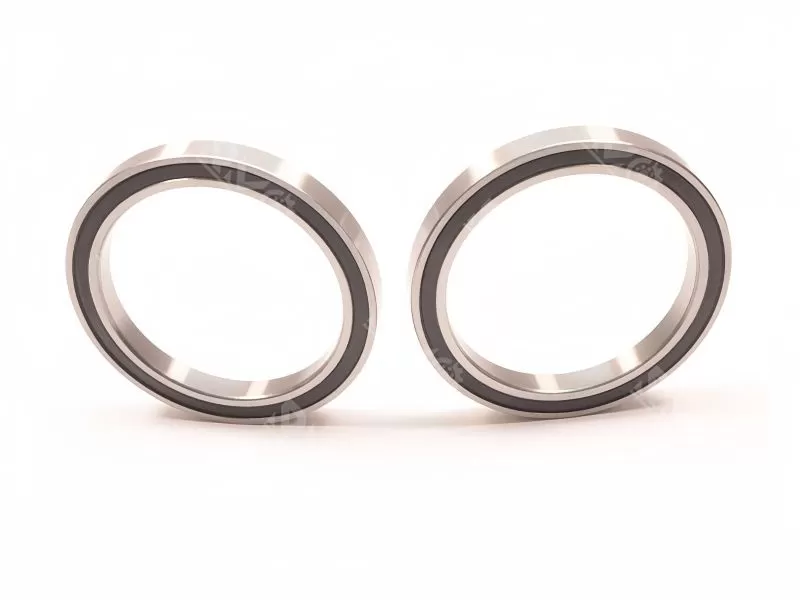

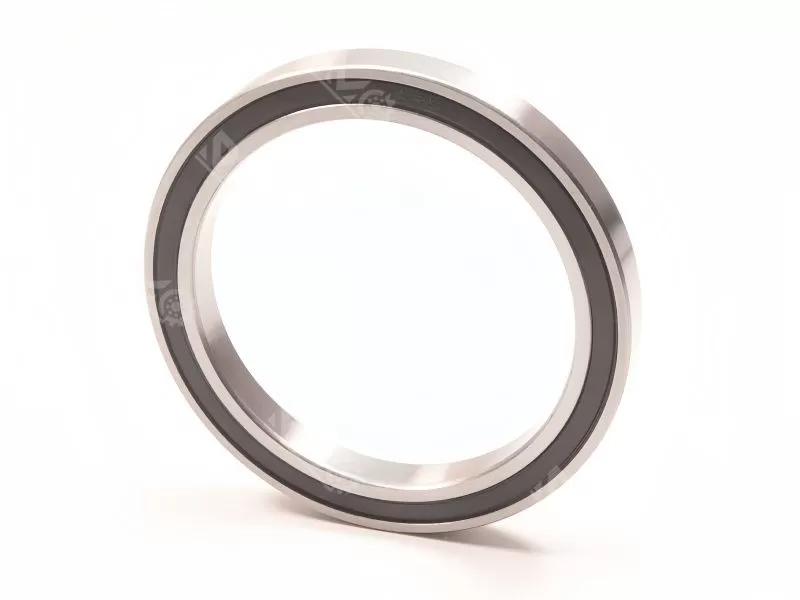

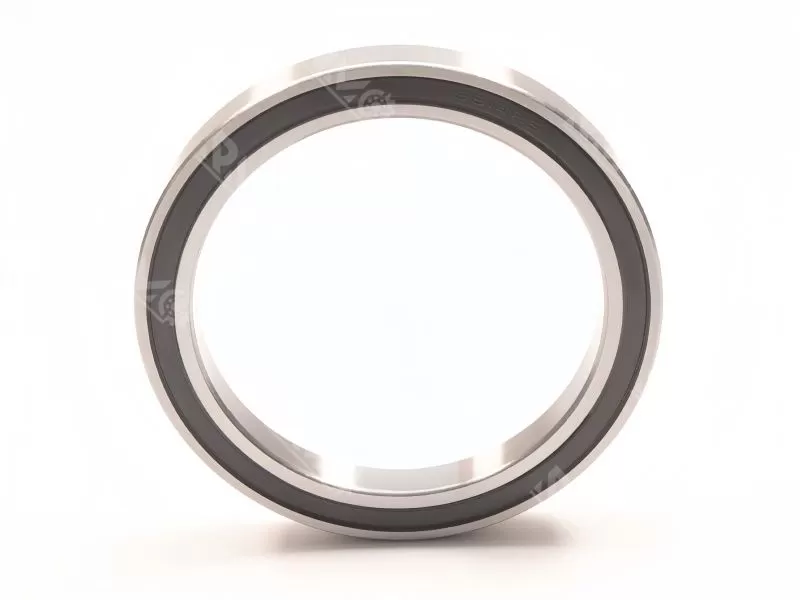

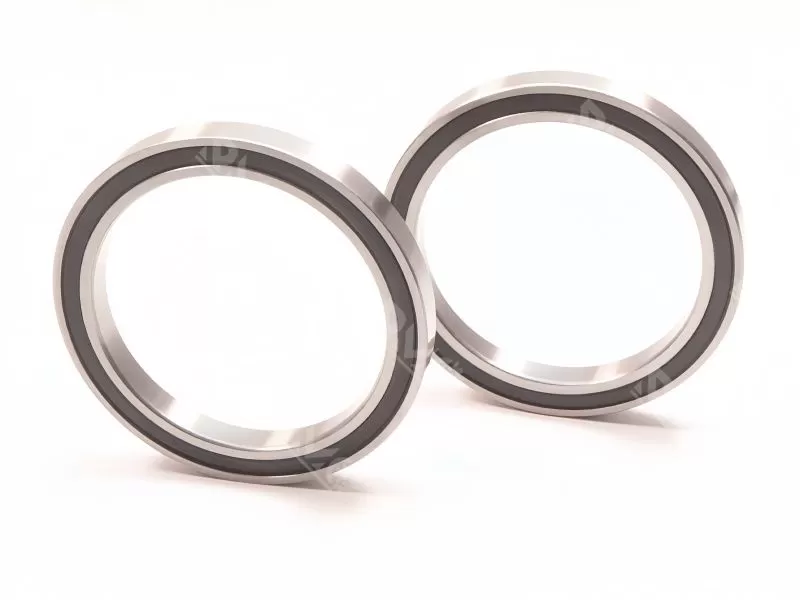

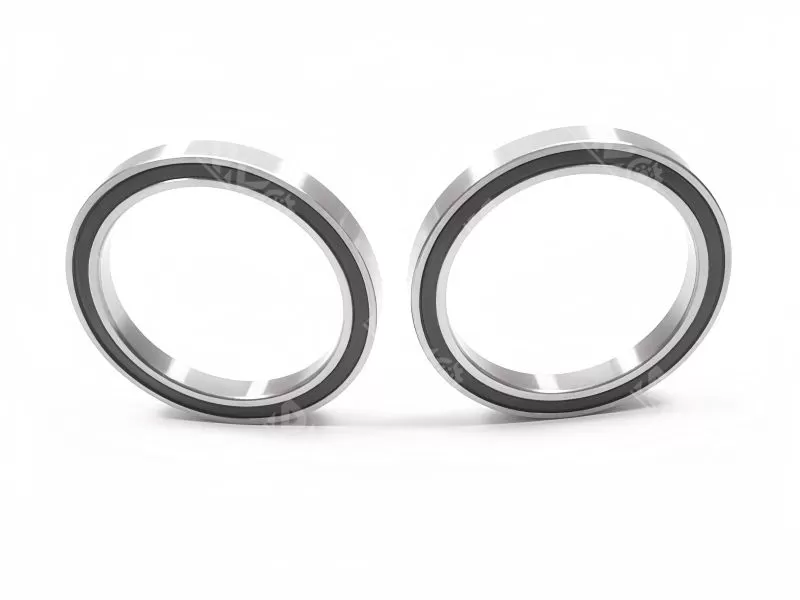

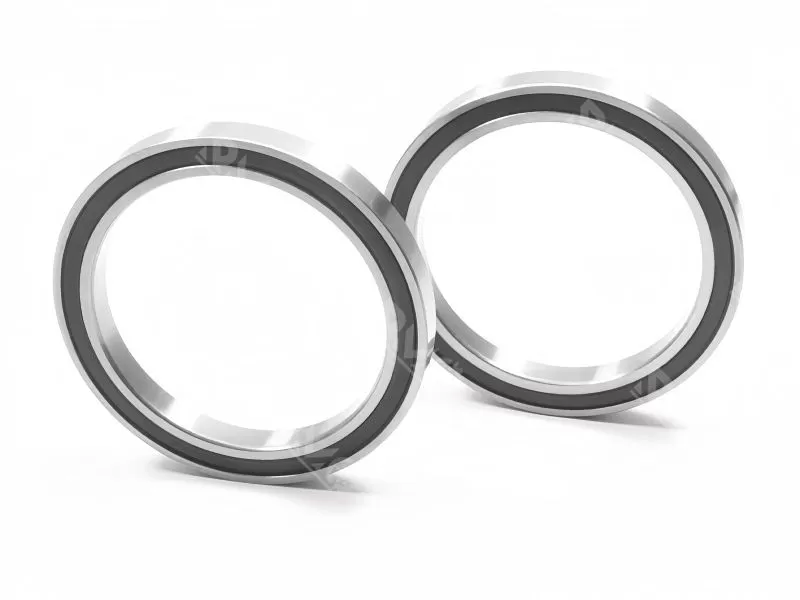

61814 6814RS Thin Wall Ball Bearing

It is a bearing that realizes an extremely thin bearing section and a miniaturized and lightweight design.

Product name: 6814RS/61814RS bearing

Size: 70x90x10mm

Material: chrome steel Gcr15

weight: 0.14KG

Lead time: normally 3-5 days

Inquire Now Next Product

Specification

Package: Plastic tube or single box+Carton+Pallet

MOQ: 10 PCS

Shipping Port: Guangzhou, Ningbo, Shanghai

Payment: 100% T/T or 30% T/T before production, 70% before delivery

Thin-walled bearings are a type of bearing that achieves an extremely thin cross-section and a compact, lightweight design. They are generally classified into different sealing forms, such as rubber sealed - RS and metal sealed - ZZ, and use small outer diameter steel balls to achieve low friction torque, high rigidity, and excellent rotational accuracy. Meanwhile, the hollow shaft design in thin-walled bearings ensures lightweight construction and wiring space.

Core Features:

1. Lightweight Design: By reducing the diameter of the steel balls and adopting a thin-walled structure, the weight is reduced while optimizing the equipment layout.

2. High Precision and Rigidity: Utilizing precise manufacturing processes ensures rotational accuracy and enhances resistance to deformation.

3. Rotational Performance: With a low friction coefficient design, it is suitable for high-speed operation scenarios (maximum speed up to 6500 r/min).

4. Diverse Structures: Including rubber sealed (RS), steel sealed (ZZ), stainless steel, wide width and other special models, to adapt to different working conditions.

Related Products

61814 6814RS Thin Wall Ball Bearing

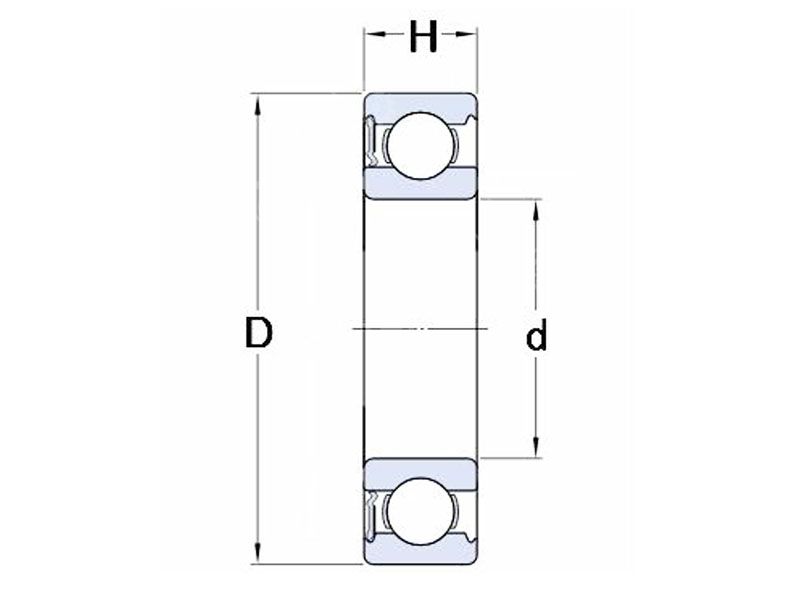

Model No.	d	D	H	m	Model No	d	D	H	m
6800RS	10 mm	19 mm	5 mm	0.01 KG	6813RS	65 mm	85 mm	10 mm	0.13 KG
6801RS	12 mm	21 mm	5 mm	0.01 KG	6814RS	70 mm	90 mm	10 mm	0.14 KG
6802RS	15 mm	24 mm	5 mm	0.01 KG	6815RS	75 mm	95 mm	10 mm	0.15 KG
6803RS	17 mm	26 mm	5 mm	0.01 KG	6816RS	80 mm	100 mm	10 mm	0.15 KG
6804RS	20 mm	32 mm	7 mm	0.02 KG	6817RS	85 mm	110 mm	13 mm	0.27 KG
6805RS	25 mm	37 mm	7 mm	0.02 KG	6818RS	90 mm	115 mm	13 mm	0.3 KG
6806RS	30 mm	42 mm	7 mm	0.03 KG	6819RS	95 mm	120 mm	13 mm	0.29 KG
6807RS	35 mm	47 mm	7 mm	0.03 KG	6820RS	100 mm	125 mm	13 mm	0.31 KG
6808RS	40 mm	52 mm	7 mm	0.03 KG	6821RS	105 mm	130 mm	13 mm	0.32 KG
6809RS	45 mm	58 mm	7 mm	0.04 KG	6822RS	110 mm	140 mm	16 mm	0.6 KG
6810RS	50 mm	65 mm	7 mm	0.05 KG	6824RS	120 mm	150 mm	16 mm	0.65 KG
6811RS	55 mm	72 mm	9 mm	0.08 KG	6826RS	130 mm	165 mm	18 mm	0.93 KG
6812RS	60 mm	78 mm	10 mm	0.11 KG	6828RS	140 mm	175 mm	18 mm	0.99 KG

Application fields

1. Industrial field: machine tools, automated equipment, electronic instruments.

2. Special scenarios: aerospace, medical equipment, semiconductor precision instruments.
