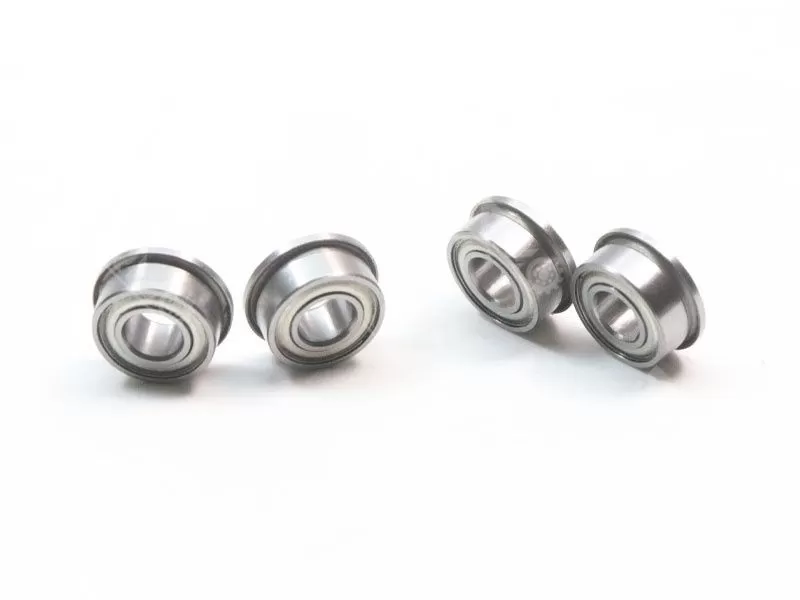

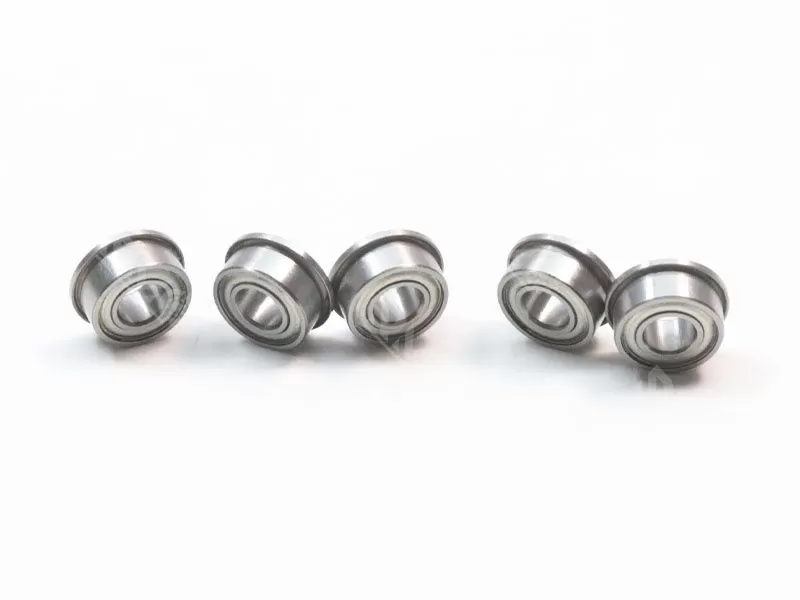

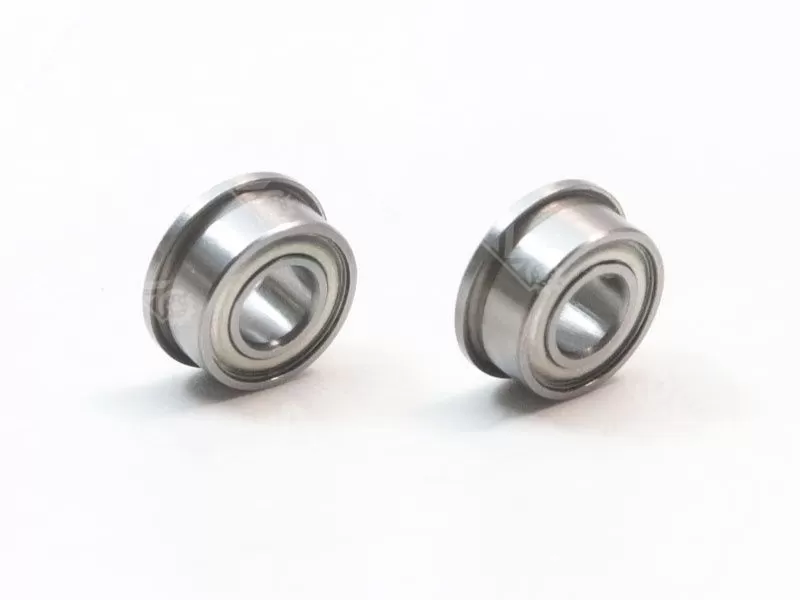

Deep Groove Ball Bearing
it is a special kind of deep groove ball bearing with flanged structure.
Model No.: F685ZZ
Size: 5x11x5x12.5mm
Weight: 0.002KG
Material: chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc.
MOQ: 100pcs
Lead Time: normally 3-5 days
Specification

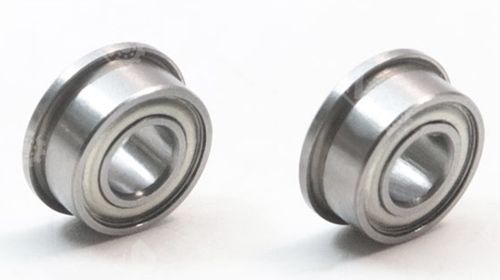

F685ZZ Small Flanged Deep Groove Ball Bearing Constructed from chrome steel with dual metal shields and pre-lubricated, this bearing features low friction and high rotational speeds (up to 45,000 rpm). It can withstand substantial radial loads and moderate axial loads, making it suitable for applications in power tools, medical equipment, small motors, and various other fields.
Technical parameter:
| Model Number | F685ZZ |
| Size | 5x11x5x12.5mm |
| Weight | 0.002KG |
| Material | chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Dynamic Load Rating | 0.715 lbf |
| Static Load Rating | 0.281 lbf |
| Max Speed (Grease Lubrication) | 53000 RPM |
| Shield Type | RS |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Structure:

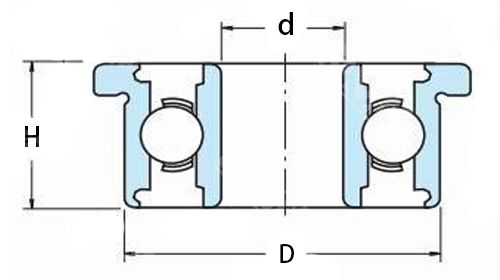

The structure of the micro flanged deep groove ball bearing includes an inner ring, an outer ring, a rolling body and a cage. It is characterized by a flange on the outer ring, which can provide additional axial positioning and radial support, enhancing the stability and bearing capacity of the bearing..
Material and manufacturing process:
The material of micro flange deep groove ball bearing can choose carbon steel, bearing steel, stainless steel, plastic and so on. Among them, stainless steel has excellent corrosion resistance and is suitable for wet or corrosive environments. The manufacturing process includes steps such as heat treatment, quenching and tempering to ensure the hardness and wear resistance of the bearing.
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| F682ZZ | 2*5*2.3 | 0.001 | MF115ZZ | 5*11*4 | 0.001 |
| F683ZZ | 3*7*3 | 0.001 | MF106ZZ | 6*10*3 | 0.001 |
| F684ZZ | 4*8*3 | 0.001 | MF126ZZ | 6*12*4 | 0.002 |
| F685ZZ | 5*11*5 | 0.002 | MF117ZZ | 7*11*3 | 0.002 |
| F686ZZ | 6*13*5 | 0.003 | MF137ZZ | 7*13*4 | 0.003 |
| F687ZZ | 7*14*5 | 0.0023 | MF128ZZ | 8*12*3.5 | 0.003 |
| F688ZZ | 8*16*5 | 0.0045 | MF148ZZ | 8*14*4 | 0.009 |
| F689ZZ | 9*17*5 | 0.005 | F626ZZ | 6*19*6 | 0.009 |
| F692ZZ | 2*6*3 | 0.001 | MF84ZZ | 4*8*3 | 0.02 |
| F693ZZ | 3*8*4 | 0.002 | FR6ZZ | 9.525*22.225*7.142 | 0.006 |
| F694ZZ | 4*11*4 | 0.003 | F605ZZ | 5*14*5 | 0.022 |
| F695ZZ | 5*13*4 | 0.003 | MF74ZZ | 4*7*2.5 | 0.013 |
| F696ZZ | 6*15*5 | 0.004 | F608ZZ | 8*22*5 | 0.024 |
| F697ZZ | 7*17*5 | 0.006 | F606ZZ | 6*17*6 | 0.007 |
| F698ZZ | 8*19*6 | 0.008 | F625ZZ | 5*16*5 | 0.005 |
| F699ZZ | 9*20*6 | 0.002 | F624ZZ | 4*13*5 | 0.002 |
| MF52ZZ | 2*5*2.5 | 0.0005 | F623ZZ | 3*10*4 | 0.023 |
| MF72ZZ | 2*7*2.5 | 0.0005 | FR8ZZ | 12.7*28.575*7.938 | 00.025 |
| MF82ZZ | 2*8*2.5 | 0.001 | F607 | 7*19*6 | 0.01 |
| MF63ZZ | 3*6*2.5 | 0.001 | FR168 | 6.35*9.52*3.18 | 0.005 |
| MF104ZZ | 4*10*4 | 0.001 | SFRW168ZZ | 3.175*9.525*2.778 | 0.007 |
| MF85ZZ | 5*8*2.5 | 0.001 | F6801 | 12*21*5 | 0.036 |
| MF95ZZ | 5*9*3 | 0.002 | F6202ZZ | 15*35*11 | 0.05 |
| MF105ZZ | 5*10*4 | 0.0009 | F6800ZZ | 10*19*5 | 0.007 |
Application field
Micro flanged deep groove ball bearings are widely used in various industrial equipment, small rotary motors, precision instruments, automation equipment and other fields. They are suitable for high speed, low noise applications and provide stable rotation support and long service life.
