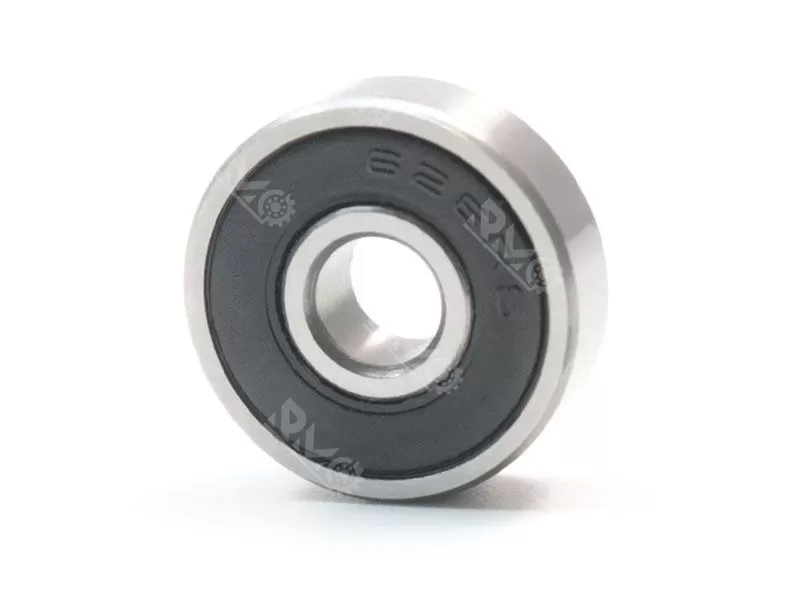

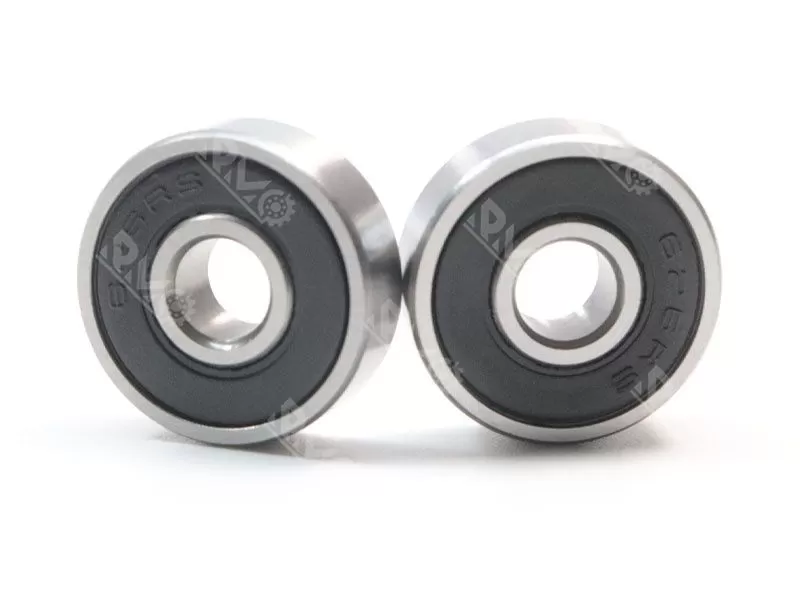

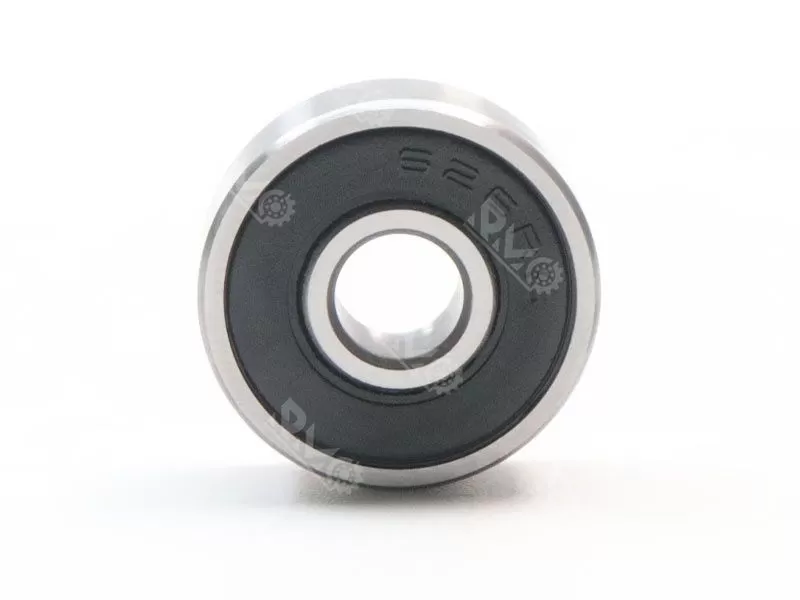

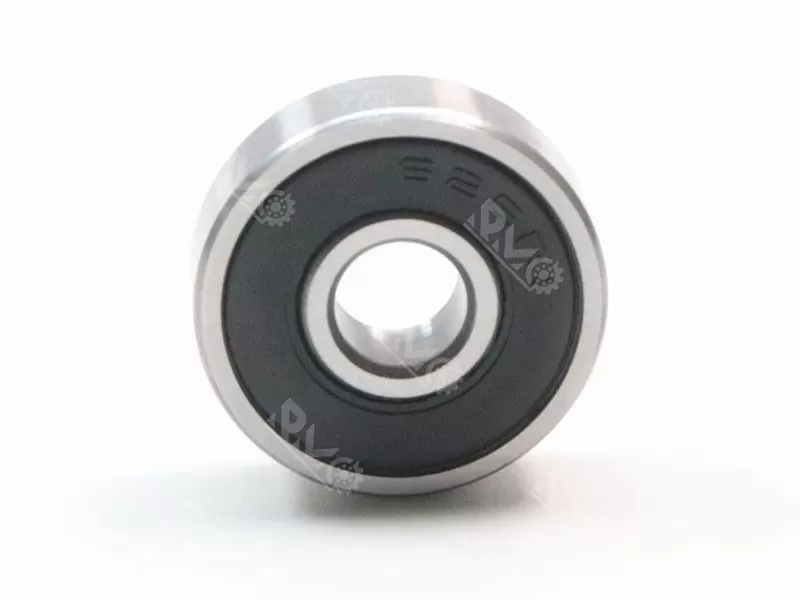

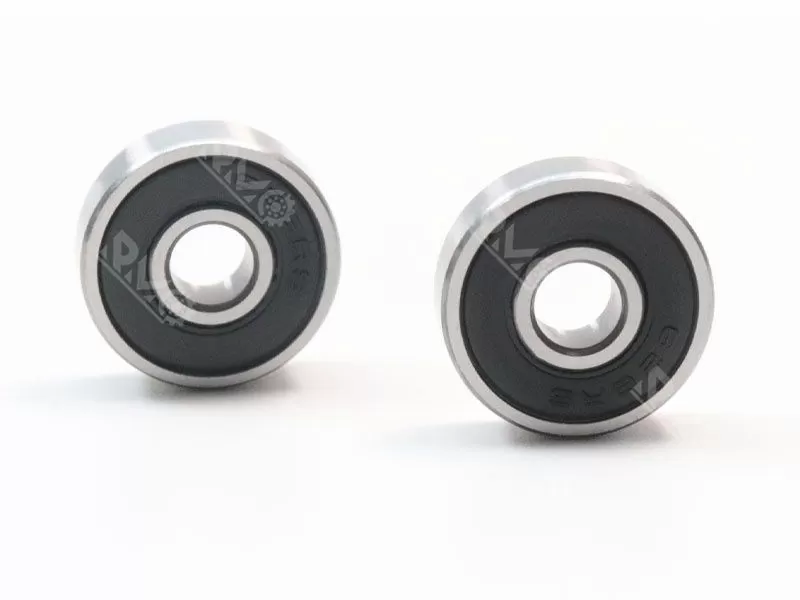

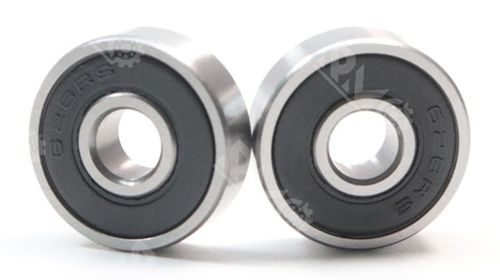

Deep Groove Ball Bearing
The deep groove ball bearing is composed of an outer ring, an inner ring, a set of steel balls and a set of cages.
Model No.: 626 2rs
Size: 6x19x6mm
Weight: 0.0084KG
Material: chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc.
Lead Time: normally 3-5 days
Specification
626 2RS small deep groove ball bearings are manufactured from high-quality bearing steel. Equipped with rubber seals on both sides, they effectively prevent dust ingress and grease leakage. Featuring low friction, high rotational speeds, and good load-carrying capacity, these bearings are suitable for various applications including small motors, fans, and office equipment.
Technical parameter:
| Model Number | 626 2RS |
| Size | 6x19x6mm |
| Weight | 0.0084KG |
| Material | chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Dynamic Load Rating | 2.23 lbf |
| Static Load Rating | 0.895 lbf |
| Max Speed (Grease Lubrication) | 43000 RPM |
| Shield Type | RS |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Miniature deep groove ball bearing:
There are many types of miniature deep groove ball bearings, including the metric 68 series, 69 series, 60 series, etc., as well as the British R series. In addition, different types of with ZZ steel dust cover, RS rubber seal ring and flange flange can be selected according to requirements.
The main materials are carbon steel, bearing steel, stainless steel, plastic, ceramic and so on. The choice of these materials directly affects the performance and service life of bearings. For example, bearing steel has good comprehensive mechanical properties and wear resistance, stainless steel is suitable for wet or corrosive environments, and ceramic materials are suitable for high temperature, high speed and high load occasions.
Related Products
| Bearings NO. | ID(d*D*B)mm | Weight (KG) | Bearings NO. | ID(d*D*B)mm | Weight (KG) |
| 623 | 3*10*4 | 0.002 | 6211 | 55*100*21 | 0.598 |
| 624 | 4*13*5 | 0.003 | 6212 | 60*110*22 | 0.800 |
| 625 | 5*16*5 | 0.005 | 6213 | 65*120*23 | 0.99 |
| 626 | 6*19*6 | 0.008 | 6214 | 70*125*24 | 1.07 |
| 627 | 7*22*7 | 0.014 | 6215 | 75*130*25 | 1.16 |
| 628 | 8*24*8 | 0.016 | 6216 | 80*140* | 1.39 |
| 629 | 9*26*8 | 0.018 | 6217 | 85*150*28 | 1.92 |
| 6200 | 10*30*9 | 0.0317 | 6218 | 90*160*30 | 2.12 |
| 6201 | 12*32*10 | 0.0360 | 6219 | 95*170*32 | 2.61 |
| 6202 | 15*35*11 | 0.0438 | 6220 | 100*180*34 | 3.19 |
| 6203 | 17*40*12 | 0.0647 | 6221 | 105*190*36 | 3.66 |
| 6204 | 20*47*14 | 0.102 | 6222 | 110*200*38 | 4.44 |
| 6205 | 25*52*15 | 0.125 | 6224 | 120*215*40 | 5.15 |
| 6206 | 30*62*16 | 0.202 | 6226 | 130*230*40 | 5.82 |
| 6207 | 35*72*17 | 0.285 | 6228 | 140*250*42 | 7.47 |
| 6208 | 40*80*18 | 0.370 | 6230 | 150*270*45 | 9.41 |
| 6209 | 45*85*19 | 0.404 | 6232 | 160*290*48 | 12.8 |
| 6210 | 50*90*20 | 0.46 | 6240 | 200*360*58 | 22.8 |
Main uses
It is suitable for all kinds of industrial equipment, small rotary motor and other high speed and low noise fields, such as: office equipment, micro motor, instrumentation, laser engraving, small clock, soft drive, pressure rotor, dental drill, hard disk motor, stepper motor, video recorder magnetic drum, toy model, computer cooling fan, money counter, fax machine and other related fields.
