Four row cylindrical roller bearings are mainly used in cold and hot rolling mills, billet cutting machines and other rolling machinery.
Cylindrical Roller Bearings
The cylindrical roller and the raceway are linear contact bearings. Large load capacity, mainly bear radial load. The friction between the rolling element and the rim of the ring is small, which is suitable for high-speed rotation.

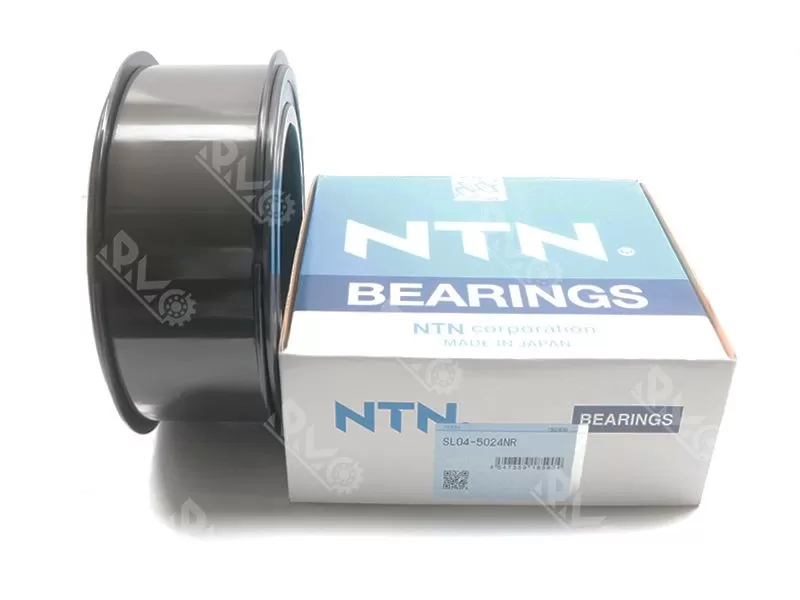

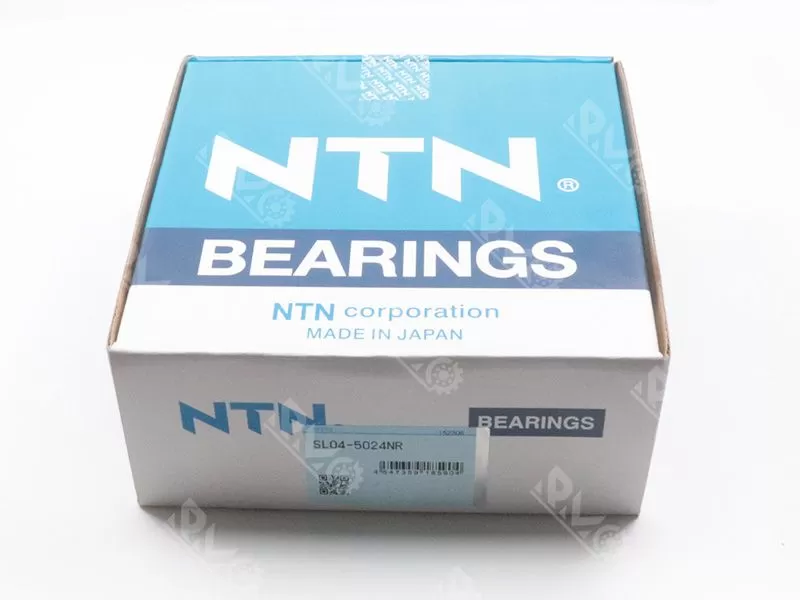

Model No: SL04-5024NR

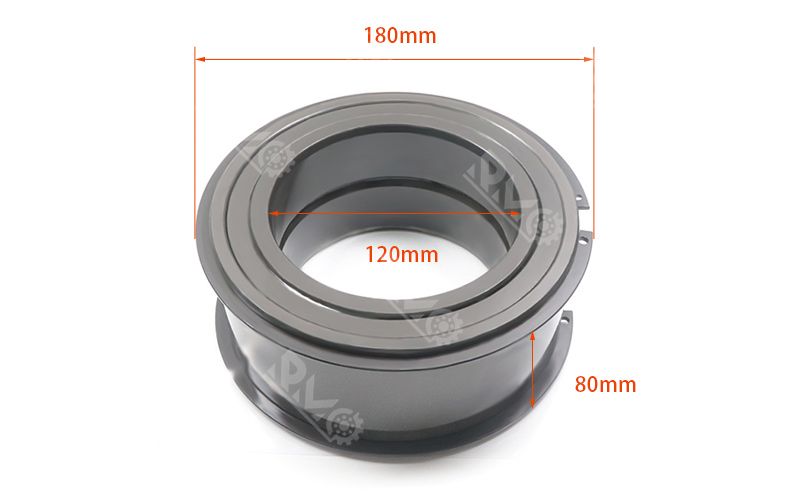

Size: 120x180x80mm
Material: Bearing steel
Weight: 7.55KG
Lead time: 3-5 days
Shipping Port: GuangZhou, NingBo, ShangHai
Specification
Brand name: Famous brand/RMO/Neutral/OEM
Service: OEM ODM
Payment terms:
A:100% TT
B: 30% T/T in advance, 70% before delivery
MOQ: 1pcs
Cylindrical roller bearing category:
Cylindrical roller bearings are separable bearings, which are very convenient to install and disassemble. Cylindrical roller bearings can withstand large radial loads and are suitable for use in high-speed operating situations.
Cylindrical roller bearings can be divided into different structures such as single row, double row and multi-row cylindrical roller bearings according to the different number of columns installed with rolling elements. Different structural bearings are also reflected in the position design of the rib.
SL four-row cylindrical roller bearings are separated structure, bearing rings and rolling components can be easily separated, so the cleaning, inspection, installation and disassembly of bearings are very convenient.
Related Products
| Model No. | d | D | H | m |
| 52FC36200 | 260 mm | 360 mm | 200 mm | 62 KG |
| 52FC36230CW | 260 mm | 360 mm | 230 mm | 69.7 KG |
| 52FC36230D | 260 mm | 360 mm | 230 mm | 72.6 KG |
| 52FC36260 | 260 mm | 360 mm | 260 mm | 80 KG |
| 52FC37268W | 260 mm | 368 mm | 268 mm | 89.9 KG |
| 313823 | 260 mm | 370 mm | 220 mm | 76 KG |
| 313823A | 260 mm | 370 mm | 220 mm | 75 KG |
| 52FC37260 | 260 mm | 370 mm | 260 mm | 88.5 KG |
| 53FC37234A | 265 mm | 370 mm | 234 mm | 76.3 KG |
| 53FC37234B | 265 mm | 370 mm | 234 mm | 78.5 KG |
| 54FC38230 | 270 mm | 380 mm | 230 mm | 80 KG |
| 56FC38170W | 280 mm | 380 mm | 170 mm | 55 KG |
| 313822 | 280 mm | 390 mm | 220 mm | 81.8 KG |
Application
Four row cylindrical roller bearings are mainly used in cold and hot rolling mills, billet cutting machines and other rolling machinery.
