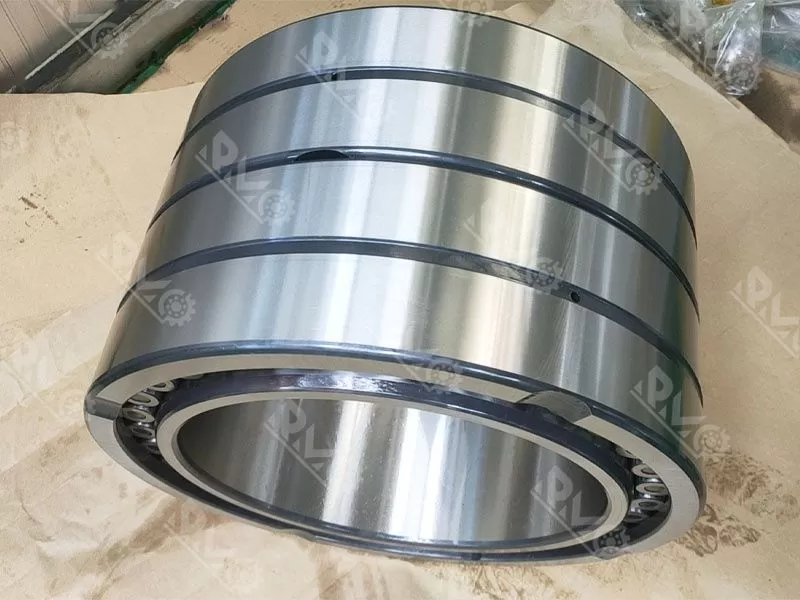

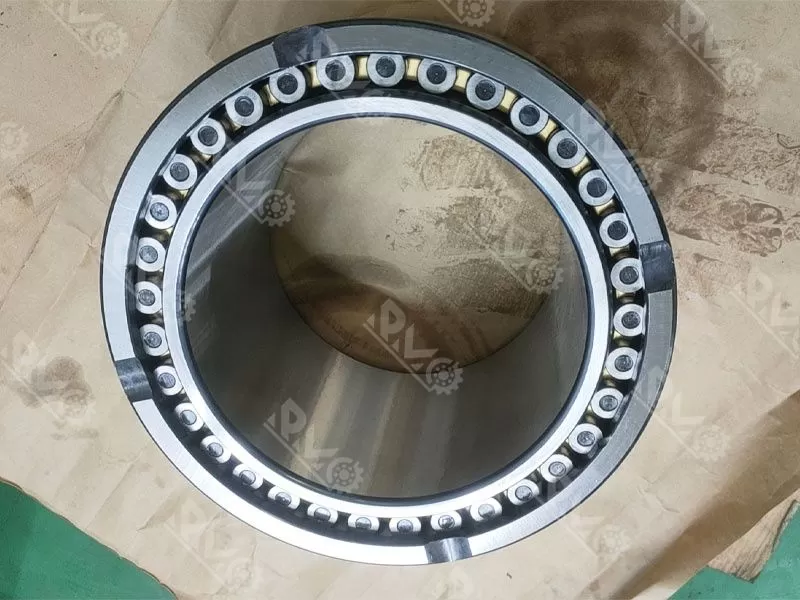

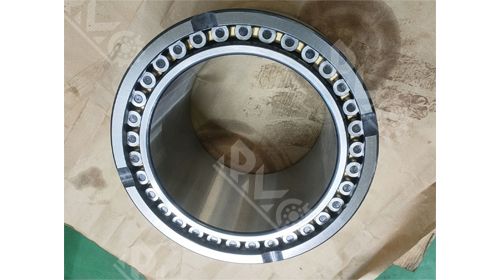

313823 FC Series Four-Row Cylindrical Roller Bearings

313823 FC Series Four-Row Cylindrical Roller Bearing, with an inner diameter of 260mm, outer diameter of 370mm, and thickness of 220mm, manufactured from chrome steel. It features high radial load capacity, excellent rigidity, high manufacturing precision, superior rotational accuracy, and relatively high limiting speed. Its structure comprises one inner ring and two paired outer assemblies. The inner ring is flangeless and separable, allowing interchangeable assembly with the bearing outer assemblies. Primarily used in rolling mills, calendering machines, and similar equipment.

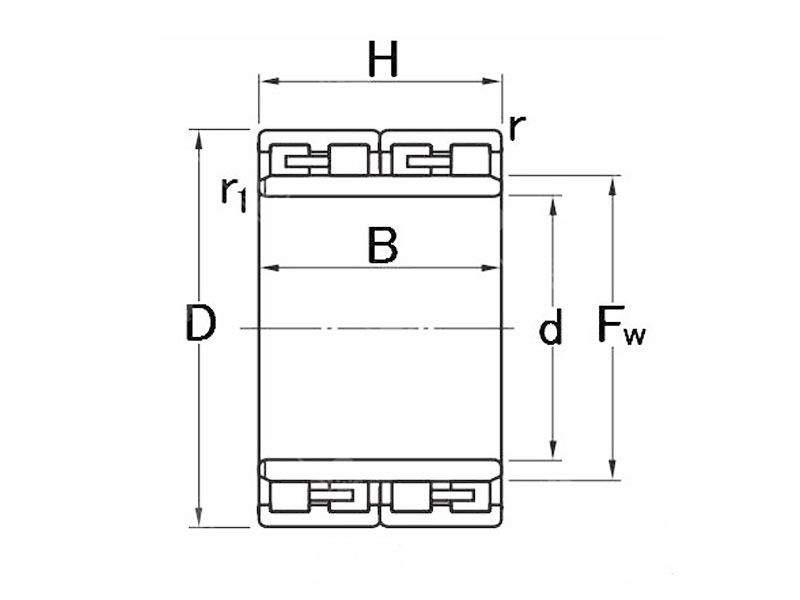

Technical parameter:

Cylindrical roller bearing category:

Cylindrical roller bearings are separable bearings, which are very convenient to install and disassemble. Cylindrical roller bearings can withstand large radial loads and are suitable for use in high-speed operating situations.

Cylindrical roller bearings can be divided into different structures such as single row, double row and multi-row cylindrical roller bearings according to the different number of columns installed with rolling elements. Different structural bearings are also reflected in the position design of the rib.

FC four-row cylindrical roller bearings are separated structure, bearing rings and rolling components can be easily separated, so the cleaning, inspection, installation and disassembly of bearings are very convenient.
