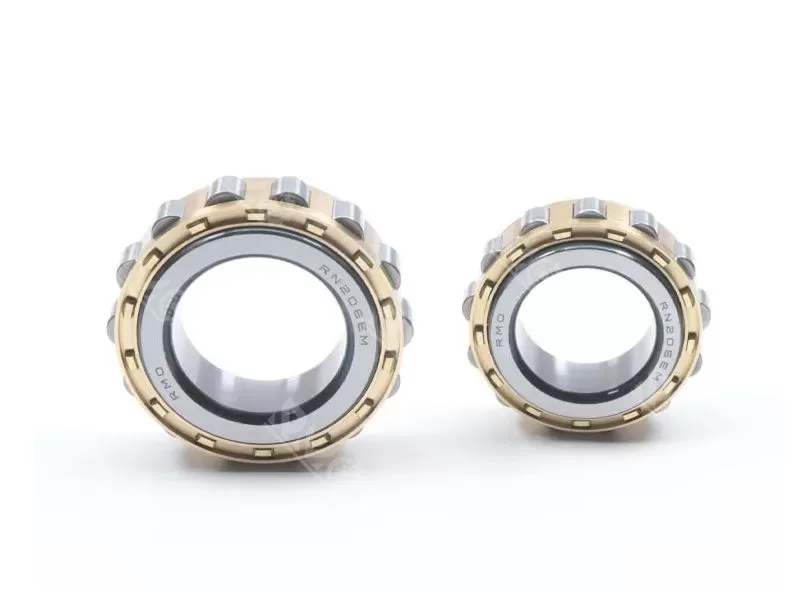

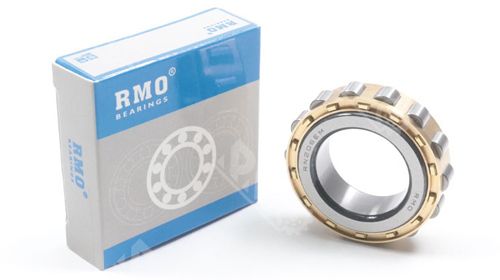

RMO RN206EM RN206 Single Row Cylindrical Roller Bearing

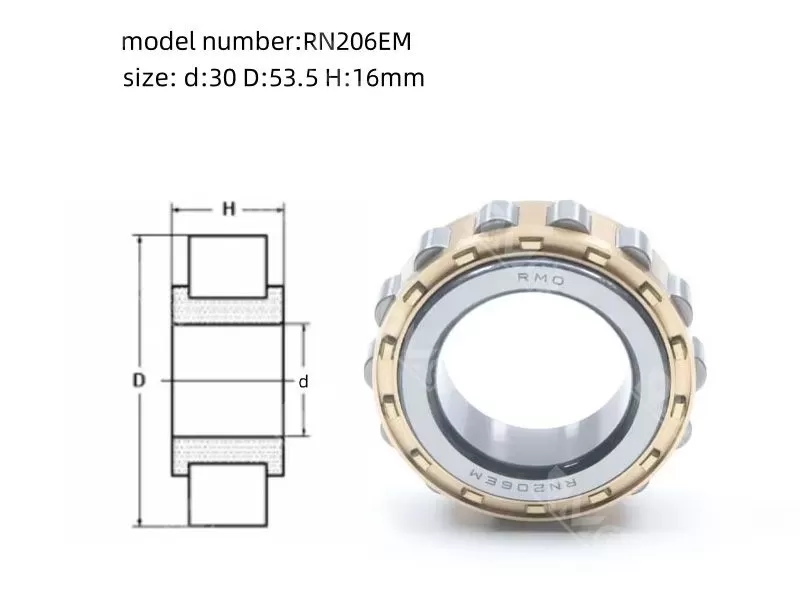

Brass cage RN206EM RN206 Single row roller bearing size 30x53.5x16mm

Model Number: RN206EM RN206

Size: 30x53.5x16mm

Materials: chrome steel (GCr15)

Weight: 0.144KG

Lead time: 3-5 days

Inquire Now Next Product

Specification

RMO RN206EM (RN206) single-row cylindrical roller bearing, manufactured from bearing steel with an outer ring-less design and brass cage. It features high radial load capacity, low friction coefficient, suitability for high-speed rotation, and tolerance for axial displacement between the shaft and housing. This bearing is ideal for applications in medium to large electric motors, machine tool spindles, and internal combustion engines.

Technical parameter:

Model Number	RN206EM RN206
Size	30x53.5x16mm
Weight	0.144KG
Material	chrome steel (GCr15)
Clearance	C2 C0 C3 C4
Precision Grade	p0
Dynamic Load Rating	21.9 lbf
Static Load Rating	13.5 lbf
Max Speed (Grease Lubrication)	11000 RPM
MOQ	50 PCS
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

The structural features of the RMO RN206EM (RN206) single-row cylindrical roller bearing are as follows:

Core Structure: Features a single-row design without an outer ring, comprising an inner ring, a set of cylindrical rollers, a brass cage, and guide flanges on both sides. This design offers a compact structure with a low radial cross-sectional height.

Cage Structure: The brass cage evenly separates the cylindrical rollers, minimizing friction and impact between them. This enhances bearing stability and heat dissipation during high-speed operation.

Roller and Raceway Design: The cylindrical rollers engage in line contact with the inner ring raceway, providing a large contact area. This maximizes high radial load capacity, making it suitable for heavy-duty applications.

Axial Displacement Adaptation: The outer ring-less design combined with the guide flange structure permits axial displacement between the shaft and housing. This accommodates installation misalignment or thermal expansion/contraction during operation, enhancing equipment flexibility.

Related Products

RMO RN206EM RN206 Single Row Cylindrical Roller Bearing

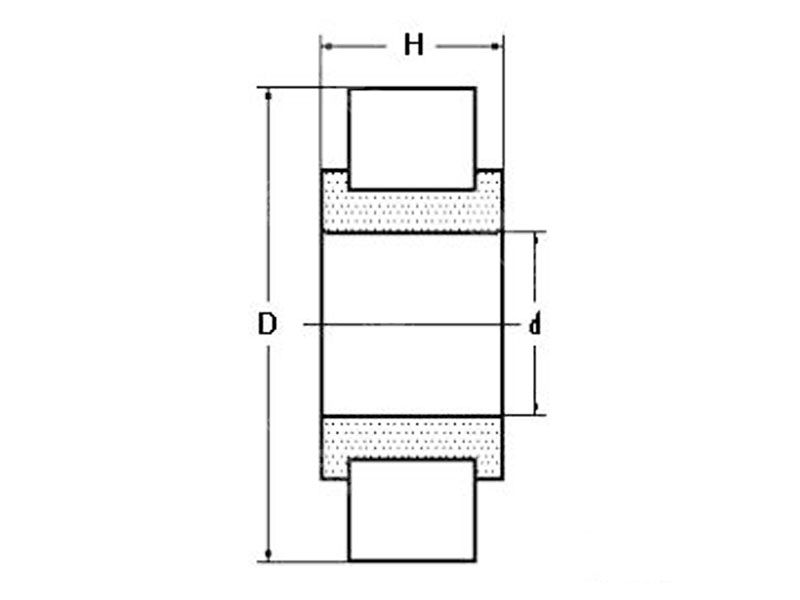

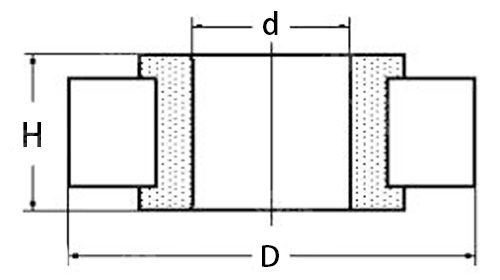

Model No.	d	D	H	m
RN204	20 mm	40 mm	14 mm	0.08 KG
RN206	30 mm	53.5 mm	16 mm	0.14 KG
502206W1	30 mm	53.5 mm	16 mm	0.14 KG
RN206E	30 mm	53.5 mm	16 mm	0.13 KG
502206EA	30 mm	53.5 mm	16 mm	0.31 KG
RN606M	30 mm	60 mm	26 mm	0.34 KG
RN606M-1	30 mm	68 mm	26 mm	0.43 KG
RN208	40 mm	70 mm	18 mm	0.27 KG
RN208E	40 mm	71.5 mm	18 mm	0.24 KG
RN309	45 mm	86.5 mm	25 mm	0.61 KG
RN310	50 mm	95 mm	27 mm	0.8 KG
RN312	60 mm	113 mm	31 mm	1.28 KG
RN313	65 mm	121.5 mm	33 mm	1.57 KG

Features

1. Roller and raceway for line contact or repair line contact, radial bearing capacity is large, suitable for bearing heavy loads and impact loads.

2. Small friction coefficient, suitable for high speed, limit speed close to deep groove ball bearings.

3. N type and NU type can move axially, can adapt to the change of the relative position of the shaft and the housing caused by thermal expansion or installation error, and can be used as a free end support.

4. The processing requirements for the shaft or seat hole are higher, and the relative deviation of the outer ring axis after the bearing installation should be strictly controlled to avoid contact stress concentration.

5. The inner ring or outer ring can be separated for easy installation and disassembly.
