Deep Groove Ball Bearing

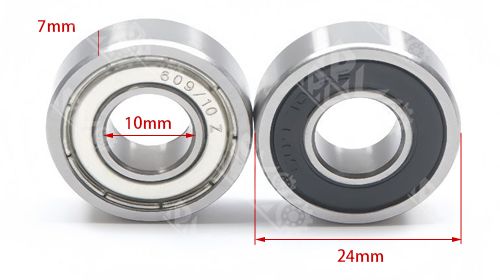

609/10ZZ Non-standard deep groove ball bearings are typically manufactured from bearing steel, equipped with metal dust shields on both sides, and pre-lubricated with grease. They are suitable for motors, precision instruments, and similar equipment.
Model Number: 609/10ZZ 609/10RS
Size: 10x24x7mm
Weight: 0.016KG
Material: chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc
Specification
609/10ZZ Non-standard deep groove ball bearing, consisting of an inner ring, outer ring, single row of steel balls, and a cage. Manufactured from bearing steel and other materials, it features dual-sided metal dust shields that block contaminants while retaining grease. Capable of withstanding radial loads and limited axial loads, it is suitable for precision instruments, medical equipment, consumer electronics, and similar applications.
Technical parameter:
| Model Number | 609/10ZZ 609/10RS |
| Size | 10x24x7mm |
| Weight | 0.016KG |
| Material | chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Package | Plastic tube or single box+Carton+Pallet |
| MOQ | 100 PCS |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Sealing | OPEN, ZZ, 2RS |
| Temperature Range | -20°C to +120°C |
| Lead Time | 5-7 Days |
Structural features: It adopts a single-row deep groove raceway design and is composed of an inner ring, an outer ring, steel balls and a cage. Miniature deep groove ball bearings are the miniaturized products of deep groove ball bearings, specially designed for small spaces and high-precision requirements.
Seal type: Common types include ZZ (double-sided metal seal) and RS (rubber sealings).
Application fields
Micro motors, cooling fans, model aircraft, instruments and meters, office equipment (such as printers/copiers), and household appliances.
