Tapered Roller Bearings

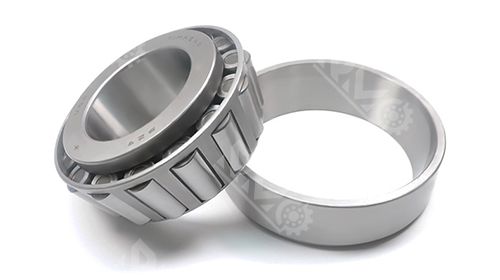

529-522 Inch Splittable Tapered Roller Bearings Handles Radial Axial Loads Efficiently, Ideal for Heavy-Duty Equipment Like Automotive Axles
Model number:529-522
Size: 50.8x101.6x34.92mm
Material: chrome steel Gcr15
weight: 1.23KG
MOQ:10pcs
Specification
529-522 Inch Split Tapered Roller Bearing is a high-performance bearing specifically designed for heavy-duty equipment requiring composite load handling. Its dimensions comply with industry standards (see technical specifications for details), ensuring precise compatibility in automotive axles, industrial gearboxes, and similar assembly applications.
Technical parameter:
| Model Number | 529-522 |

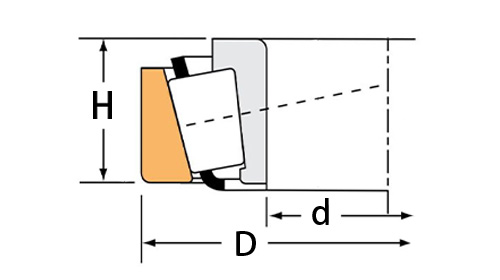

| Size | 50.8x101.6x34.92mm |
| Weight | 1.23KG |
| Material | chrome steel Gcr15 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Dynamic Load Rating | 191 lbf |
| Static Load Rating | 165 lbf |
| Package | Plastic tube or single box+Carton+Pallet |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Taime | 3-5 Days |
Manufactured from premium alloy steel, this bearing features a separable tapered (inner ring) and cup-shaped (outer ring) structure for easy installation and maintenance, adapting
to the complex and variable environments common in heavy-duty equipment.
Meeting industrial-grade precision standards, the 529-522 separable tapered roller bearing ensures stable operation and low wear under heavy loads. Combining high load capacity
with durability, it delivers exceptional value for money, reliably supporting equipment such as construction machinery and heavy-duty transmission systems. It is the ideal choice for
heavy duty applications
Related Products
| 375/372 | 50.8 mm | 100 mm | 25 mm | 0.85KG |
| 385A/383X | 50.8 mm | 100 mm | 25.4 mm | 0.85 KG |
| 529/520X | 50.8mm | 100 mm | 34.92 mm | 1.17 KG |
| 529X/520X | 50.8 mm | 100 mm | 34.92 mm | 1.17KG |
| 529XJ520 | 50.8 mm | 100mm | 34.92mm | 1.19KG |
| 49585/49520 | 50.8 mm | 101.6 mm | 31.75 mm | 1.12 KG |
| 49585/49522 | 50.8mm | 101.6mm | 31.75 mm | 1.13 KG |
| 529/522 | 50.8mm | 101.6 mm | 34.92mm | 1.23KG |
| 529X/522 | 50.8mm | 101.6 mm | 34.92 mm | 1.23KG |
| 455/453X | 50.8 mm | 104.78 mm | 30.16mm | 1.18 KG |
| 455-S/453X | 50.8 mm | 104.70 mm | 30.16 mm | 1.17 KG |
| 45285/45220 | 50.8mm | 104.78 mm | 30.16 mm | 1.22 KG |
| 45284/45220 | 50.8 mm | 104.76mm | 30.16 mm | 1.19 KG |
| 45285/45221 | 50.8 mm | 104.78 mm | 30.16mm | 1.22KG |
| 45285A/45220 | 50.8 mm | 104.78 mm | 30.16 mm | 1.22KG |
| 45284/45221 | 50.8 mm | 104.78 mm | 30.16 mm | 1.19 KG |
| 45285A/45221 | 50.8mm | 104.78 mm | 30.16mm | 1.22 KG |
| 59200/59412 | 50.8mm | 104.78 mm | 36.51 mm | 1.41KG |
Application scenario
The 529-522 Inch Splittable Tapered Roller Bearings are widely used to bear radial loads, unidirectional axial loads and radial-axial combined loads, especially suitable for industries such as automobile, rolling mill, mining, metallurgy and plastic machinery (e.g., automobile transmission systems, mining machinery and equipment), and also widely applied in heavy machinery like rolling mills.
