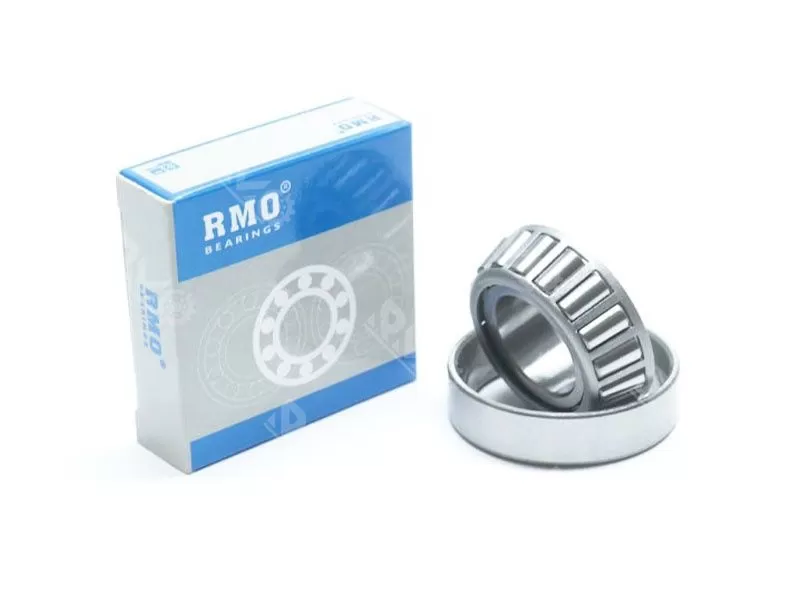

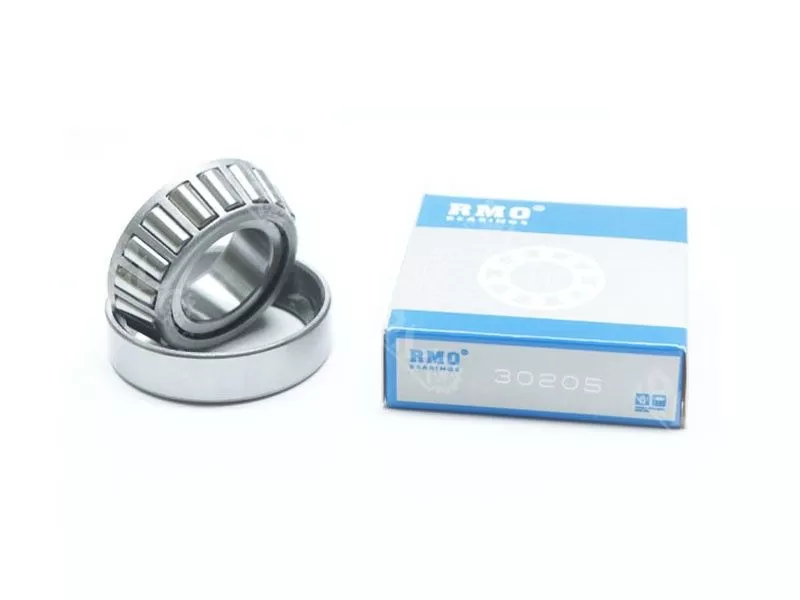

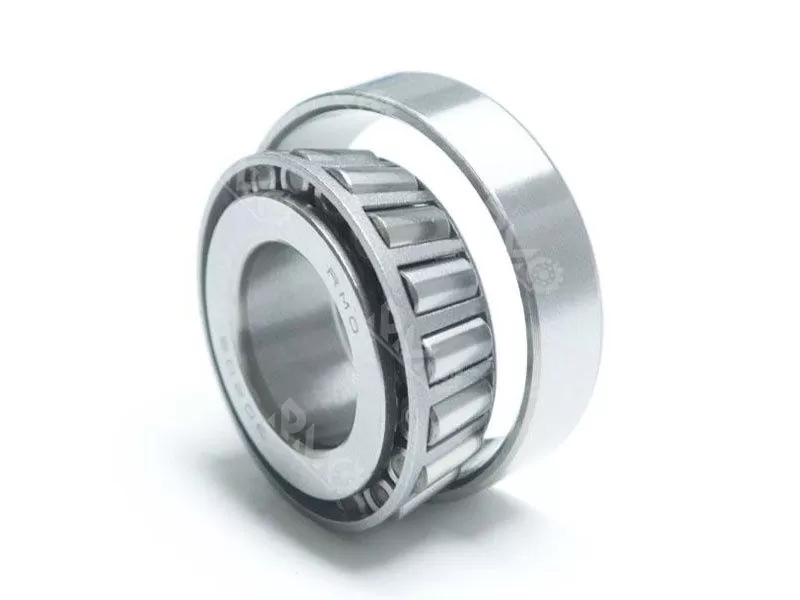

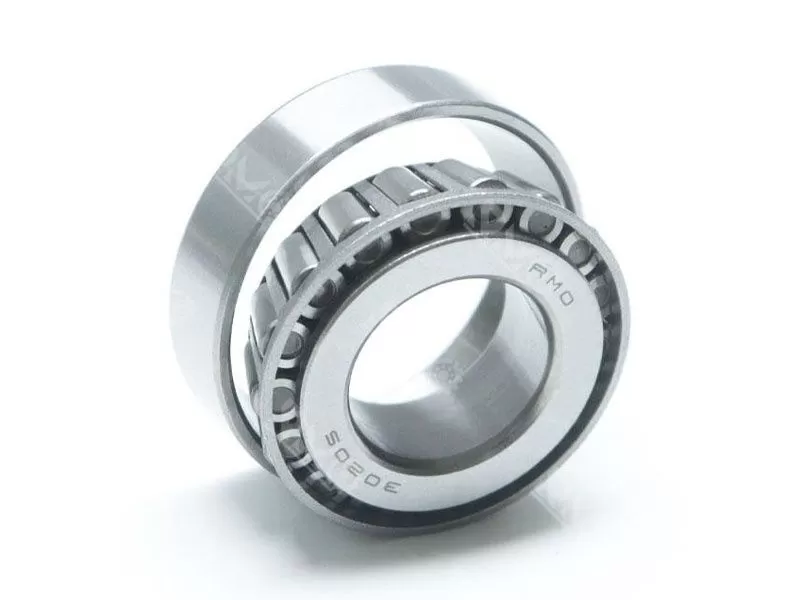

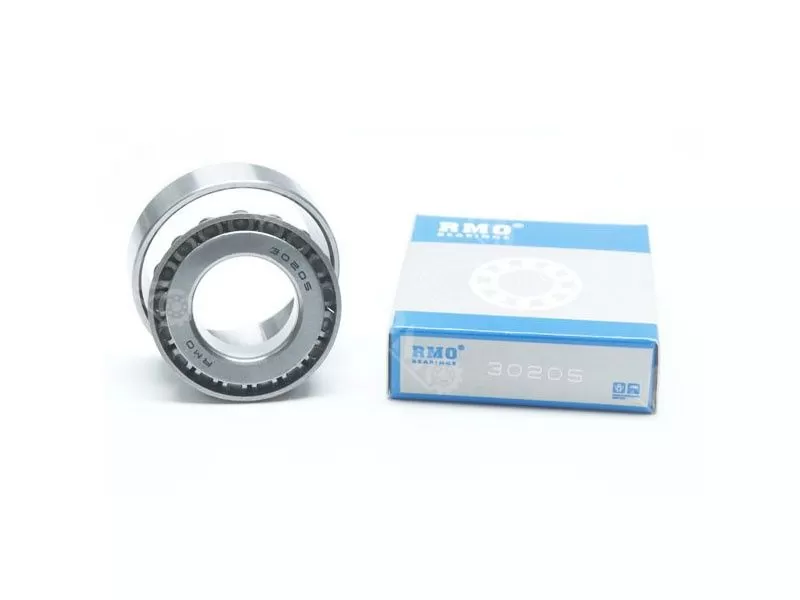

Tapered Roller Bearings
Tapered roller bearings are separated bearings, and the inner and outer rings of the bearings are equipped with tapered raceways. Single-row tapered roller bearings can withstand radial loads and axial loads in a single direction.
Brand: famous brand/RMO/Neutral/OEM

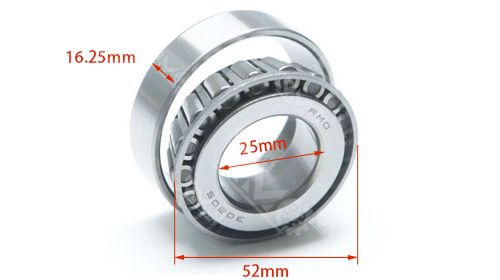

Size: 25*52*16.25mm
Materials: chrome steel (GCr15)
Weight: 0.155KG
Lead time: 3-5 days
Service: OEM/ODM
Specification
Tapered roller bearing is a kind of rolling bearing, its inner and outer rings are presented with a tapered raceway, the roller is also designed to be tapered, so that when the tapered surface is extended, its vertex will converge at a point on the bearing axis. This design enables the tapered roller bearing roller to achieve frictionless pure rolling on the raceway.
Structural features:
Tapered roller bearings are separate bearings in which the inner components (including the roller, cage and inner ring) can be easily separated from the outer ring, thus simplifying the installation process of the journal and housing. This design allows the inner bearing assembly and outer ring to be installed separately, allowing easy adjustment of radial and axial backlash.
Types and Specifications:
Tapered roller bearings can be divided into different structural forms such as single row, double row and four row according to the different number of roller rows. Single-row tapered roller bearings can withstand axial loads in one direction and are usually used in pairs to balance the additional axial components generated internally. Double and four-row tapered roller bearings can bear both radial and two-way axial loads, and are suitable for applications requiring high load capacity.
Single row tapered roller bearing size range:
Inner diameter range: 20mm ~ 1270mm
Outer diameter range: 40mm ~ 1465mm
Width range: 15mm ~ 240mm
Related Products
| Bearings NO. | ID(d*D*B)mm | Weight (KG) | Bearings NO. | ID(d*D*B)mm | Weight (KG) |
| 30202 | 15*35*12 | 0.05 | 30302 | 15*42*14.25 | 0.094 |
| 30203 | 17*40*13.5 | 0.074 | 30303 | 15*47*15.25 | 0.13 |
| 30204 | 20*47*15.5 | 0.12 | 30304 | 20*52*16.25 | 0.17 |
| 30205 | 25*52*16.5 | 0.15 | 30305 | 25*62*18.25 | 0.26 |
| 30206 | 30*62*17.5 | 0.23 | 30306 | 30*72*20.75 | 0.39 |
| 30207 | 35*72*18.5 | 0.32 | 30307 | 35*80*22.75 | 0.52 |
| 30208 | 40*80*20 | 0.42 | 30308 | 40*90*25.25 | 0.72 |
| 30209 | 45*85*21 | 0.48 | 30309 | 45*100*27.25 | 1.01 |
| 30210 | 50*90*22 | 0.53 | 30310 | 50*110*29.5 | 1.28 |
| 30211 | 55*100*23 | 0.71 | 30311 | 55*120*31.5 | 1.57 |
| 30212 | 60*110*24 | 0.88 | 30312 | 60*130*33.5 | 1.94 |
| 30213 | 65*120*25 | 1.13 | 30313 | 65*140*36 | 2.44 |
| 30214 | 70*125*26.5 | 1.26 | 30314 | 70*150*38 | 2.98 |
| 30215 | 75*130*27.5 | 1.36 | 30315 | 75*160*40 | 3.54 |
| 30216 | 80*140*28.5 | 1.65 | 30316 | 80*170*42.5 | 4.27 |
| 30217 | 85*150*31 | 2.06 | 30317 | 85*180*44.5 | 4.96 |
| 30218 | 90*160*33 | 2.54 | 30318 | 90*190*46.5 | 5.8 |
| 30219 | 95*170*35 | 3.04 | 30319 | 95*200*49.5 | 6.32 |
| 30220 | 100*180*37.5 | 3.75 | 30320 | 100*215*51.5 | 7.76 |
| 30221 | 105*190*39.5 | 4.38 | 30321 | 105*225*53.5 | 8.74 |
| 30222 | 110*200*41.5 | 5.18 | 30322 | 110*240*54.4 | 11 |
| 30224 | 120*215*44 | 6.19 | 30324 | 120*260*59.5 | 13.7 |
| 30226 | 130*230*44.5 | 6.94 | 30326 | 130*280*63.75 | 16.6 |
| 30228 | 140*250*46.5 | 8.73 | 30328 | 140*300*67.75 | 20.1 |
| 30230 | 150*270*50 | 11 | 30330 | 150*320*72 | 24.2 |
Application scenario
Tapered roller bearings are widely used to bear radial loads, unidirectional axial loads and radial and axial combined loads. They are especially suitable for automobile, rolling mill, mining, metallurgy, plastic machinery and other industries, such as automobile transmission system, mining machinery and equipment. In addition, tapered roller bearings are also widely used in heavy machinery such as rolling mills and other equipment.
