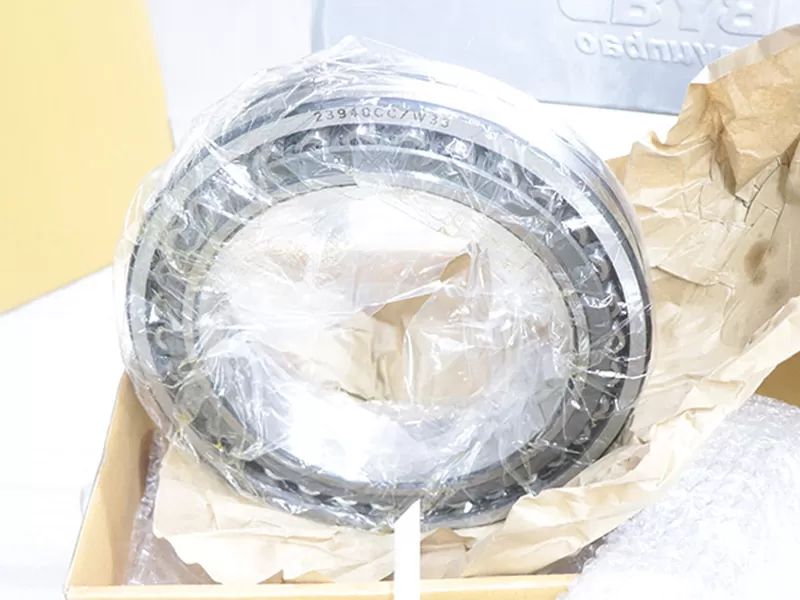

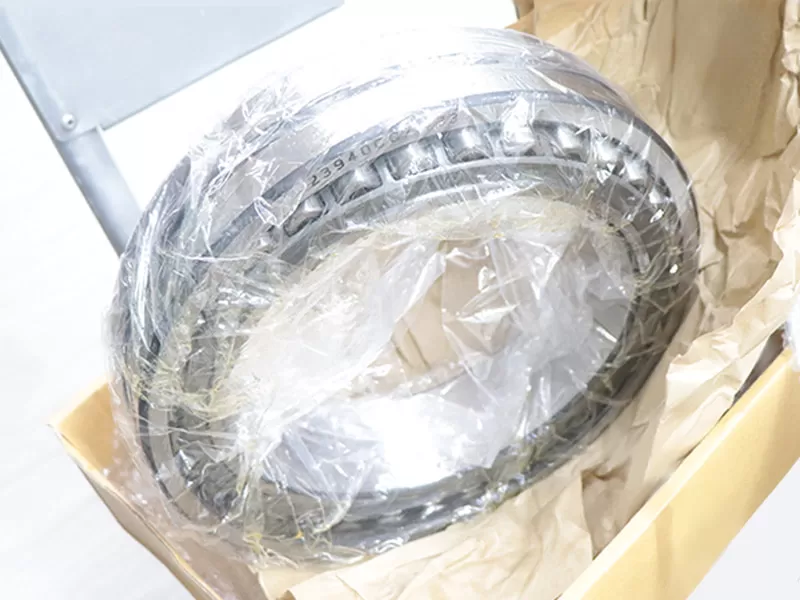

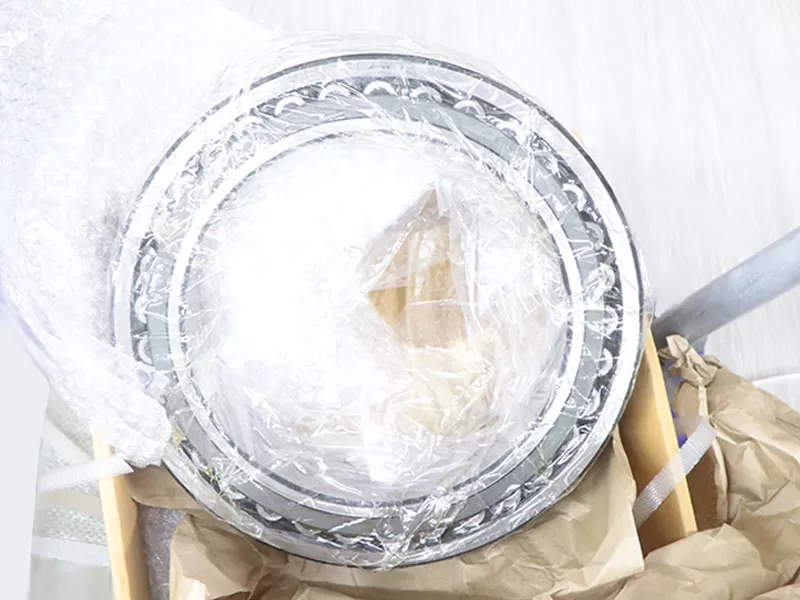

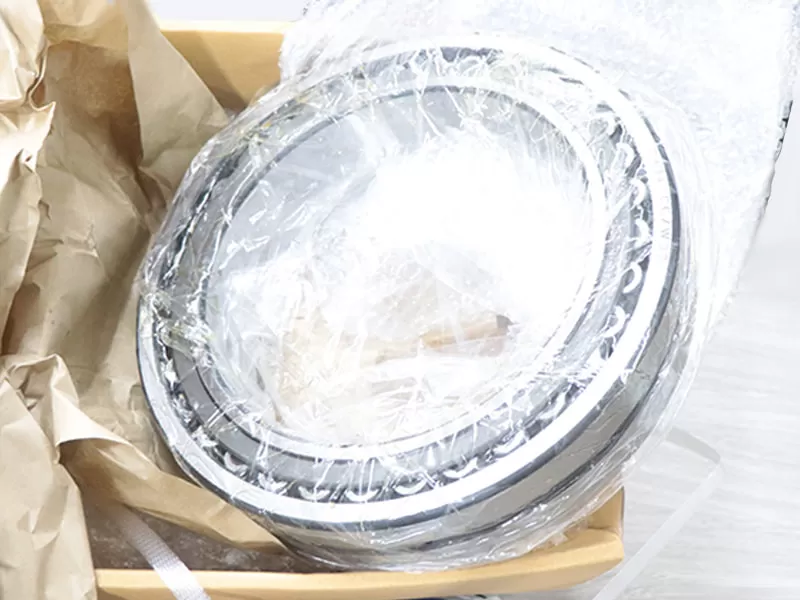

23940CC-W33 Double row Self-Aligning Roller Bearings

Cage material: steel or synthetic resin

MOQ: 1pcs

Lead Time: normally 3-5 days

Shipping Port: Guangzhou, Ningbo, Shanghai

Payment: 100% T/T, or 30% T/T in advance ,70% T/T after finished production

The main features of double row self-aligning roller bearings are:

(1) The outer ring raceway of the double row self-aligning roller bearing is part of a spherical surface, and the center of curvature is on the bearing axis, so the bearing has the aligning function, and can be automatically adjusted when the shaft and housing are flexing. No additional bearing burden.

(2) It can withstand radial load and appropriate axial load in both directions. But can not withstand the torque load. The contact Angle of this kind of bearing is small, the contact Angle under axial load is almost unchanged, the axial carrying capacity is small, the radial load capacity is large, and it is suitable for heavy load and impact load.
