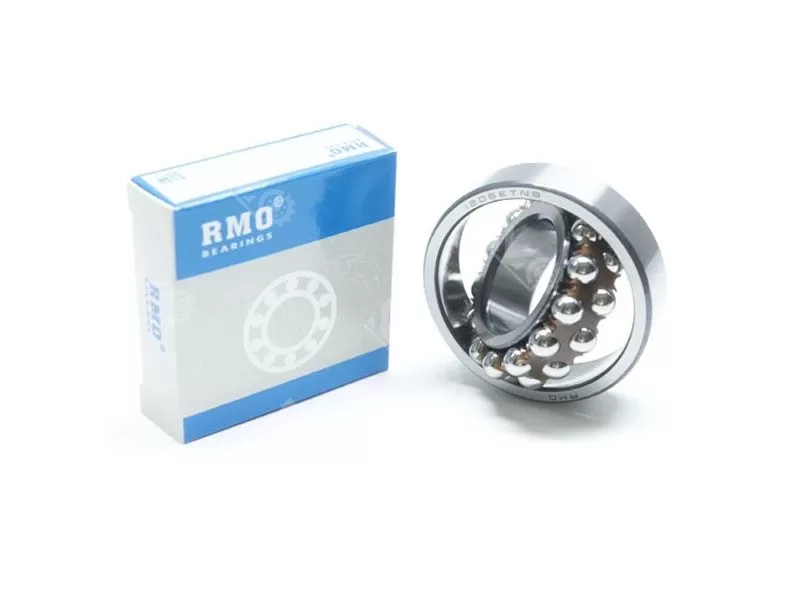

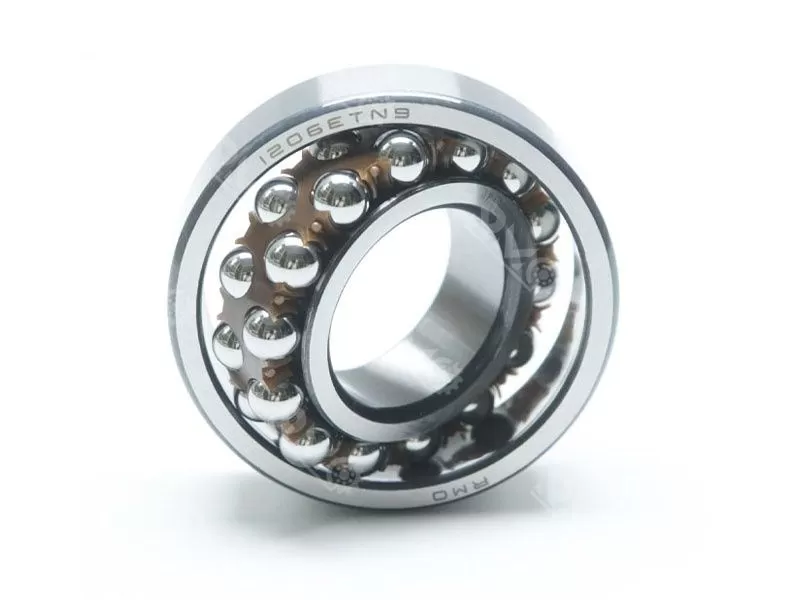

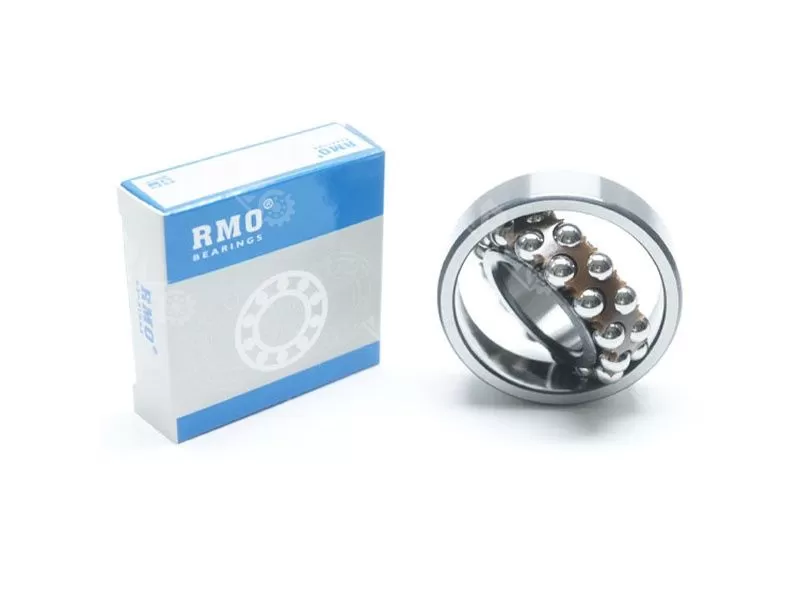

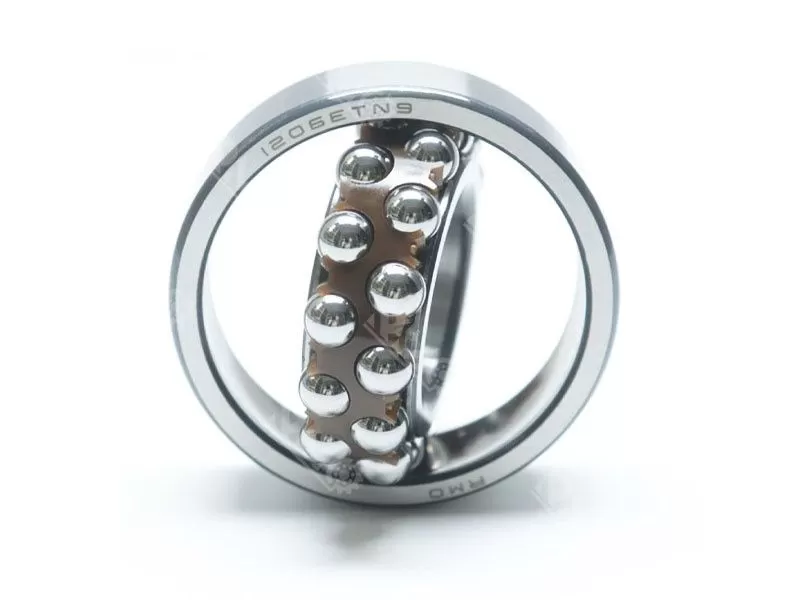

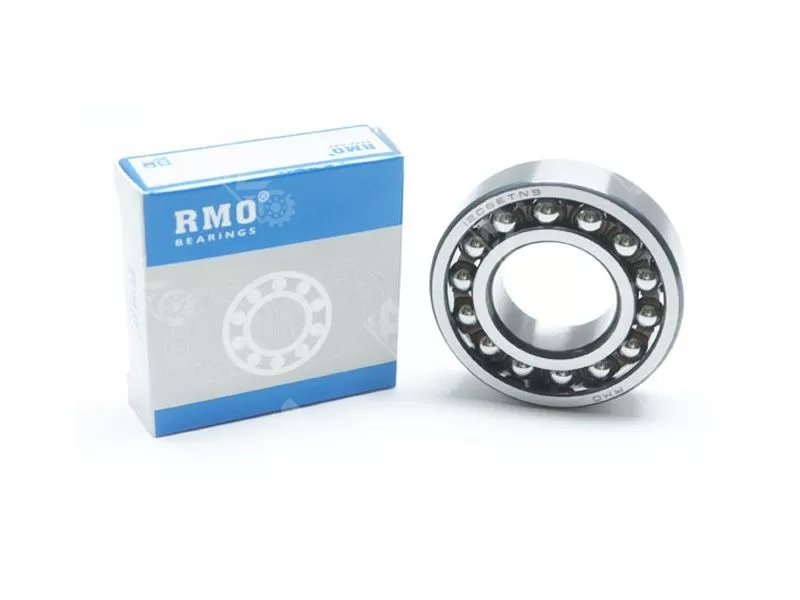

1206ETN9 double row self-aligning ball bearing

self-aligning ball bearing has two kinds of structure, cylindrical hole and conical hole, cage material is steel plate, synthetic resin and so on.

Model No.: 1210ETN9

Size: 30x62x16mm

Weight: 0.22KG

Branding: Famous brand/RMO/Neutral/OEM&ODM

Sealing: OPEN

Material: chrome steel GCR15.

Inquire Now

Specification

Cage material: steel or synthetic resin

MOQ: 100pcs

Lead Time: normally 3-5 days

Shipping Port: Guangzhou, Ningbo, Shanghai

Payment: 100% T/T, or 30% T/T in advance ,70% T/T after finished production

The main features of self-aligning ball bearings are:

(1) The outer ring raceway of the self-aligning ball bearing is part of a spherical surface, and the center of curvature is on the bearing axis, so the bearing has the aligning function, and can be automatically adjusted when the shaft and housing are flexing. No additional bearing burden.

(2) It can withstand radial load and appropriate axial load in both directions. But can not withstand the torque load. The contact Angle of this kind of bearing is small, the contact Angle under axial load is almost unchanged, the axial carrying capacity is small, the radial load capacity is large, and it is suitable for heavy load and impact load.

(3) Double-row aligning ball bearings with tightening sleeves and locking nuts can be installed at any position on the optical shaft without the need to locate the shaft shoulder.

Bearing series:

Micro series: 10x, 12x, 13x

General series: 12xx, 13xx, 22xx, 23xx

Related Products

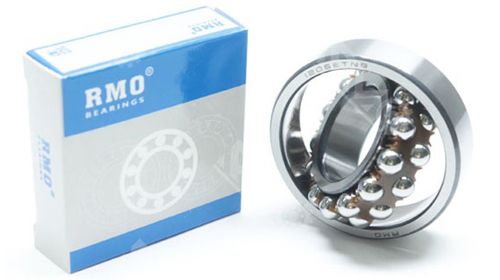

1206ETN9 double row self-aligning ball bearing

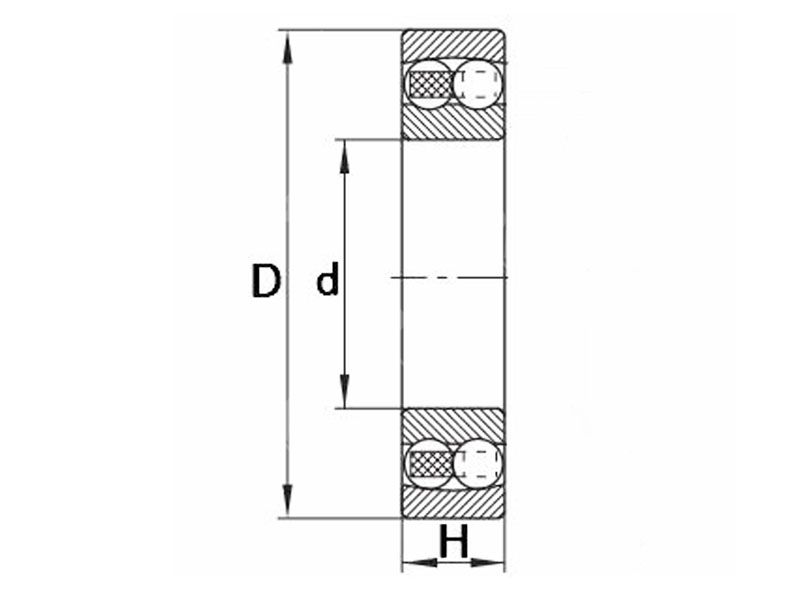

Model No.	d	D	H	m	Model No.	d	D	H	m
126	6 mm	19 mm	6 mm	9 g	1212	60 mm	110 mm	22 mm	894 g
127	7 mm	22 mm	7 mm	14 g	1213	65 mm	120 mm	23 mm	1.14 KG
129	9 mm	26 mm	8 mm	22 g	1214	70 mm	125 mm	24 mm	1.25 KG
1200	10 mm	30 mm	9 mm	34 g	1215	75 mm	130 mm	25 mm	1.34 KG
1201	12 mm	32 mm	10 mm	41 g	1216	80 mm	140 mm	26 mm	1.65 KG
1202	15 mm	35 mm	11 mm	48 g	1217	85 mm	150 mm	28 mm	2.07 KG
1203	17 mm	40 mm	12 mm	73 g	1218	90 mm	160 mm	30 mm	2.52 KG
1204	20 mm	47 mm	14 mm	118 g	1219	95 mm	170 mm	32 mm	3.32 KG
1205	25 mm	52 mm	15 mm	138 g	1220	100 mm	180 mm	34 mm	3.99 KG
1206	30 mm	62 mm	16 mm	221 g	1221	105 mm	190 mm	36 mm	4.75 KG
1207	35 mm	72 mm	17 mm	324 g	1222	110 mm	200 mm	38 mm	5.57 KG
1208	40 mm	80 mm	18 mm	414 g	1224	120 mm	215 mm	42 mm	7.13 KG
1209	45 mm	85 mm	19 mm	462 g	1226	130 mm	230 mm	46 mm	8.67 KG
1210	50 mm	90 mm	20 mm	526 g	1228	140 mm	250 mm	50 mm	11.2 KG
1211	55 mm	100 mm	21 mm	693 g	1230	150 mm	270 mm	54 mm	14.6 KG

Application

Aligning ball bearing is suitable for bearing heavy load and impact load, precision instrument, low noise motor, automobile, motorcycle, metallurgy, rolling mill, mining, petroleum, paper making, cement, sugar pressing and other industries and general machinery.
