Wheel Hub Bearing
The BAQ3922BA bearing is a four-point contact ball bearing commonly used in automotive steering machines.
Product name: BAQ3922BA QJ110Z

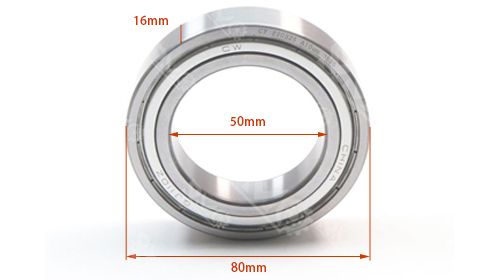

Size: 50x80x16mm
Material: Gcr15(bearing steel)/chrome steel
Weight: 0.27KG
Lead time: 3-5 days
Specification
Automotive bearing is an important part of automotive steering system, also known as steering gear bearing. It plays a vital role in the automobile steering system, and its main function is to increase the force transmitted by the steering disk to the steering transmission mechanism and change the direction of the force transmission.
Technical parameter:
| Model Number | BAQ3922BA QJ110Z |
| Size | 50x80x16mm |
| Weight | 0.27KG |
| Material | Gcr15(bearing steel)/chrome steel |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Service | OEM/ODM |
| Brand name | famous brand/RMO/Neutral/OEM |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Shipping Port | GuangZhou, NingBo, ShangHai |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Taime | 3-5 Days |
Structure and working principle:
The bearing structure of the steering machine is designed so that it can withstand forces from different directions. It can not only bear the radial load perpendicular to the axle, but also bear a certain degree of axial load. When the car turns, the bearing of the steering machine will withstand centrifugal force to ensure the smooth operation of the steering system.
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) |
| CW155TN9 | 52*90*24 | 0.65 |
| DAC152TN9 | 50*90*24 | 0.67 |
| QJ210LB | 50*90*20 | 0.48 |
| BAQ3818E | 42*90*20 | 0.57 |
| BAQ3922BA(QJ110Z) | 50*80*16 | 0.27 |
| B-DE08A92 | 40*67*24 | 0.36 |
| QJ20107(621507) | 37*74*18 | 0.32 |
| LR203-2R5R | 17*47*12 | 0.11 |
| QJ109EZ | 40*75*85*16 | 0.35 |
Common types: The main types of bearings include deep groove ball bearings and angular contact ball bearings. Deep groove ball bearings can withstand radial loads and two-way axial loads, while angular contact ball bearings are suitable for simultaneous radial loads and single-direction axial loads.
