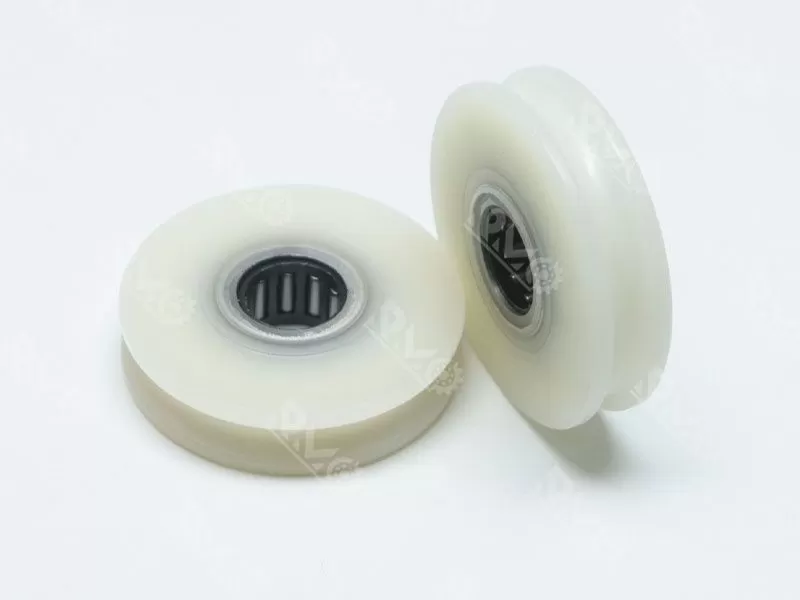

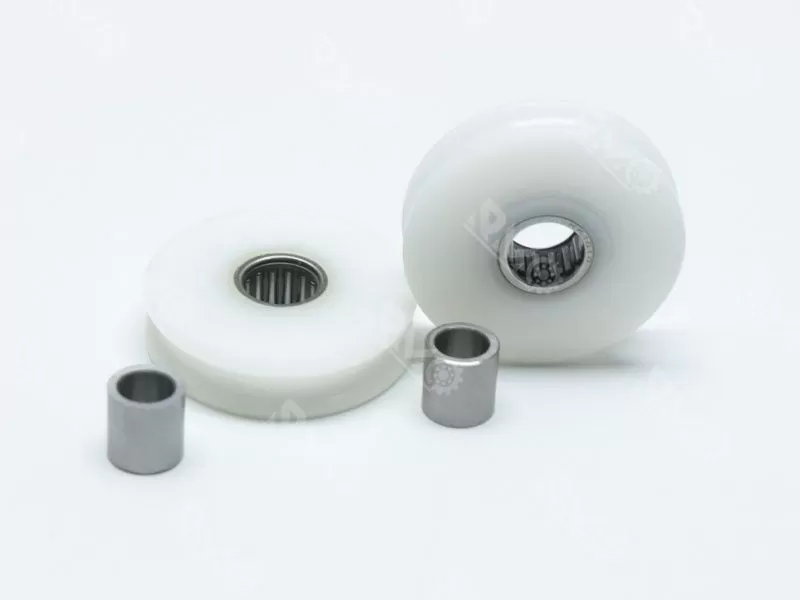

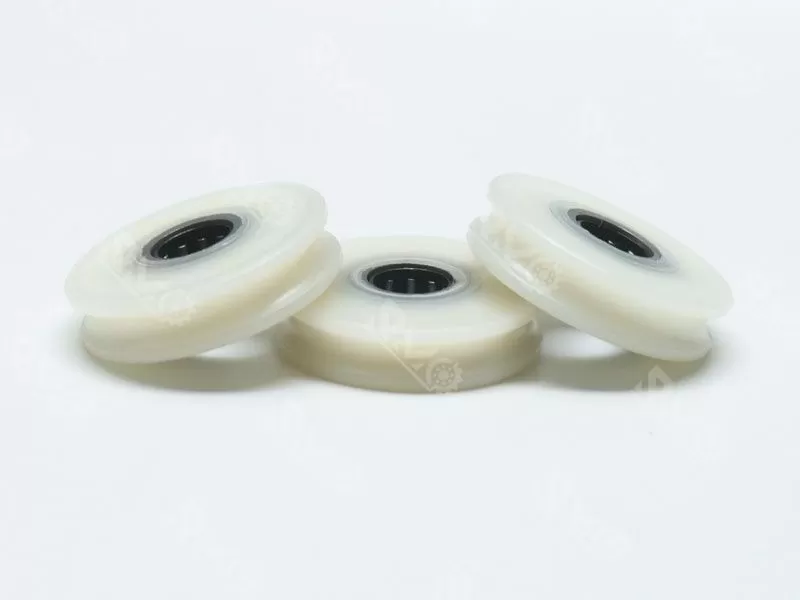

HK1010 U Groove Sliding Door Wheels

The inner bearings can be made of chrome steel, stainless steel or carbon steel, and the outer plastic pulley can be made of POM. PU, nylon PA6, PA66 or glass fiber., the groove type can be U-shaped groove, H-shaped groove, V-shaped groove, flat wheel or custom shape.

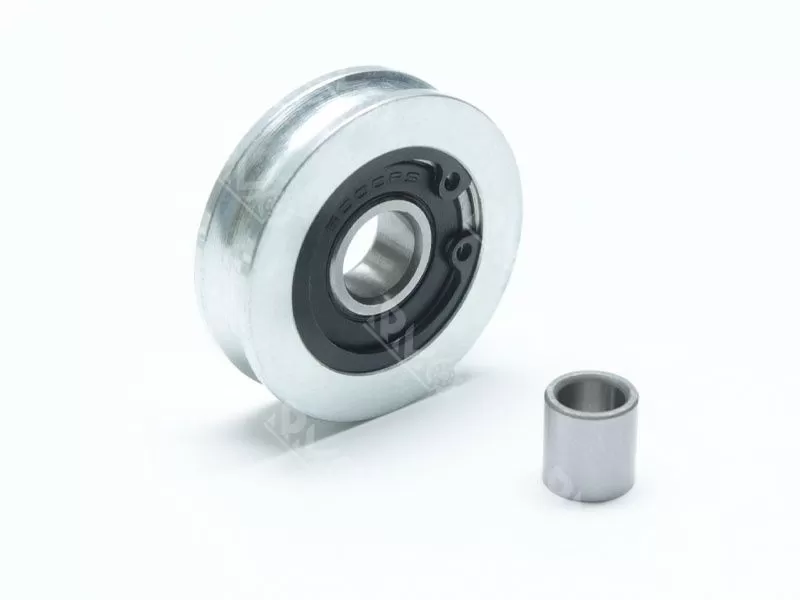

Product name: HK1010/NK1010/6000RS bearing nylon pulley wheel

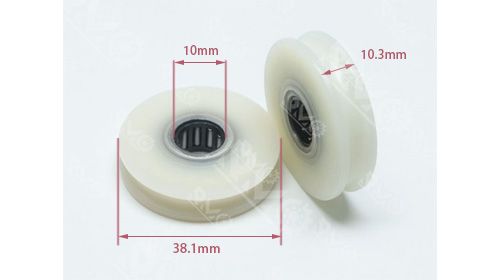

Size: 10x38.1x10.3mm

Material: Chrome Steel+nylon POM

Weight: 0.0153/0.017/0.056KG

Specification

HK1010 U-Channel Sliding Door Roller features an inner diameter of 10mm, outer diameter of 22mm, and thickness of 10mm. With a channel width of approximately 3.5mm and channel depth of approximately 1.75mm, it incorporates chrome-plated steel bearings and nylon guide rails. This roller offers low friction and wear resistance, making it suitable for sliding door applications in doors, windows, or small mechanical equipment.


HK1010 U Groove Sliding Door Wheels


Technical parameter:


 Model Number                                                                               HK1010/NK1010/6000RS bearing nylon pulley wheel
 Size                                    10x38.1x10.3mm
 Weight                                    0.0153/0.017/0.056KG
 Material                                    Chrome Steel+nylon POM
 MOQ                                    5000pcs
 Precision Grade                                    p0  p6  p5  p4
 Package                                    woven bags/cartons
 Brand name                                    Famous brand/RMO/Neutral/OEM
 Shipping Port                                    GuangZhou, NingBo, ShangHai
 Payment terms                                    100% T/T or 30% T/T before production, 70% before delivery
 Lead Taime                                    3-5 Days
 Groove type                                    U type



U-bearing nylon pulley is a pulley with a U-shaped groove structure, usually made of nylon material. This design is not only beautiful and generous, but also increases the wear resistance, making the pulley more durable and not easy to damage even if it is used for a long time. U-bearing nylon pulleys are suitable for a variety of applications, including furniture assembly, industrial equipment, and household doors, Windows, and drawer tracks.

Features and application scenarios

1. Wear resistance and durability: Nylon material makes the pulley have high wear resistance, can maintain good condition for a long time, reduce maintenance needs.

2. Easy installation: The installation process is simple, usually only a few minutes to complete, saving time and effort.

3. Wide range of application scenarios: suitable for furniture assembly, industrial equipment, household doors and Windows and drawer tracks, especially in the need for rope or straightening of the scene.

4. Low noise: almost silent when running, suitable for occasions that require a quiet environment, such as home environments.


⚙️Obtain Certificate:HK1010 U Groove Sliding Door Wheels
