⚙️Obtain Certificate:

PU coating pulley many sizes to choose from, Customizable hardness: 65A,75A,85A,90A,95A.
Product name: 608RS flat PU pulley
Size: 8x30x11mm
Groove type: flat type
Material: Chrome Steel+PU
Weight: 0.016KG
Lead time: 3-5 days
Specification

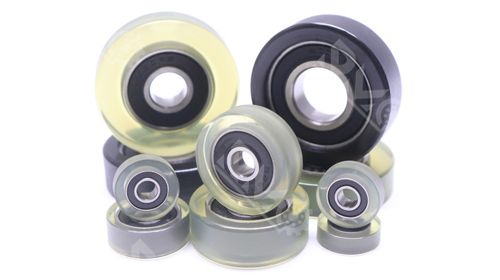

608 2RS PU-coated flat pulley is a flat drive pulley featuring an embedded 8mm inner diameter double-sealed bearing with an outer ring coated in wear-resistant PU, designed for quiet and smooth operation.

Technical parameter:
| Model Number | 608RS flat PU pulley |
| Size | 8x30x11mm |
| Weight | 0.016KG |
| Material | Chrome Steel+PU |
| Groove type | flat type |
| Precision Grade | p0 p6 p5 p4 |
| Hardness | 85A |
| Package | woven bags/cartons |
| MOQ | 500pcs |
| Brand name | Famous brand/RMO/Neutral/OEM |
| Shipping Port | GuangZhou, NingBo, ShangHai |
| Payment terms | 100% T/T or 30% T/T before production, 70% before delivery |
| Lead Taime | 3-5 Days |
Structural Materials: PU pulleys, also known as PolyUrethane pulleys, are made of polyurethane (PU for short) material. Polyurethane is a kind of polymer material, featuring high elasticity, wear resistance, tear resistance and impact resistance. PU pulleys are usually made of polyurethane cast elastomer raw materials. Depending on the different raw materials used, they have differences in yellowing resistance, wear resistance, transparency, softness and hardness, etc.
Application field:
PU pulleys are widely used in various equipment and products, especially in situations where shock absorption and wear resistance are required. They are often used in sports products such as skateboards, roller skates, shopping carts, drift boards and vitality boards. These products need to bear an individual's weight, so PU pulleys have better elasticity, which can provide better shock absorption and grip, and reduce the possibility of slipping
Related Products

| Model No. | Dimensions(mm) | allowable load | Color | ||||
| d | D | H | INTERNAL | HARDNESS | KG | ||
| 626-25-8 | 6 | 25 | 8 | 626 | 85A | 5 | transparent |
| 626-26-8 | 6 | 26 | 8 | 626 | 85A | 5 | transparent |
| 626-33-7 | 6 | 33 | 7 | 626 | 85A | 5 | transparent |
| 626-24-6 | 6 | 24 | 6 | 626 | 85A | 5 | transparent |
| 626-26-6 | 6 | 26 | 6 | 626 | 85A | 5 | transparent |
| 626-28-6 | 6 | 28 | 6 | 626 | 85A | 5 | transparent |
| 626-26-10 | 6 | 26 | 10 | 626 | 85A | 5 | transparent |
| 626-26-12 | 6 | 26 | 12 | 626 | 85A | 5 | transparent |
| 626-30-6 | 6 | 30 | 6 | 626 | 85A | 5 | transparent |
| 626-30-10 | 6 | 30 | 10 | 626 | 85A | 5 | transparent |
| 608-24-7 | 8 | 24 | 7 | 608 | 85A | 5 | transparent |
| 608-26-7 | 8 | 26 | 7 | 608 | 85A | 5 | transparent |
| 608-28-7 | 8 | 28 | 7 | 608 | 85A | 5 | transparent |
| 608-30-7 | 8 | 30 | 7 | 608 | 85A | 8 | transparent |
| 608-28-9 | 8 | 28 | 9 | 608 | 85A | 5 | transparent |
| 608-30-11 | 8 | 30 | 11 | 608 | 85A | 8 | transparent |
| 608-32-12 | 8 | 32 | 12 | 608 | 85A | 8 | transparent |
| 608-35-15 | 8 | 35 | 15 | 608 | 85A | 8 | blue |
| 608-40-11 | 8 | 40 | 11 | 608 | 85A | 8 | blue |
| 608-45-14 | 8 | 45 | 14 | 608 | 85A | 8 | blue |
| 688-22-7 | 8 | 22 | 7 | 688 | 85A | 5 | transparent |
| 688-22-5 | 8 | 22 | 5 | 688 | 85A | 5 | transparent |
| 609-33-7 | 9 | 33 | 7 | 609 | 85A | 8 | transparent |
| 6000-30-8 | 10 | 30 | 8 | 6000 | 85A | 10 | transparent |
| 6000-30-11 | 10 | 30 | 11 | 6000 | 85A | 10 | transparent/black |
| 6000-32-10 | 10 | 32 | 10 | 6000 | 85A | 10 | transparent |
| 6000-34-11 | 10 | 34 | 11 | 6000 | 85A | 10 | transparent |
| 6000-35-11 | 10 | 35 | 11 | 6000 | 85A | 10 | transparent |
| 6000-40-10 | 10 | 40 | 10 | 6000 | 85A | 10 | transparent |
| 6200-36-16 | 10 | 36 | 16 | 6200 | 85A | 10 | blue |
| 6200-40-9 | 10 | 40 | 9 | 6200 | 85A | 10 | transparent |
| 6200-40-12 | 10 | 40 | 12 | 6200 | 85A | 10 | black |
| 6200-42-20 | 10 | 42 | 20 | 6200 | 85A | 10 | transparent |
| 6200-60-12 | 10 | 60 | 12 | 6200 | 85A | 10 | black |
| 6001-35-15 | 12 | 35 | 15 | 6001 | 85A | 10 | blue |
| 6001-40-13 | 12 | 40 | 13 | 6001 | 85A | 15 | transparent |
| 6001-44-14 | 12 | 44 | 14 | 6001 | 85A | 15 | transparent |
| 6001-45-14 | 12 | 45 | 14 | 6001 | 85A | 15 | transparent |
| 6002-40-9 | 15 | 40 | 9 | 6002 | 85A | 15 | transparent |
| 6002-40-12 | 15 | 40 | 12 | 6002 | 85A | 15 | transparent/black |
| 6202-45-15 | 15 | 45 | 15 | 6202 | 85A | 15 | transparent |
| 6202-60-16 | 15 | 60 | 16 | 6202 | 85A | 20 | blue |
| 6203-50-18 | 17 | 50 | 18 | 6203 | 85A | 20 | transparent |
| 6904-45-12 | 20 | 45 | 12 | 6904 | 85A | 20 | transparent |
| 6204-55-18 | 20 | 55 | 18 | 6204 | 85A | 30 | transparent |
| 6204-60-20 | 20 | 60 | 20 | 6204 | 95A | 30 | red |
| 6204-65-25 | 20 | 65 | 25 | 6204 | 95A | 40 | red |
| 6204-70-25 | 20 | 70 | 25 | 6204 | 95A | 50 | red |
| 6204-75-25 | 20 | 75 | 25 | 6204 | 95A | 50 | red |
| 6204-76-25 | 20 | 76 | 25 | 6204 | 95A | 50 | red |
| 6204-80-25 | 20 | 80 | 25 | 6204 | 95A | 50 | red |
| 6205-65-19 | 25 | 65 | 19 | 6205 | 95A | 50 | red |
