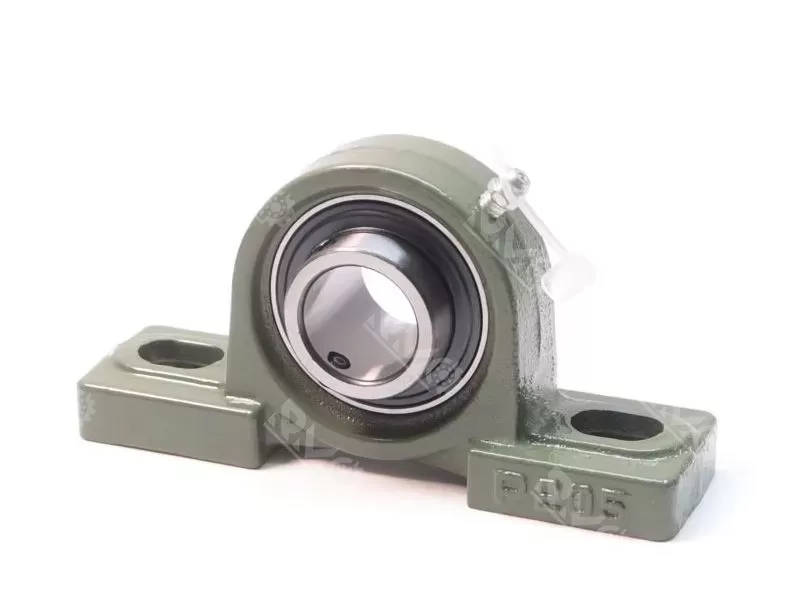

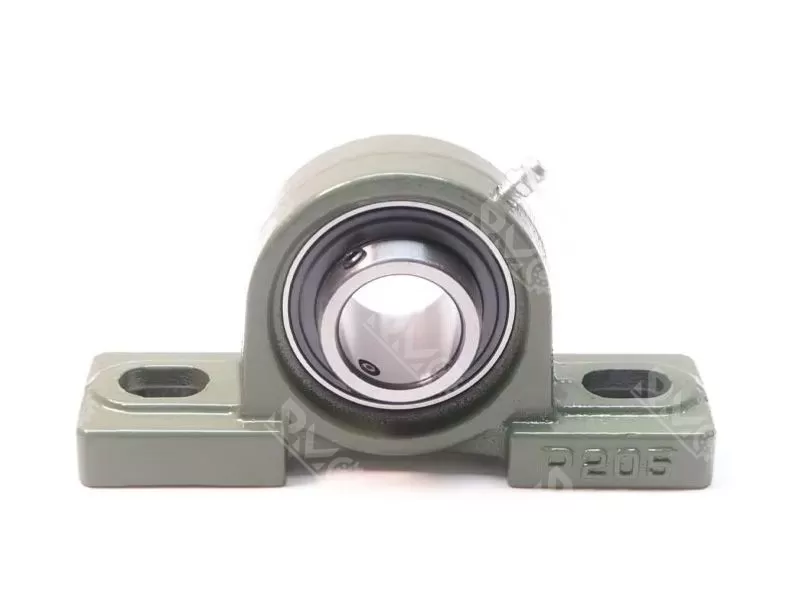

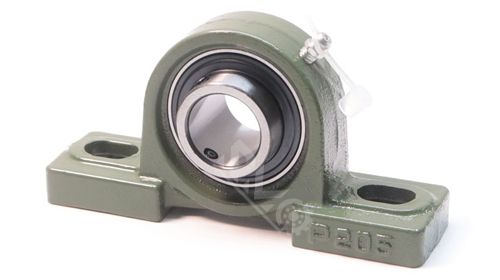

Pillow Block Bearing
Model No: UCP205
Size: 25x140x36.5mm
Material: chrome steel with iron
Weight: 0.8KG
Lead time: 3-5 days
Package: box+carton
MOQ: 10pcs
Specification
Brand name: Famous brand/RMO/Neutral/OEM
Shipping Port: GuangZhou, NingBo, ShangHai
Payment terms: 100% T/T or 30% T/T before production, 70% before delivery.
UCP pillow block bearings are composed of spherical plain bearings and cast (or stamped) bearing housings. The outer ring is designed as a truncated spherical shape, and the automatic self-aligning function is achieved through the concave spherical surface of the bearing housing. This product is fixed by set screws, eccentric sleeves or lock nuts. The structural feature of the inner ring being wider than the outer ring enables it to combine the operational performance of deep groove ball bearings with the convenient installation advantages of mounted bearings.
Structural composition:
It is composed of two sealed outer spherical surface ball bearings and a cast/pressed bearing housing as the core components, among which:

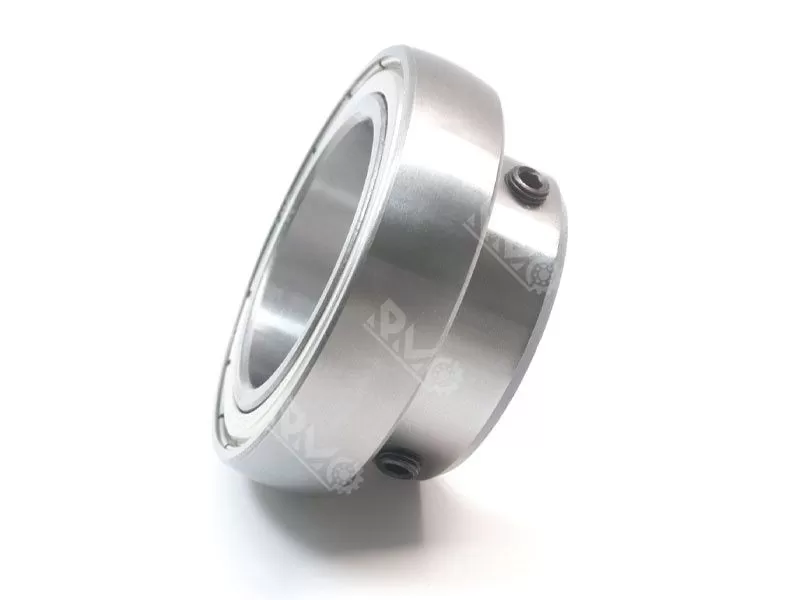

1. The inner ring width is larger than the outer ring, and the internal structure is consistent with that of deep groove ball bearings.
2. The outer ring cross-section is spherical, forming a self-aligning structure with the concave surface of the bearing housing.
3. The shaft hole fit adopts a clearance design, and the shaft is fixed through set screws, eccentric sleeves or lock nuts.
Product Features:
1. Self-aligning: The spherical surface of the outer ring fits with the concave surface of the bearing housing, compensating for shaft misalignment of 0.5° to 2°.
2. Easy Installation: The integral structure simplifies the assembly process, and the bearing components can be replaced individually during maintenance.
3. Sealing Protection: The double-contact seal design effectively prevents dust from entering.
Related Products

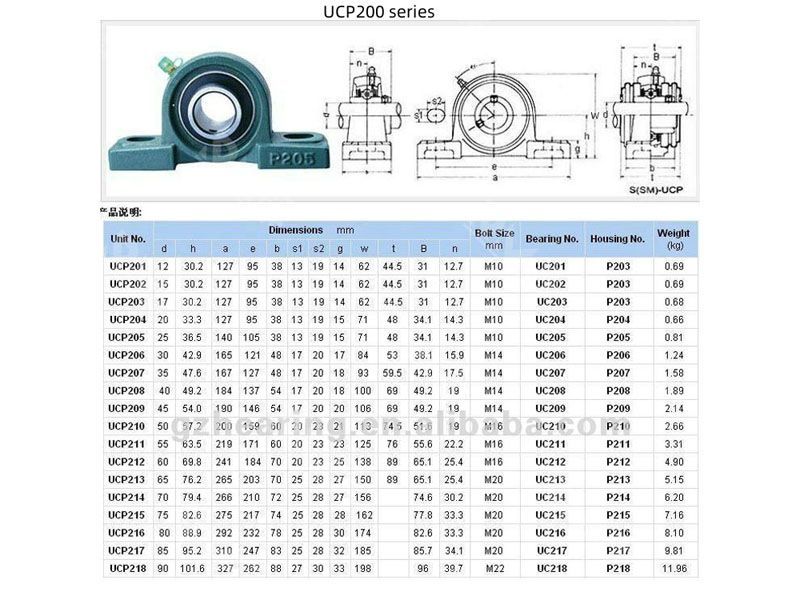

| Model NO. | d | D | H | m |
| UCP201 | 12 mm | 127 mm | 30.2 mm | 0.7 KG |
| UCP202 | 15 mm | 127 mm | 30.2 mm | 0.7 KG |
| UCP203 | 17 mm | 127 mm | 30.2 mm | 0.7 KG |
| UCP204 | 20 mm | 127 mm | 33.3 mm | 0.7 KG |
| UCP205 | 25 mm | 140 mm | 36.5 mm | 0.8 KG |
| UCP206 | 30 mm | 165 mm | 42.9 mm | 1.3 KG |
| UCP207 | 35 mm | 167 mm | 47.6 mm | 1.6 KG |
| UCP208 | 40 mm | 184 mm | 49.2 mm | 1.9 KG |
| UCP209 | 45 mm | 190 mm | 54 mm | 2.2 KG |
| UCP210 | 50 mm | 206 mm | 57.2 mm | 2.6 KG |
| UCP211 | 55 mm | 219 mm | 63.5 mm | 3.3 KG |
| UCP212 | 60 mm | 241 mm | 69.8 mm | 4.6 KG |
| UCP213 | 65 mm | 265 mm | 76.2 mm | 5.9 KG |
| UCP214 | 70 mm | 266 mm | 79.4 mm | 6.6 KG |
| UCP215 | 75 mm | 275 mm | 82.6 mm | 7.4 KG |
| UCP216 | 80 mm | 292 mm | 88.9 mm | 9 KG |
| UCP217 | 85 mm | 310 mm | 95.2 mm | 11 KG |
| UCP218 | 90 mm | 327 mm | 101.6 mm | 13 KG |
Application fields
Mainly serves industrial scenarios that require simple support, including:
1. Mining machinery: idler support for belt conveyors.
2. Agricultural equipment: transmission system of combine harvesters.
3. Textile machinery: support structure for yarn guides.
4. Material conveying: rotating components of roller conveyors.
