Pillow Block Bearing

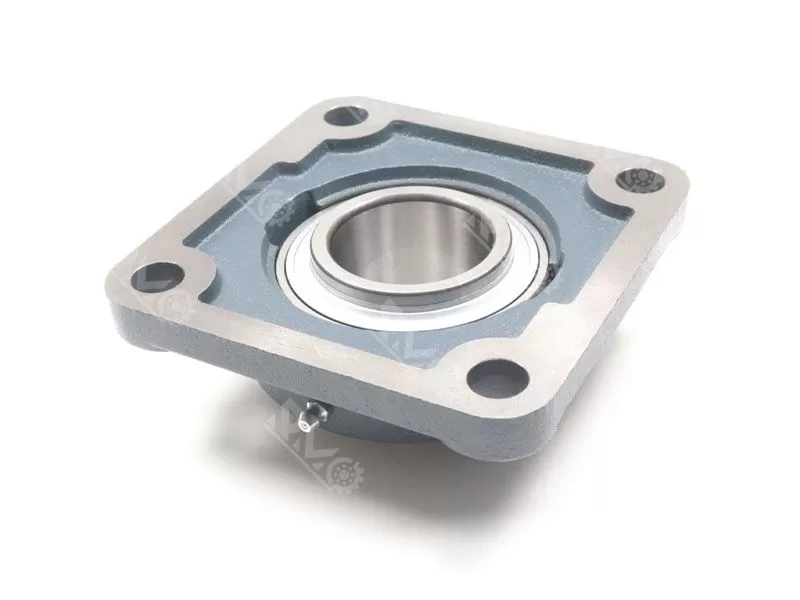

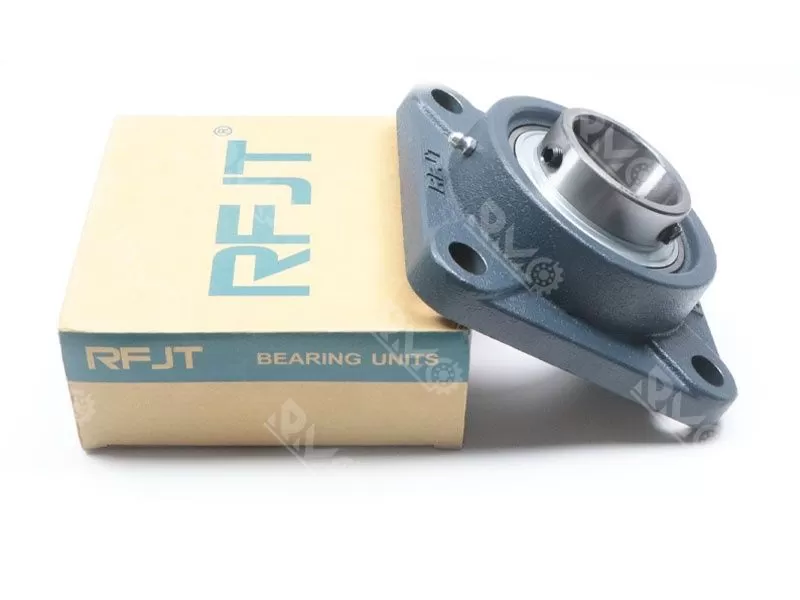

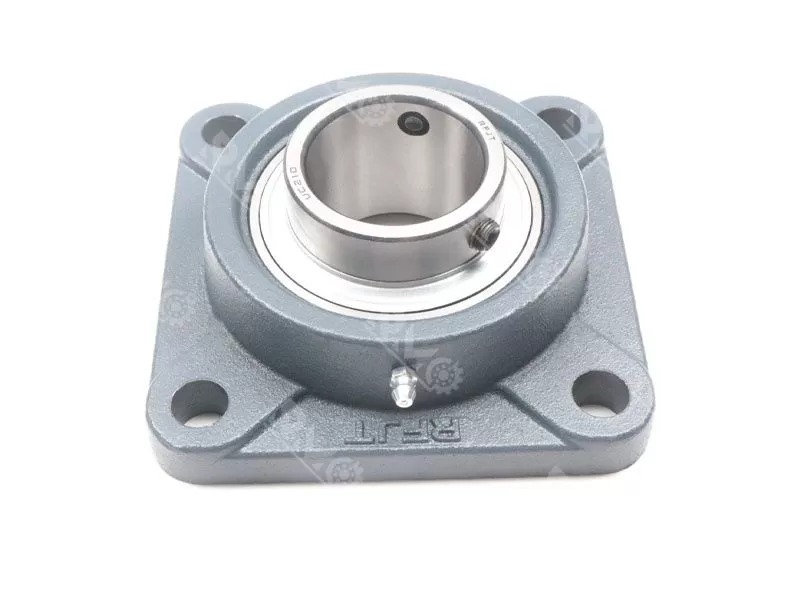

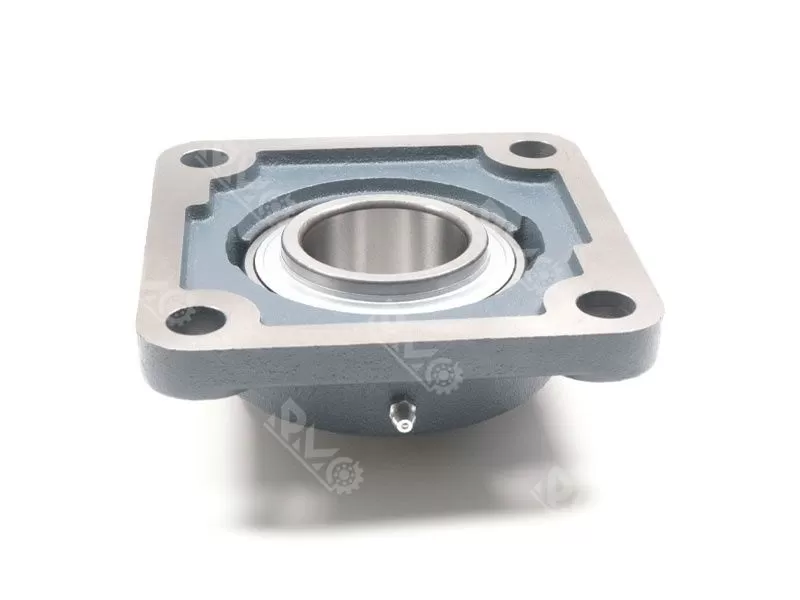

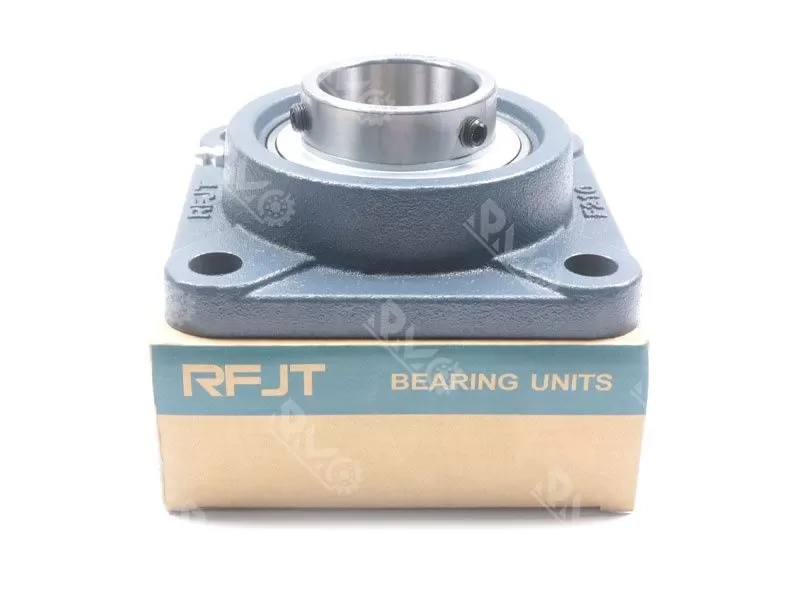

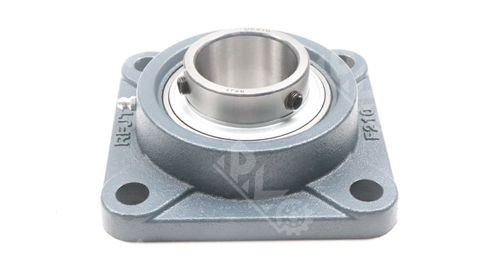

Product name: UCF210 pillow block bearing
Size: 50x143x54.6mm
Material: chrome steel with ductile iron(QT450)
Weight: 2.5KG
MOQ: 50pcs
Lead time: 3-5 days
Specification
Package: box+carton
Brand name: Famous brand/RMO/Neutral/OEM
Shipping Port: GuangZhou, NingBo, ShangHai
Payment terms: 100% T/T or 30% T/T before production, 70% before delivery.
Product Introduction:
The bearing with housing is a type of bearing unit that combines an external spherical bearing with a bearing housing. Most external spherical bearings have their outer diameters made into a spherical shape, and are installed together with a bearing housing that has a spherical inner hole. The structural forms are diverse, and they have good versatility and interchangeability.
Meanwhile, these bearings also have certain self-aligning properties in their design, are easy to install, and have a dual-structured sealing device, which can work in harsh environments. The bearing housings are generally made through casting and stamping processes. Commonly used cast bearing housings include vertical housings (P), narrow vertical housings (PA), high center vertical housings (PH), square housings (F), raised square housings (FS), raised circular housings (FC), rhombic housings (FL), circular housings (C), slider housings (T), suspended housings (HA), adjustable rhombic housings (FA), and suspended bearings (FB). Commonly used stamped bearing housings include circular stamped housings (PF), rhombic stamped housings (PFL), triangular stamped housings (PFT), vertical stamped housings (PP), etc.
Product model:
1. Bearings of the UC type with locking screws on the outer spherical surface and their derivative models;
2. Bearings of the UK type with spherical surfaces on the external cylindrical holes;
3. Bearings of the UEL type with spherical surfaces on the external eccentric sleeves and their derivative models.
The bearing with a seat is a high-precision component product composed of a grease-sealed deep groove ball bearing and various shapes of bearing seats. The bearing assembly can be directly installed onto the main body of the mechanical device through several bolts. It has self-aligning function and can be lubricated by replenishing grease through the oil ports on the bearing seat. It is a product that is very convenient to install and use.
Related Products

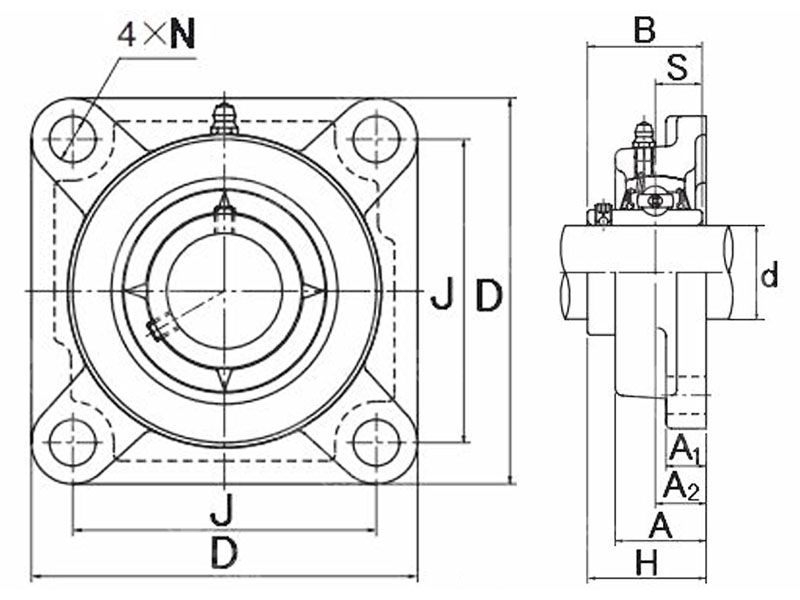

| Model No. | d | D | H | m |
| UCF201 | 12 mm | 86 mm | 33.3 mm | 0.6 KG |
| UCF202 | 15 mm | 86 mm | 33.3 mm | 0.6 KG |
| UCF203 | 17 mm | 86 mm | 33.3 mm | 0.6 KG |
| UCF204 | 20 mm | 86 mm | 33.3 mm | 0.6 KG |
| UCF205 | 25 mm | 95 mm | 35.8 mm | 0.8 KG |
| UCF206 | 30 mm | 108 mm | 40.2 mm | 1.1 KG |
| UCF207 | 35 mm | 117 mm | 44.4 mm | 1.5 KG |
| UCF208 | 40 mm | 130 mm | 51.2 mm | 1.7 KG |
| UCF209 | 45 mm | 137 mm | 52.2 mm | 2.1 KG |
| UCF210 | 50 mm | 143 mm | 54.6 mm | 2.5 KG |
| UCF211 | 55mm | 162 mm | 58.4 mm | 3.3 KG |
| UCF212 | 60 mm | 175 mm | 68.7 mm | 3.9 KG |
| UCF213 | 65 mm | 187 mm | 69.7 mm | 5.5 KG |
| UCF214 | 70 mm | 193 mm | 75.4 mm | 6.3 KG |
| UCF215 | 75 mm | 200 mm | 78.5 mm | 6.6 KG |
| UCF216 | 80 mm | 208 mm | 83.3 mm | 7.9 KG |
| UCF217 | 85 mm | 220 mm | 87.6 mm | 9.8 KG |
| UCF218 | 90 mm | 235 mm | 96.3 mm | 12 KG |
Application field
Suitable for fields such as agricultural machinery (such as harvesters), transportation systems, construction machinery, petrochemical equipment and instruments and meters. Some models can withstand high temperatures and corrosive environments of acids and alkalis.
