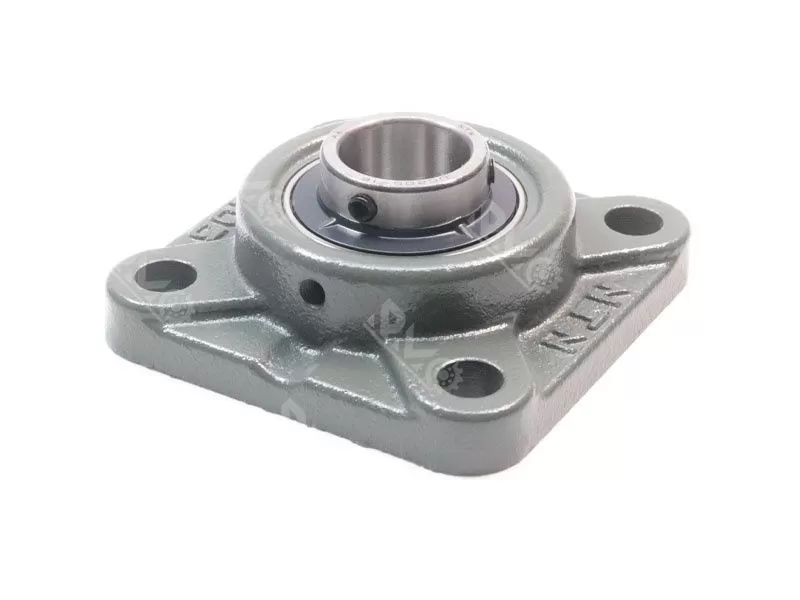

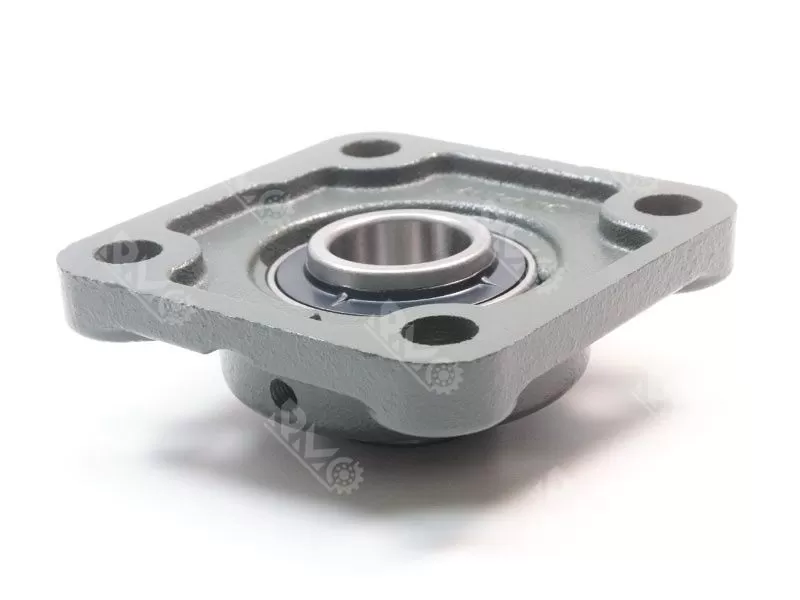

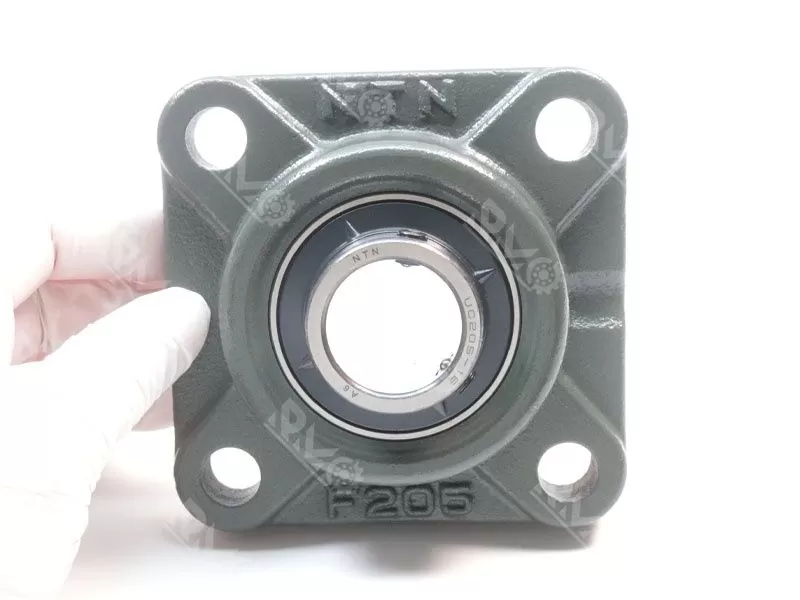

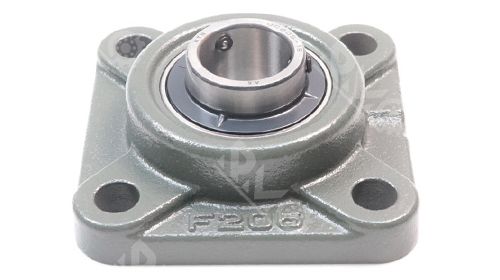

UCF205-16 Inner Dia 1 Inch Square Pillow Block Bearing

UCF series pillow block bearing is a bearing unit that combines a bearing with a square bearing seat.

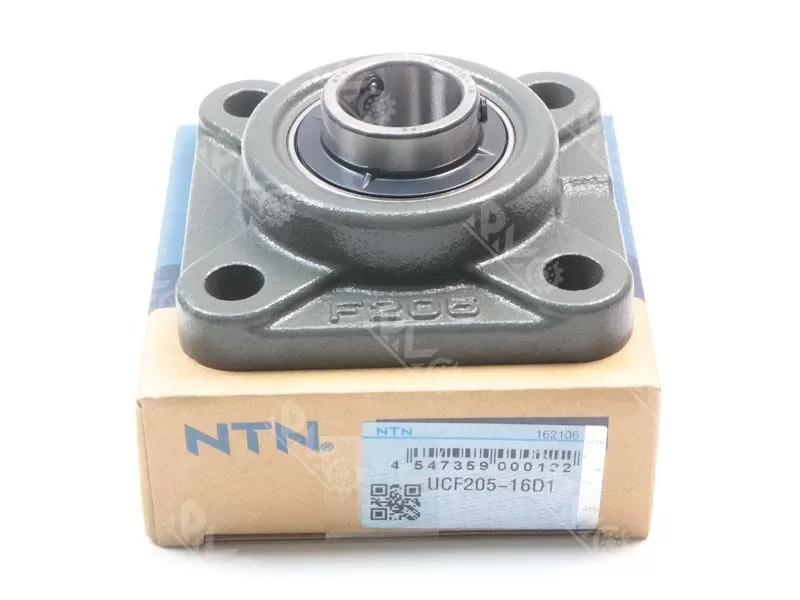

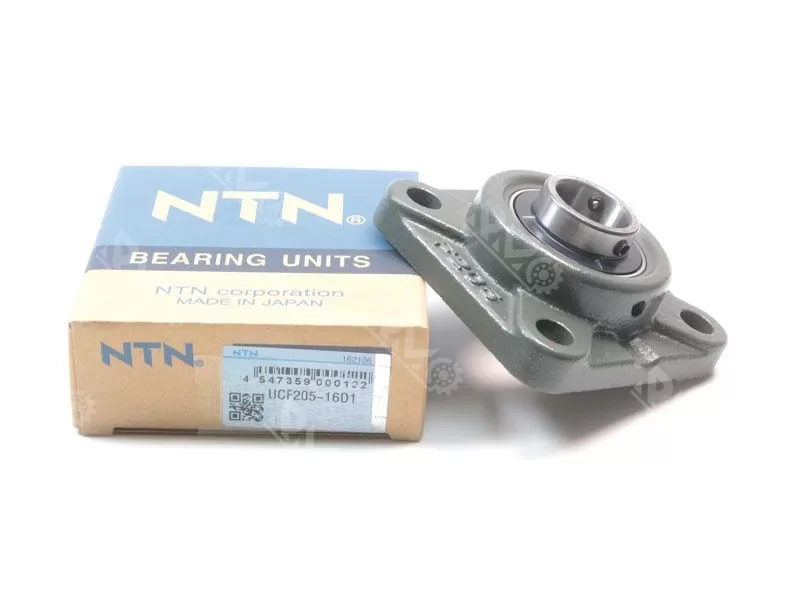

Product name: UCF205-16D1 pillow block bearing

Size: 25.4x35.7x95mm

Material: chrome steel with iron

Weight: 0.95KG

Inquire Now Next Product

Specification

Pillow block bearing is a type of bearing unit that combines a rolling bearing with a bearing housing. Most pillow block bearings have their outer diameters made into a spherical shape and are installed together with a bearing housing that has a spherical inner hole. They come in various structural forms and have good versatility and interchangeability.

Technical parameter:

Model Number	UCF205-16D1 pillow block bearing
Size	25.4x35.7x95mm
Weight	0.95KG
Material	chrome steel with iron
Clearance	C2 C0 C3 C4
Precision Grade	p0
Package	box+carton
MOQ	10pcs
Brand name	Famous brand/RMO/Neutral/OEM
Shipping Port	GuangZhou, NingBo, ShangHai
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

Meanwhile, these bearings also have certain self-aligning properties in their design, are easy to install, and have a dual-structured sealing device, which enables them to operate in harsh environments. The bearing housings are generally cast. Common housings include vertical housings (P), square housings (F), raised square housings (FS), raised circular housings (FC), rhombic housings (FL), circular housings (C), and slider housings (T).

Related Products

UCF205-16 inner dia 1 inch square pillow block bearing

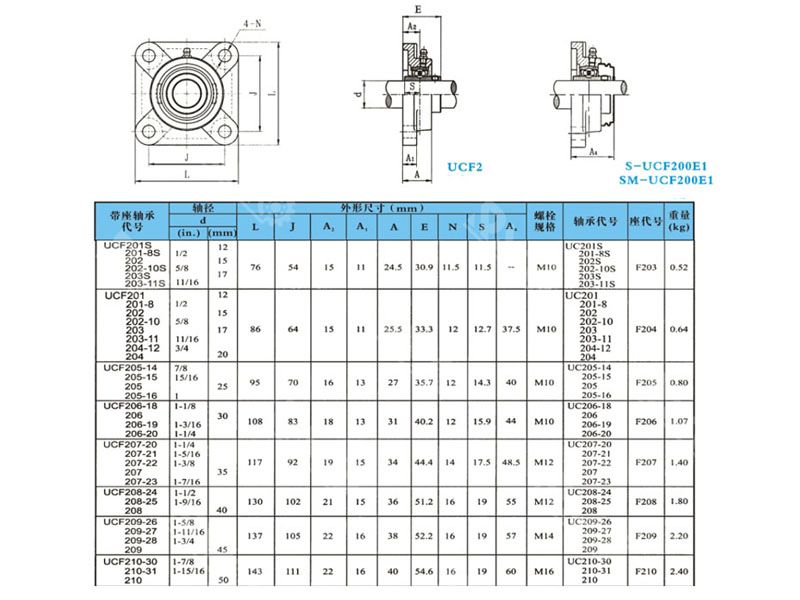

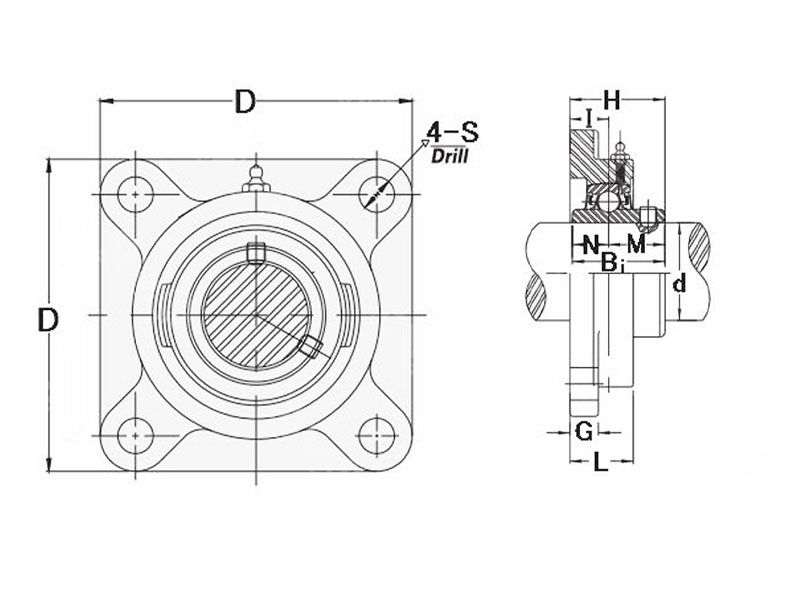

Model No.	d	D	H	m	Model No.	d	D	H	m
UCF201-8	12.7 mm	86 mm	33.3 mm	1.8 lbs	UCF207	35 mm	117 mm	44.4 mm	3.8 lbs
UCF202-10	15.88 mm	86 mm	33.3 mm	1.8 lbs	UCF207-23	36.51 mm	117 mm	44.4 mm	3.8 lbs
UCF204-12	19.05 mm	86 mm	33.3 mm	1.6 lbs	UCF208-24	38.1 mm	130 mm	51.2 mm	4.9 lbs
UCF204	20 mm	86 mm	33.3 mm	1.6 lbs	UCF208	40 mm	130 mm	51.2 mm	4.9 lbs
UCF205-14	22.22 mm	95 mm	35.7 mm	2.1 lbs	UCF209-27	42.86 mm	137 mm	52.2 mm	5.4 lbs
UCF205	25 mm	95 mm	35.7 mm	2.1 lbs	UCF209-28	44.45 mm	137 mm	52.2 mm	5.4 lbs
UCF205-16	25.4 mm	95 mm	35.7 mm	2.1 lbs	UCF209	45 mm	137 mm	52.2 mm	5.4 lbs
UCF206-18	28.58 mm	108 mm	40.2 mm	2.9 lbs	UCF210-31	49.21 mm	143 mm	54.6 mm	5.9 lbs
UCF206	30 mm	108 mm	40.2 mm	2.9 lbs	UCF210	50 mm	143 mm	54.6 mm	5.9 lbs
UCF206-19	30.16 mm	108 mm	40.2 mm	2.9 lbs	UCF210-32	50.8 mm	143 mm	54.6 mm	5.9 lbs
UCF206-20	31.75 mm	108 mm	40.2 mm	2.9 lbs	UCF211-32	50.8 mm	162 mm	58.4 mm	8.1 lbs
UCF207-20	31.75 mm	117 mm	44.4 mm	3.8 lbs	UCF211-35	55.56 mm	162 mm	58.4 mm	8.1 lbs
UCF207-21	33.34 mm	117 mm	44.4 mm	3.8 lbs	UCF212-36	57.15 mm	175 mm	68.7 mm	10 lbs
UCF207-22	34.92 mm	117 mm	44.4 mm	3.8 lbs	UCF212-39	61.91 mm	175 mm	68.7 mm	10 lbs
