Pillow Block Bearing
UCF series pillow block bearing is a bearing unit that combines a bearing with a square bearing seat.
Product name: SUCF205-16 pillow block bearing
Size: 25.4x95x35.7mm
Material: stainless steel with iron
Weight: 0.8KG
Lead time: 3-5 days
Specification

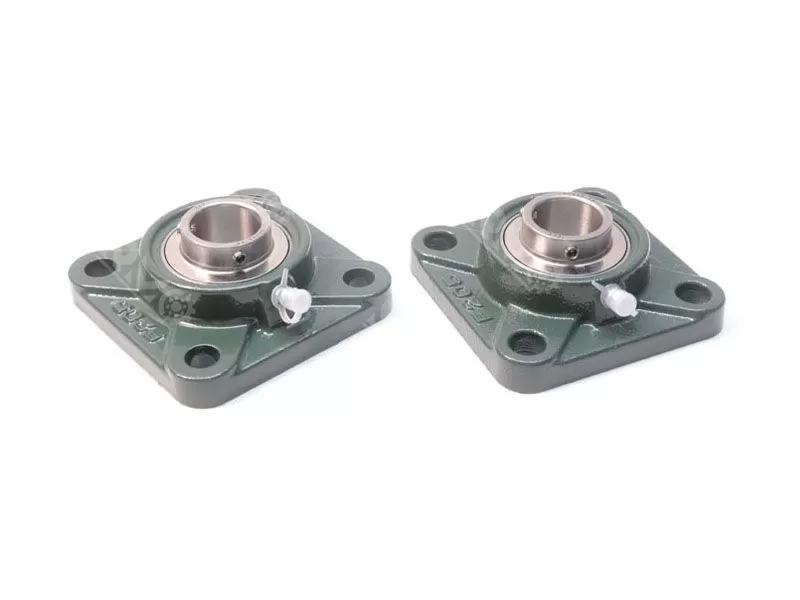

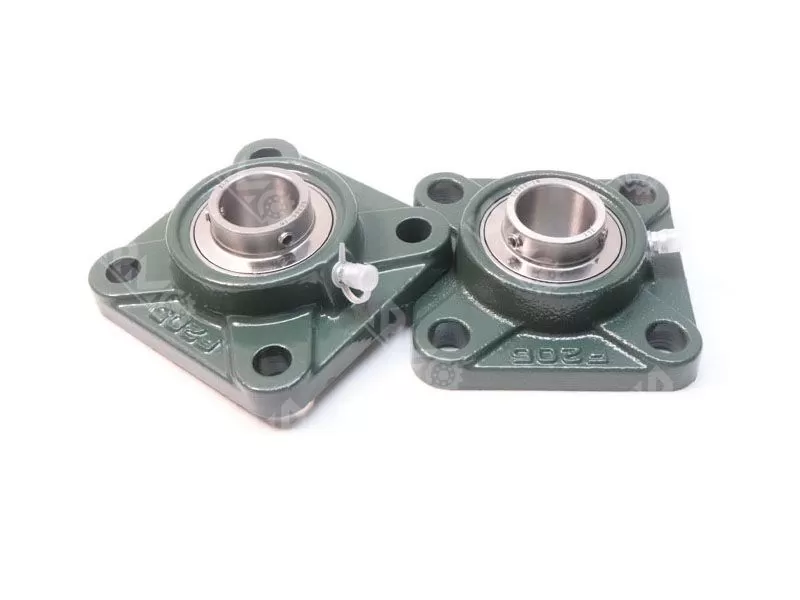

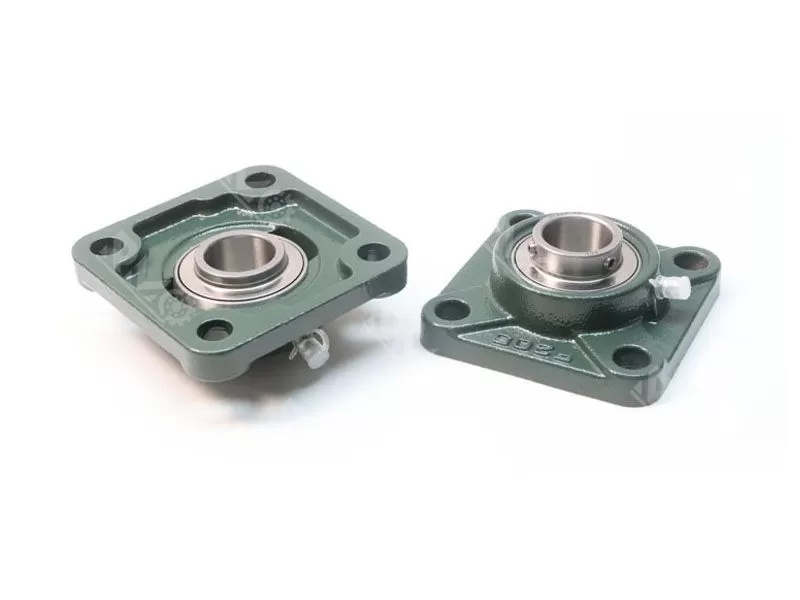

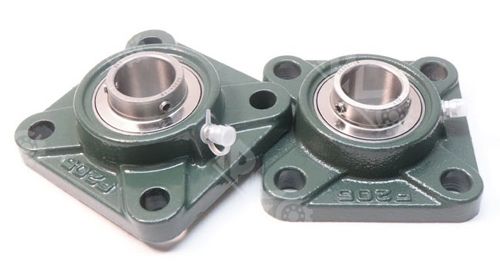

SUCF205-16 Square Flange Pillow Block Bearing is a bearing with an inner diameter of 1 inch (25.4 mm). Its housing is typically made of cast iron or stainless steel and secured with set screws.
It features a compact structure, easy installation, and the ability to withstand significant radial loads. This bearing is suitable for various industrial applications, including agricultural machinery
and conveying equipment.
Technical parameter:
| Model Number | SUCF205-16 pillow block bearing |
| Size | 25.4x95x35.7mm |
| Weight | 0.8KG |
| Material | stainless steel with iron |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Brand name | famous brand/RMO/Neutral/OEM |
| MOQ | 10pcs |
| Package | Plastic bag/single box+Carton+Pallet |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Pillow block bearing is a type of bearing unit that combines a rolling bearing with a bearing housing. Most pillow block bearings have their outer diameters made into a spherical shape and are installed together with a bearing housing that has a spherical inner hole. They come in various structural forms and have good versatility and interchangeability.

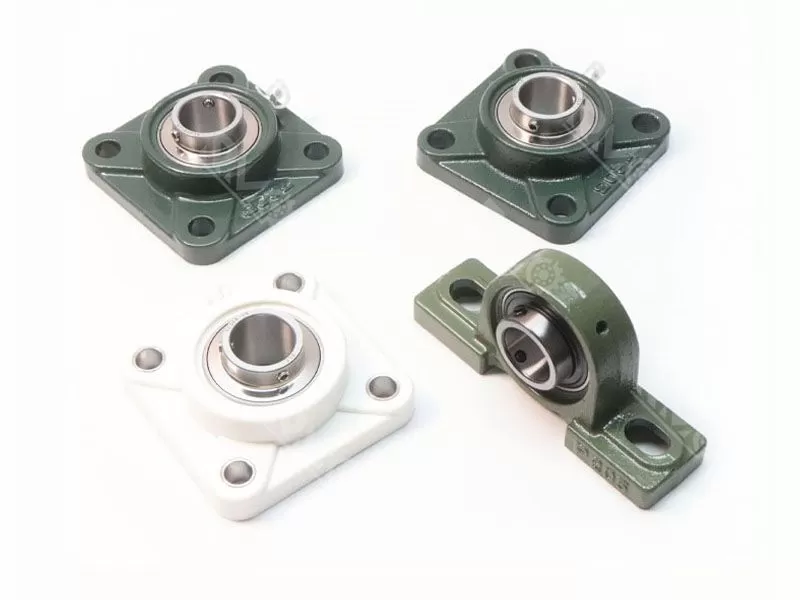

Meanwhile, these bearings also have certain self-aligning properties in their design, are easy to install, and have a dual-structured sealing device, which enables them to operate in harsh environments. The bearing housings are generally cast. Common housings include vertical housings (P), square housings (F), raised square housings (FS), raised circular housings (FC), rhombic housings (FL), circular housings (C), and slider housings (T).
Related Products
| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| UCF201-8 | 12.7 mm | 86 mm | 33.3 mm | 1.8 lbs | UCF207 | 35 mm | 117 mm | 44.4 mm | 3.8 lbs | |
| UCF202-10 | 15.88 mm | 86 mm | 33.3 mm | 1.8 lbs | UCF207-23 | 36.51 mm | 117 mm | 44.4 mm | 3.8 lbs | |
| UCF204-12 | 19.05 mm | 86 mm | 33.3 mm | 1.6 lbs | UCF208-24 | 38.1 mm | 130 mm | 51.2 mm | 4.9 lbs | |
| UCF204 | 20 mm | 86 mm | 33.3 mm | 1.6 lbs | UCF208 | 40 mm | 130 mm | 51.2 mm | 4.9 lbs | |
| UCF205-14 | 22.22 mm | 95 mm | 35.7 mm | 2.1 lbs | UCF209-27 | 42.86 mm | 137 mm | 52.2 mm | 5.4 lbs | |
| UCF205 | 25 mm | 95 mm | 35.7 mm | 2.1 lbs | UCF209-28 | 44.45 mm | 137 mm | 52.2 mm | 5.4 lbs | |
| UCF205-16 | 25.4 mm | 95 mm | 35.7 mm | 2.1 lbs | UCF209 | 45 mm | 137 mm | 52.2 mm | 5.4 lbs | |
| UCF206-18 | 28.58 mm | 108 mm | 40.2 mm | 2.9 lbs | UCF210-31 | 49.21 mm | 143 mm | 54.6 mm | 5.9 lbs | |
| UCF206 | 30 mm | 108 mm | 40.2 mm | 2.9 lbs | UCF210 | 50 mm | 143 mm | 54.6 mm | 5.9 lbs | |
| UCF206-19 | 30.16 mm | 108 mm | 40.2 mm | 2.9 lbs | UCF210-32 | 50.8 mm | 143 mm | 54.6 mm | 5.9 lbs | |
| UCF206-20 | 31.75 mm | 108 mm | 40.2 mm | 2.9 lbs | UCF211-32 | 50.8 mm | 162 mm | 58.4 mm | 8.1 lbs | |
| UCF207-20 | 31.75 mm | 117 mm | 44.4 mm | 3.8 lbs | UCF211-35 | 55.56 mm | 162 mm | 58.4 mm | 8.1 lbs | |
| UCF207-21 | 33.34 mm | 117 mm | 44.4 mm | 3.8 lbs | UCF212-36 | 57.15 mm | 175 mm | 68.7 mm | 10 lbs | |
| UCF207-22 | 34.92 mm | 117 mm | 44.4 mm | 3.8 lbs | UCF212-39 | 61.91 mm | 175 mm | 68.7 mm | 10 lbs |
Application field
UCF bearing with housing is widely used in various mechanical equipment and industrial fields. For example:
1. Agricultural machinery: applied in harvesters, seeders and other equipment.
2. Transmission equipment: suitable for transmission equipment and various industrial machinery.
3. Industrial fields: such as petroleum, shipping, power and metallurgy industries.
Maintenance and inspection methods:
The maintenance of bearing seats can be carried out by detecting sounds, vibrations and temperature conditions. Abnormal noises indicate internal damage, abnormal amplitude reflects installation or wear issues, and excessively high temperature may be caused by insufficient lubrication or overload.
Installation:
1. Before installing the bearing onto the shaft, first remove the fixing pin of the bearing cover, and smooth and clean the surface of the shaft neck. Apply oil to the shaft neck for rust prevention and lubrication (allowing the bearing to rotate slightly on the shaft).
2. Apply lubricating oil to the mating surface between the bearing seat and the bearing, insert the bearing into the bearing seat. Then, assemble the assembled bearing and the bearing seat together and place them on the shaft. Push them to the desired position for installation.
3. Do not tighten the bolts that fix the bearing seat immediately. Allow the bearing cover to rotate within the bearing seat. Similarly, install the other end bearing and seat on the same shaft, rotate the shaft a few times to allow the bearing to automatically align itself. Then, tighten the bearing seat bolts securely.
4. Install the eccentric sleeve. First, place the eccentric sleeve on the eccentric step of the inner sleeve of the bearing, and tighten it by hand in the direction of the shaft's rotation. Then, insert or press a small iron rod into or against the blind hole on the eccentric sleeve. Use a hammer to strike the small iron rod in the direction of the shaft's rotation. Make the eccentric sleeve firmly installed. Finally, lock the internal hexagonal screw on the eccentric sleeve.
Housing type:

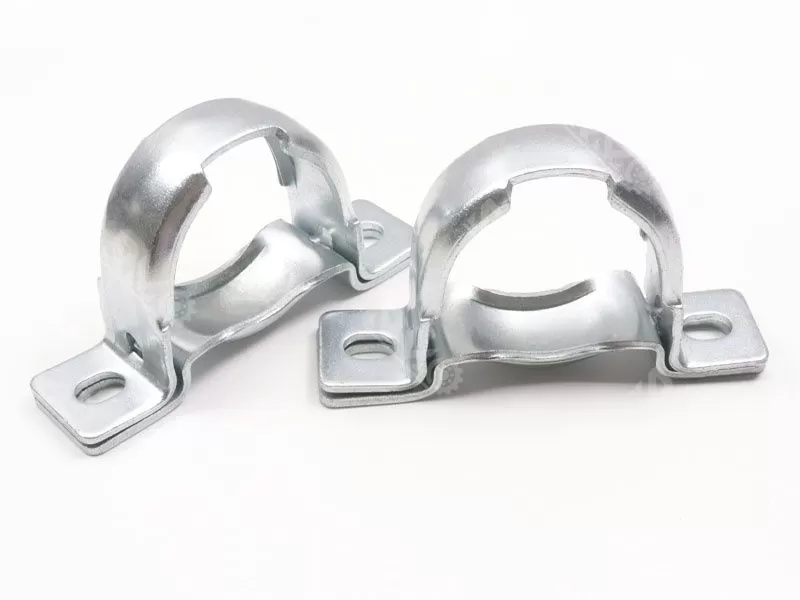

Vertical housing Square housing Rhombic housing Raised platform circular housing Ring-shaped housing Sliding block housing Hanging housing Suspension housing Adjustable rhombic housing Stamping housing etc.
