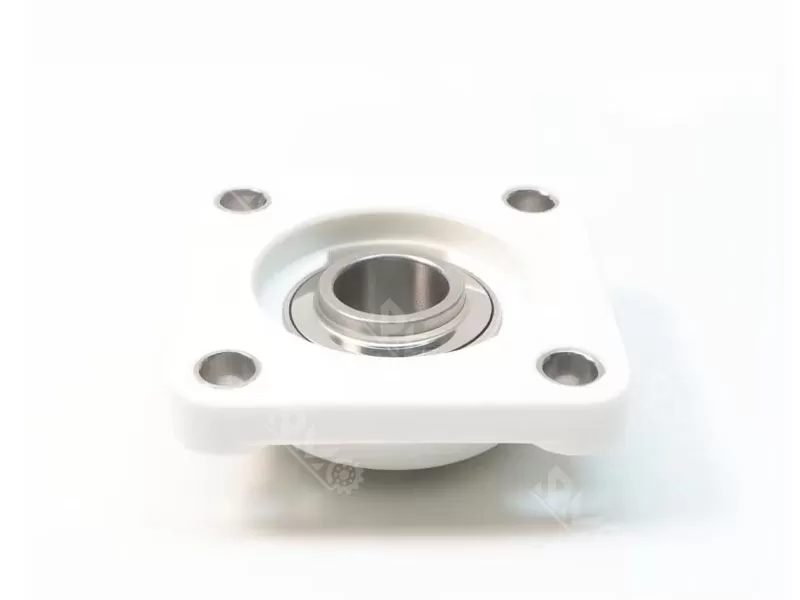

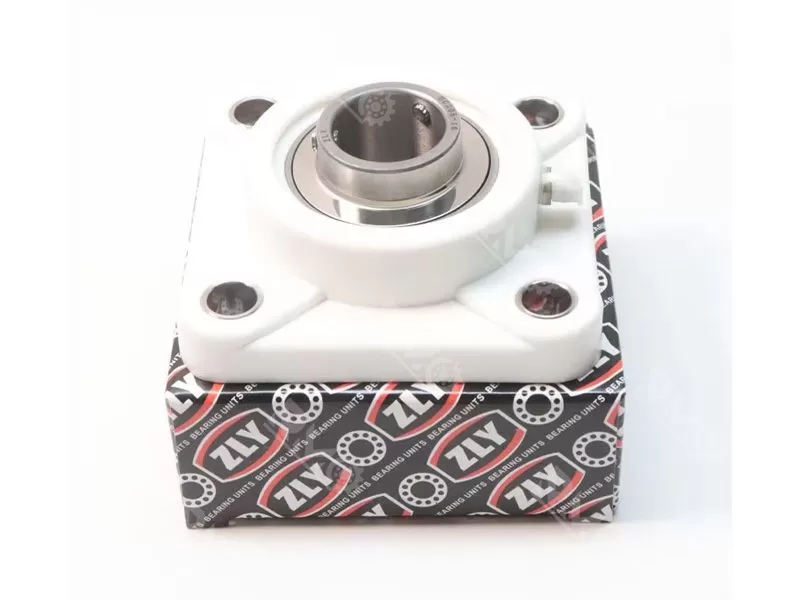

SUCF205-16 Square Flange Bearing

square flange SUCF205-16 insert bearing with POM housing, inner bore 25.4mm, stainless steel materials.

Product name: SUCF205-16 square flange pillow block bearing

Size: 25.4x35.7x95mm

Material: stainless steel with POM

Weight: 0.8KG

Lead time: 3-5 days

Inquire Now Next Product

Specification

SUCF205-16 Square Flange Bearing is a 1-inch bore bearing typically constructed with a stainless steel housing. It features a four-bolt mounting configuration secured with set screws, offering corrosion resistance, compact design, and stable installation. This bearing is suitable for applications demanding high hygiene and reliability standards, such as food processing and conveying equipment.

Technical parameter:

Model Number	SUCF205-16 square flange pillow block bearing
Size	25.4x35.7x95mm
Weight	0.8KG
Material	stainless steel with POM
Clearance	C2 C0 C3 C4
Precision Grade	p0
Brand name	famous brand/RMO/Neutral/OEM
MOQ	10pcs
Package	Plastic bag/single box+Carton+Pallet
Payment	100% T/T or 30% T/T before production, 70% before delivery
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

SUCF205-16 Square Flange Bearing Structural Features: Features a four-bolt square flange mounting configuration with a standard center distance of 70mm for secure equipment installation. Inner diameter of 25.4mm with an inner ring featuring set screws for reliable shaft-bearing locking. Housing typically constructed from cast iron or stainless steel, offering excellent strength and corrosion resistance. The bearings are usually equipped with a double-lip seal structure, such as rubber or silicone seals, effectively preventing the ingress of dust, moisture, and other contaminants. Some models also feature dust covers for enhanced protection. Internally, they employ a deep groove ball bearing design capable of handling radial loads and limited axial loads. They possess self-aligning capabilities, accommodating minor misalignment between the shaft and bearing housing.

Related Products

SUCF205-16 square flange bearing

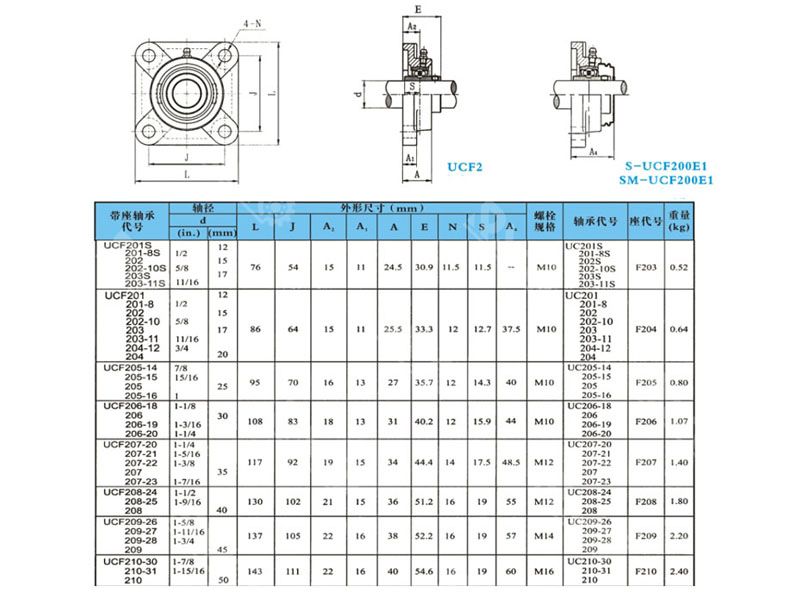

Model No.	d	D	H	m	Model No.	d	D	H	m
UCF201-8	12.7 mm	86 mm	33.3 mm	1.8 lbs	UCF207	35 mm	117 mm	44.4 mm	3.8 lbs
UCF202-10	15.88 mm	86 mm	33.3 mm	1.8 lbs	UCF207-23	36.51 mm	117 mm	44.4 mm	3.8 lbs
UCF204-12	19.05 mm	86 mm	33.3 mm	1.6 lbs	UCF208-24	38.1 mm	130 mm	51.2 mm	4.9 lbs
UCF204	20 mm	86 mm	33.3 mm	1.6 lbs	UCF208	40 mm	130 mm	51.2 mm	4.9 lbs
UCF205-14	22.22 mm	95 mm	35.7 mm	2.1 lbs	UCF209-27	42.86 mm	137 mm	52.2 mm	5.4 lbs
UCF205	25 mm	95 mm	35.7 mm	2.1 lbs	UCF209-28	44.45 mm	137 mm	52.2 mm	5.4 lbs
UCF205-16	25.4 mm	95 mm	35.7 mm	2.1 lbs	UCF209	45 mm	137 mm	52.2 mm	5.4 lbs
UCF206-18	28.58 mm	108 mm	40.2 mm	2.9 lbs	UCF210-31	49.21 mm	143 mm	54.6 mm	5.9 lbs
UCF206	30 mm	108 mm	40.2 mm	2.9 lbs	UCF210	50 mm	143 mm	54.6 mm	5.9 lbs
UCF206-19	30.16 mm	108 mm	40.2 mm	2.9 lbs	UCF210-32	50.8 mm	143 mm	54.6 mm	5.9 lbs
UCF206-20	31.75 mm	108 mm	40.2 mm	2.9 lbs	UCF211-32	50.8 mm	162 mm	58.4 mm	8.1 lbs
UCF207-20	31.75 mm	117 mm	44.4 mm	3.8 lbs	UCF211-35	55.56 mm	162 mm	58.4 mm	8.1 lbs
UCF207-21	33.34 mm	117 mm	44.4 mm	3.8 lbs	UCF212-36	57.15 mm	175 mm	68.7 mm	10 lbs
UCF207-22	34.92 mm	117 mm	44.4 mm	3.8 lbs	UCF212-39	61.91 mm	175 mm	68.7 mm	10 lbs
