Pillow Block Bearing

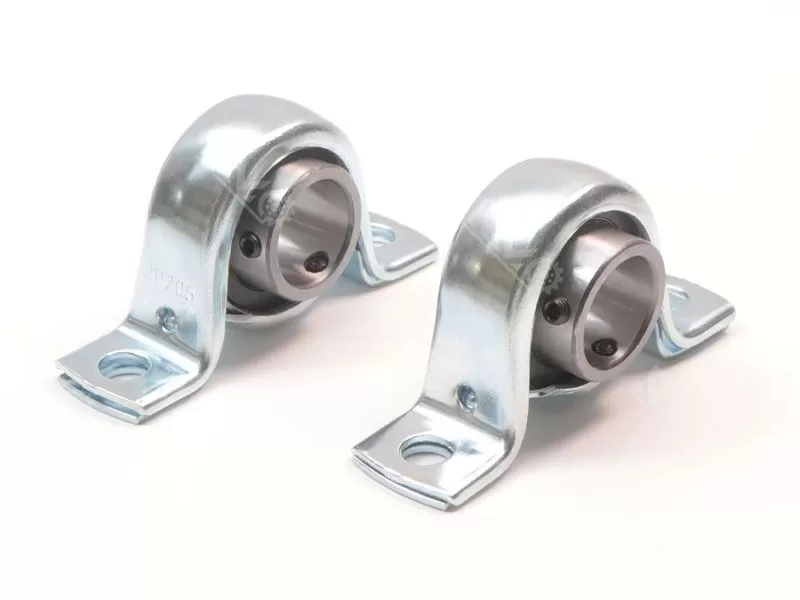

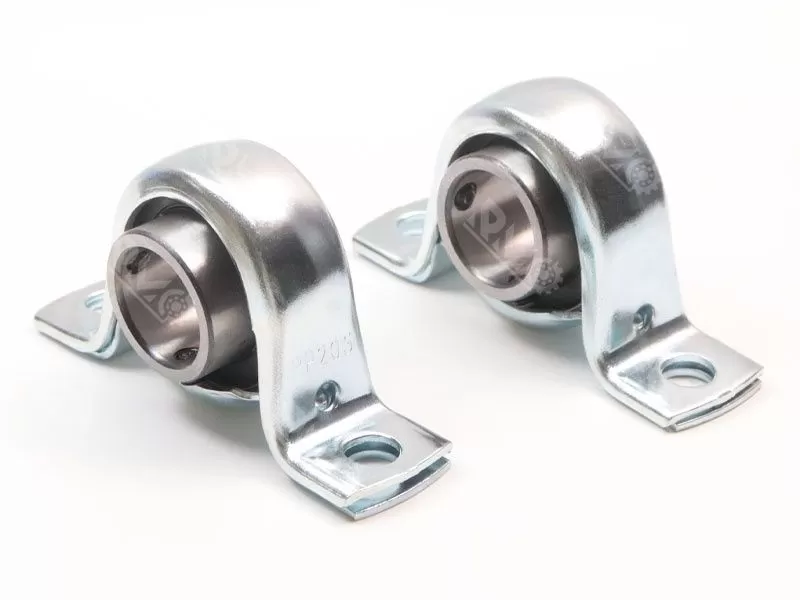

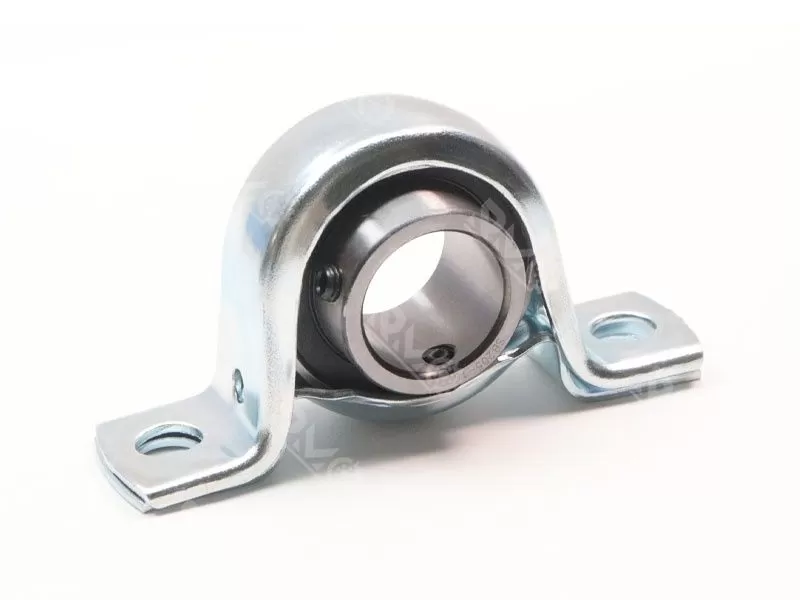

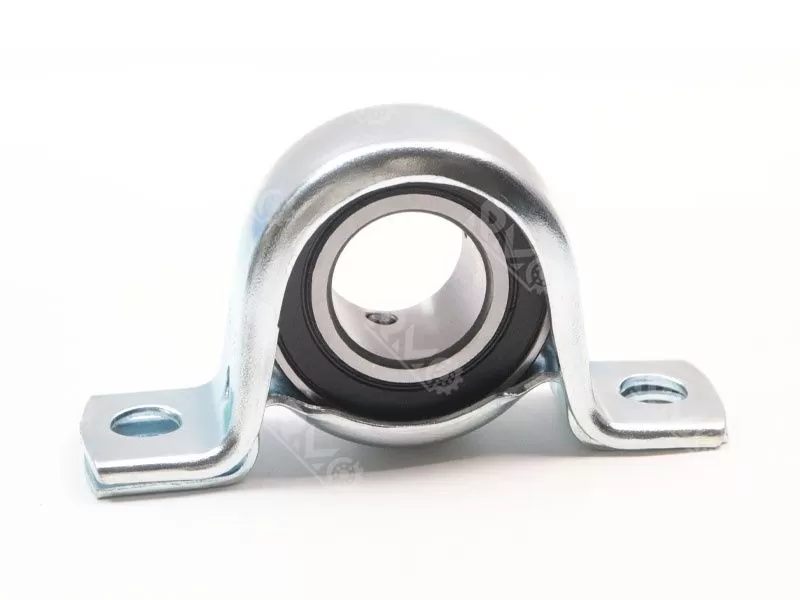

stamping forming pillow block bearing is a bearing unit that combines a bearing with a bearing seat.
Product name: SBPP205-16 pillow block bearing
Size: 25.4x108x86x56.2mm
Material: chrome steel with iron
Weight: 0.3KG
Lead time: 3-5 days
Specification

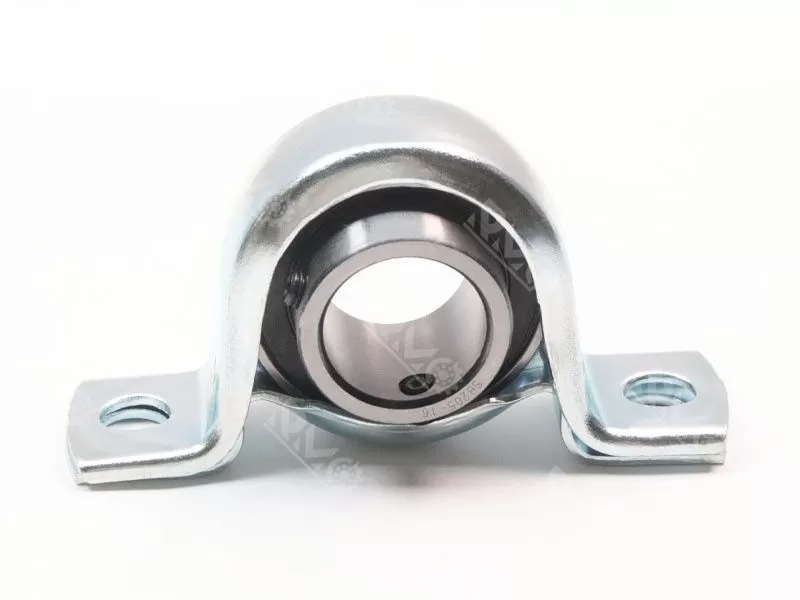

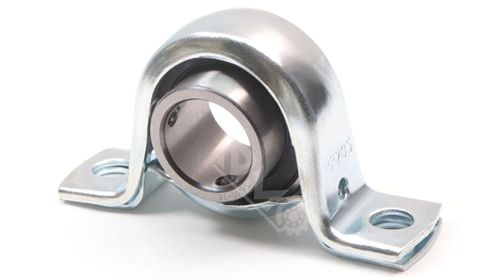

SBPP205-16 1-Inch Stamping Type Pillow Block Bearing is a stamped pillow block bearing with an inner diameter of 1 inch (25.4 mm). Its housing is made of zinc-plated steel, and the bearing insert is secured with a set screw. It offers an economical, lightweight solution suitable for light to medium load applications in industries such as agriculture, automotive, and construction.
Technical parameter:
| Model Number | SBPP205-16 pillow block bearing |
| Size | 25.4x108x86x56.2mm |
| Weight | 0.3KG |
| Material | chrome steel with iron |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Package | single box+Carton+Pallet |
| MOQ | 100pcs |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Structural features: The stamping pillow block bearing is usually composed of inner and outer rings, balls, cage, outer seat and supporting structure. Its design adopts the pressed vertical structure, making the bearing more stable and capable of withstanding large radial and axial loads.
High bearing capacity: Due to the adoption of the pressurized vertical structure design, the stamping pillow block bearing is capable of withstanding large radial and axial loads, and has high bearing capacity and stability.
Related Products

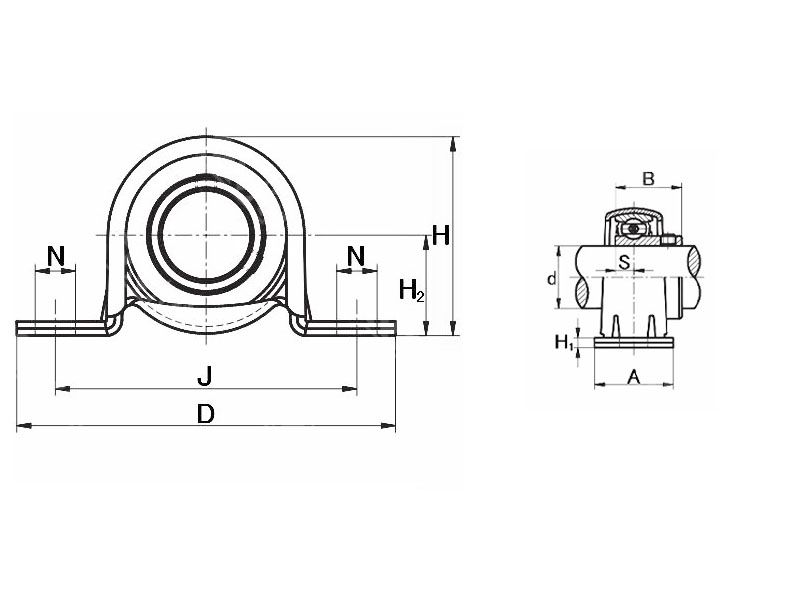

| Model No. | d | D | H | m |
| SBPP201 | 12 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP201-8 | 12.7 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP202 | 15 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP202-10 | 15.88 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP203 | 17 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP203-11 | 17.46 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP204-12 | 19.05 mm | 98 mm | 50.2 mm | 0.2 KG |
| SBPP204 | 20 mm | 98 mm | 50.2 mm | 0.2 KG |
| SBPP205-14 | 22.22 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205-15 | 3.81 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205 | 25 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205-16 | 25.4 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP206-18 | 28.58 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206 | 30 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206-19 | 30.16 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206-20 | 31.75 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP207-20 | 31.75 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207-21 | 33.34 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207-22 | 34.92 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207 | 35 mm | 129 mm | 77.7 mm | 0.55 KG |
Wide applicability
The stamping pillow block bearing is suitable for various industrial equipment and mechanical components, such as machine tools, conveying equipment, agricultural machinery, construction engineering machinery, etc. They can meet the load-bearing requirements under different working conditions and have a long service life.
