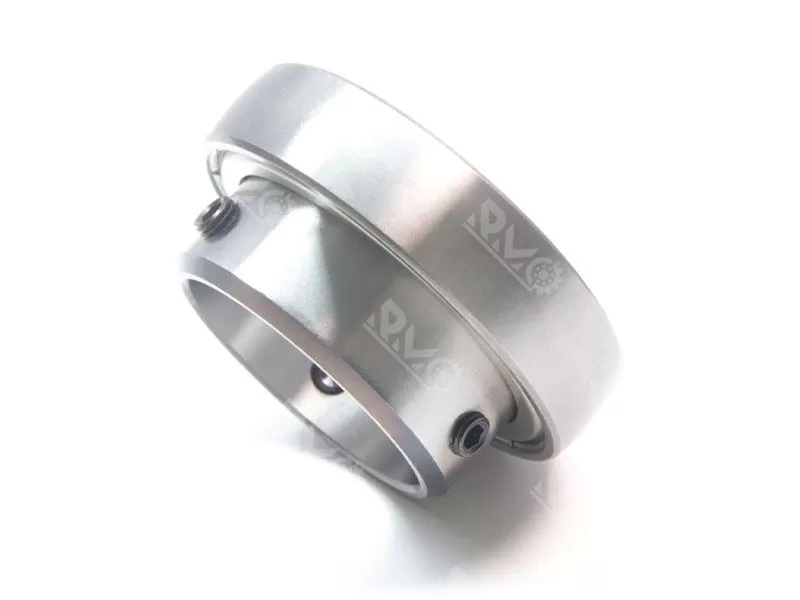

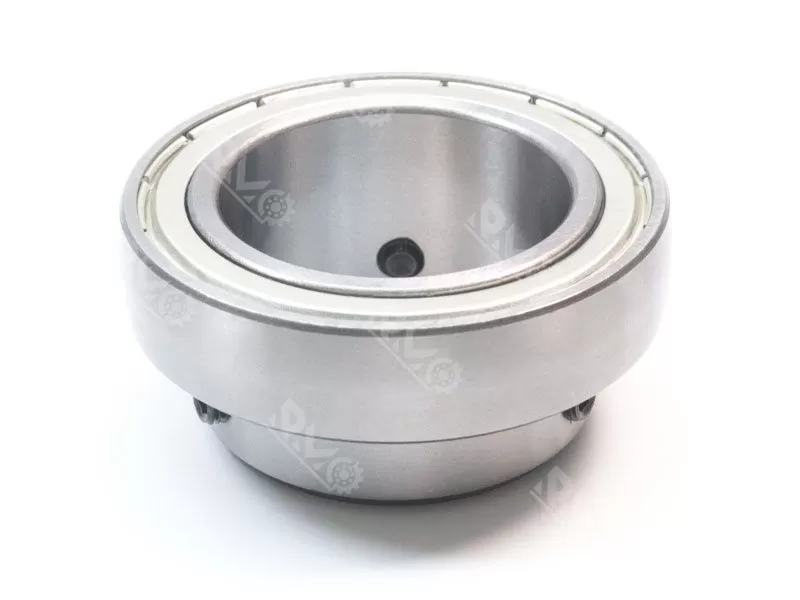

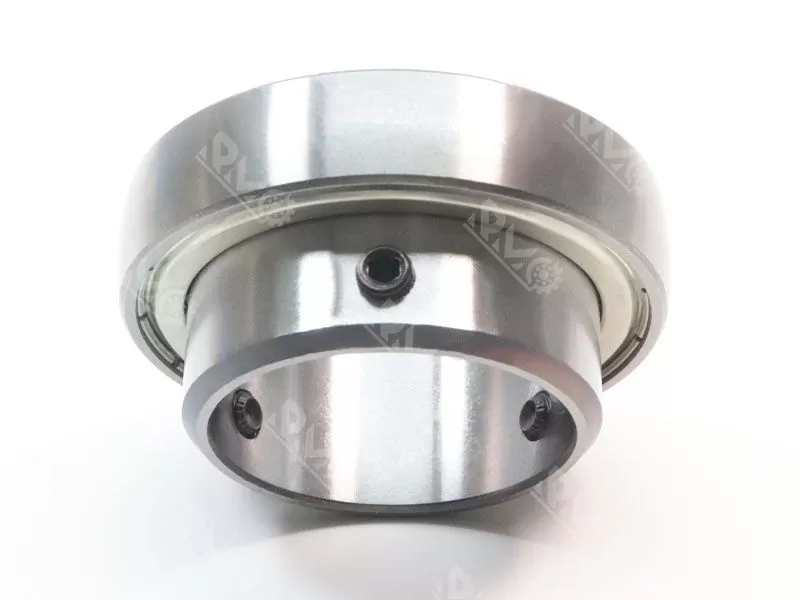

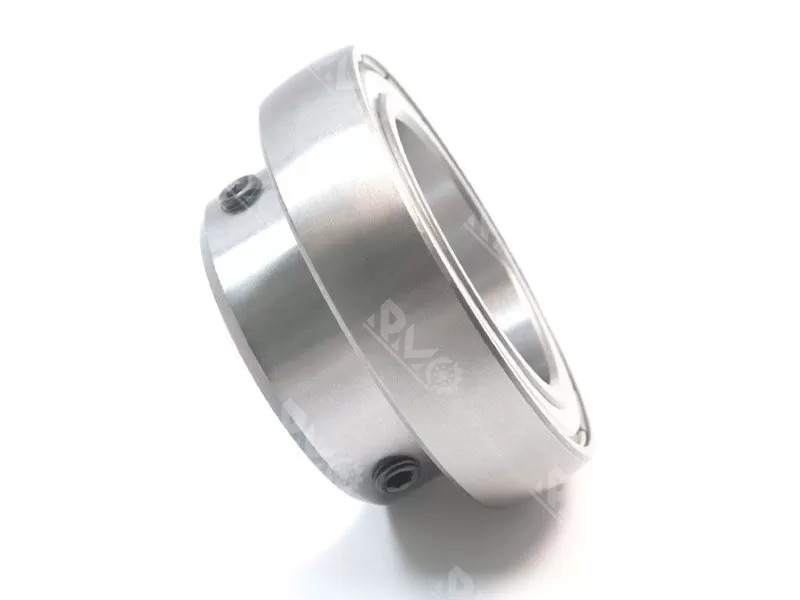

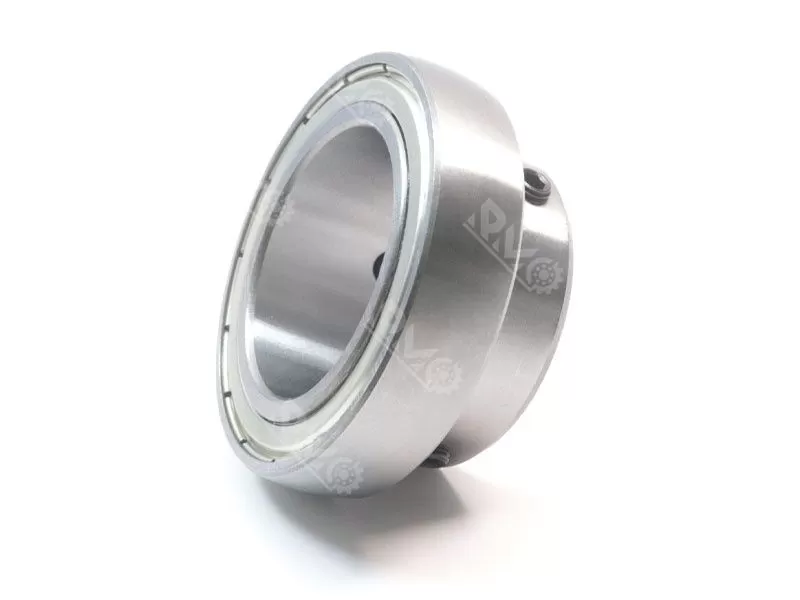

SB208 SB208/50ZZ insert ball bearing

The SB200 insert bearing is a variant of the insert ball bearing and is a cylindrical spherical surface bearing.

Model No: SB208/50ZZ

Size: 50x80x36.4mm

Material: chromel steel Gcr15

Weight: 0.408KG

Lead time: 3-5 days

Shipping Port: GuangZhou, NingBo, ShangHai

Inquire Now Next Product

Specification

Brand name: famous brand/RMO/Neutral/OEM

MOQ: 10pcs

Package: Plastic bag/single box+Carton+Pallet

Payment terms: 100% T/T, or 30% T/T in advance, 70% before delivery

The SB200 insert bearing is a cylindrical spherical surface bearing. Its imperial system products have specific representations, such as SB204 - 12. Here, 12 represents the inner diameter size. The formula for calculating the inner diameter size of imperial system products is (12/16) * 25.4. The material of this series of bearings is usually high-carbon chromium bearing steel (fully quenched type) (GCr15), and its working principle is rolling.

Features of fit with shaft:

Insert ball bearings are generally not used alone. The SB200 series also needs to be installed inside the bearing housing for complete assembly. The Insert bearing housings come in various shapes, so after overall fitting, they are suitable for use in various structural positions. The standard tolerance is internal plus external minus, and the inner diameter adopts the plus tolerance, thus ensuring the lightness during the fit with the shaft.

Related Products

SB208 SB208/50ZZ insert ball bearing

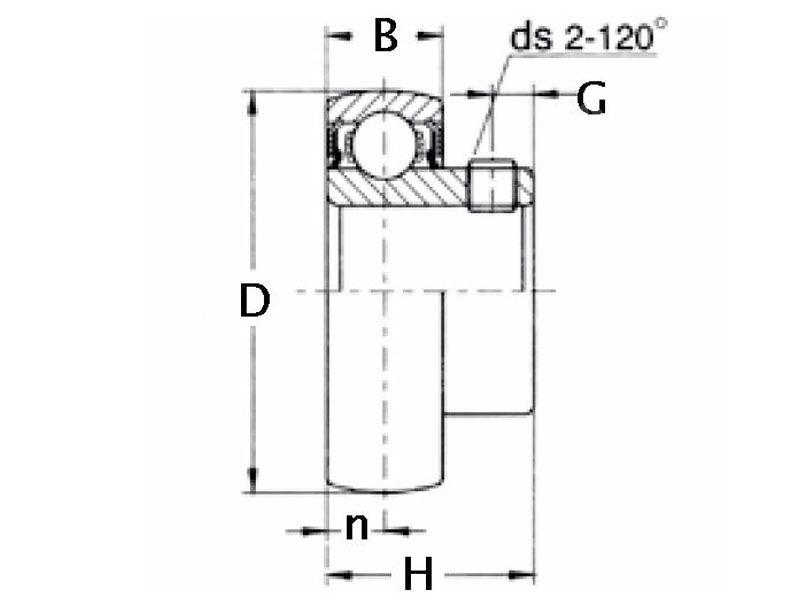

Model No.	d	D	H	m	Model No.	d	D	H	m
SB201	12 mm	40 mm	22 mm	100 g	SB206-18	28.58 mm	62 mm	30 mm	260 g
SB201-08	12.7 mm	40 mm	22 mm	100 g	SB206	30 mm	62 mm	30 mm	250 g
SB202	15 mm	40 mm	22 mm	90 g	SB206-19	30.16 mm	62 mm	30 mm	250 g
SB202-10	15.88 mm	40 mm	22 mm	90 g	SB206-20	31.75 mm	62 mm	30 mm	240 g
SB203	17 mm	40 mm	22 mm	80 g	SB207-20	31.75 mm	72 mm	32 mm	430 g
SB204-12	19.05 mm	47 mm	25 mm	130 g	SB207-21	33.34 mm	72 mm	32 mm	420 g
SB204	20 mm	47 mm	25 mm	130 g	SB207-22	34.92 mm	72 mm	32 mm	380 g
SB205-14	22.22 mm	52 mm	27 mm	180 g	SB207	35 mm	72 mm	32 mm	380 g
SB205-15	23.81 mm	52 mm	27 mm	180 g	SB207-23	36.51 mm	72 mm	32 mm	310 g
SB205	25 mm	52 mm	27 mm	160 g	SB208-24	38.1 mm	80 mm	34 mm	520 g
SB205-16	25.4 mm	52 mm	27 mm	160 g	SB208-25	39.69 mm	80 mm	34 mm	480 g
SB206-17	26.99 mm	62 mm	30 mm	270 g	SB208	40 mm	80 mm	34 mm	500 g

Bearing Application

Insert ball bearings are particularly suitable for scenarios where simplicity of equipment and components is required. For instance, they are used in agricultural machinery, transportation systems, or construction machinery, mainly to bear combined radial and axial loads, with radial loads being the dominant component. Generally, they are not suitable for bearing axial loads alone.
