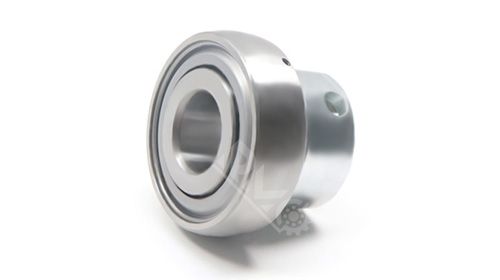

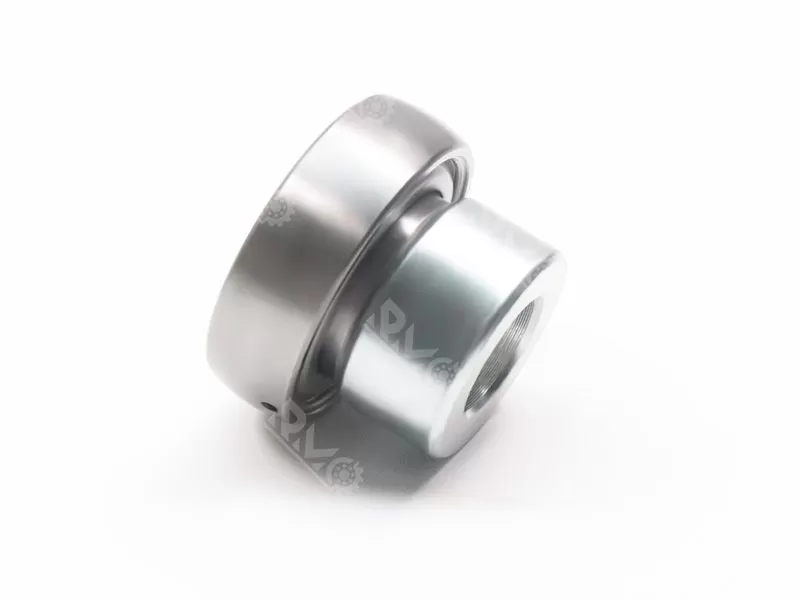

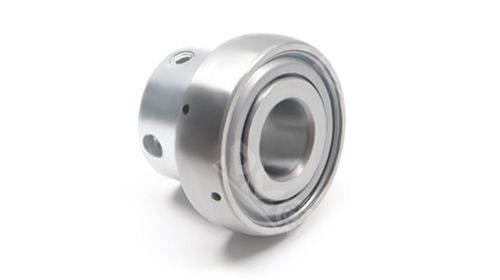

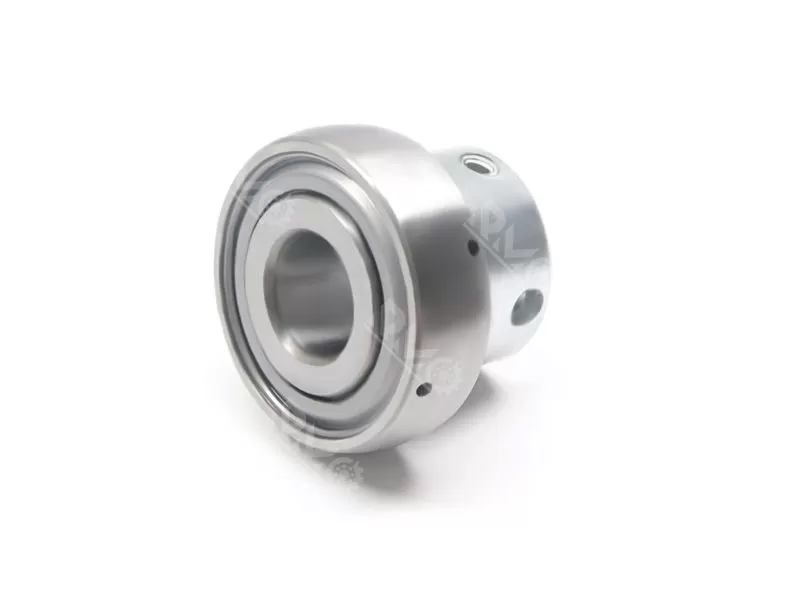

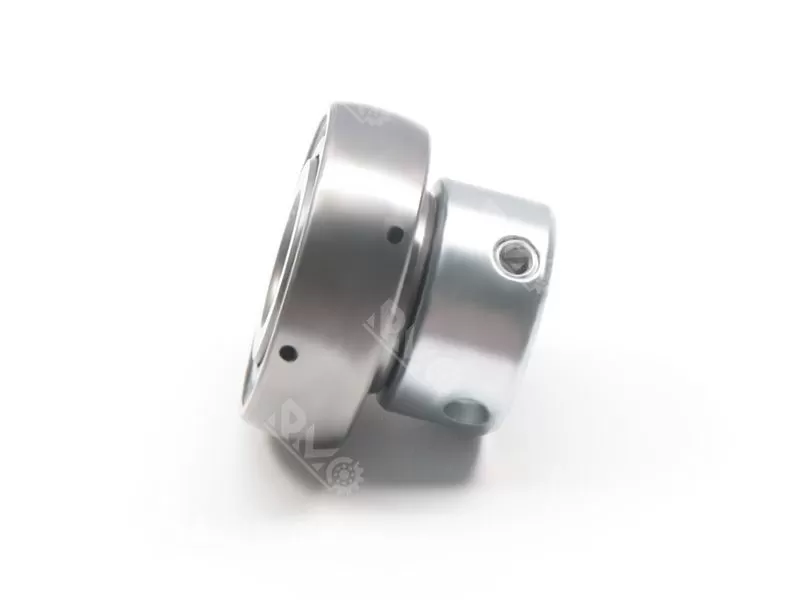

RAE15-NPP-B Insert Spherical Plain Bearings

The RAE15-NPP-B Insert Spherical Plain Bearing is a variant of the insert spherical plain bearing and is a self aligning insert bearing.

Model No: RAE15-NPP-B

Size: 15x40x28.6mm

Material: chromel steel Gcr15

Weight: 0.13KG

Lead time: 3-5 days

Inquire Now Next Product

Specification

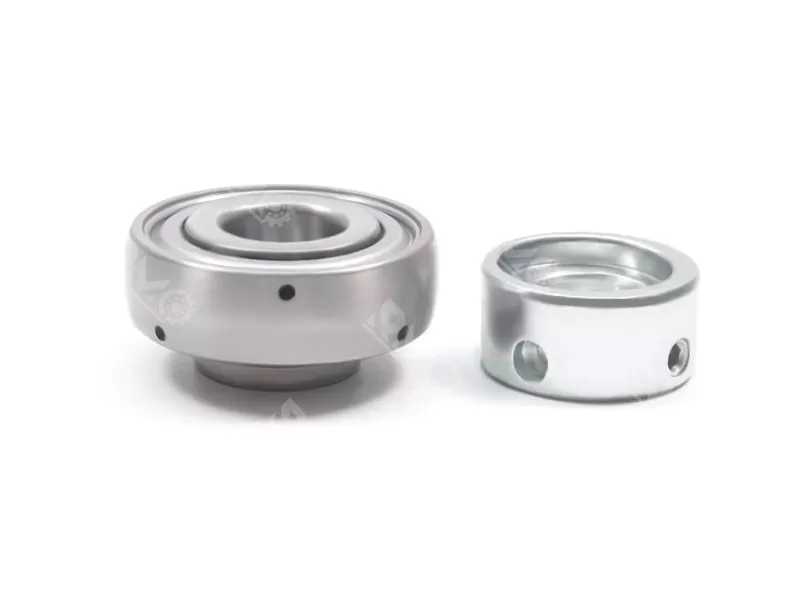

RAE15-NPP-B spherical plain bearings are constructed from steel with dual-side seals. The inner ring features a widened section on one side secured by an eccentric locking ring. These bearings are suitable for applications in industrial machinery, automotive, and other related fields.

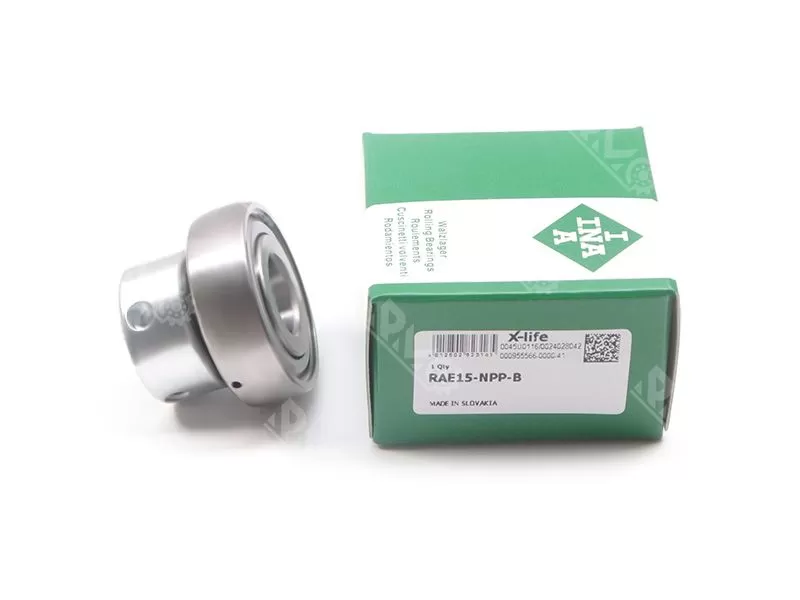

RAE15-NPP-B Insert Spherical Plain Bearings

Technical parameter:

Model Number	RAE15-NPP-B
Size	15x40x28.6mm
Weight	0.13KG
Material	chromel steel Gcr15
Clearance	C2 C0 C3 C4
Precision Grade	p0 p6 p5 p4
Dynamic Load Rating	10.1 lbf
Static Load Rating	4.74 lbf
MOQ	10 pcs
Package	Plastic bag/single box+Carton+Pallet
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

The RAE15-NPP-B Insert Spherical Plain Bearing is a spherical surface bearing. Its metric system products have specific designations, with "15" indicating the inner diameter size in

millimeters. This series of bearings is typically made of high-quality bearing steel, ensuring durability and reliable performance, and operates on a sliding principle.

Features of fit with shaft:

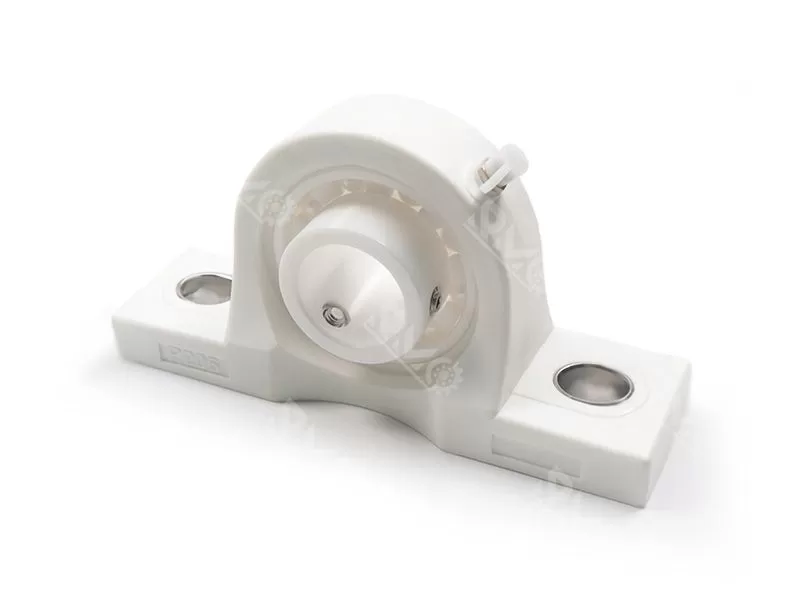

Insert spherical plain bearings are generally not used alone, and the RAE15-NPP-B also requires installation inside a compatible bearing housing to form a complete assembly.

The bearing housings for insert spherical plain bearings come in various configurations, so when fully assembled, they are suitable for diverse structural positions. With standard

tolerance design, the inner diameter adopts appropriate tolerance specifications to ensure a proper and secure fit with the shaft during installation.

Related Products

RAE15-NPP-B Insert Spherical Plain Bearings

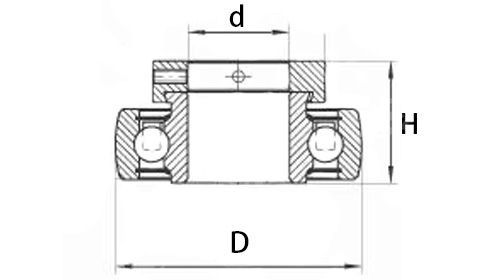

Model No.	d	D	H	m
RAE12-NPP-B	12 mm	40mm	28.6mm	0.13 KG
RAE15-NPP-B	15 mm	40 mm	28.6mm	0.12KG
RAE17-NPP-B	17 mm	40mm	28.6mm	0.10KG
RAE20-NPP-B	20mm	47 mm	31 mm	0.16KG
RAE25-NPP-B	25 mm	52 mm	31 mm	0.19KG
RAE30-NPP-B	30 mm	62 mm	35.8mm	0.32KG
RAE35-NPP-B	35 mm	72 mm	39 mm	0.52KG
RAE40-NPP-B	40 mm	80mm	43.8mm	0.63KG
RAE50-NPP-B	50mm	90 mm	43.8mm	0.77KG

Bearing Application

RAE15-NPP-B Insert Spherical Plain Bearings are particularly suitable for scenarios where equipment and components require flexibility in angular alignment. They find application in industries such as heavy machinery, automotive linkages, or industrial actuators, mainly to accommodate combined radial and axial loads while compensating for misalignment. Their design makes them well-suited for oscillating or slow-rotating motion, ensuring reliable performance in dynamic load conditions.

RAE15-NPP-B Insert Spherical Plain Bearings
