Pillow Block Bearing
This is a pressed-type bearing housing, designed to be used with an insert bearing.
Product name: PP206 bearing housing
Size: 66.3x117x38mm
Material: cast iron
Weight: 0.23KG
MOQ:100pcs
Lead time: 3-5 days
Specification

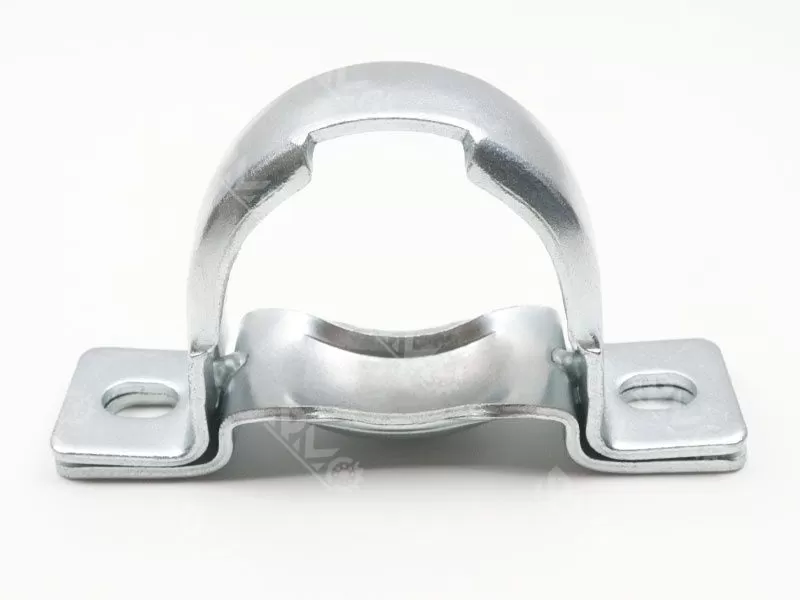

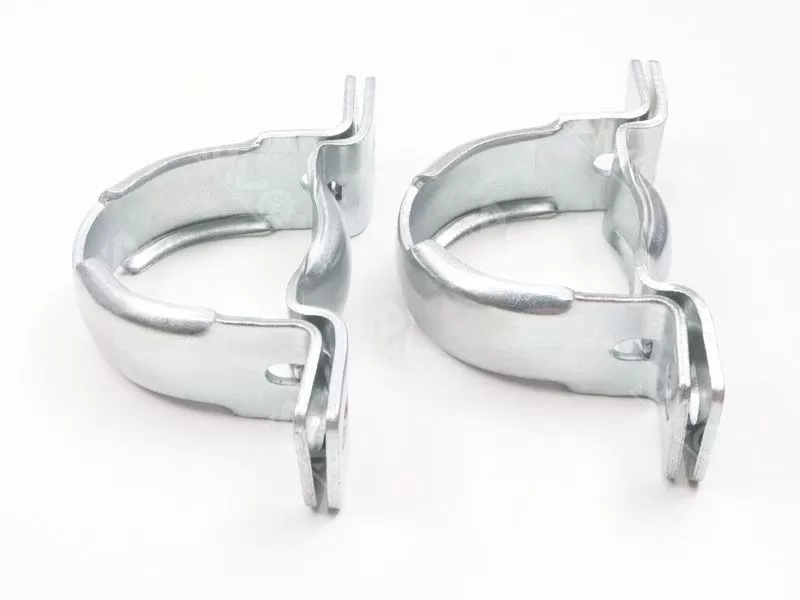

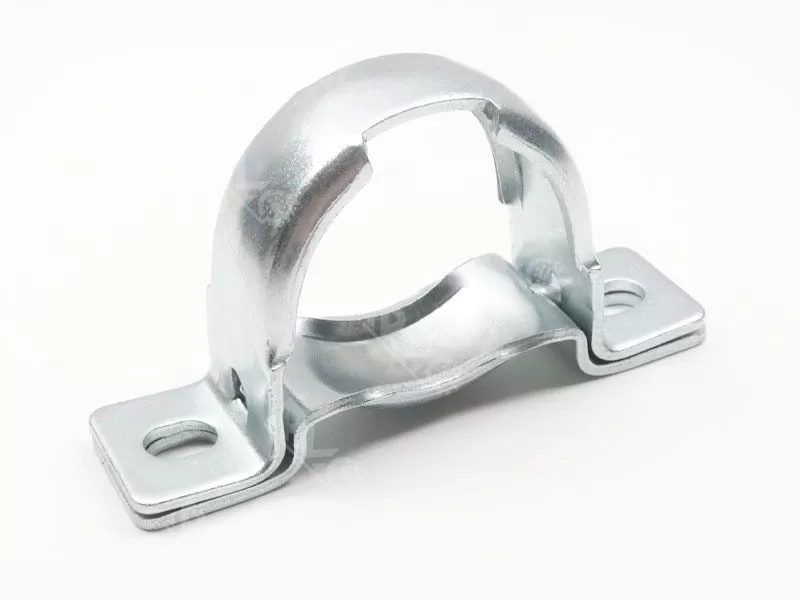

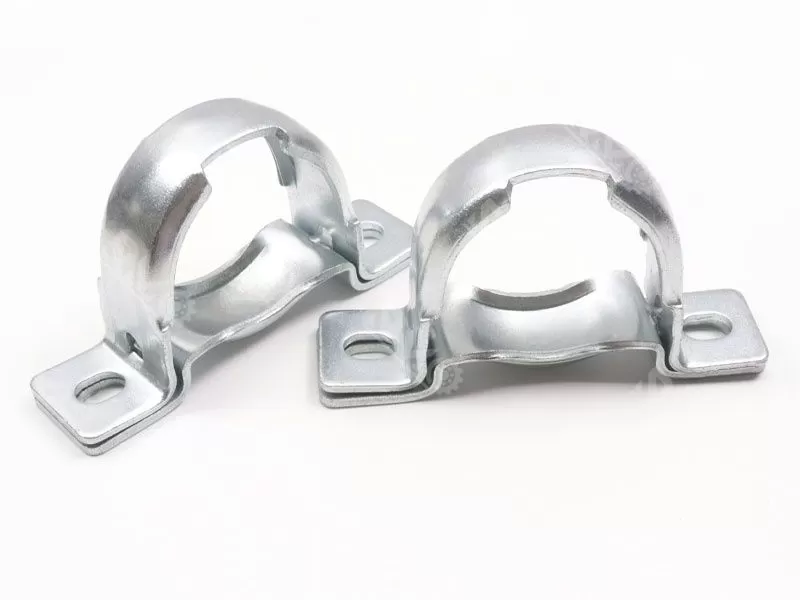

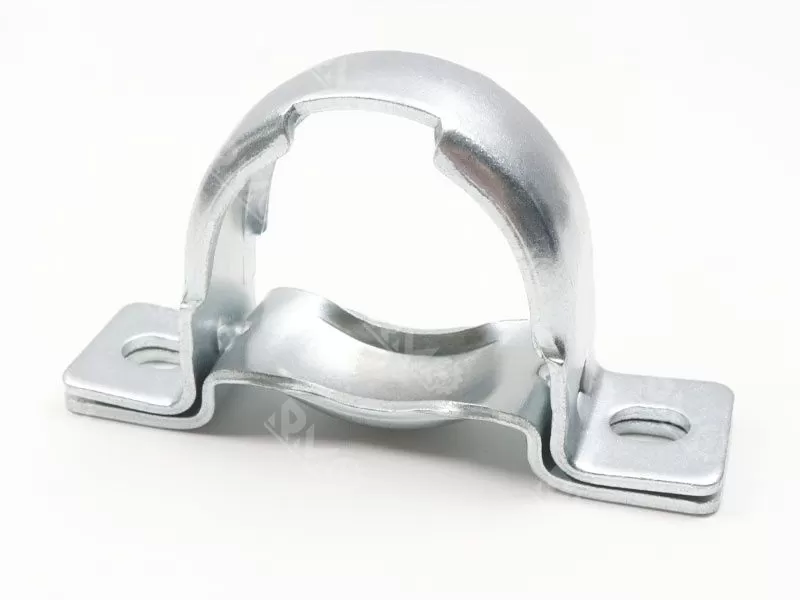

PP206 Press-Fit Pillow Block Bearing is a bearing featuring a zinc-plated stamped steel housing with two mounting bolt holes. It offers a compact structure, easy installation, and the ability to withstand certain radial loads.
Technical parameter:
| Model Number | PP206 bearing housing |
| Size | 66.3x117x38mm |
| Weight | 0.23KG |
| Material | cast iron |
| Package | box+carton |
| Precision Grade | p0 p6 p5 p4 |
| Brand name | Famous brand/RMO/Neutral/OEM |
| Shipping Port | GuangZhou, NingBo, ShangHai |
| Payment terms | 100% T/T or 30% T/T before production, 70% before delivery |
| MOQ | 100pcs |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Taime | 3-5 Days |
Definition and Structure:
The vertical pressing type bearing housing belongs to the pillow block bearing and is a newly developed type of new structure bearing. It is composed of two major parts: the external spherical ball bearing and the bearing housing. The bearing housing is made by the pressing process. The inner ring of the insert bearing is fixed to the shaft by means of tightening screws, eccentric sleeves, tightening sleeves, etc. The outer race of the outer ring is spherical, the inner ring is widened, and the mating surface between the bearing and the housing is spherical.
Product features:
Easy installation, strong load-bearing capacity, wide range of applications.
Related Products
| Model No. | d | D | H | m |
| SBPP201 | 12 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP201-8 | 12.7 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP202 | 15 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP202-10 | 15.88 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP203 | 17 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP203-11 | 17.46 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP204-12 | 19.05 mm | 98 mm | 50.2 mm | 0.2 KG |
| SBPP204 | 20 mm | 98 mm | 50.2 mm | 0.2 KG |
| SBPP205-14 | 22.22 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205-15 | 3.81 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205 | 25 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205-16 | 25.4 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP206-18 | 28.58 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206 | 30 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206-19 | 30.16 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206-20 | 31.75 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP207-20 | 31.75 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207-21 | 33.34 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207-22 | 34.92 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207 | 35 mm | 129 mm | 77.7 mm | 0.55 KG |
Wide applicability
The stamping pillow block bearing is suitable for various industrial equipment and mechanical components, such as machine tools, conveying equipment, agricultural machinery, construction engineering machinery, etc. They can meet the load-bearing requirements under different working conditions and have a long service life.
Installation convenience: The stamping pillow block bearing adopts a vertical structure design, making installation and adjustment much easier. It is usually installed on machines, conveying equipment, agricultural machinery and other devices to support the rotating shaft and maintain its stable operation.
