H Groove nylon pully
H-groove plastic pulley is a type of plastic pulley with an H-shaped groove design, usually made of materials such as nylon.

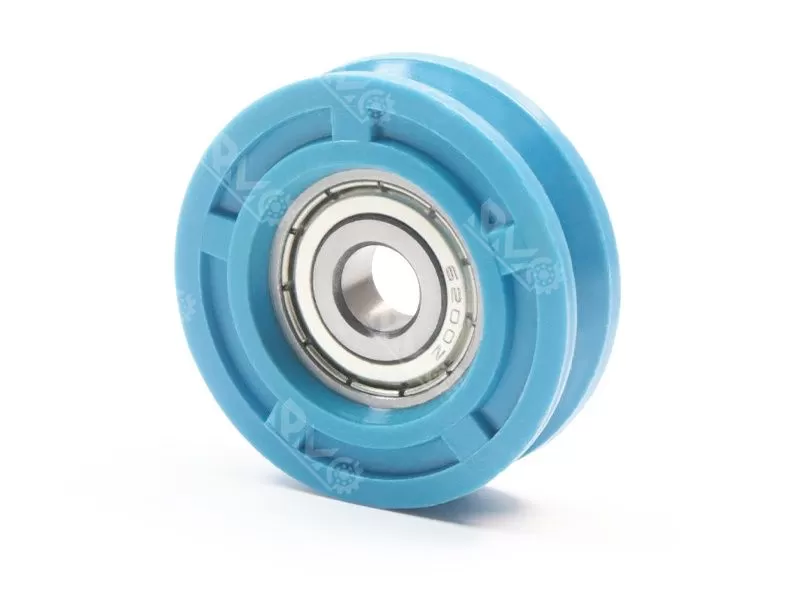

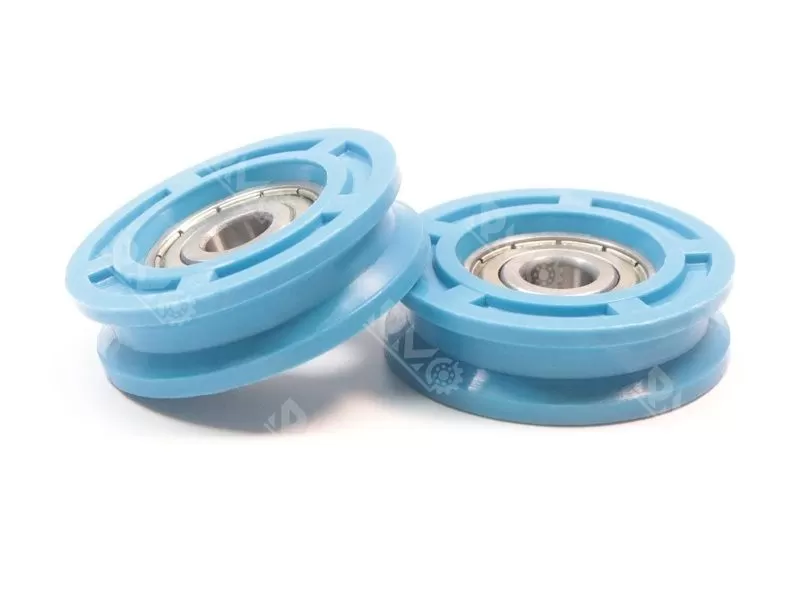

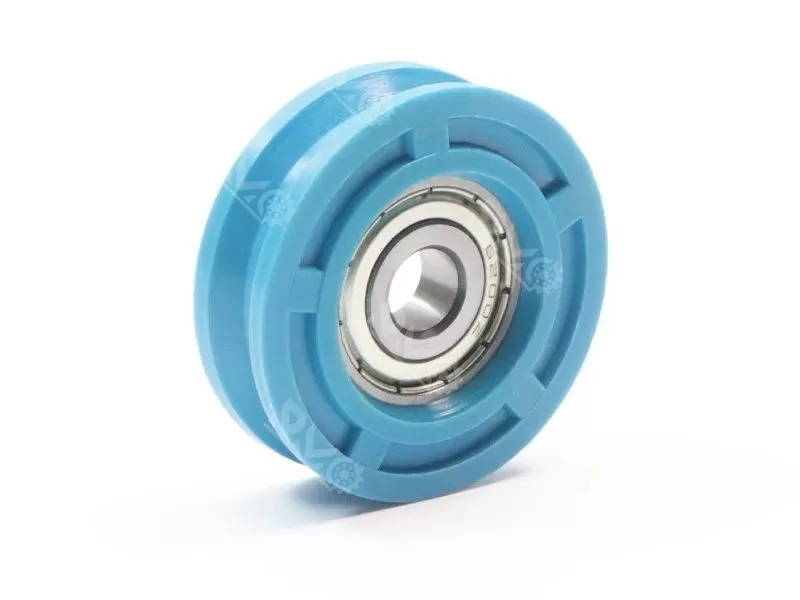

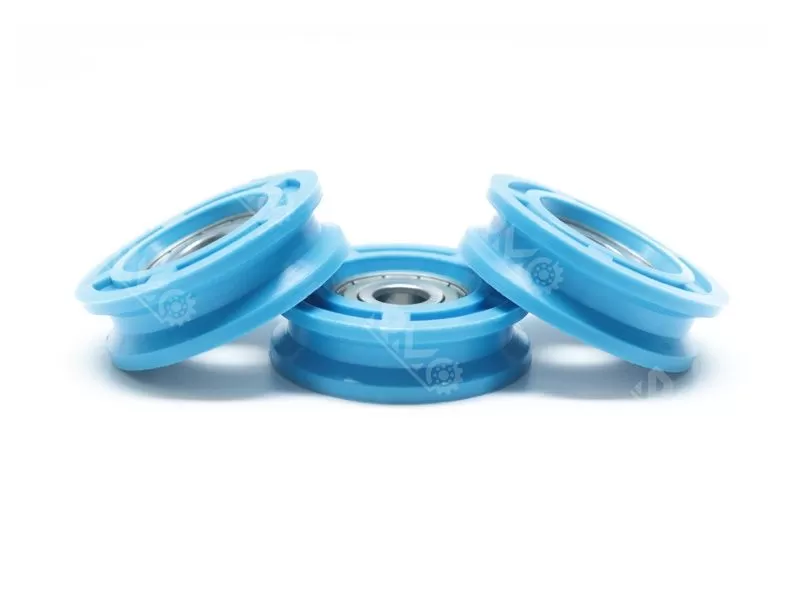

Product name: 6200ZZ H groove pulley wheels
Size: 10x50x14.6mm
Material: Chrome Steel+nylon PA6
Weight: 0.048KG
Lead time: 10-15 days
Specification

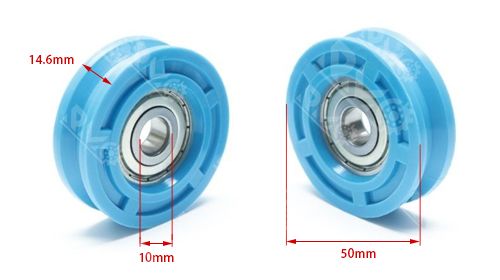

6200ZZ H Groove Pulley Wheels feature an inner diameter of 10mm, an outer diameter of 50mm, and a thickness of 14.6mm. Constructed with chrome steel bearings and a nylon PA6 wheel body, these pulleys deliver quiet operation and exceptional wear resistance. The H-shaped groove design ensures stable belt performance, making them ideal for applications requiring smooth sliding or pulling motions, such as sliding doors and track systems.
Technical parameter:
| Model Number | 6200ZZ H groove pulley wheels |
| Size | 10x50x14.6mm |
| Weight | 0.048KG |
| Material | Chrome Steel+nylon PA6 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Package | single box+Carton+Pallet |
| MOQ | 2000pcs |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Material and design:
The H-slot plastic pulley is made of nylon, which is hard in texture and will not deform easily even after long-term use. Its square groove design makes the belt run more stably, with better guidance and particularly smooth to push and pull.
Advantages:
1. Silent operation: Due to the use of nylon material, the H-slot plastic pulley generates less noise during use, making it suitable for environments that require quietness.
2. Wear resistance: It is hard in texture and will not deform easily even after long-term use, thus having good wear resistance.
3. Good stability: The square groove design makes the belt run more stably, with better guidance, and it is particularly smooth to push and pull.
Application scenarios
H-groove plastic pulleys are suitable for various occasions that require pushing and pulling, such as sliding doors, track devices, etc. It offers a wide range of size options, including 30, 40, 50 and other specifications, suitable for the usage requirements of different scenarios.
