Bicycle Bearing

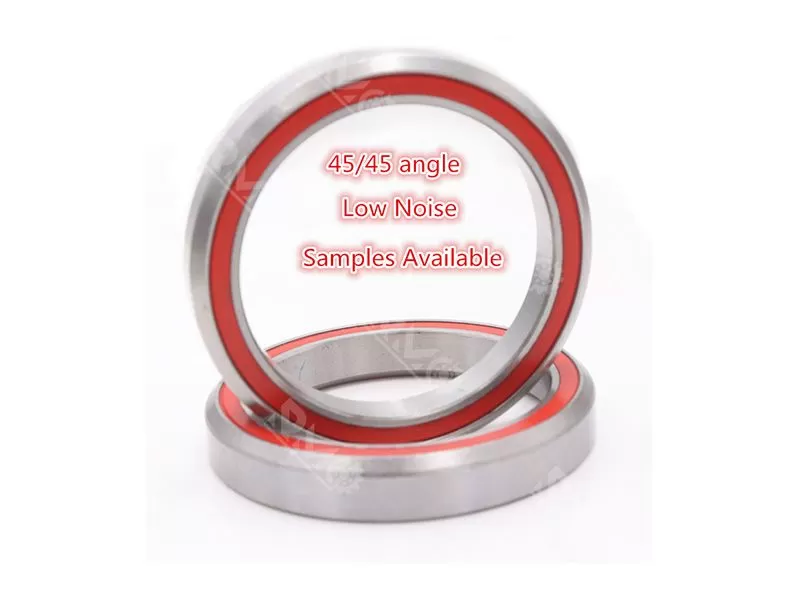

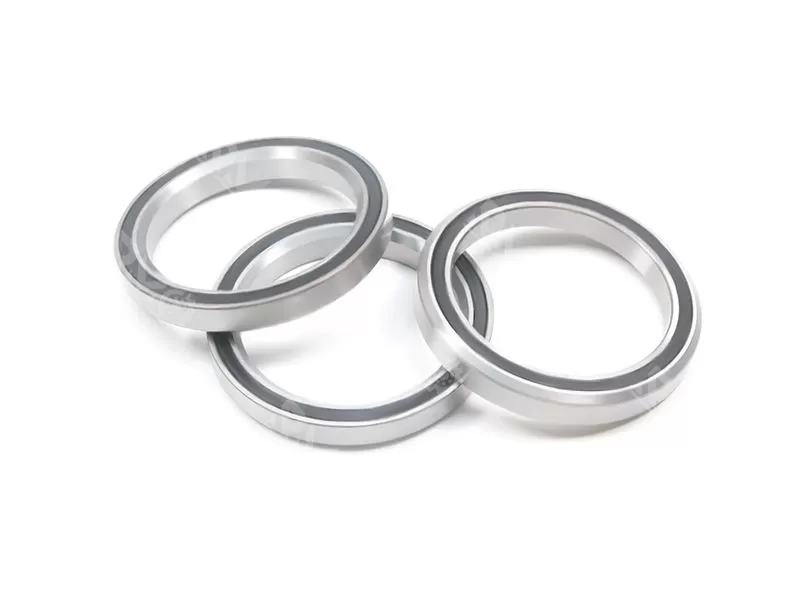

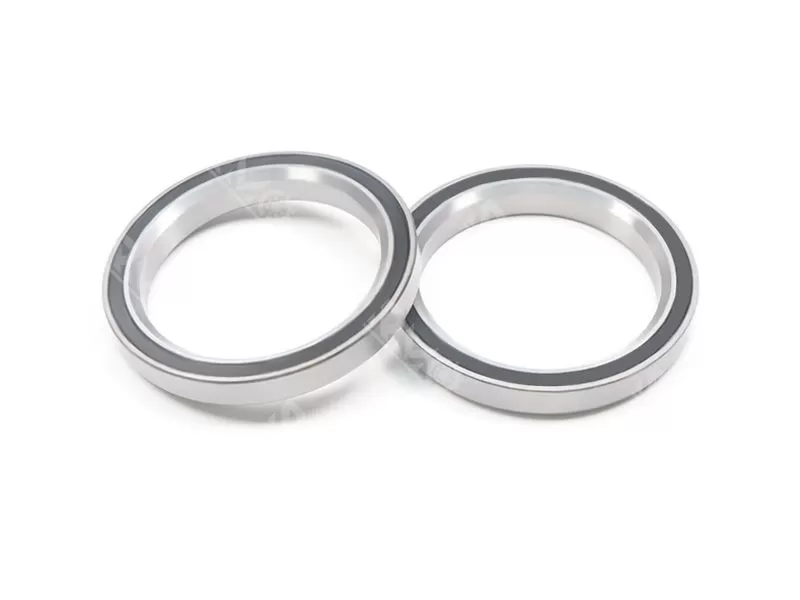

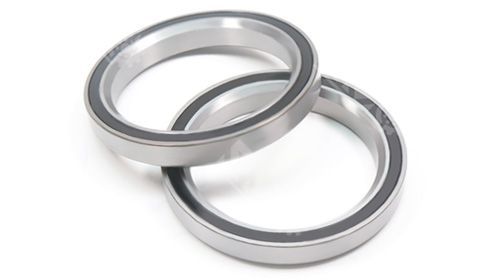

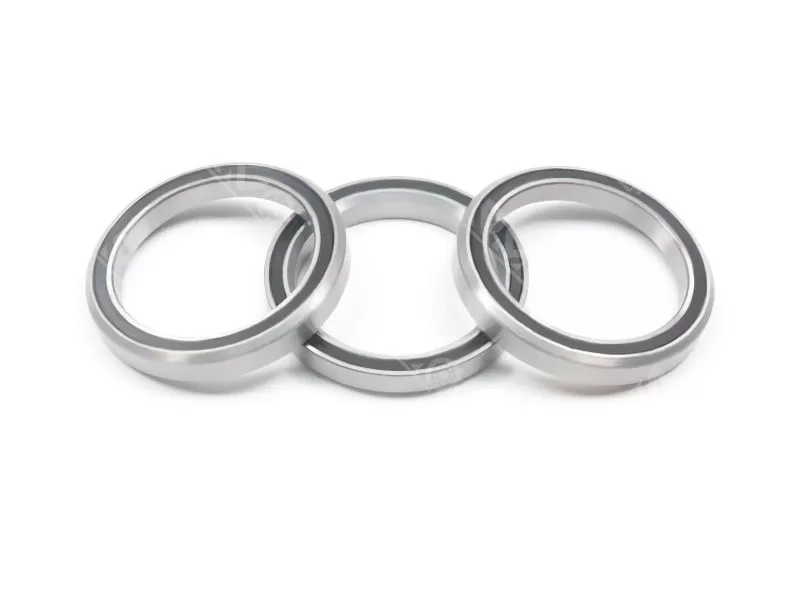

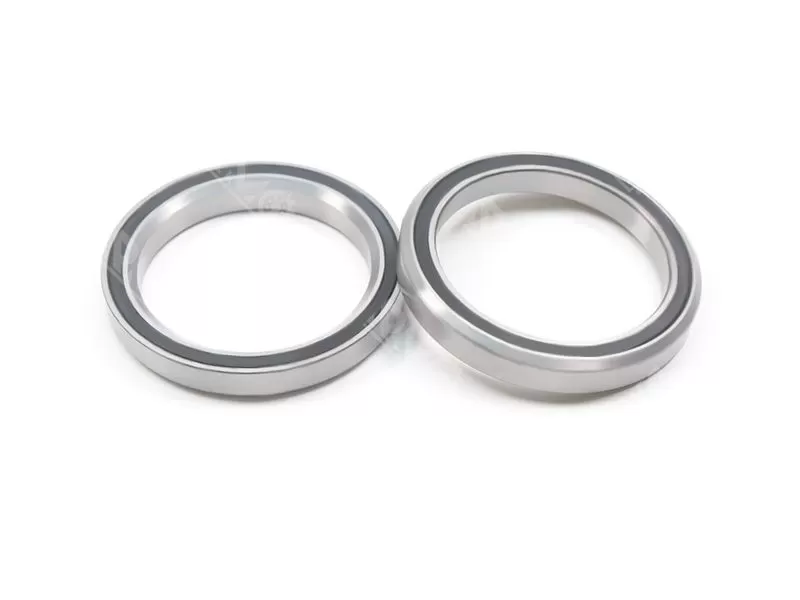

The MH-P16 ACB4052 bicycle headset ball bearing features an ultra-thin bearing section design, perfectly suited for the compact space constraints of bicycle headsets while contributing to overall bicycle weight reduction.
Product name: MH-P16 ACB4052

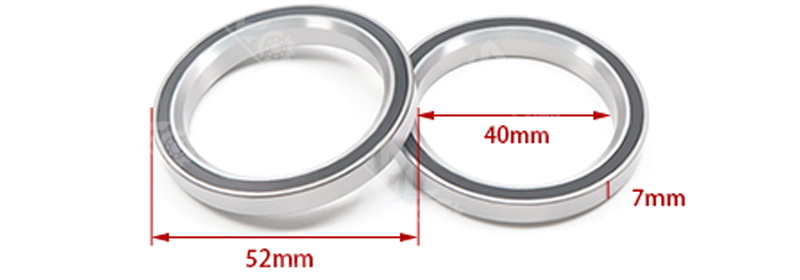

Size: 40x52x7mm
Material: chrome steel Gcr15
weight: 0.031KG
Specification
MH-P16 ACB4052 Bicycle Headset Ball Bearings, crafted from chrome steel with dual rubber seals and filled with premium grease, offer wear resistance, low noise, and stable operation. Specifically designed for bicycle front fork steering systems, they ensure smooth steering performance.
Technical parameter:
| Model Number | MH-P16 ACB4052 |
| Size | 40x52x7mm |
| Weight | 0.031KG |
| Material | chrome steel Gcr15 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Package | Plastic tube or single box+Carton+Pallet |
| MOQ | 100 PCS |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Product features:
The MH-P16 ACB4052 headset bowl ball bearing, tailored for bicycle headsets, adopts small-outer-diameter steel balls to achieve low friction torque—ensuring
smooth, effortless steering during rides. It also boasts high rigidity, capable of withstanding the combined radial and axial loads from steering operations and
road impacts, while delivering excellent rotation accuracy for stable performance even after long-term use.
Optimized for bicycle headset layouts, this bearing features a thin-walled structure that creates an extremely slim bearing section. This design not only fits
seamlessly into the compact space of bicycle headsets but also contributes to the miniaturization of the headset system and the overall lightweighting of
the bike, enhancing riding efficiency and comfort.
Related Products
| Bearings NO. | ID(d*D*B)mm | Weight (G) |
| ACB305418H6.3-45/45 | 30.5*41.8*6.3 | |
| ACB307418H7.7-45/45 | 30.7*41.8*7.7 | |
| ACB3144H6.3-45/45 | 31.4*44*6.3 | 30.2 |
| ACB31448H6.3-45/45 | 31.4*44.8*6.3 | 32.6 |
| ACB32438H7-45/45 | 32.4*43.8*7 | 23 |
| ACB32418H6-45/45 | 32.8*41.8*6 | 16 |
| ACB3344H6-36/45 | 33*44*6 | 21 |
| ACB33438H7-30/45 | 33.05*43.8*7 | 23.8 |
| ACB3345H7-45/45 | 33.5*45*7 | 26.2 |
| ACB3446H7-45/45 | 34.1*46*7 | 25 |
| ACB34468H7-45/45 | 34.1*46.8*7 | 27.7 |
| ACB34469H7-45/45 | 34.1*46.9*7 | 28 |
| ACB3544H5-90/90 | 35*44*5 | 16 |
| ACB3544H5.5-36/45 | 35*44*5.5 | 32 |
| ACB354535H7.3-45/45 | 35*45.35*7.3 | 22.3 |
| ACB3547H8-45/45 | 35*47*8 | 29.9 |
| ACB36458H6.5-45/45 | 36.8*45.8*6.5 | 18.9 |
| ACB3748H7-45/45 | 37*48*7 | 27 |
| ACB37489H6.5-36/45 | 37*48.9*6.5 | 25.9 |
| ACB3749H6.5-36/45 | 37*49*6.5 | 25.25 |
| ACB3749H7-36/45 | 37*49*7 | 28.1 |
| ACB3749H7-45/45 | 37*49*7 | 28.8 |
| ACB4051H6.5-36/36 | 40*51*6.5 | 24.8 |
| ACB4051H8-36/45 | 40*51*8 | 29.3 |
| ACB4051H7-45/45 | 40*51*7 | - |
| ACB40515H7-45/45 | 40*51.5*7 | - |
| ACB40518H7-45/45 | 40*51.8*7 | 30.8 |
| ACB40518H8-36/45 | 40*51.8*8 | 32.6 |
| ACB40518H7.5-36/45 | 40*51.8*7.5 | 33 |
| ACB40518H8-45/45 | 40*51.8*8 | 33.1 |
| ACB40518H8-90/90 | 40*51.8*8 | - |
| ACB40519H7-45/45 | 40*51.9*7 | 29.6 |
| ACB40519H8-45/45 | 40*51.9*8 | 32.6 |
| ACB4052H6.5-36/45 | 40*52*6.5 | 29.2 |
| ACB4052H7-90/90 | 40*52*7 | 30.9 |
| ACB4052H7-45/45 | 40*52*7 | 31.5 |
| ACB4052H7-36/45 | 40*52*7 | 31.8 |
| ACB4052H7.5-45/45 | 40*52*7.5 | 34.2 |
| ACB4052H8-45/45 | 40*52*8 | 36 |
| ACB40495H6.5-45/45 | 40.5*49.5*6.5 | 21.4 |
| ACB4660H8-45/45 | 46*60*8 | - |
| ACB50619H8-36/45 | 50*61.9*8 | - |
Maintenance and Care:
The bearings of a bicycle require regular maintenance and lubrication to maintain its performance. Common maintenance steps include cleaning the bearings, inspecting and replacing worn-out parts, and reapplying waterproof lubricant. Correct maintenance can significantly extend the lifespan of the bearings and reduce the failure rate.
