Bicycle Bearing
The MH-P08 Bicycle Headset Bowl Ball Bearing is a bearing that realizes an extremely thin bearing section and a miniaturized and lightweight design, making it perfectly suited for the compact space constraints of bicycle headsets while contributing to overall weight reduction of the bike.
Product name: MH-P08

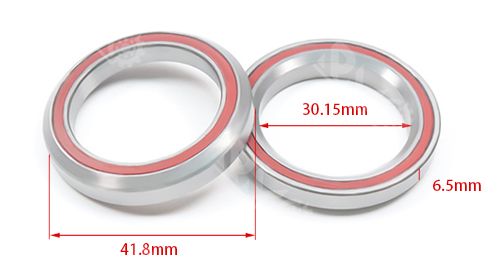

Size: 30.15x41.8x6.5mm
weight: 0.022KG
Lead time: normally 3-5 days
Specification
MH-P08 Bicycle Headset Ball Bearings are 45°/45° contact angle bearings featuring dual-sided seals and constructed from chrome steel, compatible with various bicycle fork steering systems.
Technical parameter:
| Model Number | MH-P08 |
| Size | 30.15x41.8x6.5mm |
| Weight | 0.022KG |
| Material | chrome steel Gcr15 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Package | Plastic tube or single box+Carton+Pallet |
| MOQ | 100 PCS |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Product features:
MH-P08 Bicycle Headset Bowl Ball Bearing utilizes small-outer-diameter steel balls to achieve low friction torque, ensuring smooth and effortless steering during rides, while also providing high rigidity to withstand the combined radial and axial forces encountered in bicycle headset operations. Its excellent rotation accuracy guarantees stable performance even after prolonged use.
Designed with a slim, space-saving structure, this bearing creates an extremely thin bearing section that fits perfectly into the compact layout of bicycle headsets. This not only enables the miniaturization of the headset system but also contributes to the overall lightweight design of the bicycle, enhancing riding efficiency and comfort.
Related Products
| Bearings NO. | ID(d*D*B)mm | Weight (G) |
| ACB305418H6.3-45/45 | 30.5*41.8*6.3 | |
| ACB307418H7.7-45/45 | 30.7*41.8*7.7 | |
| ACB3144H6.3-45/45 | 31.4*44*6.3 | 30.2 |
| ACB31448H6.3-45/45 | 31.4*44.8*6.3 | 32.6 |
| ACB32438H7-45/45 | 32.4*43.8*7 | 23 |
| ACB32418H6-45/45 | 32.8*41.8*6 | 16 |
| ACB3344H6-36/45 | 33*44*6 | 21 |
| ACB33438H7-30/45 | 33.05*43.8*7 | 23.8 |
| ACB3345H7-45/45 | 33.5*45*7 | 26.2 |
| ACB3446H7-45/45 | 34.1*46*7 | 25 |
| ACB34468H7-45/45 | 34.1*46.8*7 | 27.7 |
| ACB34469H7-45/45 | 34.1*46.9*7 | 28 |
| ACB3544H5-90/90 | 35*44*5 | 16 |
| ACB3544H5.5-36/45 | 35*44*5.5 | 32 |
| ACB354535H7.3-45/45 | 35*45.35*7.3 | 22.3 |
| ACB3547H8-45/45 | 35*47*8 | 29.9 |
| ACB36458H6.5-45/45 | 36.8*45.8*6.5 | 18.9 |
| ACB3748H7-45/45 | 37*48*7 | 27 |
| ACB37489H6.5-36/45 | 37*48.9*6.5 | 25.9 |
| ACB3749H6.5-36/45 | 37*49*6.5 | 25.25 |
| ACB3749H7-36/45 | 37*49*7 | 28.1 |
| ACB3749H7-45/45 | 37*49*7 | 28.8 |
| ACB4051H6.5-36/36 | 40*51*6.5 | 24.8 |
| ACB4051H8-36/45 | 40*51*8 | 29.3 |
| ACB4051H7-45/45 | 40*51*7 | - |
| ACB40515H7-45/45 | 40*51.5*7 | - |
| ACB40518H7-45/45 | 40*51.8*7 | 30.8 |
| ACB40518H8-36/45 | 40*51.8*8 | 32.6 |
| ACB40518H7.5-36/45 | 40*51.8*7.5 | 33 |
| ACB40518H8-45/45 | 40*51.8*8 | 33.1 |
| ACB40518H8-90/90 | 40*51.8*8 | - |
| ACB40519H7-45/45 | 40*51.9*7 | 29.6 |
| ACB40519H8-45/45 | 40*51.9*8 | 32.6 |
| ACB4052H6.5-36/45 | 40*52*6.5 | 29.2 |
| ACB4052H7-90/90 | 40*52*7 | 30.9 |
| ACB4052H7-45/45 | 40*52*7 | 31.5 |
| ACB4052H7-36/45 | 40*52*7 | 31.8 |
| ACB4052H7.5-45/45 | 40*52*7.5 | 34.2 |
| ACB4052H8-45/45 | 40*52*8 | 36 |
| ACB40495H6.5-45/45 | 40.5*49.5*6.5 | 21.4 |
| ACB4660H8-45/45 | 46*60*8 | - |
| ACB50619H8-36/45 | 50*61.9*8 | - |
Maintenance and Care:
The MH-P08 Bicycle Headset Bowl Ball Bearing requires regular maintenance and lubrication to maintain optimal performance. Routine care includes cleaning the bearing, inspecting and replacing worn parts, and reapplying waterproof lubricant. Proper maintenance significantly extends its lifespan and reduces failure risks, ensuring reliable headset operation.
