Bicycle Bearing

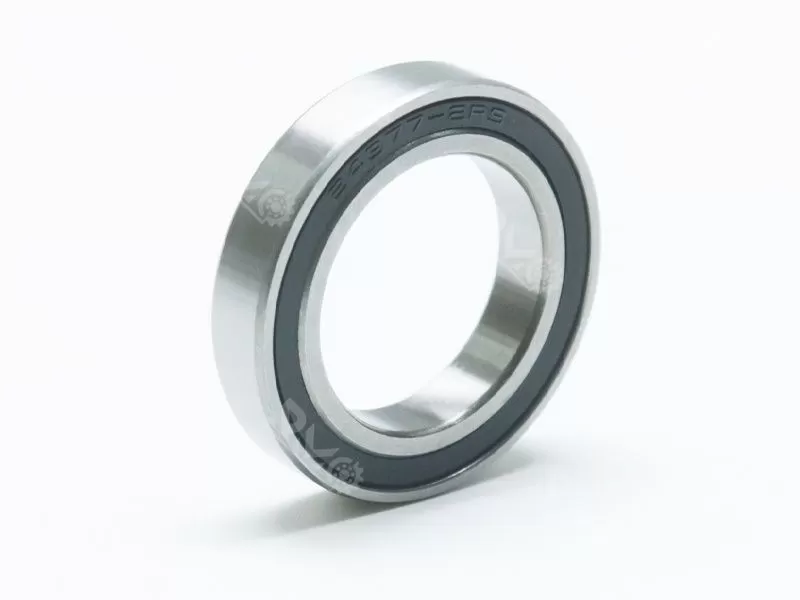

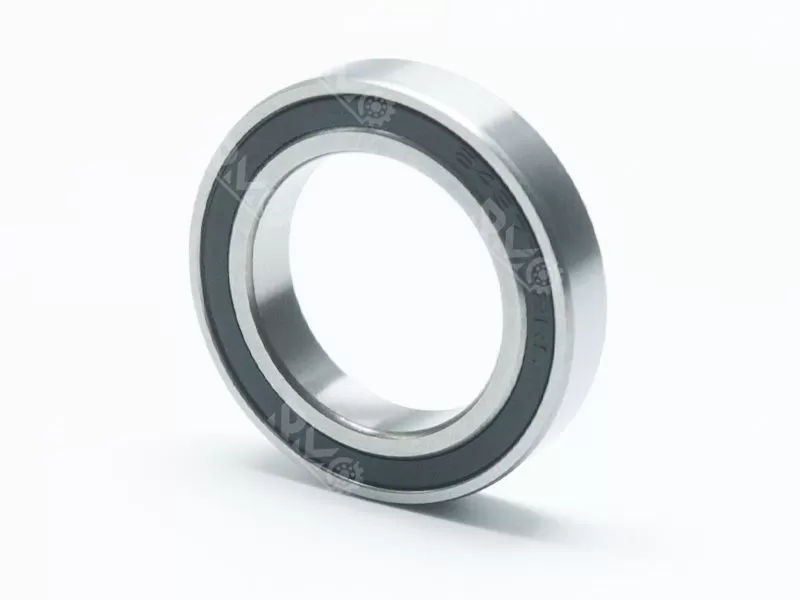

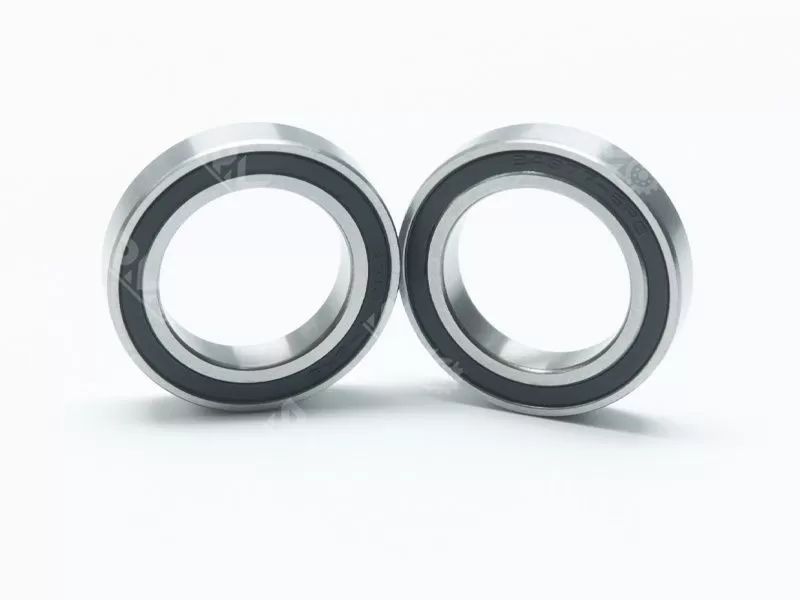

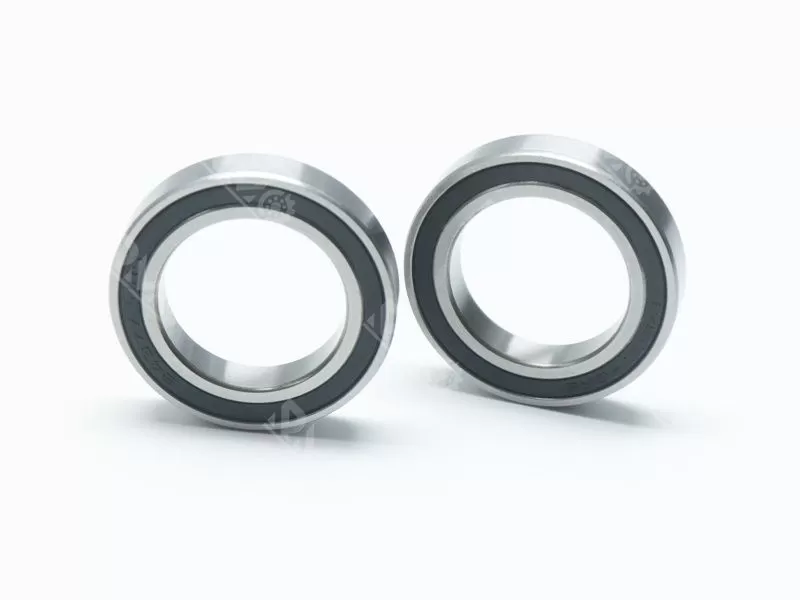

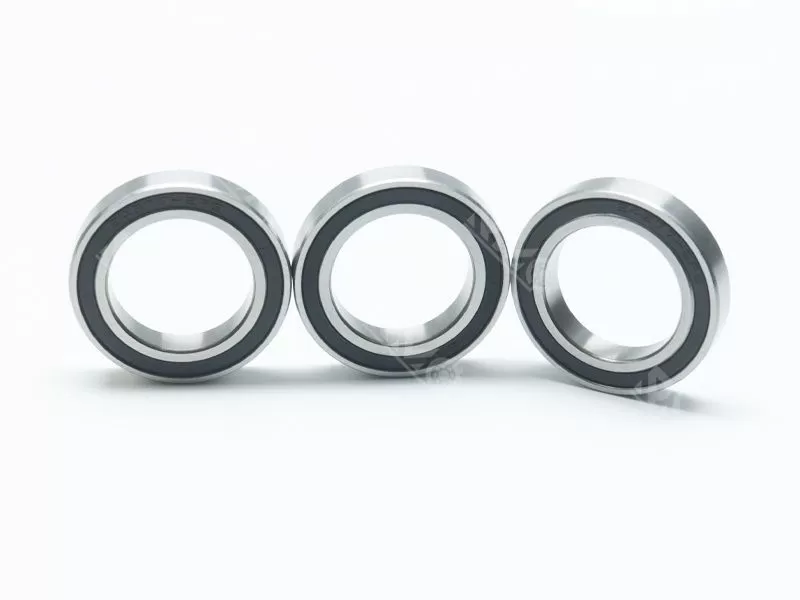

24377-2RS is a type of bearing used for bicycles, mainly in the hub and middle shaft of bicycles. It is suitable for various types of bicycles, including mountain bikes and road bikes.
Model number: 24377-2RS bicycle bearing
Size: 24x37x7mm
Materials: Gcr15.chrome steel
Weight: 0.019KG
Lead Taime: 3-5 Days
Specification

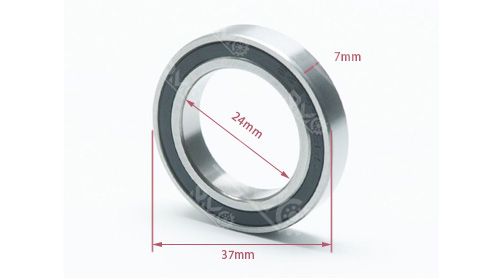

The 24377-2RS bicycle bearing features an inner diameter of 24mm, an outer diameter of 37mm, and a thickness of 7mm. It incorporates dual-sided seals and is constructed from materials such as chrome steel or ceramic. Characterized by low friction and high precision, this bearing is suitable for applications including bicycle bottom brackets and hubs.
Technical parameter:
| Model Number | 24377-2RS bicycle bearing |
| Size | 24x37x7mm |
| Weight | 0.019KG |
| Material | Gcr15.chrome steel |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| MOQ | 100pcs |
| Package | Plastic Tube/single box+Carton+Pallet |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Taime | 3-5 Days |
Structural Features:
Typically employs a deep groove ball bearing structure, consisting of an inner ring, outer ring, steel balls, and a cage. Both sides of the bearing feature 2RS seals, effectively preventing dust, moisture, and other contaminants from entering the bearing interior while protecting the internal grease. Some 24377-2RS bicycle bearings incorporate ceramic balls, such as Si3N4 or ZrO2 ceramic balls. Compared to traditional steel balls, these ceramic balls offer a lower coefficient of friction, higher hardness, and superior wear resistance. The retainer is typically made of materials like nylon PTFE, UPE, or PA, ensuring even ball distribution and minimizing collisions and friction between the balls.
Related Products
| Bearings NO. | ID(d*D*B)mm | Weight (KG) | Bearings NO. | ID(d*D*B)mm | Weight (KG) |
| 12267RS | 12*26*7 | 0.0151 | 19307RS | 19*30*7 | 0.0234 |
| 15267RS | 15*26*7 | 0.0124 | 190537RS | 19.05*37*9 | 0.004 |
| 152610RS | 15*26*10 | 0.012 | 19317RS | 19*31*7 | 0.023 |
| 16257RS | 16*25*7 | 0.014 | 19379RS | 19*37*9 | 0.037 |
| 16287RS | 16*28*7 | 0.014 | 22317RS | 22*31*7 | 0.032 |
| 17287RS | 17*28*7 | 0.0131 | 22379RS | 22*37*9 | 0.037 |
| 163110RS | 16*31*10 | 0.0258 | 215317RS | 21.5*31*7 | 0.014 |
| 173110RS | 17*31*10 | 0.0254 | 24377RS | 24*37*7 | 0.019 |
| 6805RD | 25*37*6 | 0.02 | 24378RS | 24*37*8 | 0.0232 |
| 30406RS | 30*40*6 | 0.018 | 18338RS | 18*33*8 | 0.023 |
Features
Rubber Seals (2RS): Protects against dirt, dust, and moisture, ensuring longer bearing life.
Thin Wall Design: Reduces weight while maintaining strength, ideal for lightweight bicycles.
Smooth Rotation: Precision manufacturing ensures low friction and high efficiency.
Pre-lubricated: Factory-filled with grease for maintenance-free operation.
Common Applications:
Bicycle hubs (wheel bearings)
Bottom brackets
Pedal bearings
Roller sports (e.g., skateboards, inline skates)
Electric scooters and small machinery
