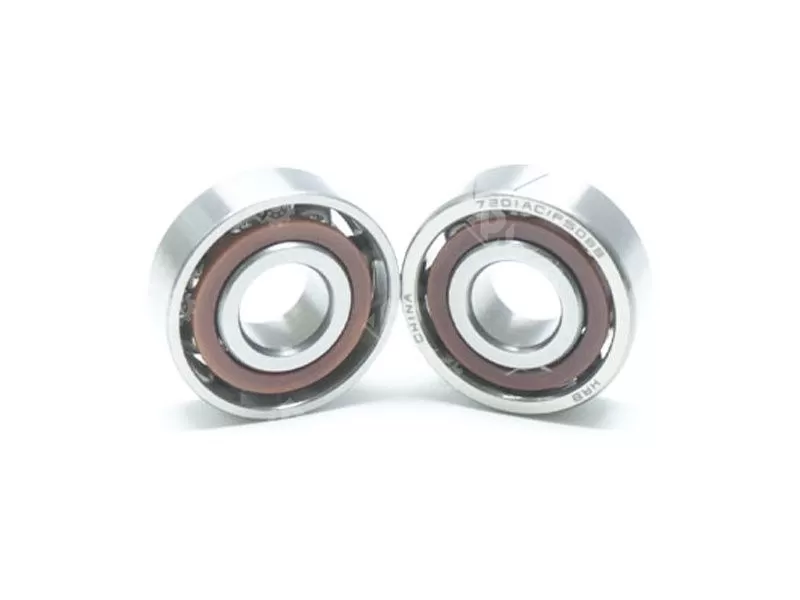

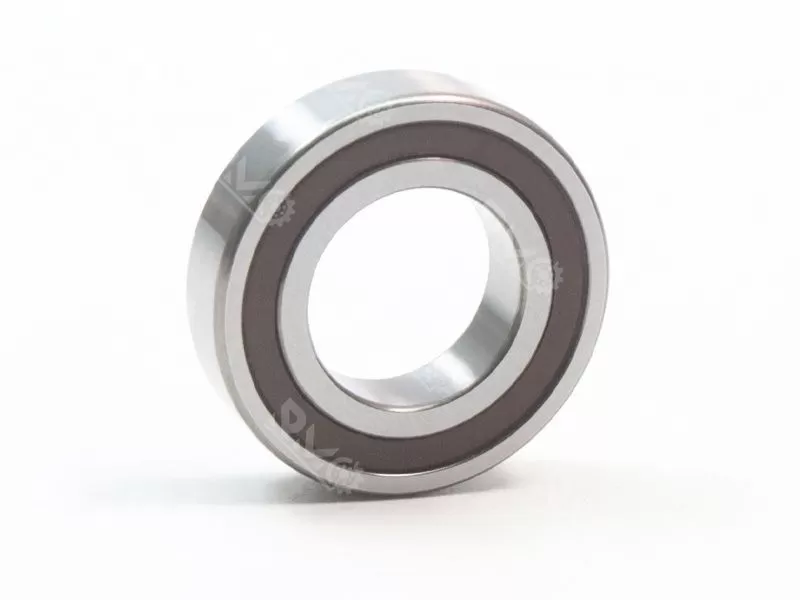

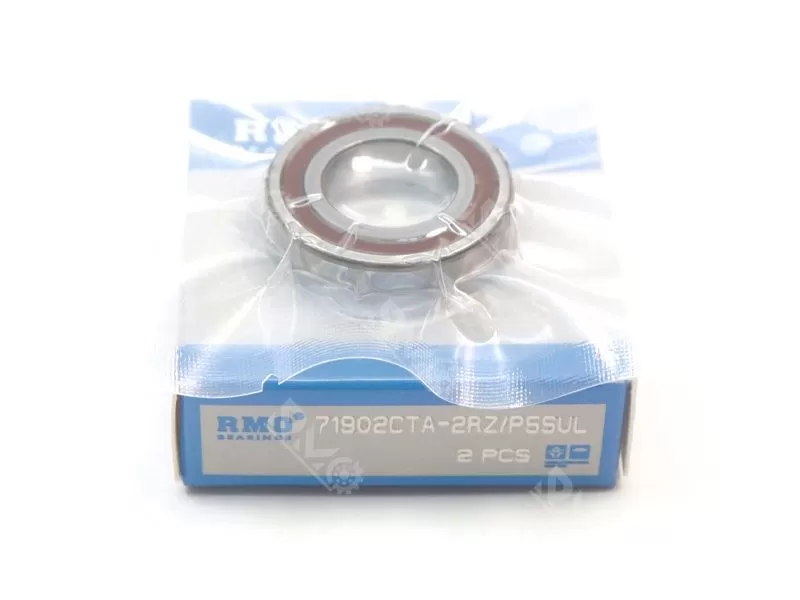

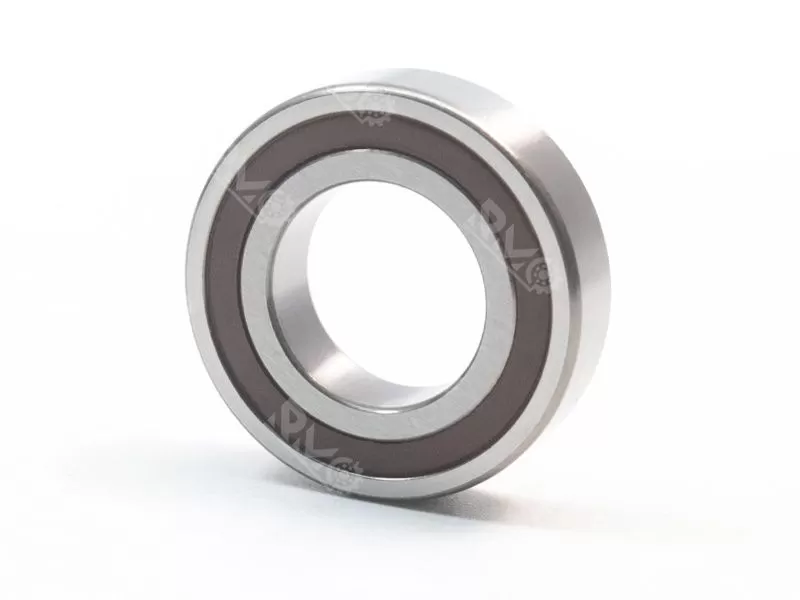

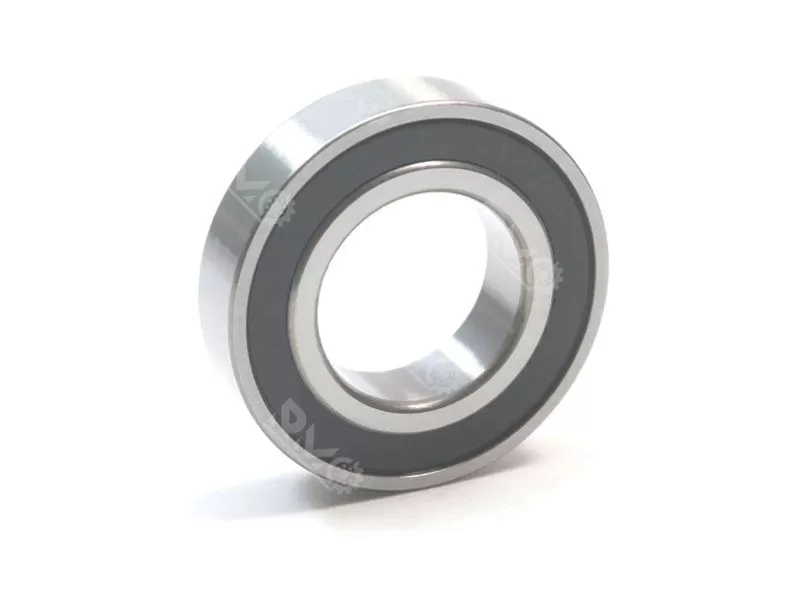

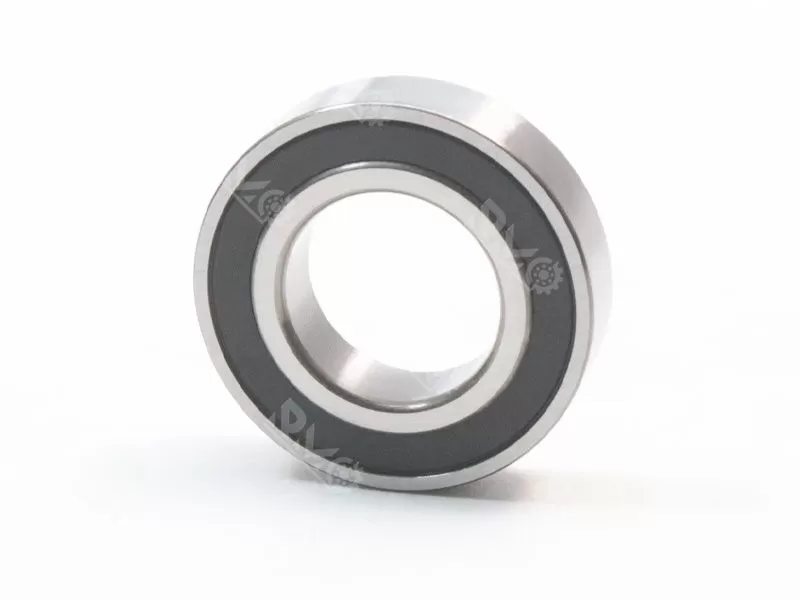

71902CTA-2RZ/P5SUL 71902C angular contact ball bearing

Angular contact ball bearings can bear both radial and axial loads. Can work at higher rotational speeds.

Model number: 71902CTA-2RZ/P5SUL 71902C

Size: 15x28x7mm

Quality: P5 grade

Materials: Gcr15.chrome steel

Weight: 0.021KG

Package: Plastic Tube/single box+Carton+Pallet

Service: OEM/ODM

Country of origin: Guangzhou City, Guangdong, China

Small order: accept

Inquire Now

Specification

Angular contact ball bearing types:

7000C (∝=15°), 7000AC (∝=25°) and 7000B(∝=40°).

Accuracy level: P0(common), P6(P6X), P5, P4, P2.

Angular contact ball bearing features:

Angular contact ball bearings can withstand radial and axial loads, and can also withstand pure axial loads, suitable for working at higher speeds. Single row angular contact ball bearings can only withstand the axial load in one direction. When subjected to radial loads, additional axial forces are caused and the axial displacement of the shaft or housing can only be limited in one direction. If installed in pairs, the same end faces of the outer rings of a pair of bearings can be opposite, which can avoid causing additional axial forces and limit the axial clearance of the shaft or housing in both directions.

Related Products

Bearings NO.	ID(dDB)mm	Weight (KG)	Bearings NO.	ID(dDB)mm	Weight (KG)
71800	10195	0.005	71900	10226	0.009
71801	12215	0.006	71901	12246	0.009
71802	15245	0.007	71902	15287	0.011
71803	17265	0.0078	71903	17307	0.016
71804	20327	0.01	71904	20379	0.018
71805	25377	0.016	71905	25429	0.036
71806	30427	0.026	71906	30479	0.042
71807	35477	0.029	71907	355510	0.048
71808	40527	0.033	71908	406212	0.074
71809	45587	0.04	71909	456812	0.112
71810	50657	0.052	71910	507212	0.132
71811	55729	0.081	71911	558013	0.133
71812	607810	0.106	71912	608513	0.185
71813	658510	0.13	71913	659013	0.193
71814	709010	0.14	71914	7010016	0.211
71815	759510	0.145	71915	7510516	0.342
71816	8010010	0.154	71916	8011016	0.363
71817	8511013	0.27	71917	8512018	0.382
71818	9011513	0.285	71918	9012518	0.535
71819	9512013	0.3	71919	9513018	0.565
71820	10012513	0.313	71920	10014020	0.785

Applications

It is suitable for fertilizer processing equipment, soft drive, printing machine, counting machine, dehumidifier, welding machine, special machine tools, fermentation extraction equipment, cutting machine, woodworking machine, corrosion resistant pump, water washing machine, magnetic separation equipment, machine shield, garbage truck, separator, crane, welding machine, hollow blade dryer, Roots pump, welding machine, woodworking machinery, food machinery, ironing machine, radial drilling machine Steel bar cutting machine, pressure welding machine, heater, torsion testing machine and other fields.
