Spherical Roller Bearings

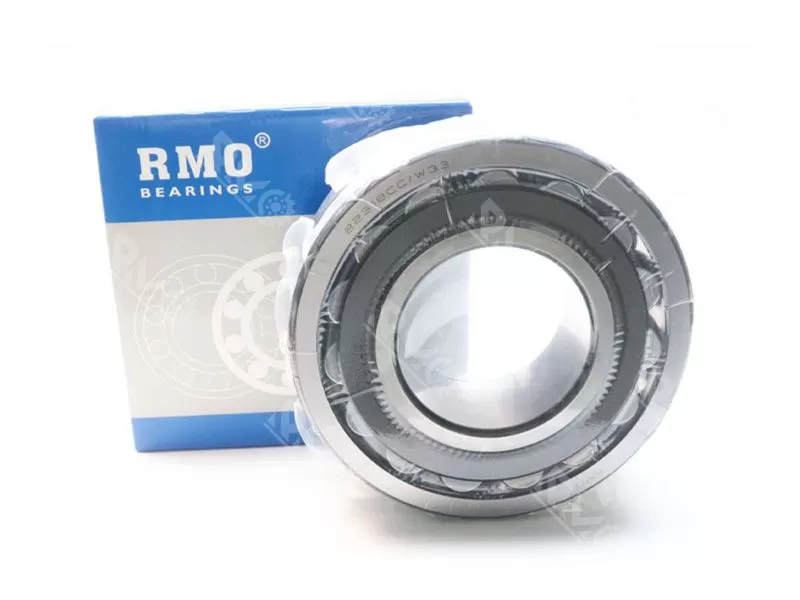

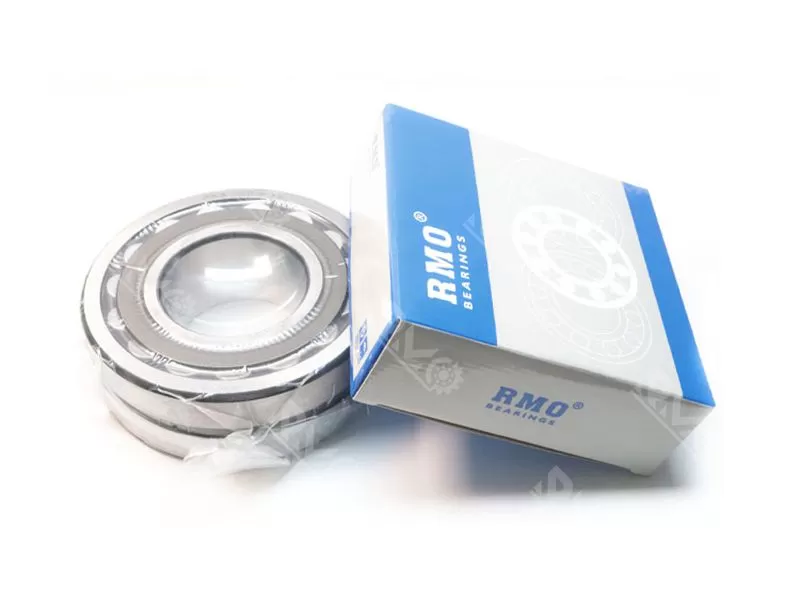

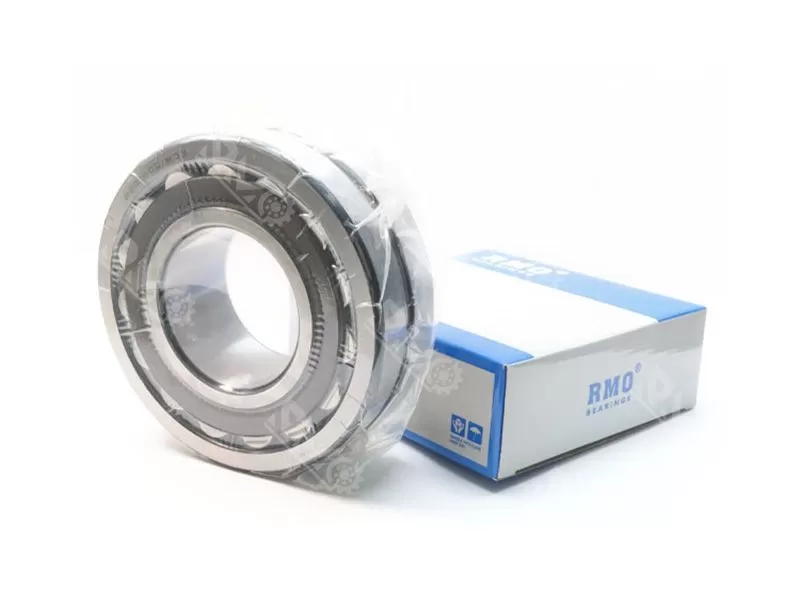

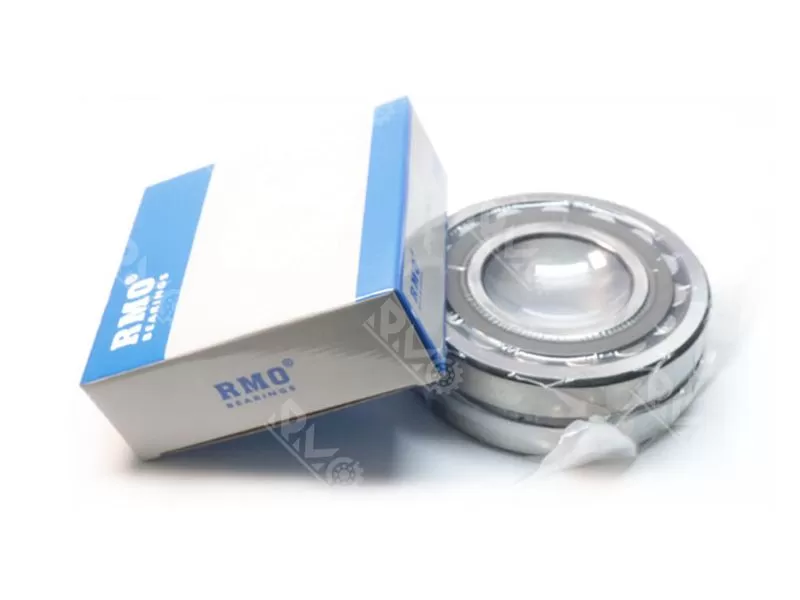

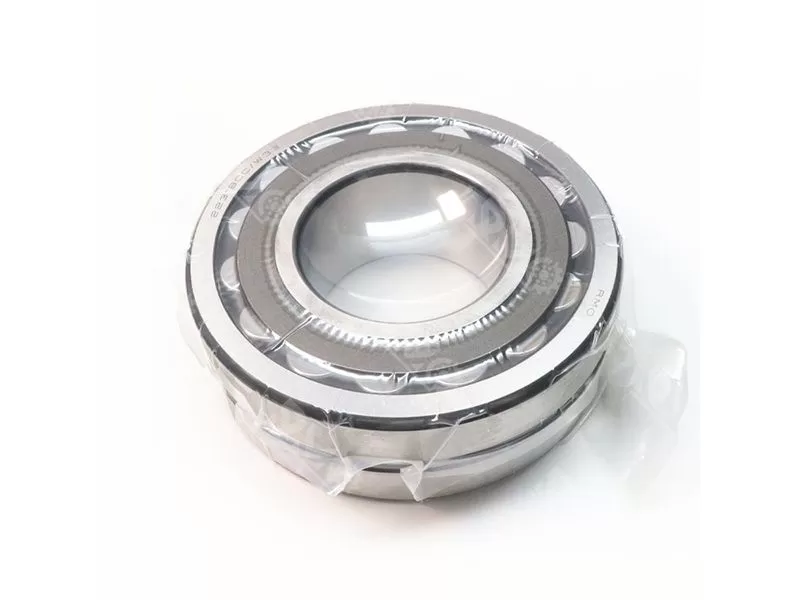

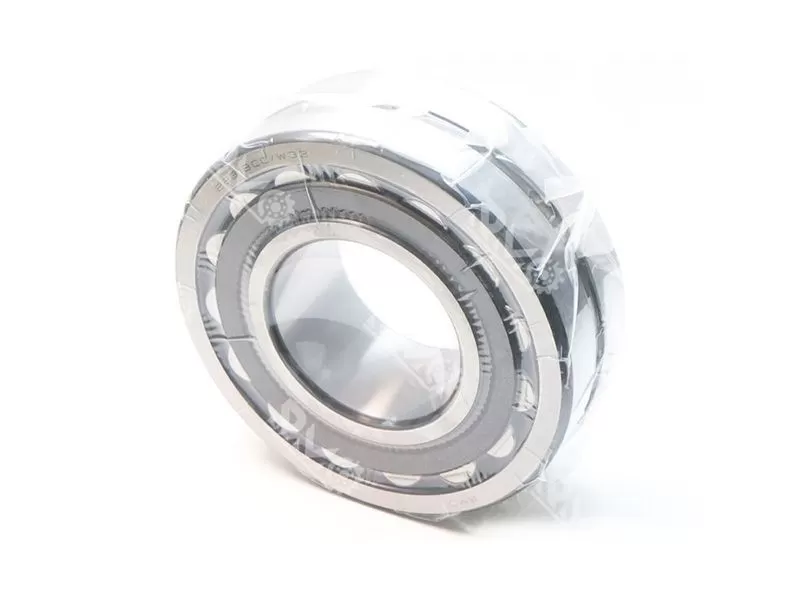

22318CC/W33 22318 double-row spherical roller bearing, with cylindrical and conical inner holes. P6 Grade quality, high load capacity.
Product name: 22318CC/W33
Size: 90x190x64mm
Material: chrome steel Gcr15.
weight: 10KG
Lead time: normally 3-5 days
Specification
Package: single box+Carton+Pallet
MOQ: 1 PCS
Shipping Port: Guangzhou, Ningbo, Shanghai
Payment: 100% T/T or 30% T/T before production, 70% before delivery
Introductions:
The self-aligning roller bearing has a double row of rollers, the outer ring has a common spherical raceway, the inner ring has two raceways and is tilted at an Angle relative to the bearing axis. This clever structure makes it have automatic aligning performance, so it is not easy to be affected by the Angle of shaft and bearing box seat on the error or shaft bending, and is suitable for installation error or shaft deflection caused by Angle error occasions. The bearing can not only bear radial load, but also bear bi-directional axial load.
The inner hole of the aligning roller bearing has two kinds of cylindrical and conical, the taper of the conical cone hole is 1:30 and 1:12, the conical inner hole bearing is equipped with a tight sleeve or a discharge sleeve, and the conical inner hole aligning ball bearing can be conveniently and quickly assembled on the optical shaft or the ladder machine shaft.
The models of self-aligning roller bearings are: self-aligning roller bearings (20000CC type); Taper hole aligning roller bearing (20000CCK type); Self-aligning roller bearing (20000CC/W33 type); Tapered hole aligning roller bearing (20000CCK/W33 type); Self-aligning roller bearings (20000CCK+H type) mounted on tight sets; There are 6 kinds of self-aligning roller bearings (20000CCK/W33+H type) mounted on the tight sleeve.
Mainly applicable cage: stamped steel reinforced cage (suffix E, very few in China). Stamped steel plate cage (suffix CC), glass fiber reinforced polyamide 66 cage (suffix TVPB), machined brass two-piece cage (suffix MB). Machined brass integral cage (suffix CA), stamped steel cage (suffix JPA) for vibration occasions. Vibrating brass cage (suffix EMA). The same structure, the code on the bearing may be different.
Related Products

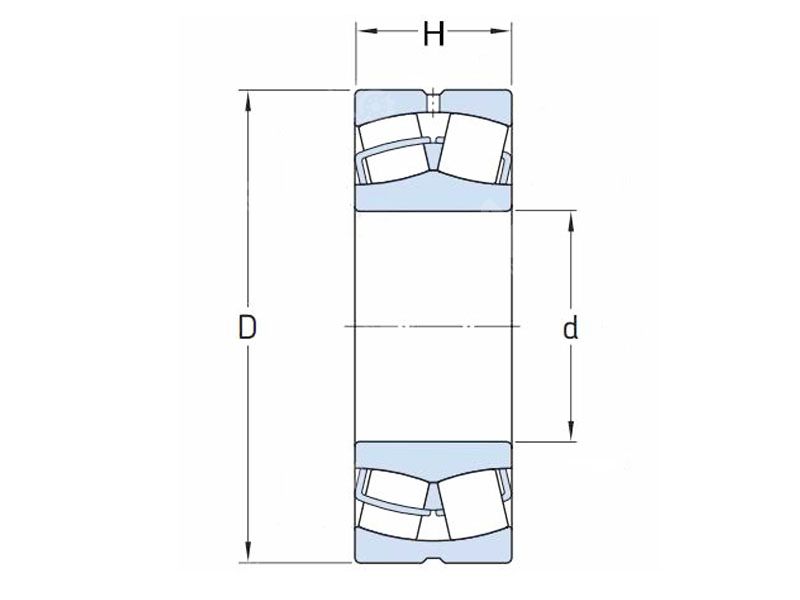

| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 22308E | 40 mm | 90 mm | 33 mm | 1.05 KG | 22324CC/W33 | 120 mm | 260 mm | 86 mm | 23 KG | |
| 22309E | 45 mm | 100 mm | 36 mm | 1.4 KG | 22326CC/W33 | 130 mm | 280 mm | 93 mm | 29 KG | |
| 22310E | 50 mm | 110 mm | 40 mm | 1.9 KG | 22328CC/W33 | 140 mm | 300 mm | 102 mm | 36.5 KG | |
| 22311E | 55 mm | 120 mm | 43 mm | 2.45 KG | 22330CC/W33 | 150 mm | 320 mm | 108 mm | 43.5 KG | |
| 22312E | 60 mm | 130 mm | 46 mm | 3.1 KG | 22332CC/W33 | 160 mm | 340 mm | 114 mm | 52 KG | |
| 22313E | 65 mm | 140 mm | 48 mm | 3.75 KG | 22334CC/W33 | 170 mm | 360 mm | 120 mm | 61 KG | |
| 22314E | 70 mm | 150 mm | 51 mm | 4.55 KG | 22336CC/W33 | 180 mm | 380 mm | 126 mm | 71.5 KG | |
| 22315E | 75 mm | 160 mm | 55 mm | 5.55 KG | 22338CC/W33 | 190 mm | 400 mm | 132 mm | 82.5 KG | |
| 22316E | 80 mm | 170 mm | 58 mm | 6.6 KG | 22340CC/W33 | 200 mm | 420 mm | 138 mm | 95 KG | |
| 22317E | 85 mm | 180 mm | 60 mm | 7.65 KG | 22344CC/W33 | 220 mm | 460 mm | 145 mm | 120 KG | |
| 22318E | 90 mm | 190 mm | 64 mm | 9.05 KG | 22348CCV33 | 240 mm | 500 mm | 155 mm | 155 KG | |
| 22319E | 95 mm | 200 mm | 67 mm | 10.5 KG | 22352CC/W33 | 260 mm | 540 mm | 165 mm | 190 KG | |
| 22320E | 100 mm | 215 mm | 73 mm | 13.5 KG | 22356CCW33 | 280 mm | 580 mm | 175 mm | 235 KG | |
| 22322E | 110 mm | 240 mm | 80 mm | 18.5 KG | 22380CA/W33 | 400 mm | 820 mm | 243 mm | 650 KG |
Main applications
paper making machinery, reducer, railway vehicle axle, rolling mill gear box bearing seat, rolling mill roller, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, vertical aligning bearing with seat.
