Automotive parts: Suitable for low-load scenarios such as automotive generators and steering systems
Auto Bearing

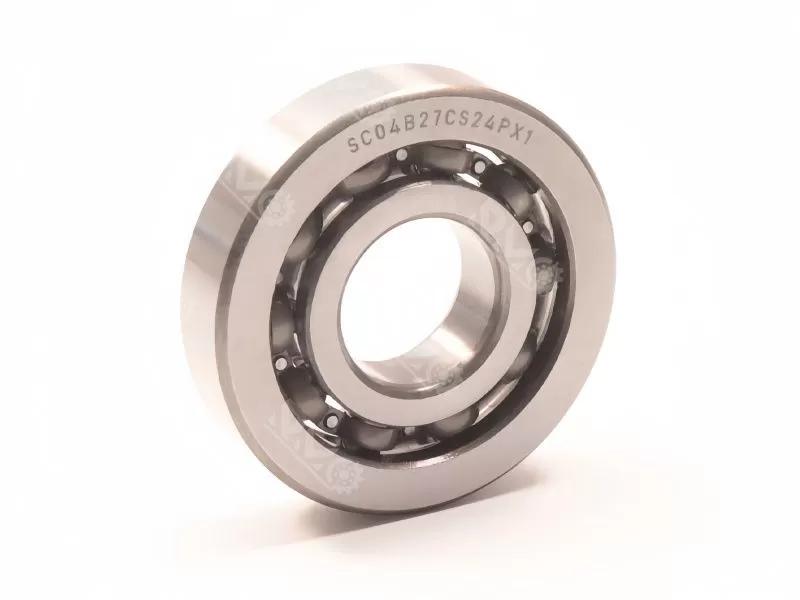

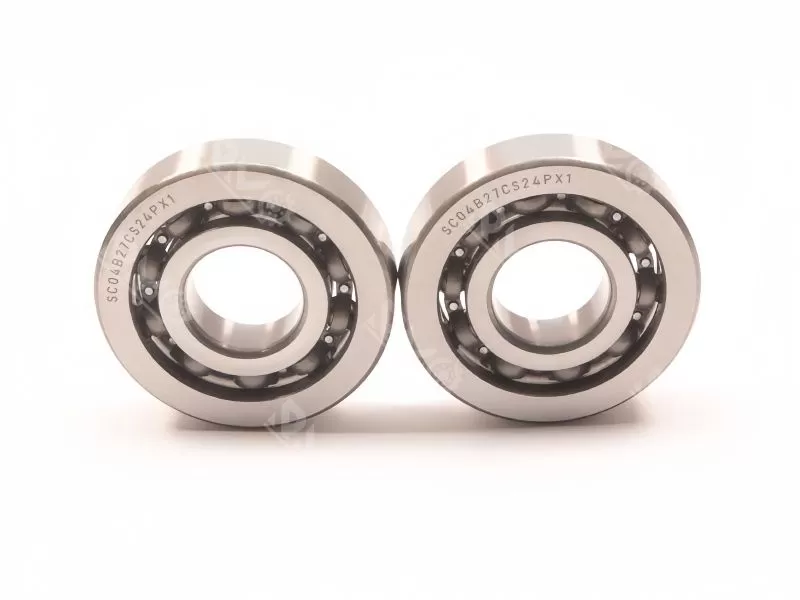

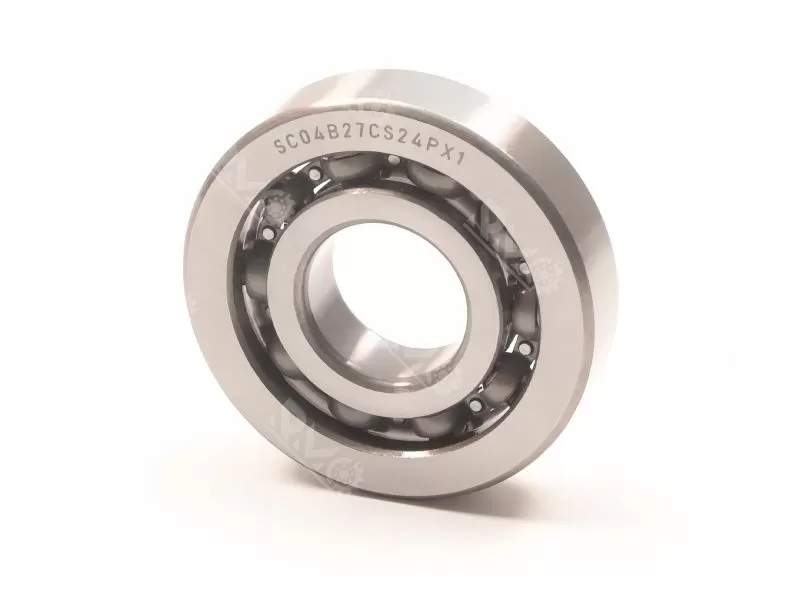

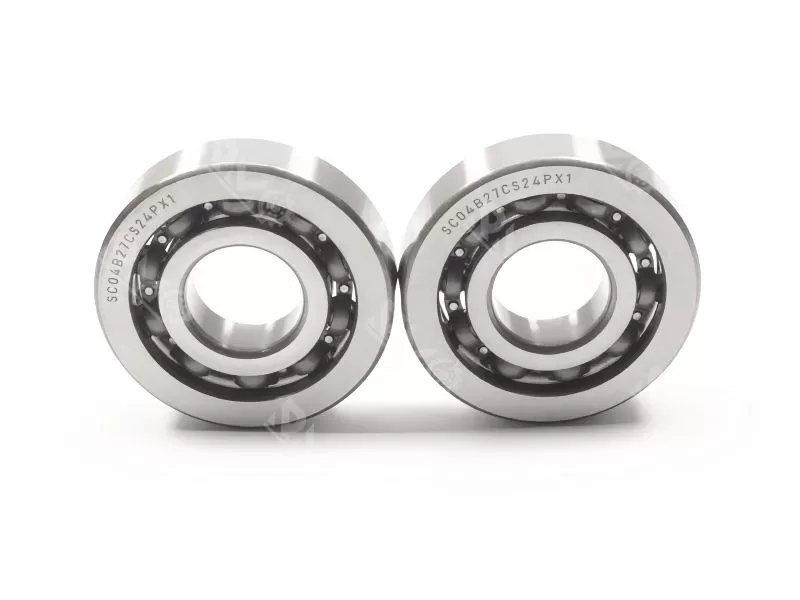

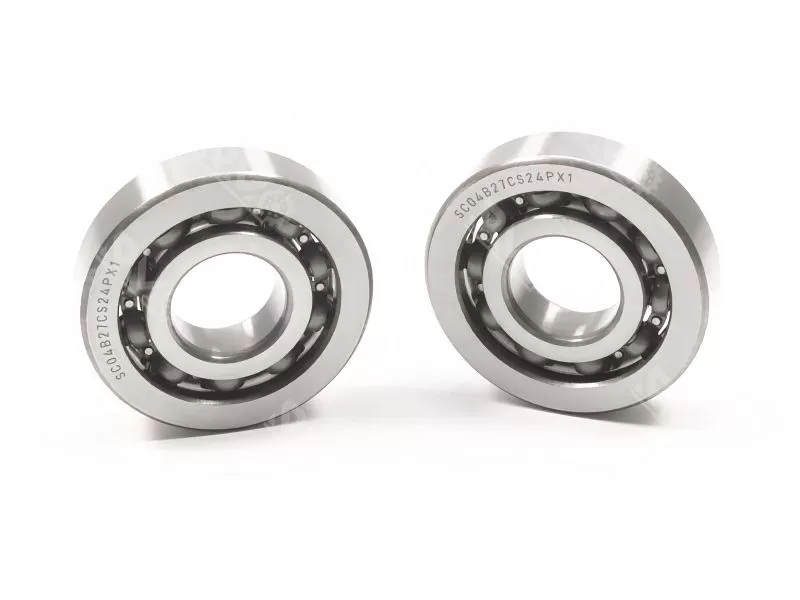

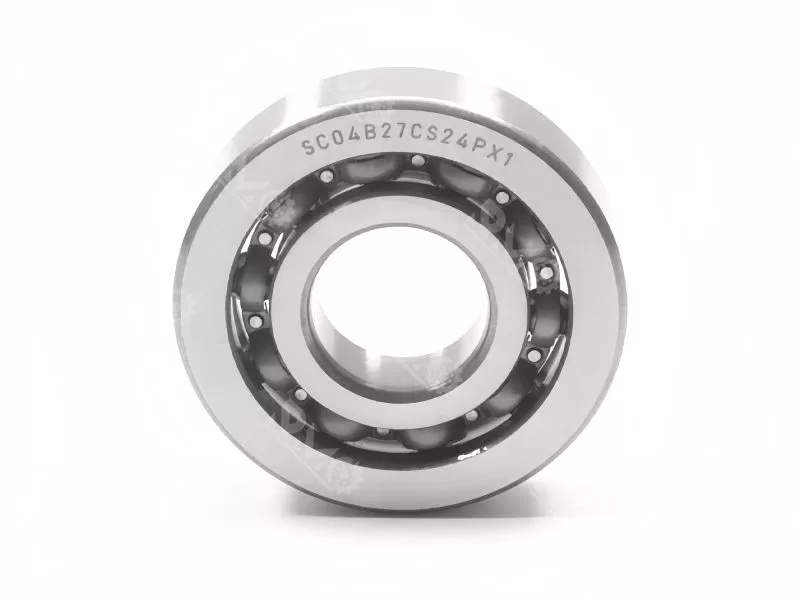

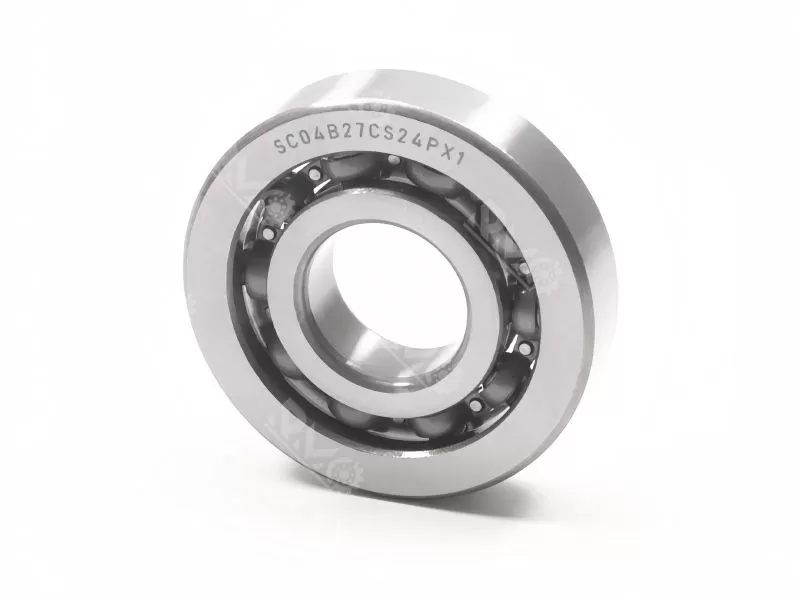

SC04B27CS24P is a non-standard model of deep groove ball bearing, and it is mainly used in the automotive industry.
Model number: SC04B27CS24P

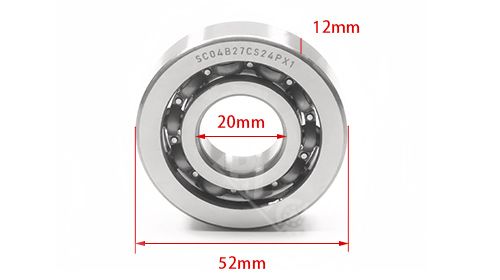

Size: 20x52x12mm
Materials: Gcr15.chrome steel
Weight: 0.14KG
MOQ:50pcs
Package: Plastic Tube or single box+Carton+Pallet
Specification
SC04B27CS24P is a specialized ball bearing featuring a contact seal, designed for automotive auxiliary systems such as air conditioning compressors and water pumps. It offers dust resistance and oil resistance properties.
Technical parameter:
| Model Number | SC04B27CS24P |
| Size | 20x52x12mm |
| Weight | 0.14KG |
| Material | Gcr15.chrome steel |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Shield Type | RS |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| MOQ | 50pcs |
| Package | Plastic Tube or single box+Carton+Pallet |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lead Taime | 3-5 Days |
Bearing type and design:
1. It is a deep groove ball bearing with a single row of rolling elements, capable of simultaneously bearing radial loads and a certain axial load.
2. It is designed with non-standard dimensions, different from the standard bearing size series.
Material and Process:
1.The material is usually bearing steel (such as GCr15), which has high hardness and wear resistance; the use of nitriding on the cage enhances impact resistance.
2.The sealing structure is optional (such as 2RS rubber sealing), suitable for working conditions that require dust prevention or oil leakage prevention.
Application fields
Automotive parts: Suitable for low-load scenarios such as automotive generators and steering systems
