V Groove nylon pully

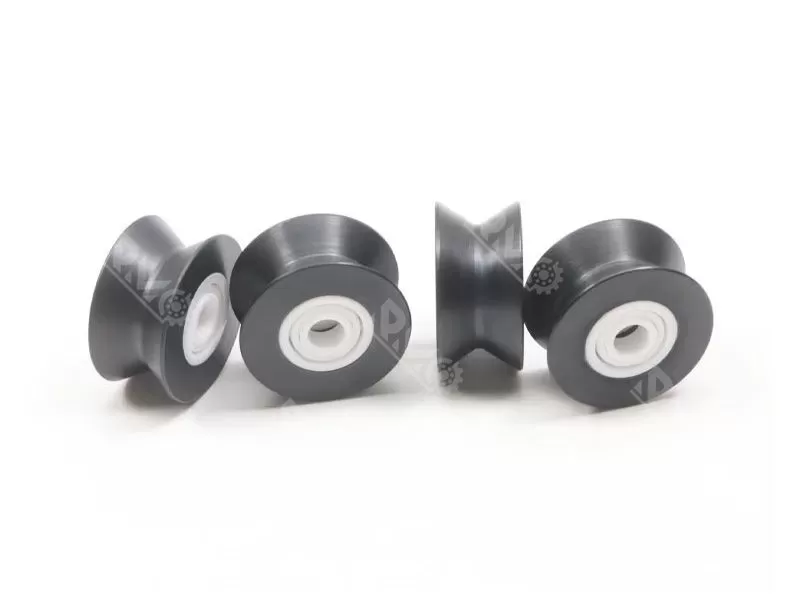

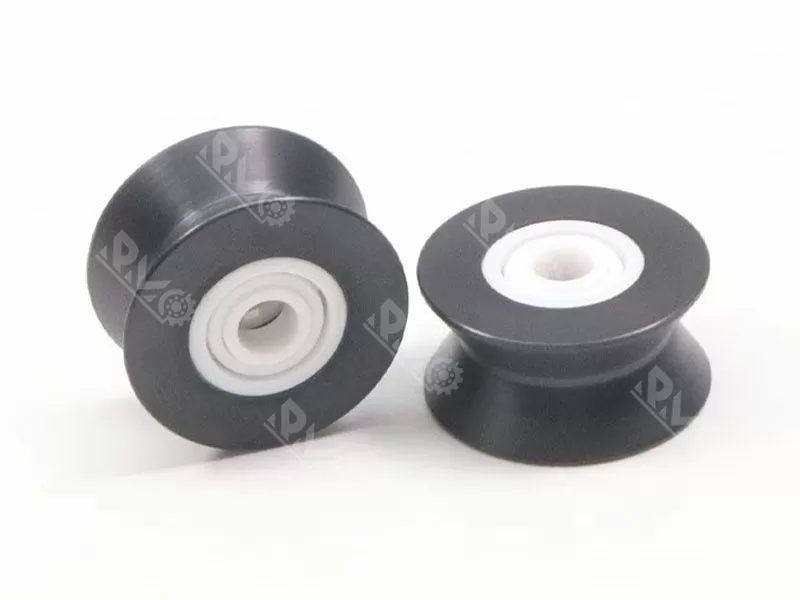

Inner bore 5mm 695 ceramic bearings with V-groove type PEEK plastic coating pulley wheel for fishing gear 5x23.4x17x11.6mm
Model number:695 V-groove type bearing pulley wheel

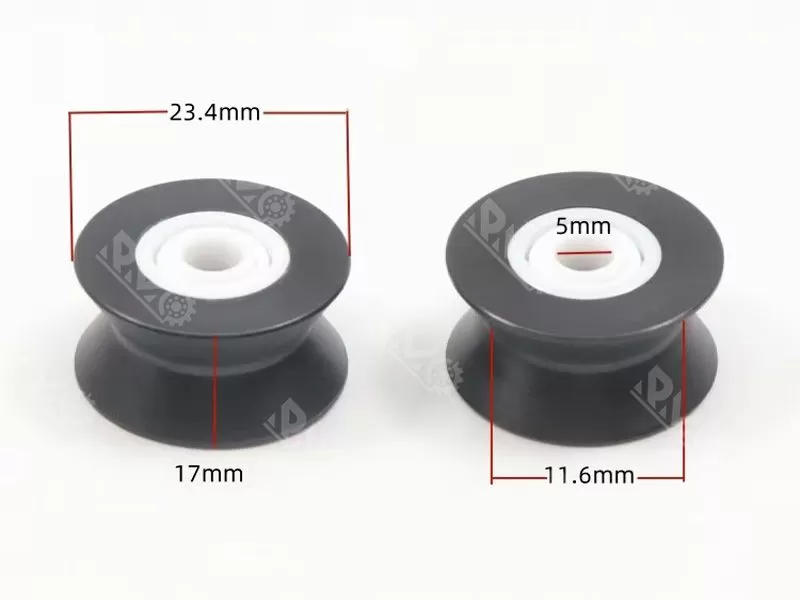

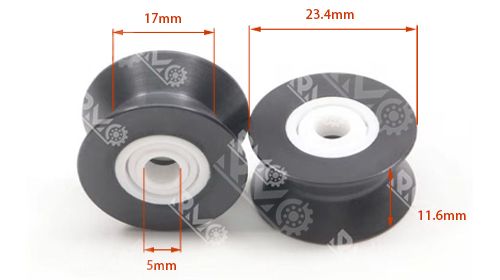

Size: 5x23.4x17x11.6mm
Material: plastic PEEK
MOQ: 100 PCS
Specification
The 695 Ceramic Bearing with PEEK Plastic-Coated Pulley is a high-performance pulley integrating ceramic bearings and a PEEK (polyetheretherketone) plastic coating, offering outstanding wear resistance, corrosion resistance, and high-temperature tolerance.
Technical parameter:
| Model Number | 695 V-groove type bearing pulley wheel |
| Size | 5x23.4x17x11.6mm |
| Brand name | famous brand/RMO/Neutral/OEM |
| Material | plastic PEEK |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Service | OEM/ODM |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Shipping Port | GuangZhou, NingBo, ShangHai |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
695 V-groove type bearing pulley wheel features an integrated structure combining a 695 series deep groove ball bearing (as the core rotating component) with a V-shaped grooved pulley body, where the pulley body is precisely machined with a targeted V-groove to enhance belt/rope fitting and anti-slip performance, the built-in bearing reduces rotational friction for flexible operation, and the pulley body adopts a lightweight and wear-resistant material design with a compact overall structure, enabling direct assembly via the bearing inner hole and stable adaptation to light-duty transmission and sliding scenarios.
