Linear Bearings

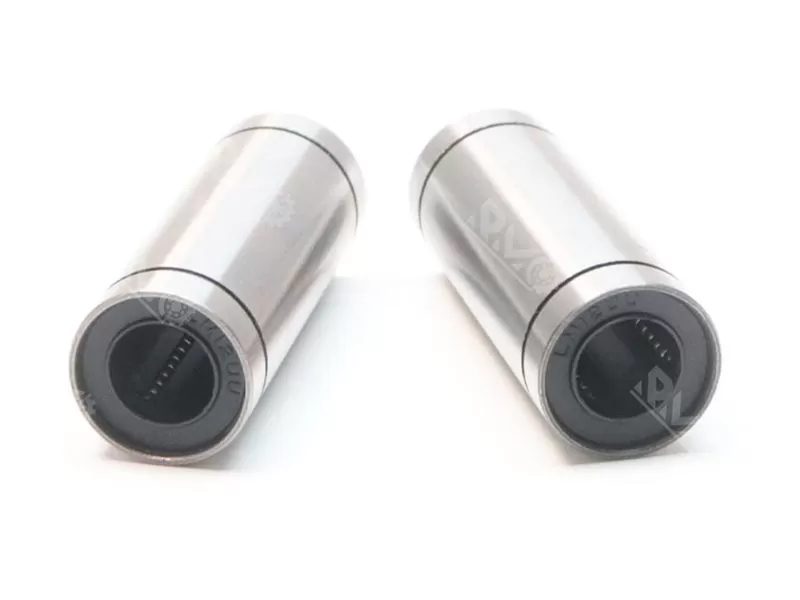

LM12LUU bearing double sealed with nylon cage. widely used in Asia and other countries. all models for this type can be done with nickle plated according to customers' requirement, with function of rust-proof.

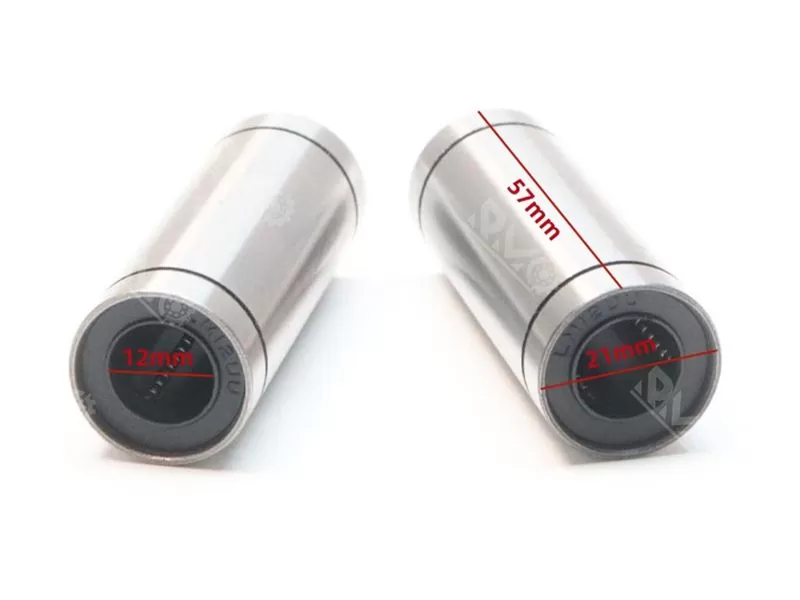

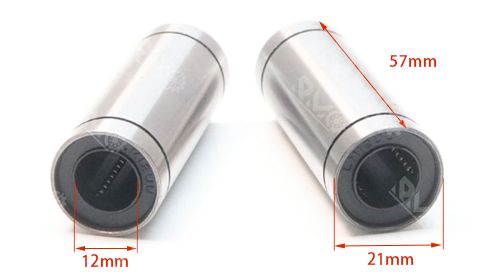

Model No: LM12LUU
Size: 12x21x57mm
Weight: 0.08KG
MOQ: 50pcs
Lead time: 3-5 days
Specification
LM12LUU Extended Linear Bearings feature an inner diameter of 12mm and an extended housing design, offering longer guidance travel and stable support. Designed for low-friction linear motion, they serve as linear transmission components for automation equipment, precision machine tools, and similar applications.
Technical parameter:
| Model Number | LM12LUU |
| Size | 12x21x57mm |
| Weight | 0.08KG |
| Material | chromel steel15 |
| Brand name | famous brand/RMO/Neutral/OEM |
| Precision Grade | p0 |
| Temperature Range | -20°C to +120°C |
| Package | industrial packaging |
| MOQ | 50pcs |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Shipping Port | GuangZhou, NingBo, ShangHai |
| Lead Taime | 3-5 Days |
Structural Design Features
Clearance Fit Design: Precision clearance fits are employed between the housing inner wall and balls, as well as between balls and guide rails. This ensures smooth motion while compensating for minor installation errors through the clearance.
Extended Guide Section: The elongated housing design increases the contact length between the bearing and guide rail. This effectively distributes loads during long-stroke movements, enhances the overall structure's resistance to deformation, and maintains motion precision.
Related Products
| Bearings NO. | ID(d*D*B)mm | Weight (KG) | Bearings NO. | ID(d*D*B)mm | Weight (KG) |
| LM3-UU | 3*7*10 | 0.0014 | LME3-UU | 3*7*10 | 0.0014 |
| LM4-UU | 4*8*12 | 0.0019 | LME4-UU | 4*8*12 | 0.002 |
| LM5-UU | 5*10*15 | 0.004 | LME5-UU | 5*12*22 | 0.011 |
| LM6-UU | 6*12*9 | 0.0076 | LME6-UU | 6*12*9 | 0.0076 |
| LM8-UU | 8*15*24 | 0.015 | LME8-UU | 8*16*25 | 0.02 |
| LM10-UU | 10*19*29 | 0.0295 | LME10-UU | 10*19*29 | 0.0295 |
| LM12-UU | 12*21*30 | 0.0315 | LME12-UU | 12*22*32 | 0.041 |
| LM13-UU | 13*23*32 | 0.043 | LME13-UU | 13*23*32 | 0.043 |
| LM16-UU | 16*28*37 | 0.069 | LME16-UU | 16*26*36 | 0.057 |
| LM20-UU | 20*32*42 | 0.087 | LME20-UU | 20*32*45 | 0.091 |
| LM25-UU | 25*40*59 | 0.22 | LME25-UU | 25*40*58 | 0.22 |
| LM30-UU | 30*45*64 | 0.25 | LME30-UU | 30*47*68 | 0.325 |
| LM35-UU | 35*52*70 | 0.39 | LME35-UU | 35*52*70 | 0.39 |
| LM40-UU | 40*60*80 | 0.585 | LME40-UU | 40*62*80 | 0.705 |
| LM50-UU | 50*80*100 | 1.58 | LME50-UU | 50*75*100 | 1.13 |
| LM60-UU | 60*90*110 | 2.0 | LME60-UU | 60*90*125 | 2.05 |
| LM80-UU | 80*120*140 | 4.52 | LME8-LUU | 8*16*46 | 0.031 |
| LM100-UU | 100*150*175 | 8.6 | LME10-LUU | 10*19*55 | 0.059 |
| LM6LUU | 6*12*35 | 0.016 | LME12-LUU | 12*22*61 | 0.08 |
| LM8LUU | 8*15*45 | 0.031 | LME16-LUU | 16*26*68 | 0.145 |
| LM10LUU | 10*19*55 | 0.062 | LME20-LUU | 20*32*80 | 0.18 |
| LM12LUU | 12*21*57 | 0.08 | LME25-LUU | 25*40*112 | 0.44 |
| LM13LUU | 13*23*61 | 0.09 | LME30-LUU | 30*47*123 | 0.58 |
| LM16LUU | 16*28*70 | 0.145 | LME40-LUU | 40*62*151 | 1.17 |
| LM20LUU | 20*32*80 | 0.18 | LME50-LUU | 50*75*192 | 3.1 |
| LM25LUU | 25*40*112 | 0.44 | LME60-LUU | 60*90*209 | 3.5 |
| LM30LUU | 30*45*123 | 0.58 | LM50LUU | 50*80*192 | 2.1 |
| LM35LUU | 35*52*135 | 0.8 | LM60LUU | 60*90*209 | 3.5 |
| LM40LUU | 40*60*154 | 1.17 | |||
Application
Linear bearings are widely used in a variety of industrial machinery, such as: precision machine tools, textile machinery, food packaging machinery, printing machinery, computers and peripheral equipment.
